Base Object for RT_Notify's CORBA Objects. More...

#include <Object.h>

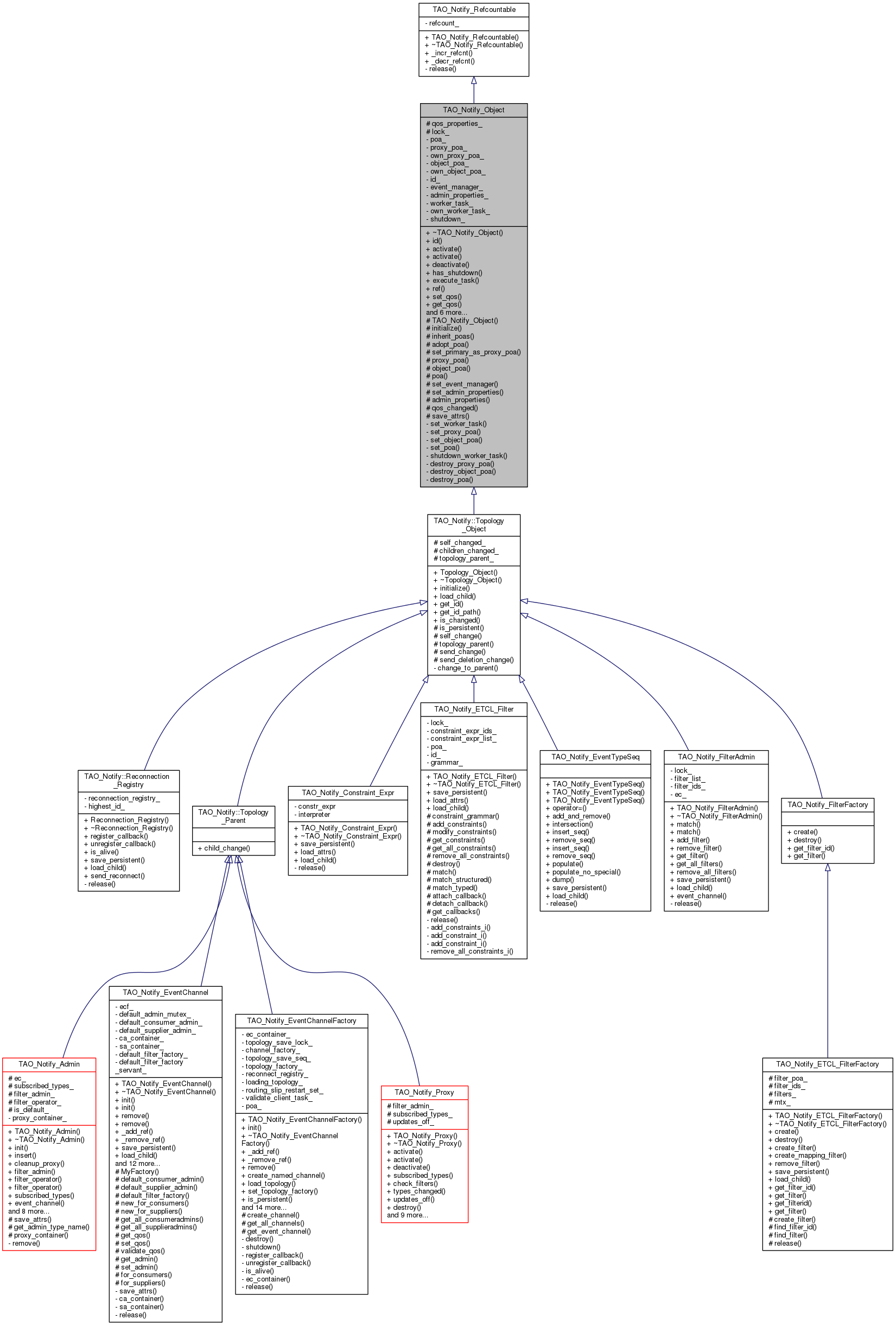

Inheritance diagram for TAO_Notify_Object:

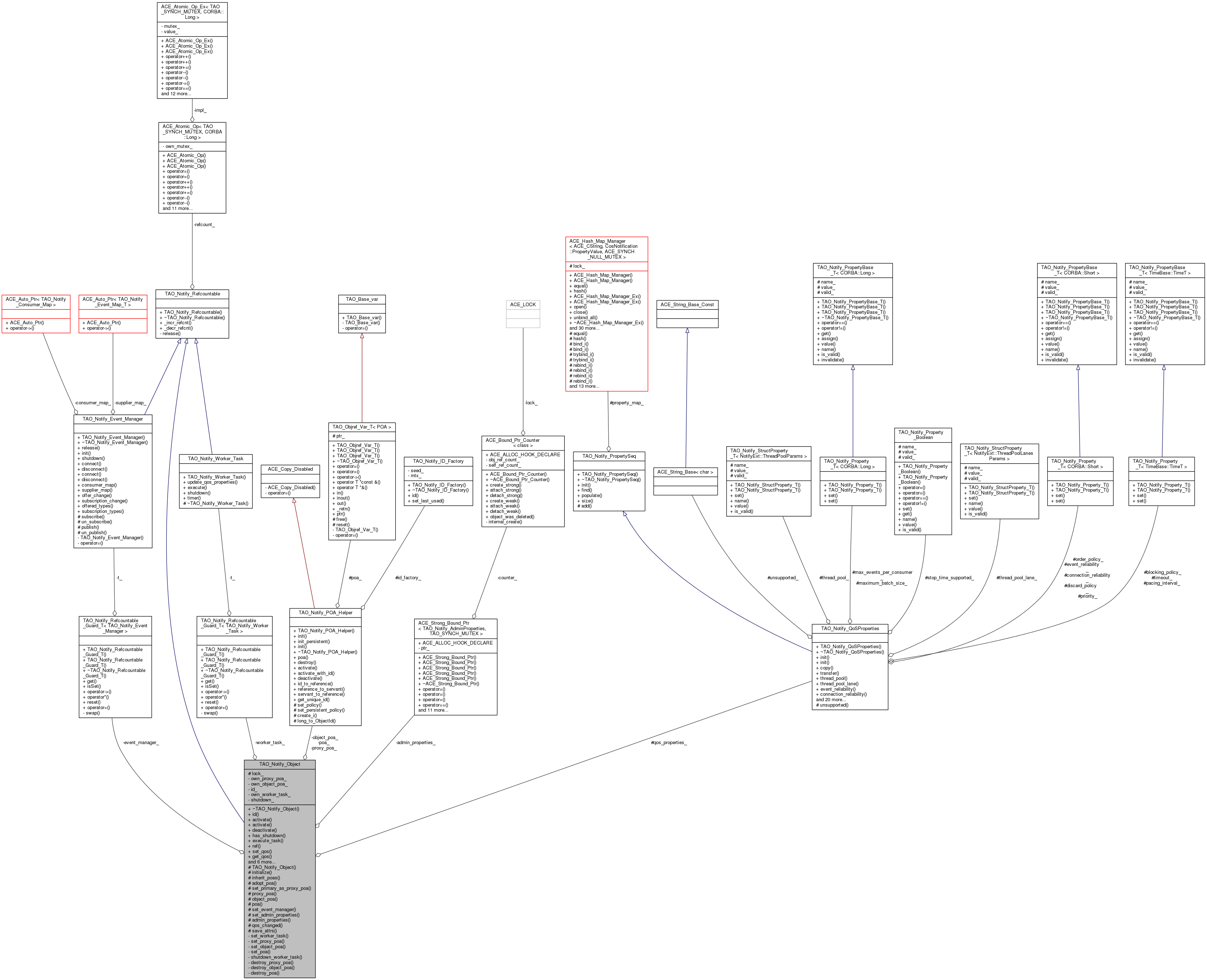

Collaboration diagram for TAO_Notify_Object:

Public Types
typedef CORBA::Long	ID
	Id for Objects. More...

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Refcountable >	Ptr

Public Member Functions
virtual	~TAO_Notify_Object (void)
	Destructor. More...

ID	id (void) const
	This Object's ID. More...

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate. More...

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with existing id. More...

void	deactivate (void)
	Deactivate. More...

bool	has_shutdown (void)
	Have we been shutdown. returns true if shutdown. More...

void	execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr	ref (void)
	Get CORBA Ref. More...

virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties. More...

CosNotification::QoSProperties *	get_qos (void)
	Get the QoS Properties. More...

bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timer *	timer (void)
	Obtain the Timer manager associated with this object. More...

TAO_Notify_Event_Manager &	event_manager (void)
	Accessor for the Event Manager. More...

virtual int	shutdown (void)
	Shutdown. Returns 1 if the shutdown was already run once before. More...

virtual void	load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify_Worker_Task *	get_worker_task (void)
	Allow access to the underlying worker task. More...

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable (void)
	Constructor. More...

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt (void)

CORBA::ULong	_decr_refcnt (void)

Protected Member Functions
	TAO_Notify_Object (void)
	Constructor. More...

void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>. More...

void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object. More...

void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas. More...

void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa. More...

TAO_Notify_POA_Helper *	proxy_poa (void)
	Accessor for the proxy_poa_. More...

TAO_Notify_POA_Helper *	object_poa (void)
	Accessor for the object_poa_. More...

TAO_Notify_POA_Helper *	poa (void)
	Get the POA assigned to us. More...

void	set_event_manager (TAO_Notify_Event_Manager *event_manager)

void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminProperties &	admin_properties (void)
	Accessor for the Admin Properties. More...

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)

virtual void	save_attrs (TAO_Notify::NVPList &attrs)

Protected Attributes
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members. More...

TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables. More...

Private Member Functions
void	set_worker_task (TAO_Notify_Worker_Task *worker_task)
	Set Worker Task. This object assume ownership of the set object. More...

void	set_proxy_poa (TAO_Notify_POA_Helper *proxy_poa)
	Setting the proxy_poa_ gives ownership to this class. More...

void	set_object_poa (TAO_Notify_POA_Helper *object_poa)
	Setting the object_poa_ gives ownership to this class. More...

void	set_poa (TAO_Notify_POA_Helper *object_poa)
	Setting the object_poa_ gives ownership to this class. More...

void	shutdown_worker_task (void)
	Shutdown the current worker task and delete it if we own it. More...

void	destroy_proxy_poa (void)
	Shutdown the current proxy poa. More...

void	destroy_object_poa (void)
	Shutdown the current object poa. More...

void	destroy_poa (void)
	Shutdown the current poa. More...

Private Attributes
TAO_Notify_POA_Helper *	poa_
	The POA in which the object is activated. More...

TAO_Notify_POA_Helper *	proxy_poa_
	The POA in which the proxys are activated. More...

bool	own_proxy_poa_

TAO_Notify_POA_Helper *	object_poa_
	The POA in which the object's children are activated. More...

bool	own_object_poa_

ID	id_
	Id assigned to this object. More...

TAO_Notify_Refcountable_Guard_T < TAO_Notify_Event_Manager >	event_manager_

TAO_Notify_AdminProperties::Ptr	admin_properties_
	Admin Properties. More...

TAO_Notify_Worker_Task::Ptr	worker_task_
	Worker Task. More...

bool	own_worker_task_

bool	shutdown_
	Are we shutdown (i,e. scheduled for destroy). More...

Friends
class	TAO_Notify_Builder

class	TAO_Notify_RT_Builder

Detailed Description

Base Object for RT_Notify's CORBA Objects.

Member Typedef Documentation

typedef CORBA::Long TAO_Notify_Object::ID

Id for Objects.

Constructor & Destructor Documentation

TAO_Notify_Object::~TAO_Notify_Object ( void )

virtual

Destructor.

TAO_Notify_Object::TAO_Notify_Object ( void )

protected

Constructor.

Member Function Documentation

CORBA::Object_ptr TAO_Notify_Object::activate ( PortableServer::Servant servant )

virtual

Activate.

Reimplemented in TAO_Notify_Proxy, and TAO_Notify_RT_StructuredProxyPushSupplier.

CORBA::Object_ptr TAO_Notify_Object::activate	(	PortableServer::Servant	servant,
		CORBA::Long	id
	)

virtual

Activate with existing id.

Reimplemented in TAO_Notify_Proxy, and TAO_Notify_RT_StructuredProxyPushSupplier.

TAO_Notify_AdminProperties & TAO_Notify_Object::admin_properties ( void )

protected

Accessor for the Admin Properties.

void TAO_Notify_Object::adopt_poa ( TAO_Notify_POA_Helper * single )

protected

Adopts the supplied poa as all are poas.

void TAO_Notify_Object::deactivate ( void )

Deactivate.

void TAO_Notify_Object::destroy_object_poa ( void )

private

Shutdown the current object poa.

void TAO_Notify_Object::destroy_poa ( void )

private

Shutdown the current poa.

void TAO_Notify_Object::destroy_proxy_poa ( void )

private

Shutdown the current proxy poa.

TAO_Notify_Event_Manager & TAO_Notify_Object::event_manager ( void )

Accessor for the Event Manager.

void TAO_Notify_Object::execute_task ( TAO_Notify_Method_Request & method_request )

bool TAO_Notify_Object::find_qos_property_value	(	const char *	name,
		CosNotification::PropertyValue &	value
	)		const

CosNotification::QoSProperties * TAO_Notify_Object::get_qos ( void )

Get the QoS Properties.

TAO_Notify_Worker_Task * TAO_Notify_Object::get_worker_task ( void )

Allow access to the underlying worker task.

bool TAO_Notify_Object::has_shutdown ( void )

Have we been shutdown. returns true if shutdown.

CORBA::Long TAO_Notify_Object::id ( void ) const

This Object's ID.

void TAO_Notify_Object::inherit_poas ( TAO_Notify_Object & parent )

protected

Uses the poas from the supplied object.

void TAO_Notify_Object::initialize ( TAO_Notify_Object * parent )

protected

Init this object with data from <rhs>.

void TAO_Notify_Object::load_attrs ( const TAO_Notify::NVPList & attrs )

virtual

Load our attributes. Each derived type should call the superclass load first before loading its own attributes.

Reimplemented in TAO_Notify_EventChannel, TAO_Notify_ETCL_Filter, TAO_Notify_Admin, TAO_Notify_SequenceProxyPushSupplier, TAO_Notify_StructuredProxyPushSupplier, TAO_Notify_ProxyPushSupplier, TAO_Notify_ProxyPushConsumer, TAO_Notify_SequenceProxyPushConsumer, TAO_Notify_StructuredProxyPushConsumer, and TAO_Notify_Constraint_Expr.

TAO_Notify_POA_Helper * TAO_Notify_Object::object_poa ( void )

protected

Accessor for the object_poa_.

TAO_Notify_POA_Helper * TAO_Notify_Object::poa ( void )

protected

Get the POA assigned to us.

TAO_Notify_POA_Helper * TAO_Notify_Object::proxy_poa ( void )

protected

Accessor for the proxy_poa_.

void TAO_Notify_Object::qos_changed ( const TAO_Notify_QoSProperties & qos_properties )

protectedvirtual

Notification that can be overridden by subclasses to be informed that <qos_properties_> have been modified.

Reimplemented in TAO_Notify_Proxy, and TAO_Notify_ProxySupplier.

CORBA::Object_ptr TAO_Notify_Object::ref ( void )

Get CORBA Ref.

void TAO_Notify_Object::save_attrs ( TAO_Notify::NVPList & attrs )

protectedvirtual

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.

Reimplemented in TAO_Notify_EventChannel, TAO_Notify_Proxy, and TAO_Notify_Admin.

void TAO_Notify_Object::set_admin_properties ( TAO_Notify_AdminProperties * admin_properties )

protected

void TAO_Notify_Object::set_event_manager ( TAO_Notify_Event_Manager * event_manager )

protected

void TAO_Notify_Object::set_object_poa ( TAO_Notify_POA_Helper * object_poa )

private

Setting the object_poa_ gives ownership to this class.

void TAO_Notify_Object::set_poa ( TAO_Notify_POA_Helper * object_poa )

private

Setting the object_poa_ gives ownership to this class.

void TAO_Notify_Object::set_primary_as_proxy_poa ( )

protected

Changes the primary poa to the current proxy poa.

void TAO_Notify_Object::set_proxy_poa ( TAO_Notify_POA_Helper * proxy_poa )

private

Setting the proxy_poa_ gives ownership to this class.

void TAO_Notify_Object::set_qos ( const CosNotification::QoSProperties & qos )

virtual

Set the QoS Properties.

void TAO_Notify_Object::set_worker_task ( TAO_Notify_Worker_Task * worker_task )

private

Set Worker Task. This object assume ownership of the set object.

int TAO_Notify_Object::shutdown ( void )

virtual

Shutdown. Returns 1 if the shutdown was already run once before.

Reimplemented in TAO_Notify_EventChannelFactory, TAO_Notify_EventChannel, TAO_Notify_Admin, TAO_Notify_ProxySupplier, and TAO_Notify_ProxyConsumer.

void TAO_Notify_Object::shutdown_worker_task ( void )

private

Shutdown the current worker task and delete it if we own it.

TAO_Notify_Timer * TAO_Notify_Object::timer ( void )

virtual

Obtain the Timer manager associated with this object.

Friends And Related Function Documentation

friend class TAO_Notify_Builder

friend

friend class TAO_Notify_RT_Builder

friend

Member Data Documentation

TAO_Notify_AdminProperties::Ptr TAO_Notify_Object::admin_properties_

private

Admin Properties.

TAO_Notify_Refcountable_Guard_T< TAO_Notify_Event_Manager > TAO_Notify_Object::event_manager_

private

The event manager. TAO_Notify_Event_Manager inl includes Object.h

ID TAO_Notify_Object::id_

private

Id assigned to this object.

TAO_SYNCH_MUTEX TAO_Notify_Object::lock_

protected

The mutex to serialize access to state variables.

TAO_Notify_POA_Helper* TAO_Notify_Object::object_poa_

private

The POA in which the object's children are activated.

bool TAO_Notify_Object::own_object_poa_

private

bool TAO_Notify_Object::own_proxy_poa_

private

bool TAO_Notify_Object::own_worker_task_

private

TAO_Notify_POA_Helper* TAO_Notify_Object::poa_

private

The POA in which the object is activated.

TAO_Notify_POA_Helper* TAO_Notify_Object::proxy_poa_

private

The POA in which the proxys are activated.

TAO_Notify_QoSProperties TAO_Notify_Object::qos_properties_

protected

= Protected data members.

QoS Properties.

bool TAO_Notify_Object::shutdown_

private

Are we shutdown (i,e. scheduled for destroy).

TAO_Notify_Worker_Task::Ptr TAO_Notify_Object::worker_task_

private

Worker Task.

The documentation for this class was generated from the following files:
