TAO_ECG_UDP_Receiver Class Reference

Receive events from UDP or Multicast and push them to a "local" EC. NOT THREAD-SAFE. More...

#include <ECG_UDP_Receiver.h>

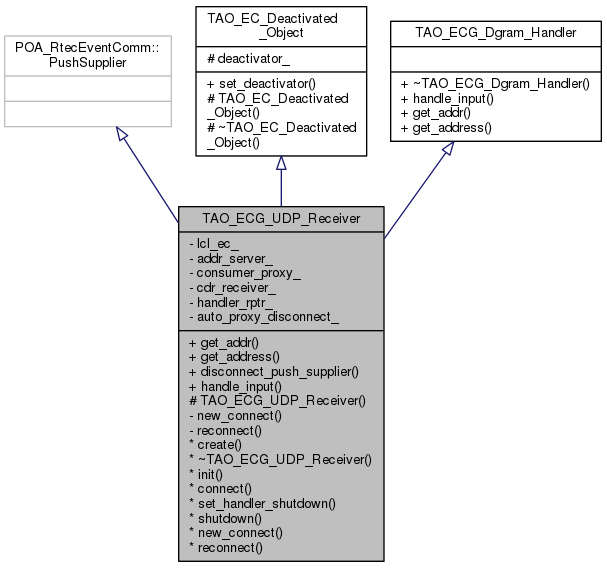

Inheritance diagram for TAO_ECG_UDP_Receiver:

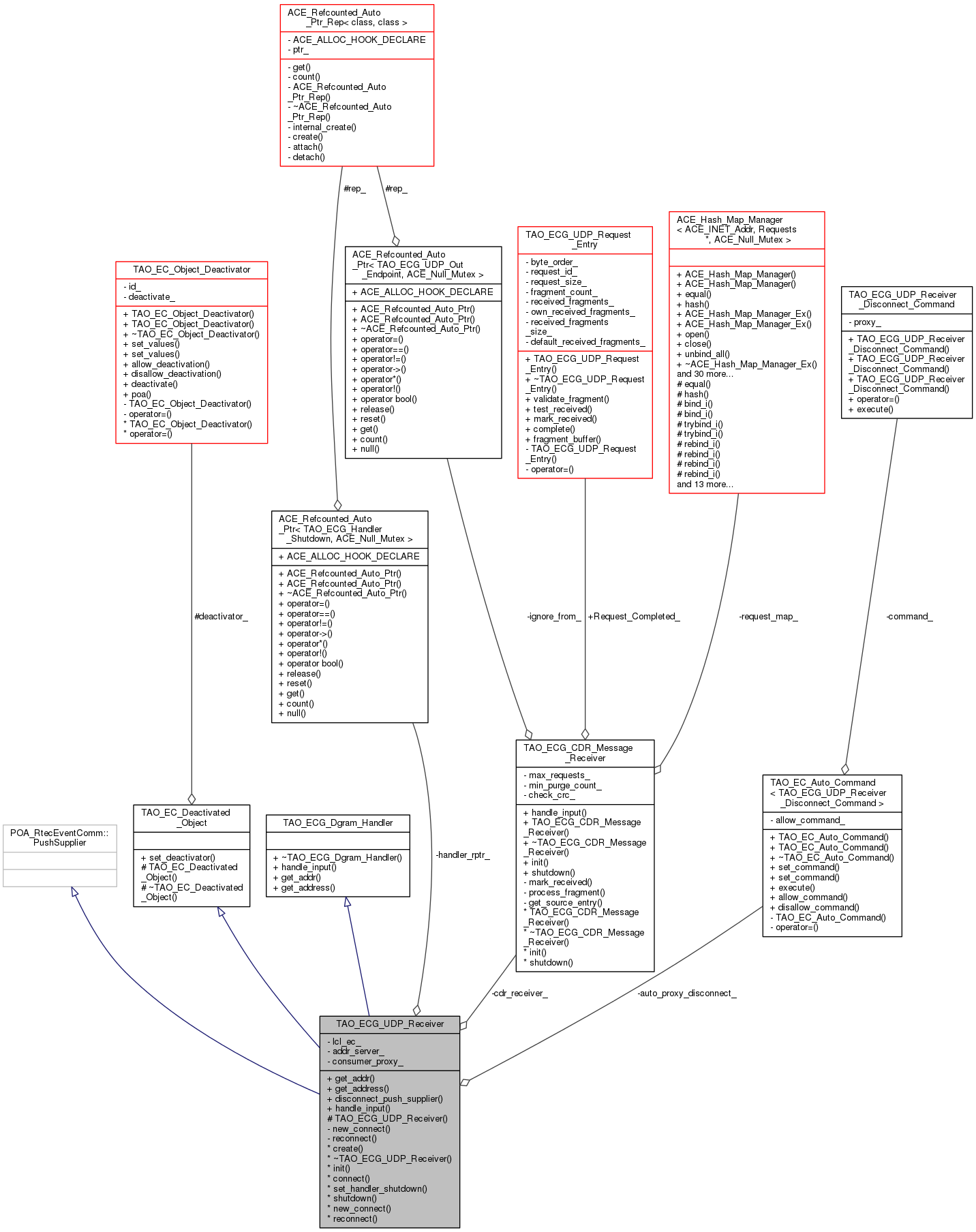

Collaboration diagram for TAO_ECG_UDP_Receiver:

Public Member Functions
void	get_addr (const RtecEventComm::EventHeader &header, RtecUDPAdmin::UDP_Addr_out addr)
void	get_address (const RtecEventComm::EventHeader &header, RtecUDPAdmin::UDP_Address_out addr)
virtual void	disconnect_push_supplier (void)
virtual int	handle_input (ACE_SOCK_Dgram &dgram)
	TAO_ECG_Dgram_Handler method. More...
Public Member Functions inherited from TAO_EC_Deactivated_Object
void	set_deactivator (TAO_EC_Object_Deactivator &deactivator)
Public Member Functions inherited from TAO_ECG_Dgram_Handler
virtual	~TAO_ECG_Dgram_Handler (void)

Protected Member Functions
	TAO_ECG_UDP_Receiver (CORBA::Boolean perform_crc=false)
Protected Member Functions inherited from TAO_EC_Deactivated_Object
	TAO_EC_Deactivated_Object (void)
	~TAO_EC_Deactivated_Object (void)

Private Types
typedef TAO_EC_Auto_Command < TAO_ECG_UDP_Receiver_Disconnect_Command >	ECG_Receiver_Auto_Proxy_Disconnect

Private Member Functions
void	new_connect (const RtecEventChannelAdmin::SupplierQOS &pub)
	Helpers for the connect() method. More...
void	reconnect (const RtecEventChannelAdmin::SupplierQOS &pub)
	Helpers for the connect() method. More...

Private Attributes
RtecEventChannelAdmin::EventChannel_var	lcl_ec_
	Event Channel to which we act as a supplier. More...
RtecUDPAdmin::AddrServer_var	addr_server_
	The server used to map event types to multicast groups. More...
RtecEventChannelAdmin::ProxyPushConsumer_var	consumer_proxy_
	Proxy used to supply events to the Event Channel. More...
TAO_ECG_CDR_Message_Receiver	cdr_receiver_
TAO_ECG_Refcounted_Handler	handler_rptr_
ECG_Receiver_Auto_Proxy_Disconnect	auto_proxy_disconnect_
	Manages our connection to Consumer Proxy. More...
static PortableServer::Servant_var < TAO_ECG_UDP_Receiver >	create (CORBA::Boolean perform_crc=0)
	Initialization and termination methods. More...
	~TAO_ECG_UDP_Receiver (void)
	Initialization and termination methods. More...
void	init (RtecEventChannelAdmin::EventChannel_ptr lcl_ec, TAO_ECG_Refcounted_Endpoint ignore_from, RtecUDPAdmin::AddrServer_ptr addr_server)
void	connect (const RtecEventChannelAdmin::SupplierQOS &pub)
	Connect or reconnect to the EC with the given publications. More...
void	set_handler_shutdown (TAO_ECG_Refcounted_Handler handler_shutdown_rptr)
void	shutdown (void)

Additional Inherited Members
Protected Attributes inherited from TAO_EC_Deactivated_Object
TAO_EC_Object_Deactivator	deactivator_
	Utility for deactivating ourselves from POA. More...

Detailed Description

Receive events from UDP or Multicast and push them to a "local" EC. NOT THREAD-SAFE.

This class connects as a supplier to an EventChannel, and supplies to it all events it receives via UDP or Multicast.

Member Typedef Documentation

typedef TAO_EC_Auto_Command<TAO_ECG_UDP_Receiver_Disconnect_Command> TAO_ECG_UDP_Receiver::ECG_Receiver_Auto_Proxy_Disconnect

private

Constructor & Destructor Documentation

TAO_ECG_UDP_Receiver::~TAO_ECG_UDP_Receiver

(

void

)

Initialization and termination methods.

Create a new TAO_ECG_UDP_Receiver object. (Constructor access is restricted to insure that all TAO_ECG_UDP_Receiver objects are heap-allocated.)

TAO_ECG_UDP_Receiver::TAO_ECG_UDP_Receiver ( CORBA::Boolean  perform_crc = false )

protected

Constructor (protected). Clients can create new TAO_ECG_UDP_Receiver objects using the static create() method.

Member Function Documentation

void TAO_ECG_UDP_Receiver::connect

(

const RtecEventChannelAdmin::SupplierQOS &

pub

)

Connect or reconnect to the EC with the given publications.

Note

If we are already connected to EC and a reconnection is necessary, the EC must have reconnects enabled in order for this method to succeed.

static PortableServer::Servant_var<TAO_ECG_UDP_Receiver> TAO_ECG_UDP_Receiver::create ( CORBA::Boolean  perform_crc = 0 )

static

Initialization and termination methods.

Create a new TAO_ECG_UDP_Receiver object. (Constructor access is restricted to insure that all TAO_ECG_UDP_Receiver objects are heap-allocated.)

void TAO_ECG_UDP_Receiver::disconnect_push_supplier ( void  )

virtual

The PushSupplier idl method. Invokes shutdown (), which may result in the object being deleted, if refcounting is used to manage its lifetime.

void TAO_ECG_UDP_Receiver::get_addr ( const RtecEventComm::EventHeader &  header, RtecUDPAdmin::UDP_Addr_out  addr  )

virtual

Accessor. Call the RtecUDPAdmin::AddrServer::get_addr. Throws exception if nil Address Server was specified in init ().

Implements TAO_ECG_Dgram_Handler.

void TAO_ECG_UDP_Receiver::get_address ( const RtecEventComm::EventHeader &  header, RtecUDPAdmin::UDP_Address_out  addr  )

virtual

Call the RtecUDPAdmin::AddrServer::get_address. Throws exception if nil Address Server was specified in init ().

Implements TAO_ECG_Dgram_Handler.

int TAO_ECG_UDP_Receiver::handle_input ( ACE_SOCK_Dgram &  dgram )

virtual

TAO_ECG_Dgram_Handler method.

UDP/Multicast Event_Handlers call this method when data is available at the socket - the <dgram> is ready for reading. Data is read from the socket, and, if complete message is received, the event is pushed to the local Event Channel.

Implements TAO_ECG_Dgram_Handler.

void TAO_ECG_UDP_Receiver::init	(	RtecEventChannelAdmin::EventChannel_ptr	lcl_ec,
		TAO_ECG_Refcounted_Endpoint	ignore_from,
		RtecUDPAdmin::AddrServer_ptr	addr_server
	)

Parameters

lcl_ec	Event Channel to which we will act as a supplier of events.
ignore_from	Endpoint used to remove events generated by the same process.
addr_server	Address server used to obtain mapping of event type to multicast group. To insure proper resource clean up, if init () is successful, shutdown () must be called when the receiver is no longer needed. This is done by disconnect_push_supplier() method. If disconnect_push_supplier() will not be called, it is the responsibility of the user. Furthermore, if shutdown() is not explicitly called by either disconnect_push_supplier () or the user, the receiver will clean up the resources in its destructor, however, certain entities involved in cleanup must still exist at that point, e.g., POA.

void TAO_ECG_UDP_Receiver::new_connect ( const RtecEventChannelAdmin::SupplierQOS &  pub )

private

Helpers for the connect() method.

void TAO_ECG_UDP_Receiver::reconnect ( const RtecEventChannelAdmin::SupplierQOS &  pub )

private

Helpers for the connect() method.

void TAO_ECG_UDP_Receiver::set_handler_shutdown

(

TAO_ECG_Refcounted_Handler

handler_shutdown_rptr

)

Set the handler we must notify when shutdown occurs. (This is the handler that alerts us when data is available on udp/mcast socket.) Shutdown notification gives the handler an opportunity to properly clean up resources.

void TAO_ECG_UDP_Receiver::shutdown

(

void

)

Deactivate from POA and disconnect from EC, if necessary. Shut down all receiver components. If this class is used with refcounting, calling this method may result in decrementing of the reference count (due to deactivation) and deletion of the object.

Member Data Documentation

RtecUDPAdmin::AddrServer_var TAO_ECG_UDP_Receiver::addr_server_

private

The server used to map event types to multicast groups.

ECG_Receiver_Auto_Proxy_Disconnect TAO_ECG_UDP_Receiver::auto_proxy_disconnect_

private

Manages our connection to Consumer Proxy.

TAO_ECG_CDR_Message_Receiver TAO_ECG_UDP_Receiver::cdr_receiver_

private

Helper for reading incoming UDP/Multicast messages. It assembles message fragments and provides access to a cdr stream once the complete message has been received.

RtecEventChannelAdmin::ProxyPushConsumer_var TAO_ECG_UDP_Receiver::consumer_proxy_

private

Proxy used to supply events to the Event Channel.

TAO_ECG_Refcounted_Handler TAO_ECG_UDP_Receiver::handler_rptr_

private

Handler we must notify when shutdown occurs, so it has an opportunity to clean up resources.

RtecEventChannelAdmin::EventChannel_var TAO_ECG_UDP_Receiver::lcl_ec_

private

Event Channel to which we act as a supplier.

---

The documentation for this class was generated from the following files:

• ECG_UDP_Receiver.h
• ECG_UDP_Receiver.cpp
