TAO_ECG_Dgram_Handler Class Reference

Interface used by mcast/udp handlers to notify interested components (usually Event Receivers) that there is data available on the dgram for reading, and to query them about event type to mcast group mappings. More...

#include <ECG_Adapters.h>

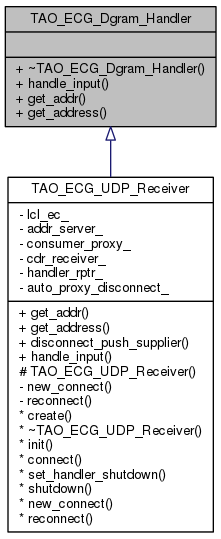

Inheritance diagram for TAO_ECG_Dgram_Handler:

Collaboration diagram for TAO_ECG_Dgram_Handler:

Public Member Functions
virtual	~TAO_ECG_Dgram_Handler (void)
virtual int	handle_input (ACE_SOCK_Dgram &dgram)=0
virtual void	get_addr (const RtecEventComm::EventHeader &header, RtecUDPAdmin::UDP_Addr_out addr)=0
virtual void	get_address (const RtecEventComm::EventHeader &header, RtecUDPAdmin::UDP_Address_out addr)=0

Detailed Description

Interface used by mcast/udp handlers to notify interested components (usually Event Receivers) that there is data available on the dgram for reading, and to query them about event type to mcast group mappings.

Constructor & Destructor Documentation

TAO_ECG_Dgram_Handler::~TAO_ECG_Dgram_Handler ( void  )

virtual

Member Function Documentation

virtual void TAO_ECG_Dgram_Handler::get_addr ( const RtecEventComm::EventHeader &  header, RtecUDPAdmin::UDP_Addr_out  addr  )

pure virtual

Call the RtecUDPAdmin::AddrServer::get_addr. Throws exception if nil Address Server was specified in init ().

Implemented in TAO_ECG_UDP_Receiver.

virtual void TAO_ECG_Dgram_Handler::get_address ( const RtecEventComm::EventHeader &  header, RtecUDPAdmin::UDP_Address_out  addr  )

pure virtual

Call the RtecUDPAdmin::AddrServer::get_address. Throws exception if nil Address Server was specified in init ().

Implemented in TAO_ECG_UDP_Receiver.

virtual int TAO_ECG_Dgram_Handler::handle_input ( ACE_SOCK_Dgram &  dgram )

pure virtual

Implemented in TAO_ECG_UDP_Receiver.

---

The documentation for this class was generated from the following files:

• ECG_Adapters.h
• ECG_Adapters.cpp
