Implement a builder for the fundamental filters. More...

#include <EC_Sched_Filter_Builder.h>

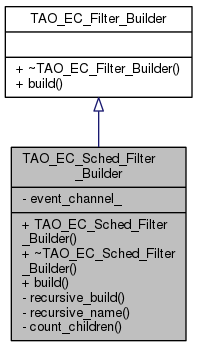

Inheritance diagram for TAO_EC_Sched_Filter_Builder:

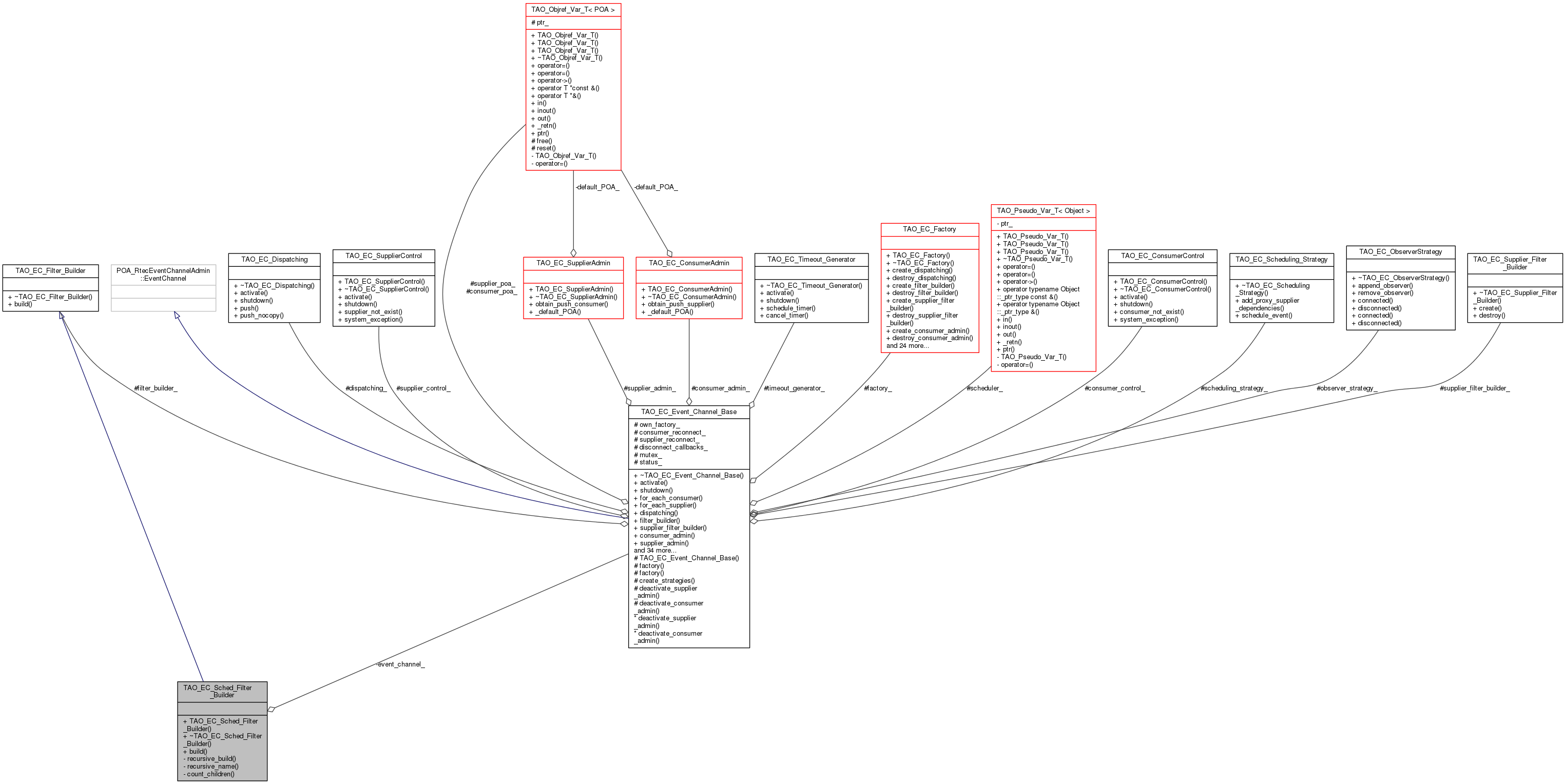

Collaboration diagram for TAO_EC_Sched_Filter_Builder:

Public Member Functions
	TAO_EC_Sched_Filter_Builder (TAO_EC_Event_Channel_Base *ec)
	constructor. More...

virtual	~TAO_EC_Sched_Filter_Builder (void)
	destructor... More...

TAO_EC_Filter *	build (TAO_EC_ProxyPushSupplier *supplier, RtecEventChannelAdmin::ConsumerQOS &qos) const

Public Member Functions inherited from TAO_EC_Filter_Builder
virtual	~TAO_EC_Filter_Builder (void)
	destructor... More...

Private Member Functions
TAO_EC_Filter *	recursive_build (TAO_EC_ProxyPushSupplier *supplier, RtecEventChannelAdmin::ConsumerQOS &qos, CORBA::ULong &pos, RtecScheduler::Scheduler_ptr scheduler, RtecScheduler::handle_t parent_info) const
	Recursively build the filter tree. More...

void	recursive_name (RtecEventChannelAdmin::ConsumerQOS &qos, CORBA::ULong &pos, RtecScheduler::Scheduler_ptr scheduler, ACE_CString &name) const
	Build the name recursively... More...

CORBA::ULong	count_children (RtecEventChannelAdmin::ConsumerQOS &qos, CORBA::ULong pos) const

Detailed Description

Implement a builder for the fundamental filters.

The sched filtering mechanisms in the Event channel (source/type based filtering + disjunctions and conjunctions) are constructed using this class.

Constructor & Destructor Documentation

TAO_EC_Sched_Filter_Builder::TAO_EC_Sched_Filter_Builder ( TAO_EC_Event_Channel_Base * ec )

constructor.

TAO_EC_Sched_Filter_Builder::~TAO_EC_Sched_Filter_Builder ( void )

virtual

destructor...

TAO_EC_Filter * TAO_EC_Sched_Filter_Builder::build	(	TAO_EC_ProxyPushSupplier *	supplier,
		RtecEventChannelAdmin::ConsumerQOS &	qos
	)		const

virtual

Create the filter, the caller must assume ownership of the filter returned.

CORBA::ULong TAO_EC_Sched_Filter_Builder::count_children	(	RtecEventChannelAdmin::ConsumerQOS &	qos,
		CORBA::ULong	pos
	)		const

private

Count the number of children of the current node, i.e. until a conjunction or disjunction starts.

TAO_EC_Filter * TAO_EC_Sched_Filter_Builder::recursive_build	(	TAO_EC_ProxyPushSupplier *	supplier,
		RtecEventChannelAdmin::ConsumerQOS &	qos,
		CORBA::ULong &	pos,
		RtecScheduler::Scheduler_ptr	scheduler,
		RtecScheduler::handle_t	parent_info
	)		const

private

Recursively build the filter tree.

void TAO_EC_Sched_Filter_Builder::recursive_name	(	RtecEventChannelAdmin::ConsumerQOS &	qos,
		CORBA::ULong &	pos,
		RtecScheduler::Scheduler_ptr	scheduler,
		ACE_CString &	name
	)		const

private

Build the name recursively...

TAO_EC_Event_Channel_Base* TAO_EC_Sched_Filter_Builder::event_channel_

private

The event channel.

The documentation for this class was generated from the following files:
