TAO_EC_Event_Channel_Base Class Reference

The RtecEventChannelAdmin::EventChannel implementation. More...

#include <EC_Event_Channel_Base.h>

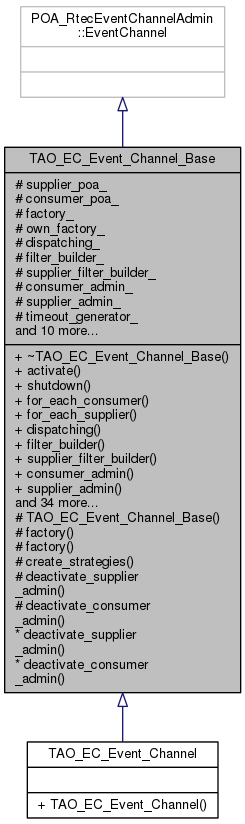

Inheritance diagram for TAO_EC_Event_Channel_Base:

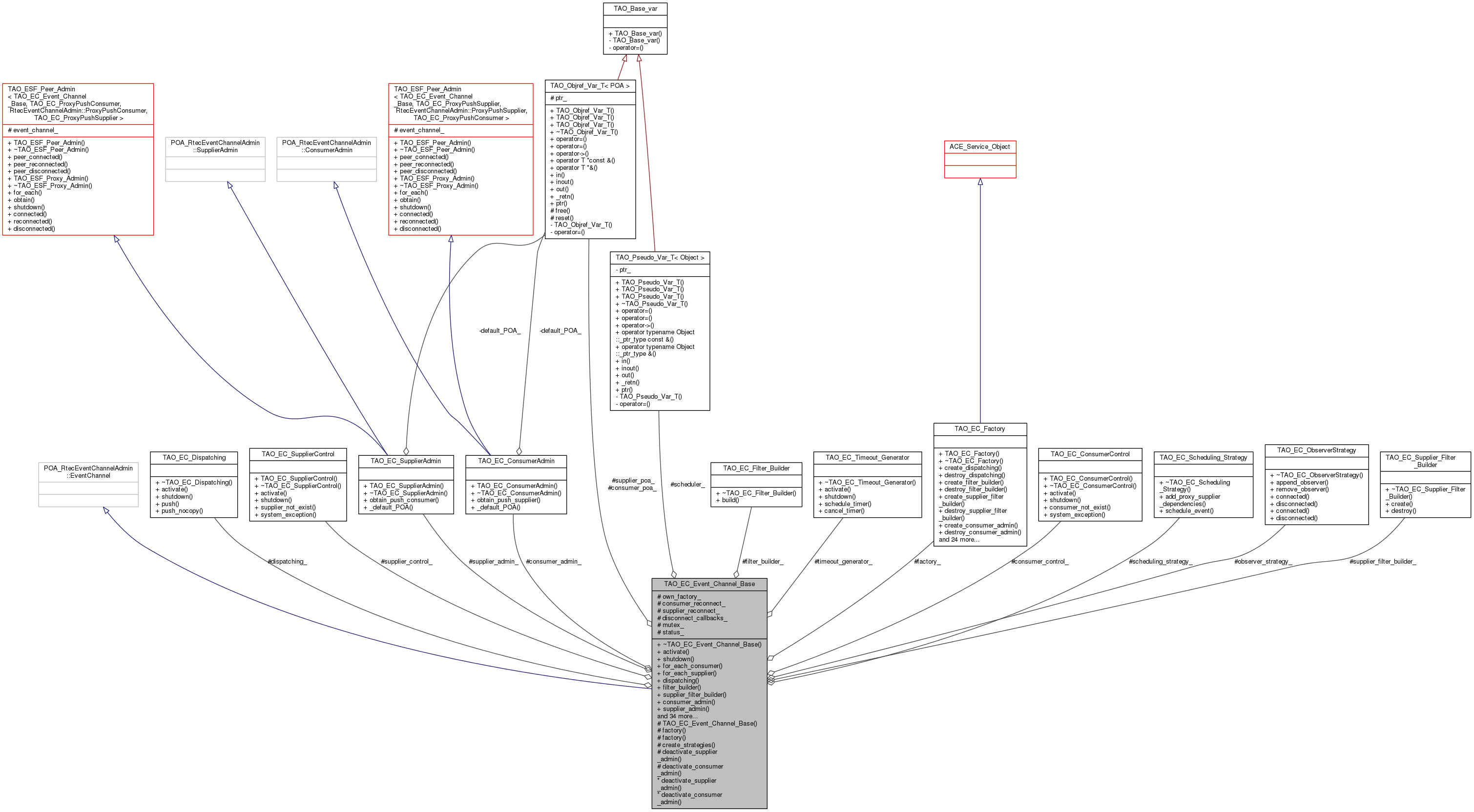

Collaboration diagram for TAO_EC_Event_Channel_Base:

Public Member Functions
virtual	~TAO_EC_Event_Channel_Base (void)
	destructor More...
virtual void	activate (void)
virtual void	shutdown (void)
virtual void	for_each_consumer (TAO_ESF_Worker< TAO_EC_ProxyPushSupplier > *worker)
virtual void	for_each_supplier (TAO_ESF_Worker< TAO_EC_ProxyPushConsumer > *worker)
TAO_EC_Dispatching *	dispatching (void) const
	Access the dispatching module.... More...
TAO_EC_Filter_Builder *	filter_builder (void) const
	Access the filter builder.... More...
TAO_EC_Supplier_Filter_Builder *	supplier_filter_builder (void) const
	Access the filter builder.... More...
TAO_EC_ConsumerAdmin *	consumer_admin (void) const
TAO_EC_SupplierAdmin *	supplier_admin (void) const
TAO_EC_Timeout_Generator *	timeout_generator (void) const
	Access the timer module... More...
TAO_EC_Scheduling_Strategy *	scheduling_strategy (void) const
	Access the scheduling strategy. More...
TAO_EC_ConsumerControl *	consumer_control (void) const
	Access the client control strategies. More...
TAO_EC_SupplierControl *	supplier_control (void) const
void	create_proxy (TAO_EC_ProxyPushSupplier *&)
	Create and destroy a ProxyPushSupplier. More...
void	destroy_proxy (TAO_EC_ProxyPushSupplier *)
void	create_proxy (TAO_EC_ProxyPushConsumer *&)
	Create and destroy a ProxyPushConsumer. More...
void	destroy_proxy (TAO_EC_ProxyPushConsumer *)
void	create_proxy_collection (TAO_EC_ProxyPushSupplier_Collection *&)
void	destroy_proxy_collection (TAO_EC_ProxyPushSupplier_Collection *)
void	create_proxy_collection (TAO_EC_ProxyPushConsumer_Collection *&)
void	destroy_proxy_collection (TAO_EC_ProxyPushConsumer_Collection *)
PortableServer::POA_ptr	supplier_poa (void)
	Access the supplier and consumer POAs from the factory. More...
PortableServer::POA_ptr	consumer_poa (void)
ACE_Lock *	create_consumer_lock (void)
void	destroy_consumer_lock (ACE_Lock *)
ACE_Lock *	create_supplier_lock (void)
void	destroy_supplier_lock (ACE_Lock *)
virtual void	connected (TAO_EC_ProxyPushConsumer *)
virtual void	reconnected (TAO_EC_ProxyPushConsumer *)
virtual void	disconnected (TAO_EC_ProxyPushConsumer *)
virtual void	connected (TAO_EC_ProxyPushSupplier *)
virtual void	reconnected (TAO_EC_ProxyPushSupplier *)
virtual void	disconnected (TAO_EC_ProxyPushSupplier *)
int	consumer_reconnect (void) const
	Can the consumers reconnect to the EC? More...
int	supplier_reconnect (void) const
	Can the suppliers reconnect to the EC? More...
int	disconnect_callbacks (void) const
CORBA::Object_ptr	scheduler (void)
	Obtain the scheduler, the user must release. More...
virtual RtecEventChannelAdmin::ConsumerAdmin_ptr	for_consumers (void)
virtual RtecEventChannelAdmin::SupplierAdmin_ptr	for_suppliers (void)
virtual void	destroy (void)
	Commit suicide. More...
virtual RtecEventChannelAdmin::Observer_Handle	append_observer (RtecEventChannelAdmin::Observer_ptr)
virtual void	remove_observer (RtecEventChannelAdmin::Observer_Handle)
int	destroyed (void)
	Return 1 if the event channel is already destroyed. More...

Protected Types
enum	{   EC_S_IDLE, EC_S_ACTIVATING, EC_S_ACTIVE, EC_S_DESTROYING,   EC_S_DESTROYED }
	Flag to track the status of the event channel. More...

Protected Member Functions
	TAO_EC_Event_Channel_Base (const TAO_EC_Event_Channel_Attributes &attributes, TAO_EC_Factory *factory=0, int own_factory=0)
TAO_EC_Factory *	factory (void) const
void	factory (TAO_EC_Factory *factory, int own_factory=0)
void	create_strategies (void)
void	deactivate_supplier_admin (void)
void	deactivate_consumer_admin (void)

Protected Attributes
PortableServer::POA_var	supplier_poa_
PortableServer::POA_var	consumer_poa_
TAO_EC_Factory *	factory_
int	own_factory_
	Flag that indicates if we own the factory. More...
TAO_EC_Dispatching *	dispatching_
	The dispatching "module". More...
TAO_EC_Filter_Builder *	filter_builder_
	The filter builder. More...
TAO_EC_Supplier_Filter_Builder *	supplier_filter_builder_
	The filter builder for suppliers. More...
TAO_EC_ConsumerAdmin *	consumer_admin_
	The ConsumerAdmin implementation. More...
TAO_EC_SupplierAdmin *	supplier_admin_
	The SupplierAdmin implementation. More...
TAO_EC_Timeout_Generator *	timeout_generator_
	The timeout generator. More...
TAO_EC_ObserverStrategy *	observer_strategy_
	The observer strategy. More...
CORBA::Object_var	scheduler_
	The scheduler (may be nil) More...
TAO_EC_Scheduling_Strategy *	scheduling_strategy_
	The scheduling strategy. More...
int	consumer_reconnect_
	Consumer reconnection flags. More...
int	supplier_reconnect_
	Supplier reconnection flags. More...
int	disconnect_callbacks_
	If not zero we send callbacks when a proxy is disconnected. More...
TAO_EC_ConsumerControl *	consumer_control_
	Strategies to disconnect misbehaving or destroyed consumers. More...
TAO_EC_SupplierControl *	supplier_control_
	Strategies to disconnect misbehaving or destroyed suppliers. More...
TAO_SYNCH_MUTEX	mutex_
	Mutex to protect the internal state. More...
int	status_

Detailed Description

The RtecEventChannelAdmin::EventChannel implementation.

This class is the Mediator between all the classes in the EC implementation, its main task is to redirect the messages to the right components, to hold and manage the lifetime of the long lived objects (Timer_Module, SupplierAdmin, ConsumerAdmin and Dispatching) and to provide a simpler interface to the EC_Factory.

Member Enumeration Documentation

anonymous enum

protected

Flag to track the status of the event channel.

Enumerator
EC_S_IDLE
EC_S_ACTIVATING
EC_S_ACTIVE
EC_S_DESTROYING
EC_S_DESTROYED

Constructor & Destructor Documentation

TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base ( void  )

virtual

destructor

TAO_EC_Event_Channel_Base::TAO_EC_Event_Channel_Base ( const TAO_EC_Event_Channel_Attributes &  attributes, TAO_EC_Factory *  factory = 0, int  own_factory = 0  )

protected

Constructor If own_factory is not 0 it assumes ownership of the factory. If the factory is nil it uses the Service_Configurator to load the Factory, if not found it uses TAO_EC_Default_Resource_Factory

Member Function Documentation

void TAO_EC_Event_Channel_Base::activate ( void  )

virtual

Start the internal threads (if any), etc. After this call the EC can be used.

RtecEventChannelAdmin::Observer_Handle TAO_EC_Event_Channel_Base::append_observer ( RtecEventChannelAdmin::Observer_ptr  observer )

virtual

void TAO_EC_Event_Channel_Base::connected ( TAO_EC_ProxyPushConsumer *  consumer )

virtual

Used to inform the EC that a Consumer has connected or disconnected from it.

void TAO_EC_Event_Channel_Base::connected ( TAO_EC_ProxyPushSupplier *  supplier )

virtual

Used to inform the EC that a Supplier has connected or disconnected from it.

TAO_EC_ConsumerAdmin * TAO_EC_Event_Channel_Base::consumer_admin

(

void

)

const

Access the consumer admin implementation, useful for controlling the activation...

TAO_EC_ConsumerControl * TAO_EC_Event_Channel_Base::consumer_control

(

void

)

const

Access the client control strategies.

PortableServer::POA_ptr TAO_EC_Event_Channel_Base::consumer_poa

(

void

)

int TAO_EC_Event_Channel_Base::consumer_reconnect

(

void

)

const

Can the consumers reconnect to the EC?

ACE_Lock * TAO_EC_Event_Channel_Base::create_consumer_lock

(

void

)

Locking strategies for the ProxyPushConsumer and ProxyPushSupplier objects

void TAO_EC_Event_Channel_Base::create_proxy

(

TAO_EC_ProxyPushSupplier *&

x

)

Create and destroy a ProxyPushSupplier.

void TAO_EC_Event_Channel_Base::create_proxy

(

TAO_EC_ProxyPushConsumer *&

x

)

Create and destroy a ProxyPushConsumer.

void TAO_EC_Event_Channel_Base::create_proxy_collection

(

TAO_EC_ProxyPushSupplier_Collection *&

x

)

Create and destroy a the collections used to store ProxyPushSuppliers

void TAO_EC_Event_Channel_Base::create_proxy_collection

(

TAO_EC_ProxyPushConsumer_Collection *&

x

)

Create and destroy a the collections used to store ProxyPushConsumers

void TAO_EC_Event_Channel_Base::create_strategies ( void  )

protected

Create all strategies

ACE_Lock * TAO_EC_Event_Channel_Base::create_supplier_lock

(

void

)

void TAO_EC_Event_Channel_Base::deactivate_consumer_admin ( void  )

protected

Helpers. Deactivate admins from their POAs, ignoring any CORBA exceptions.

void TAO_EC_Event_Channel_Base::deactivate_supplier_admin ( void  )

protected

Helpers. Deactivate admins from their POAs, ignoring any CORBA exceptions.

void TAO_EC_Event_Channel_Base::destroy ( void  )

virtual

Commit suicide.

void TAO_EC_Event_Channel_Base::destroy_consumer_lock

(

ACE_Lock *

x

)

void TAO_EC_Event_Channel_Base::destroy_proxy

(

TAO_EC_ProxyPushSupplier *

supplier

)

void TAO_EC_Event_Channel_Base::destroy_proxy

(

TAO_EC_ProxyPushConsumer *

consumer

)

void TAO_EC_Event_Channel_Base::destroy_proxy_collection

(

TAO_EC_ProxyPushSupplier_Collection *

x

)

void TAO_EC_Event_Channel_Base::destroy_proxy_collection

(

TAO_EC_ProxyPushConsumer_Collection *

x

)

void TAO_EC_Event_Channel_Base::destroy_supplier_lock

(

ACE_Lock *

x

)

int TAO_EC_Event_Channel_Base::destroyed

(

void

)

Return 1 if the event channel is already destroyed.

int TAO_EC_Event_Channel_Base::disconnect_callbacks

(

void

)

const

Should we send callback disconnect messages when a proxy is disconnected by the client

void TAO_EC_Event_Channel_Base::disconnected ( TAO_EC_ProxyPushConsumer *  consumer )

virtual

void TAO_EC_Event_Channel_Base::disconnected ( TAO_EC_ProxyPushSupplier *  supplier )

virtual

TAO_EC_Dispatching * TAO_EC_Event_Channel_Base::dispatching

(

void

)

const

Access the dispatching module....

TAO_EC_Factory * TAO_EC_Event_Channel_Base::factory ( void  ) const

protected

Get the factory.

void TAO_EC_Event_Channel_Base::factory ( TAO_EC_Factory *  factory, int  own_factory = 0  )

protected

Set the factory, if own_factory is not 0 it assumes ownership of the factory.

TAO_EC_Filter_Builder * TAO_EC_Event_Channel_Base::filter_builder

(

void

)

const

Access the filter builder....

RtecEventChannelAdmin::ConsumerAdmin_ptr TAO_EC_Event_Channel_Base::for_consumers ( void  )

virtual

The default implementation is: this->consumer_admin ()->_this ();

void TAO_EC_Event_Channel_Base::for_each_consumer ( TAO_ESF_Worker< TAO_EC_ProxyPushSupplier > *  worker )

virtual

void TAO_EC_Event_Channel_Base::for_each_supplier ( TAO_ESF_Worker< TAO_EC_ProxyPushConsumer > *  worker )

virtual

RtecEventChannelAdmin::SupplierAdmin_ptr TAO_EC_Event_Channel_Base::for_suppliers ( void  )

virtual

The default implementation is: this->supplier_admin ()->_this ();

void TAO_EC_Event_Channel_Base::reconnected ( TAO_EC_ProxyPushConsumer *  consumer )

virtual

void TAO_EC_Event_Channel_Base::reconnected ( TAO_EC_ProxyPushSupplier *  supplier )

virtual

void TAO_EC_Event_Channel_Base::remove_observer ( RtecEventChannelAdmin::Observer_Handle  handle )

virtual

CORBA::Object_ptr TAO_EC_Event_Channel_Base::scheduler

(

void

)

Obtain the scheduler, the user must release.

TAO_EC_Scheduling_Strategy * TAO_EC_Event_Channel_Base::scheduling_strategy

(

void

)

const

Access the scheduling strategy.

void TAO_EC_Event_Channel_Base::shutdown ( void  )

virtual

Shutdown any internal threads, cleanup all the internal structures, flush all the messages, etc.

TAO_EC_SupplierAdmin * TAO_EC_Event_Channel_Base::supplier_admin

(

void

)

const

Access the supplier admin implementation, useful for controlling the activation...

TAO_EC_SupplierControl * TAO_EC_Event_Channel_Base::supplier_control

(

void

)

const

TAO_EC_Supplier_Filter_Builder * TAO_EC_Event_Channel_Base::supplier_filter_builder

(

void

)

const

Access the filter builder....

PortableServer::POA_ptr TAO_EC_Event_Channel_Base::supplier_poa

(

void

)

Access the supplier and consumer POAs from the factory.

int TAO_EC_Event_Channel_Base::supplier_reconnect

(

void

)

const

Can the suppliers reconnect to the EC?

TAO_EC_Timeout_Generator * TAO_EC_Event_Channel_Base::timeout_generator

(

void

)

const

Access the timer module...

Member Data Documentation

TAO_EC_ConsumerAdmin* TAO_EC_Event_Channel_Base::consumer_admin_

protected

The ConsumerAdmin implementation.

TAO_EC_ConsumerControl* TAO_EC_Event_Channel_Base::consumer_control_

protected

Strategies to disconnect misbehaving or destroyed consumers.

PortableServer::POA_var TAO_EC_Event_Channel_Base::consumer_poa_

protected

int TAO_EC_Event_Channel_Base::consumer_reconnect_

protected

Consumer reconnection flags.

int TAO_EC_Event_Channel_Base::disconnect_callbacks_

protected

If not zero we send callbacks when a proxy is disconnected.

TAO_EC_Dispatching* TAO_EC_Event_Channel_Base::dispatching_

protected

The dispatching "module".

TAO_EC_Factory* TAO_EC_Event_Channel_Base::factory_

protected

This is the abstract factory that creates all the objects that compose an event channel, the event channel simply acts as a Mediator among them.

TAO_EC_Filter_Builder* TAO_EC_Event_Channel_Base::filter_builder_

protected

The filter builder.

TAO_SYNCH_MUTEX TAO_EC_Event_Channel_Base::mutex_

protected

Mutex to protect the internal state.

TAO_EC_ObserverStrategy* TAO_EC_Event_Channel_Base::observer_strategy_

protected

The observer strategy.

int TAO_EC_Event_Channel_Base::own_factory_

protected

Flag that indicates if we own the factory.

CORBA::Object_var TAO_EC_Event_Channel_Base::scheduler_

protected

The scheduler (may be nil)

TAO_EC_Scheduling_Strategy* TAO_EC_Event_Channel_Base::scheduling_strategy_

protected

The scheduling strategy.

int TAO_EC_Event_Channel_Base::status_

protected

TAO_EC_SupplierAdmin* TAO_EC_Event_Channel_Base::supplier_admin_

protected

The SupplierAdmin implementation.

TAO_EC_SupplierControl* TAO_EC_Event_Channel_Base::supplier_control_

protected

Strategies to disconnect misbehaving or destroyed suppliers.

TAO_EC_Supplier_Filter_Builder* TAO_EC_Event_Channel_Base::supplier_filter_builder_

protected

The filter builder for suppliers.

PortableServer::POA_var TAO_EC_Event_Channel_Base::supplier_poa_

protected

The POAs used to activate "supplier-side" and "consumer-side" objects.

int TAO_EC_Event_Channel_Base::supplier_reconnect_

protected

Supplier reconnection flags.

TAO_EC_Timeout_Generator* TAO_EC_Event_Channel_Base::timeout_generator_

protected

The timeout generator.

---

The documentation for this class was generated from the following files:

• EC_Event_Channel_Base.h
• EC_Event_Channel_Base.cpp
• EC_Event_Channel_Base.inl
