TAO_Trader_Factory Class Reference

Uses command line arguments to construct a trader instance with the correct interface support, locking, and policy settings. More...

#include <Trader.h>

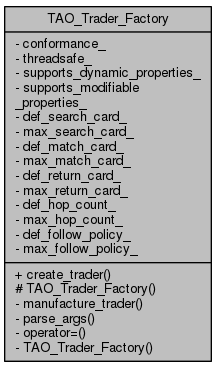

Collaboration diagram for TAO_Trader_Factory:

Public Types
typedef TAO_Trader_Base	TAO_TRADER

Static Public Member Functions
static TAO_TRADER *	create_trader (int &argc, ACE_TCHAR **argv)

Protected Member Functions
	TAO_Trader_Factory (int &argc, ACE_TCHAR **argv)

Private Types
enum	Conformance { TAO_TRADER_QUERY, TAO_TRADER_SIMPLE, TAO_TRADER_STANDALONE, TAO_TRADER_LINKED }

Private Member Functions
TAO_TRADER *	manufacture_trader (void)
void	parse_args (int &argc, ACE_TCHAR **argv)
TAO_Trader_Factory &	operator= (const TAO_Trader_Factory &)
	TAO_Trader_Factory (const TAO_Trader_Factory &)

Private Attributes
Conformance	conformance_
CORBA::Boolean	threadsafe_
CORBA::Boolean	supports_dynamic_properties_
CORBA::Boolean	supports_modifiable_properties_
CORBA::ULong	def_search_card_
CORBA::ULong	max_search_card_
CORBA::ULong	def_match_card_
CORBA::ULong	max_match_card_
CORBA::ULong	def_return_card_
CORBA::ULong	max_return_card_
CORBA::ULong	def_hop_count_
CORBA::ULong	max_hop_count_
CosTrading::FollowOption	def_follow_policy_
CosTrading::FollowOption	max_follow_policy_

Detailed Description

Uses command line arguments to construct a trader instance with the correct interface support, locking, and policy settings.

Member Typedef Documentation

typedef TAO_Trader_Base TAO_Trader_Factory::TAO_TRADER

Member Enumeration Documentation

enum TAO_Trader_Factory::Conformance

private

Enumerator
TAO_TRADER_QUERY
TAO_TRADER_SIMPLE
TAO_TRADER_STANDALONE
TAO_TRADER_LINKED

Constructor & Destructor Documentation

TAO_Trader_Factory::TAO_Trader_Factory ( int &  argc, ACE_TCHAR **  argv  )

protected

TAO_Trader_Factory::TAO_Trader_Factory ( const TAO_Trader_Factory &  )

private

Member Function Documentation

TAO_Trader_Factory::TAO_TRADER * TAO_Trader_Factory::create_trader ( int &  argc, ACE_TCHAR **  argv  )

static

Creates an instance of the trader according to parameters whose default values can be overrided with the following command line arguments:

-TSthreadsafe, default is not thread-safe -TSconformance {query, simple, stand-alone, linked}, default is linked -TSsupports_dynamic_properties {true, false}, default is true -TSsupports_modifiable_propertise {true, false}, default is true -TSdef_search_card {integer}, default is 20 -TSmax_search_card {integer}, default is 50 -TSdef_match_card {integer}, default is 20 -TSmax_match_card {integer}, default is 50 -TSdef_return_card {integer}, default is 20 -TSmax_return_card {integer}, default is 50 -TSdef_hop_count {integer}, default is 5, -TSmax_hop_count {integer}, default is 10 -TSdef_follow_policy {always,if_no_local,local_only}, default is if_no_local, -TSmax_follow_policy {always,if_no_local,local_only}, default is always

TAO_Trader_Factory::TAO_TRADER * TAO_Trader_Factory::manufacture_trader ( void  )

private

TAO_Trader_Factory& TAO_Trader_Factory::operator= ( const TAO_Trader_Factory &  )

private

void TAO_Trader_Factory::parse_args ( int &  argc, ACE_TCHAR **  argv  )

private

Member Data Documentation

Conformance TAO_Trader_Factory::conformance_

private

CosTrading::FollowOption TAO_Trader_Factory::def_follow_policy_

private

CORBA::ULong TAO_Trader_Factory::def_hop_count_

private

CORBA::ULong TAO_Trader_Factory::def_match_card_

private

CORBA::ULong TAO_Trader_Factory::def_return_card_

private

CORBA::ULong TAO_Trader_Factory::def_search_card_

private

CosTrading::FollowOption TAO_Trader_Factory::max_follow_policy_

private

CORBA::ULong TAO_Trader_Factory::max_hop_count_

private

CORBA::ULong TAO_Trader_Factory::max_match_card_

private

CORBA::ULong TAO_Trader_Factory::max_return_card_

private

CORBA::ULong TAO_Trader_Factory::max_search_card_

private

CORBA::Boolean TAO_Trader_Factory::supports_dynamic_properties_

private

CORBA::Boolean TAO_Trader_Factory::supports_modifiable_properties_

private

CORBA::Boolean TAO_Trader_Factory::threadsafe_

private

---

The documentation for this class was generated from the following files:

• Trader.h
• Trader.cpp
