Base class for all the ProxySuppliers. More...

#include <ProxySupplier.h>

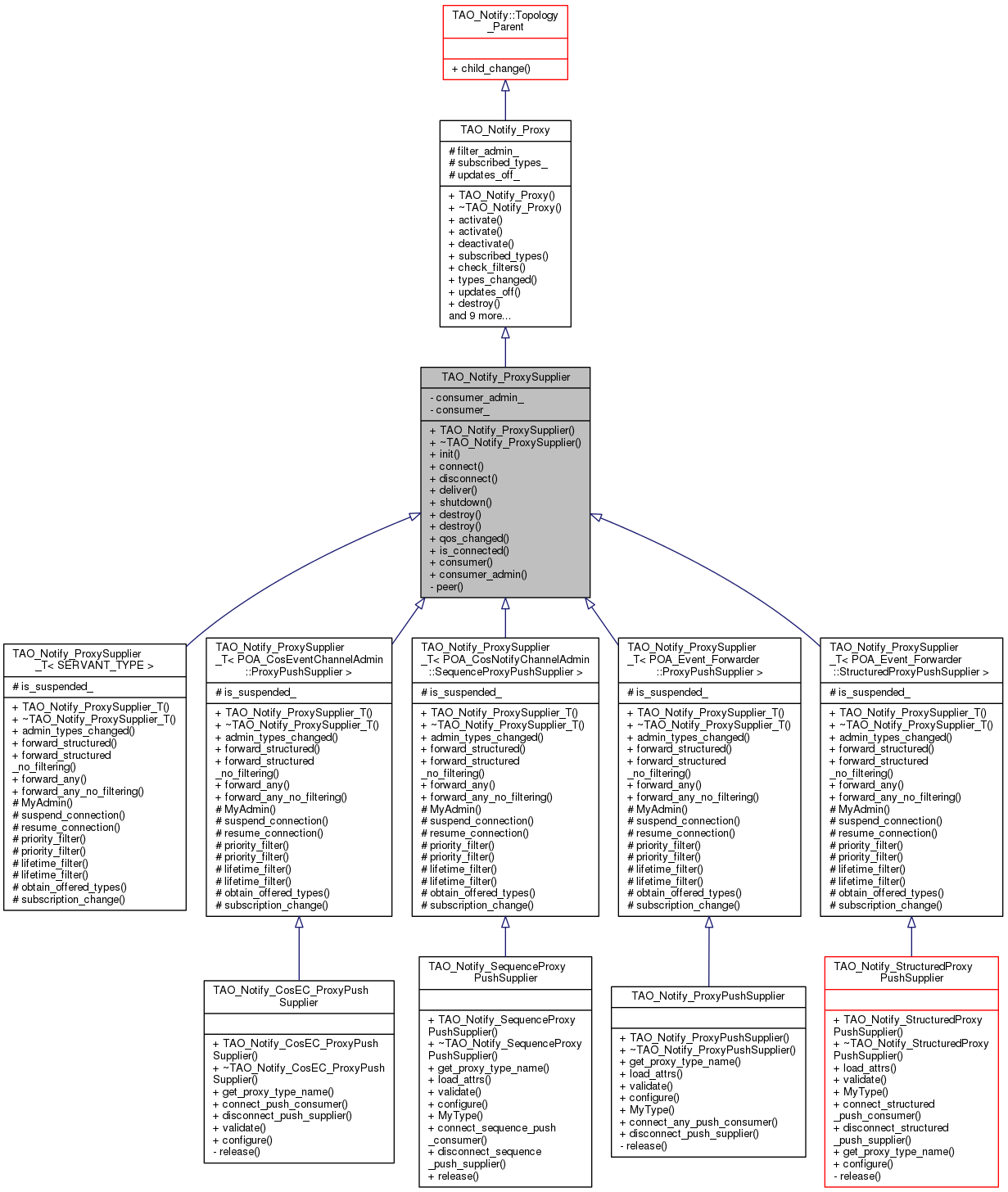

Inheritance diagram for TAO_Notify_ProxySupplier:

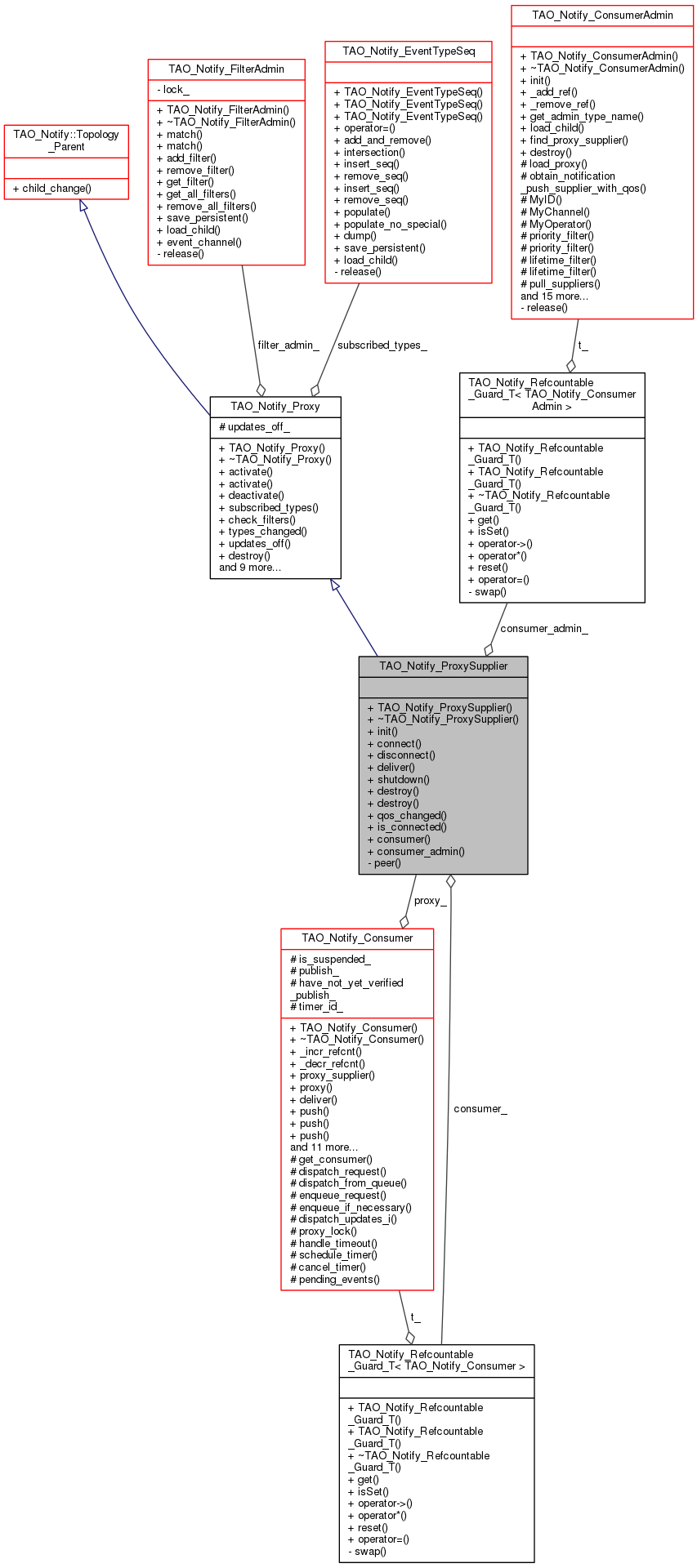

Collaboration diagram for TAO_Notify_ProxySupplier:

Public Types
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_ProxySupplier >	Ptr
Public Types inherited from TAO_Notify_Proxy
typedef CosNotifyChannelAdmin::ProxyIDSeq	SEQ
typedef CosNotifyChannelAdmin::ProxyIDSeq_var	SEQ_VAR

Public Member Functions
	TAO_Notify_ProxySupplier (void)
	Constructor.
virtual	~TAO_Notify_ProxySupplier ()
	Destructor.
virtual void	init (TAO_Notify_ConsumerAdmin *consumer_admin)
	Init.
void	connect (TAO_Notify_Consumer *consumer)
	Connect.
void	disconnect (void)
	Disconnect.
virtual void	deliver (TAO_Notify_Method_Request_Dispatch_No_Copy &request)
	Dispatch Event to consumer.
virtual int	shutdown (void)
	Override TAO_Notify_Container_T::shutdown method.
virtual void	destroy (void)
	Destroy this object.
void	destroy (bool from_timeout)
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.
bool	is_connected (void) const
	Returns true if connected.
TAO_Notify_Consumer *	consumer (void)
	Access the Consumer.
TAO_Notify_ConsumerAdmin &	consumer_admin (void)
	The CA parent.
Public Member Functions inherited from TAO_Notify_Proxy
	TAO_Notify_Proxy (void)
	Constructor.
virtual	~TAO_Notify_Proxy ()
	Destructor.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate.
virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with a given ID.
void	deactivate (void)
	Deactivate.
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Proxy's subscribed types.
CORBA::Boolean	check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Check if this event passes the admin and proxy filters.
void	types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
	Inform this proxy that the following types are being advertised.
CORBA::Boolean	updates_off (void)
	Have updates been turned off.
virtual CosNotification::EventTypeSeq *	obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
	Implement the Obtain Types.
virtual void	admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
	Notification of subscriptions/offers set at the admin.
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual void	save_attrs (TAO_Notify::NVPList &attrs)
virtual const char *	get_proxy_type_name (void) const =0
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.
virtual void	validate ()=0
Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change (void)
Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor.
virtual	~Topology_Object ()
	The destructor.
virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>.
virtual TAO_Notify_Object::ID	get_id (void) const
	Find the id associated with topology object.
void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object.
bool	is_changed (void) const
	Is there an unsaved change for this object or its children?
Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object (void)
	Destructor.
ID	id (void) const
	This Object's ID.
bool	has_shutdown (void)
	Have we been shutdown. returns true if shutdown.
void	execute_task (TAO_Notify_Method_Request &method_request)
CORBA::Object_ptr	ref (void)
	Get CORBA Ref.
virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties.
CosNotification::QoSProperties *	get_qos (void)
	Get the QoS Properties.
bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const
virtual TAO_Notify_Timer *	timer (void)
	Obtain the Timer manager associated with this object.
TAO_Notify_Event_Manager &	event_manager (void)
	Accessor for the Event Manager.
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
TAO_Notify_Worker_Task *	get_worker_task (void)
	Allow access to the underlying worker task.
Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable (void)
	Constructor.
virtual	~TAO_Notify_Refcountable ()
CORBA::ULong	_incr_refcnt (void)
CORBA::ULong	_decr_refcnt (void)
Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable (void)
	Destructor.
virtual void	reconnect (void)

Private Member Functions
virtual TAO_Notify_Peer *	peer (void)
	Access our Peer.

Private Attributes
TAO_Notify_ConsumerAdmin::Ptr	consumer_admin_
TAO_Notify_Consumer::Ptr	consumer_
	The Consumer that we're connect to.

Friends
class	TAO_Notify_Consumer

Additional Inherited Members
Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we're subscribed with the event manager.
CORBA::Boolean	updates_off_
	True if updates have been turned off.

Detailed Description

Base class for all the ProxySuppliers.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_ProxySupplier> TAO_Notify_ProxySupplier::Ptr

Reimplemented from TAO_Notify_Proxy.

Constructor & Destructor Documentation

TAO_Notify_ProxySupplier::TAO_Notify_ProxySupplier ( void )

Constructor.

TAO_Notify_ProxySupplier::~TAO_Notify_ProxySupplier ( )

virtual

Destructor.

Member Function Documentation

void TAO_Notify_ProxySupplier::connect ( TAO_Notify_Consumer * consumer )

Connect.

TAO_Notify_Consumer * TAO_Notify_ProxySupplier::consumer ( void )

Access the Consumer.

TAO_Notify_ConsumerAdmin & TAO_Notify_ProxySupplier::consumer_admin ( void )

The CA parent.

void TAO_Notify_ProxySupplier::deliver ( TAO_Notify_Method_Request_Dispatch_No_Copy & request )

virtual

Dispatch Event to consumer.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

void TAO_Notify_ProxySupplier::destroy ( void )

virtual

Destroy this object.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxySupplier::destroy ( bool from_timeout )

Destroy this object, but also indicate if it is due to a timeout or not.

void TAO_Notify_ProxySupplier::disconnect ( void )

Disconnect.

void TAO_Notify_ProxySupplier::init ( TAO_Notify_ConsumerAdmin * consumer_admin )

virtual

Init.

bool TAO_Notify_ProxySupplier::is_connected ( void ) const

Returns true if connected.

TAO_Notify_Peer * TAO_Notify_ProxySupplier::peer ( void )

privatevirtual

Access our Peer.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxySupplier::qos_changed ( const TAO_Notify_QoSProperties & qos_properties )

virtual

Override, TAO_Notify_Proxy::qos_changed to apply MaxEventssPerConsumer QoS.

Reimplemented from TAO_Notify_Proxy.

int TAO_Notify_ProxySupplier::shutdown ( void )

virtual

Override TAO_Notify_Container_T::shutdown method.

Reimplemented from TAO_Notify_Object.

Friends And Related Function Documentation

friend class TAO_Notify_Consumer

friend

Member Data Documentation

TAO_Notify_Consumer::Ptr TAO_Notify_ProxySupplier::consumer_

private

The Consumer that we're connect to.

TAO_Notify_ConsumerAdmin::Ptr TAO_Notify_ProxySupplier::consumer_admin_

private

= Data Members. The CA parent.
