Astract Base class for wrapping consumer objects that connect to the EventChannel. More...

#include <Consumer.h>

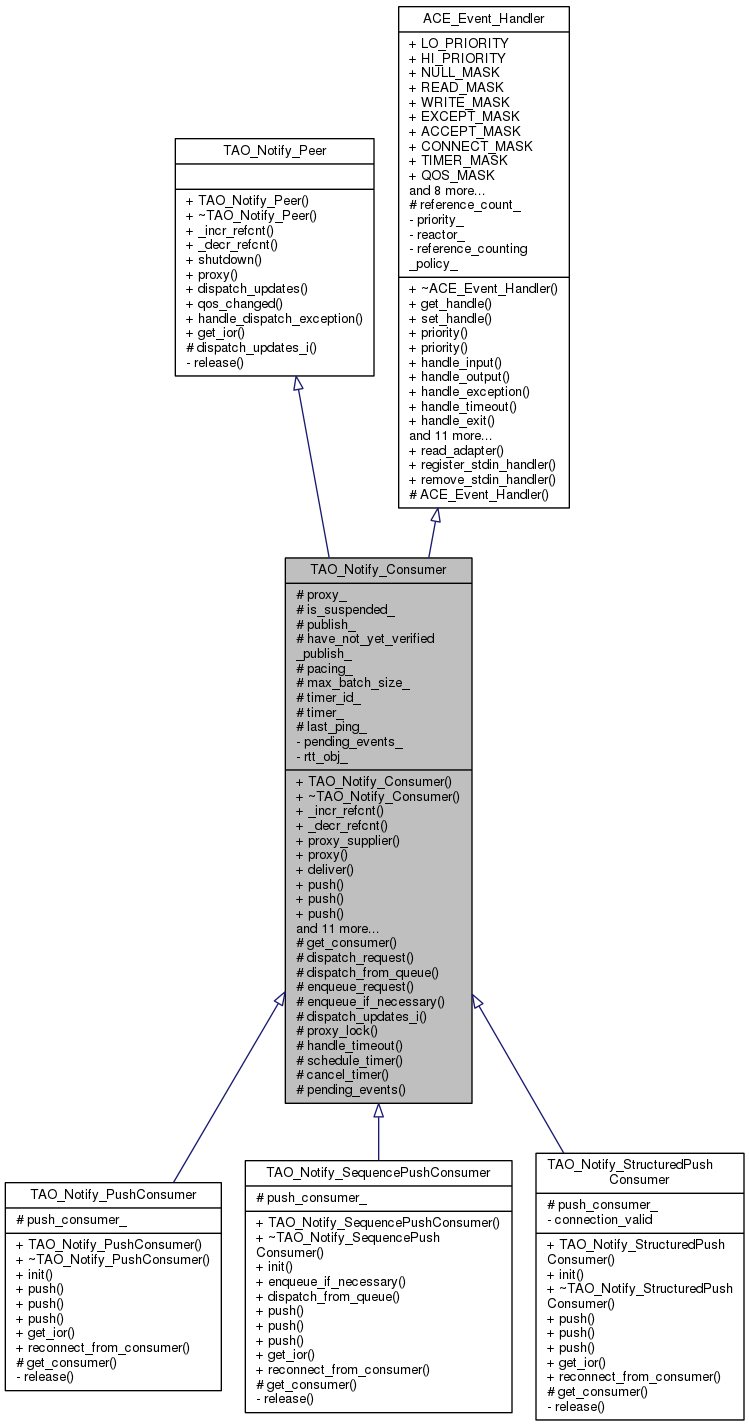

Inheritance diagram for TAO_Notify_Consumer:

Collaboration diagram for TAO_Notify_Consumer:

Public Types
enum	DispatchStatus { DISPATCH_SUCCESS, DISPATCH_RETRY, DISPATCH_DISCARD, DISPATCH_FAIL, DISPATCH_FAIL_TIMEOUT }
	Status returned from dispatch attempts. More...
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Consumer >	Ptr
Public Types inherited from TAO_Notify_Peer
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Public Member Functions
	TAO_Notify_Consumer (TAO_Notify_ProxySupplier *proxy)
	Constructor.
virtual	~TAO_Notify_Consumer ()
	Destructor.
CORBA::ULong	_incr_refcnt (void)
	This method sigantures deliberately match the RefCounting methods required for ESF Proxy.
CORBA::ULong	_decr_refcnt (void)
TAO_Notify_ProxySupplier *	proxy_supplier (void)
	Access Specific Proxy.
virtual TAO_Notify_Proxy *	proxy (void)
	Access Base Proxy.
void	deliver (TAO_Notify_Method_Request_Event *request)
	Dispatch Event to consumer.
virtual void	push (const CORBA::Any &event)=0
	Push event to this consumer.
virtual void	push (const CosNotification::StructuredEvent &event)=0
	Push event to this consumer.
virtual void	push (const CosNotification::EventBatch &event)=0
	Push a batch of events to this consumer.
DispatchStatus	dispatch_batch (const CosNotification::EventBatch &batch)
	Dispatch the batch of events to the attached consumer.
void	dispatch_pending (void)
	Dispatch the pending events.
CORBA::Boolean	is_suspended (void)
	Is the connection suspended?
void	suspend (void)
	Suspend Connection.
void	resume (void)
	Resume Connection.
virtual void	shutdown (void)
	Shutdown the consumer.
virtual void	reconnect_from_consumer (TAO_Notify_Consumer *old_consumer)=0
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, Peer::qos_changed.
void	assume_pending_events (TAO_Notify_Consumer &rhs)
bool	is_alive (bool allow_nil_consumer)
	Is the connected consumer still around?
size_t	pending_count (void)
Public Member Functions inherited from TAO_Notify_Peer
	TAO_Notify_Peer (void)
	Constructor.
virtual	~TAO_Notify_Peer ()
	Destructor.
virtual void	dispatch_updates (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
void	handle_dispatch_exception (void)
	Handle dispatch exceptions.
virtual ACE_CString	get_ior (void) const =0
	Retrieve the ior of this peer.
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)

Protected Types
typedef ACE_Unbounded_Queue < TAO_Notify_Method_Request_Event_Queueable * >	Request_Queue
Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions
virtual CORBA::Object_ptr	get_consumer (void)=0
DispatchStatus	dispatch_request (TAO_Notify_Method_Request_Event *request)
virtual bool	dispatch_from_queue (Request_Queue &requests, ACE_Guard< TAO_SYNCH_MUTEX > &ace_mon)
	Attempt to dispatch event from a queue.
void	enqueue_request (TAO_Notify_Method_Request_Event *request)
virtual bool	enqueue_if_necessary (TAO_Notify_Method_Request_Event *request)
virtual void	dispatch_updates_i (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)
	Implementation of Peer specific dispatch_updates.
TAO_SYNCH_MUTEX *	proxy_lock (void)
	Get the shared Proxy Lock.
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
void	schedule_timer (bool is_error=false)
	Schedule timer.
void	cancel_timer (void)
	Cancel timer.
Request_Queue &	pending_events ()
	= Protected Data Members
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes
TAO_Notify_ProxySupplier *	proxy_
	The Proxy that we associate with.
CORBA::Boolean	is_suspended_
	Suspended Flag.
CosNotifyComm::NotifyPublish_var	publish_
	Interface that accepts offer_changes.
bool	have_not_yet_verified_publish_
const TAO_Notify_Property_Time &	pacing_
	The Pacing Interval.
TAO_Notify_Property_Long	max_batch_size_
	Max. batch size.
long	timer_id_
	Timer Id.
TAO_Notify_Timer::Ptr	timer_
	The Timer Manager that we use.
ACE_Atomic_Op< TAO_SYNCH_MUTEX, ACE_Time_Value >	last_ping_
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Private Attributes
ACE_Auto_Ptr< Request_Queue >	pending_events_
	Events pending to be delivered.
CORBA::Object_var	rtt_obj_

Additional Inherited Members
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER

Detailed Description

Astract Base class for wrapping consumer objects that connect to the EventChannel.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Consumer > TAO_Notify_Consumer::Ptr

Reimplemented from TAO_Notify_Peer.

typedef ACE_Unbounded_Queue<TAO_Notify_Method_Request_Event_Queueable *> TAO_Notify_Consumer::Request_Queue

protected

Member Enumeration Documentation

enum TAO_Notify_Consumer::DispatchStatus

Status returned from dispatch attempts.

Enumerator:

DISPATCH_SUCCESS
DISPATCH_RETRY
DISPATCH_DISCARD
DISPATCH_FAIL
DISPATCH_FAIL_TIMEOUT

Constructor & Destructor Documentation

TAO_Notify_Consumer::TAO_Notify_Consumer ( TAO_Notify_ProxySupplier * proxy )

Constructor.

TAO_Notify_Consumer::~TAO_Notify_Consumer ( )

virtual

Destructor.

Member Function Documentation

CORBA::ULong TAO_Notify_Consumer::_decr_refcnt ( void )

Reimplemented from TAO_Notify_Peer.

CORBA::ULong TAO_Notify_Consumer::_incr_refcnt ( void )

This method sigantures deliberately match the RefCounting methods required for ESF Proxy.

Reimplemented from TAO_Notify_Peer.

void TAO_Notify_Consumer::assume_pending_events ( TAO_Notify_Consumer & rhs )

Take the pending queue from the rhs, cancel it's timer and schedule our timer. The caller should have locked the proxy lock before calling this method.

void TAO_Notify_Consumer::cancel_timer ( void )

protected

Cancel timer.

void TAO_Notify_Consumer::deliver ( TAO_Notify_Method_Request_Event * request )

Dispatch Event to consumer.

TAO_Notify_Consumer::DispatchStatus TAO_Notify_Consumer::dispatch_batch ( const CosNotification::EventBatch & batch )

Dispatch the batch of events to the attached consumer.

bool TAO_Notify_Consumer::dispatch_from_queue	(	Request_Queue &	requests,
		ACE_Guard< TAO_SYNCH_MUTEX > &	ace_mon
	)

protectedvirtual

Attempt to dispatch event from a queue.

Called by dispatch_pending. Deliver one or more events to the Consumer. If delivery fails, events are left in the queue (or discarded depending on QoS parameters.) Undelivered, undiscarded requests are left at the front of the queue. Overridden in sequence consumer to dispatch as an EventBatch.

Returns:: false if delivery failed and the request(s) cannot be discarded.

Reimplemented in TAO_Notify_SequencePushConsumer.

void TAO_Notify_Consumer::dispatch_pending ( void )

Dispatch the pending events.

TAO_Notify_Consumer::DispatchStatus TAO_Notify_Consumer::dispatch_request ( TAO_Notify_Method_Request_Event * request )

protected

void TAO_Notify_Consumer::dispatch_updates_i	(	const CosNotification::EventTypeSeq &	added,
		const CosNotification::EventTypeSeq &	removed
	)

protectedvirtual

Implementation of Peer specific dispatch_updates.

Implements TAO_Notify_Peer.

bool TAO_Notify_Consumer::enqueue_if_necessary ( TAO_Notify_Method_Request_Event * request )

protectedvirtual

Add request to a queue if necessary. Overridden by sequence consumer to "always" put incoming events into the queue.

Returns:: true the request has been enqueued; false the request should be handled now.

Reimplemented in TAO_Notify_SequencePushConsumer.

void TAO_Notify_Consumer::enqueue_request ( TAO_Notify_Method_Request_Event * request )

protected

virtual CORBA::Object_ptr TAO_Notify_Consumer::get_consumer ( void )

protectedpure virtual

This method is called by the is_alive() method. It should provide the connected consumer or nil if there is none.

Implemented in TAO_Notify_SequencePushConsumer, TAO_Notify_StructuredPushConsumer, and TAO_Notify_PushConsumer.

int TAO_Notify_Consumer::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = `0`
	)

protectedvirtual

Reimplemented from ACE_Event_Handler.

bool TAO_Notify_Consumer::is_alive ( bool allow_nil_consumer )

Is the connected consumer still around?

CORBA::Boolean TAO_Notify_Consumer::is_suspended ( void )

Is the connection suspended?

size_t TAO_Notify_Consumer::pending_count ( void )

Estimate how many events are pending delivery for this consumer

The estimate does not include events queued at the admin level which have not been passed to this consumer for delivery yet.

TAO_Notify_Consumer::Request_Queue & TAO_Notify_Consumer::pending_events ( )

protected

= Protected Data Members

TAO_Notify_Proxy * TAO_Notify_Consumer::proxy ( void )

virtual

Access Base Proxy.

Implements TAO_Notify_Peer.

TAO_SYNCH_MUTEX * TAO_Notify_Consumer::proxy_lock ( void )

protected

Get the shared Proxy Lock.

TAO_Notify_ProxySupplier * TAO_Notify_Consumer::proxy_supplier ( void )

Access Specific Proxy.

virtual void TAO_Notify_Consumer::push ( const CORBA::Any & event )

pure virtual

Push event to this consumer.

Implemented in TAO_Notify_SequencePushConsumer, TAO_Notify_StructuredPushConsumer, and TAO_Notify_PushConsumer.

virtual void TAO_Notify_Consumer::push ( const CosNotification::StructuredEvent & event )

pure virtual

Push event to this consumer.

Implemented in TAO_Notify_SequencePushConsumer, TAO_Notify_StructuredPushConsumer, and TAO_Notify_PushConsumer.

virtual void TAO_Notify_Consumer::push ( const CosNotification::EventBatch & event )

pure virtual

Push a batch of events to this consumer.

Implemented in TAO_Notify_SequencePushConsumer, TAO_Notify_StructuredPushConsumer, and TAO_Notify_PushConsumer.

void TAO_Notify_Consumer::qos_changed ( const TAO_Notify_QoSProperties & qos_properties )

virtual

Override, Peer::qos_changed.

Reimplemented from TAO_Notify_Peer.

virtual void TAO_Notify_Consumer::reconnect_from_consumer ( TAO_Notify_Consumer * old_consumer )

pure virtual

On reconnect we need to move events from the old consumer to the new one

Implemented in TAO_Notify_SequencePushConsumer, TAO_Notify_StructuredPushConsumer, and TAO_Notify_PushConsumer.

void TAO_Notify_Consumer::resume ( void )

Resume Connection.

void TAO_Notify_Consumer::schedule_timer ( bool is_error = false )

protected

Schedule timer.

Todo:

: rather than is_error, use pacing interval so it will be configurable

: find some way to use batch buffering stratgy for sequence consumers.

void TAO_Notify_Consumer::shutdown ( void )

virtual

Shutdown the consumer.

Reimplemented from TAO_Notify_Peer.

void TAO_Notify_Consumer::suspend ( void )

Suspend Connection.

Member Data Documentation

bool TAO_Notify_Consumer::have_not_yet_verified_publish_

protected

CORBA::Boolean TAO_Notify_Consumer::is_suspended_

protected

Suspended Flag.

ACE_Atomic_Op<TAO_SYNCH_MUTEX, ACE_Time_Value> TAO_Notify_Consumer::last_ping_

protected

Last time either push an event or validate connection via _non_exist call.

TAO_Notify_Property_Long TAO_Notify_Consumer::max_batch_size_

protected

Max. batch size.

const TAO_Notify_Property_Time& TAO_Notify_Consumer::pacing_

protected

The Pacing Interval.

ACE_Auto_Ptr< Request_Queue > TAO_Notify_Consumer::pending_events_

private

Events pending to be delivered.

TAO_Notify_ProxySupplier* TAO_Notify_Consumer::proxy_

protected

The Proxy that we associate with.

CosNotifyComm::NotifyPublish_var TAO_Notify_Consumer::publish_

protected

Interface that accepts offer_changes.

CORBA::Object_var TAO_Notify_Consumer::rtt_obj_

private

TAO_Notify_Timer::Ptr TAO_Notify_Consumer::timer_

protected

The Timer Manager that we use.

long TAO_Notify_Consumer::timer_id_

protected

Timer Id.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
