#include <FlowSpec_Entry.h>

Inheritance diagram for TAO_Reverse_FlowSpec_Entry:

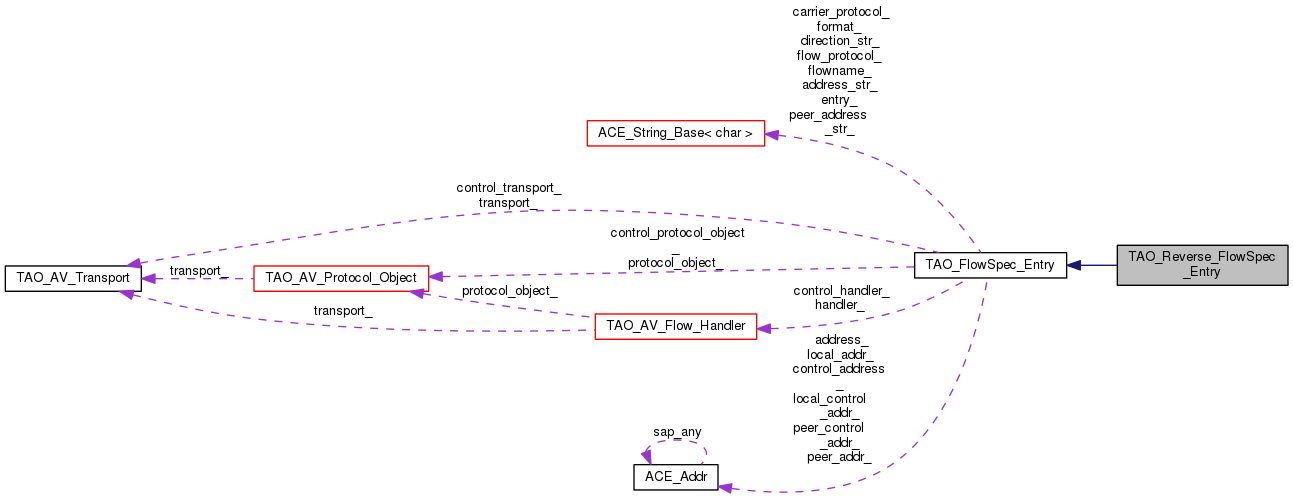

Collaboration diagram for TAO_Reverse_FlowSpec_Entry:

Public Types
enum	Position { TAO_AV_FLOWNAME = 0, TAO_AV_ADDRESS = 1, TAO_AV_FLOW_PROTOCOL = 2, TAO_AV_DIRECTION = 3, TAO_AV_FORMAT = 4 }
Public Types inherited from TAO_FlowSpec_Entry
enum	Direction { TAO_AV_INVALID = -1, TAO_AV_DIR_IN = 0, TAO_AV_DIR_OUT = 1 }
enum	Role { TAO_AV_INVALID_ROLE = -1, TAO_AV_PRODUCER = 0, TAO_AV_CONSUMER = 1 }

Public Member Functions
	TAO_Reverse_FlowSpec_Entry (void)
	TAO_Reverse_FlowSpec_Entry (const char flowname, const char direction, const char format_name, const char flow_protocol, const char carrier_protocol, ACE_Addr address, ACE_Addr *control_address=0)
	TAO_Reverse_FlowSpec_Entry (const char flowname, const char direction, const char format_name, const char flow_protocol, const char *address)
virtual	~TAO_Reverse_FlowSpec_Entry (void)
virtual const char *	entry_to_string (void)
	converts the entry to a string.
virtual Role	role (void)
virtual int	parse (const char *flowSpec_entry)
	construct the entry from a string specified by the flowSpec grammar.
Public Member Functions inherited from TAO_FlowSpec_Entry
	TAO_FlowSpec_Entry (void)
	default constructor.
	TAO_FlowSpec_Entry (const char flowname, const char direction, const char format_name, const char flow_protocol, const char carrier_protocol, ACE_Addr fwd_address, ACE_Addr *control_address=0)
	constructor to construct an entry from the arguments.
	TAO_FlowSpec_Entry (const char flowname, const char direction, const char format_name, const char flow_protocol, const char *fwd_address)
virtual	~TAO_FlowSpec_Entry (void)
	virtual destructor.
int	direction (void)
	accessor to the direction.
void	role (Role role)
const char *	direction_str (void) const
	accessor to string version of direction .
const char *	flow_protocol_str (void) const
	accessor to the flow protocol string.
void	flow_protocol_str (const char *flow_protocol_str)
	set the flow protocol string.
ACE_Addr *	address (void)
	accessor to address of the carrier protocol.
ACE_Addr *	control_address (void)
void	address (ACE_Addr *address, bool cleanup=false)
void	control_address (ACE_Addr *address)
const char *	address_str (void) const
	Address in string format i. hostname:port.
TAO_AV_Core::Protocol	carrier_protocol (void)
	accessor to carrier protocol i.e TCP,UDP,RTP/UDP.
const char *	carrier_protocol_str (void) const
	accessor to string version of carrier protocol.
const char *	format (void) const
	accessor to format to be used for this flow.
const char *	flowname (void) const
	accessor to name of this flow.
int	set_peer_addr (ACE_Addr *peer_addr)
ACE_Addr *	get_peer_addr (void)
int	set_peer_control_addr (ACE_Addr *peer_control_addr)
ACE_Addr *	get_peer_control_addr (void)
int	set_local_sec_addr (char **local_sec_addr, int size)
char **	get_local_sec_addr (void)
int	num_local_sec_addrs (void)
int	set_peer_sec_addr (char **peer_sec_addr, int size)
char **	get_peer_sec_addr (void)
int	num_peer_sec_addrs (void)
int	set_local_addr (ACE_Addr *local_addr)
ACE_Addr *	get_local_addr (void)
char *	get_local_addr_str (void)
int	set_local_control_addr (ACE_Addr *local_control_addr)
ACE_Addr *	get_local_control_addr (void)
char *	get_local_control_addr_str (void)
TAO_AV_Transport *	transport (void)
void	transport (TAO_AV_Transport *transport)
TAO_AV_Transport *	control_transport (void)
void	control_transport (TAO_AV_Transport *control_transport)
TAO_AV_Flow_Handler *	handler (void)
void	handler (TAO_AV_Flow_Handler *handler)
TAO_AV_Flow_Handler *	control_handler (void)
void	control_handler (TAO_AV_Flow_Handler *control_handler)
TAO_AV_Protocol_Object *	protocol_object (void)
void	protocol_object (TAO_AV_Protocol_Object *object)
TAO_AV_Protocol_Object *	control_protocol_object (void)
void	control_protocol_object (TAO_AV_Protocol_Object *object)
int	parse_address (const char *format_string, TAO_AV_Core::Flow_Component flow_component)
	sets the address for this flow.
int	is_multicast (void)
	returns true for a multicast address.

Additional Inherited Members
Protected Member Functions inherited from TAO_FlowSpec_Entry
int	parse_flow_protocol_string (const char *flow_options_string)
	parses the flow protocol string with tokens separated by :
int	set_direction (const char *direction_string)
	sets the direction flag.
int	set_protocol (void)
	sets the protocol_ enum from the carrier_protocol_ string.
Protected Attributes inherited from TAO_FlowSpec_Entry
ACE_Addr *	address_
	Addr information for the carrier protocol.
int	clean_up_address_
ACE_Addr *	control_address_
int	clean_up_control_address_
ACE_CString	address_str_
	Fwd Addr in string format i.e hostname:port.
ACE_CString	peer_address_str_
	Peer Addr in string format i.e hostname:port.
ACE_CString	format_
	format string.
Direction	direction_
	Direction of this flow.
ACE_CString	direction_str_
	string representation of the direction.
ACE_CString	flowname_
	name of this flow.
TAO_AV_Core::Protocol	protocol_
	name of the protocol used.
ACE_CString	carrier_protocol_
	carrier protocol string.
ACE_CString	flow_protocol_
	flow protocol string.
int	use_flow_protocol_
ACE_CString	entry_
	The flowspec entry;.
int	is_multicast_
bool	delete_peer_addr_
ACE_Addr *	peer_addr_
char **	local_sec_addr_
int	num_local_sec_addrs_
char **	peer_sec_addr_
int	num_peer_sec_addrs_
ACE_Addr *	peer_control_addr_
ACE_Addr *	local_addr_
ACE_Addr *	local_control_addr_
TAO_AV_Transport *	transport_
TAO_AV_Transport *	control_transport_
TAO_AV_Flow_Handler *	handler_
TAO_AV_Flow_Handler *	control_handler_
TAO_AV_Protocol_Object *	protocol_object_
TAO_AV_Protocol_Object *	control_protocol_object_
Role	role_

Member Enumeration Documentation

enum TAO_Reverse_FlowSpec_Entry::Position

Enumerator:

TAO_AV_FLOWNAME
TAO_AV_ADDRESS
TAO_AV_FLOW_PROTOCOL
TAO_AV_DIRECTION
TAO_AV_FORMAT

Constructor & Destructor Documentation

TAO_Reverse_FlowSpec_Entry::TAO_Reverse_FlowSpec_Entry ( void )

TAO_Reverse_FlowSpec_Entry::TAO_Reverse_FlowSpec_Entry	(	const char *	flowname,
		const char *	direction,
		const char *	format_name,
		const char *	flow_protocol,
		const char *	carrier_protocol,
		ACE_Addr *	address,
		ACE_Addr *	control_address = `0`
	)

TAO_Reverse_FlowSpec_Entry::TAO_Reverse_FlowSpec_Entry	(	const char *	flowname,
		const char *	direction,
		const char *	format_name,
		const char *	flow_protocol,
		const char *	address
	)
