TAO_AV: TAO_AV_Protocol_Object Class Reference

#include <Protocol_Factory.h>

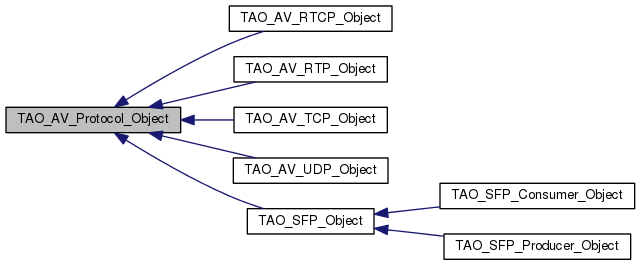

Inheritance diagram for TAO_AV_Protocol_Object:

Inheritance graph

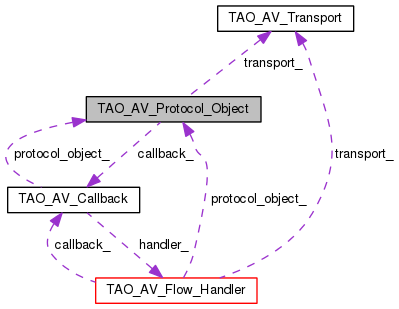

Collaboration diagram for TAO_AV_Protocol_Object:

Collaboration graph

Public Member Functions
	TAO_AV_Protocol_Object (void)
	TAO_AV_Protocol_Object (TAO_AV_Callback callback, TAO_AV_Transport transport)
	constructor.
virtual	~TAO_AV_Protocol_Object (void)
	Destructor.
virtual int	open (TAO_AV_Callback callback, TAO_AV_Transport transport)
virtual int	handle_input (void)=0
virtual int	handle_control_input (ACE_Message_Block *control_frame, const ACE_Addr &peer_address)
	Called on a control object.
virtual int	set_policies (const TAO_AV_PolicyList &policy_list)
	set/get policies.
virtual TAO_AV_PolicyList	get_policies (void)
virtual int	start (void)
	start/stop the flow.
virtual int	stop (void)
virtual int	send_frame (ACE_Message_Block frame, TAO_AV_frame_info frame_info=0)=0
	send a data frame.
virtual int	send_frame (const iovec iov, int iovcnt, TAO_AV_frame_info frame_info=0)=0
	send a frame in iovecs.
virtual int	send_frame (const char *buf, size_t len)=0
virtual void	control_object (TAO_AV_Protocol_Object *object)
	end the stream.
virtual int	destroy (void)=0
TAO_AV_Transport *	transport (void)

Protected Attributes
TAO_AV_Transport *	transport_
TAO_AV_PolicyList	policy_list_
TAO_AV_Callback *	callback_

Constructor & Destructor Documentation

TAO_AV_Protocol_Object::TAO_AV_Protocol_Object ( void )

TAO_AV_Protocol_Object::TAO_AV_Protocol_Object	(	TAO_AV_Callback *	callback,
		TAO_AV_Transport *	transport
	)

constructor.

TAO_AV_Protocol_Object::~TAO_AV_Protocol_Object ( void )

virtual

Destructor.

Member Function Documentation

void TAO_AV_Protocol_Object::control_object ( TAO_AV_Protocol_Object * object )

virtual

end the stream.

Reimplemented in TAO_AV_RTP_Object.

virtual int TAO_AV_Protocol_Object::destroy ( void )

pure virtual

Implemented in TAO_AV_RTP_Object, TAO_AV_UDP_Object, TAO_AV_TCP_Object, TAO_SFP_Object, and TAO_AV_RTCP_Object.

TAO_AV_PolicyList TAO_AV_Protocol_Object::get_policies ( void )

virtual

int TAO_AV_Protocol_Object::handle_control_input	(	ACE_Message_Block *	control_frame,
		const ACE_Addr &	peer_address
	)

virtual

Called on a control object.

Reimplemented in TAO_AV_RTCP_Object.

virtual int TAO_AV_Protocol_Object::handle_input ( void )

pure virtual

Implemented in TAO_AV_RTP_Object, TAO_SFP_Consumer_Object, TAO_SFP_Producer_Object, TAO_AV_UDP_Object, TAO_AV_TCP_Object, TAO_SFP_Object, and TAO_AV_RTCP_Object.

int TAO_AV_Protocol_Object::open	(	TAO_AV_Callback *	callback,
		TAO_AV_Transport *	transport
	)

virtual

virtual int TAO_AV_Protocol_Object::send_frame	(	ACE_Message_Block *	frame,
		TAO_AV_frame_info *	frame_info = `0`
	)

pure virtual

send a data frame.

Implemented in TAO_AV_RTP_Object, TAO_AV_UDP_Object, TAO_AV_TCP_Object, TAO_SFP_Object, and TAO_AV_RTCP_Object.

virtual int TAO_AV_Protocol_Object::send_frame	(	const iovec *	iov,
		int	iovcnt,
		TAO_AV_frame_info *	frame_info = `0`
	)

pure virtual

send a frame in iovecs.

Implemented in TAO_AV_RTP_Object, TAO_AV_UDP_Object, TAO_AV_TCP_Object, TAO_SFP_Object, and TAO_AV_RTCP_Object.

virtual int TAO_AV_Protocol_Object::send_frame	(	const char *	buf,
		size_t	len
	)

pure virtual

Implemented in TAO_AV_RTP_Object, TAO_AV_UDP_Object, TAO_AV_TCP_Object, TAO_SFP_Object, and TAO_AV_RTCP_Object.

int TAO_AV_Protocol_Object::set_policies ( const TAO_AV_PolicyList & policy_list )

virtual

set/get policies.

Reimplemented in TAO_AV_RTP_Object, TAO_SFP_Object, and TAO_AV_RTCP_Object.

int TAO_AV_Protocol_Object::start ( void )

virtual

start/stop the flow.

Reimplemented in TAO_AV_RTP_Object, and TAO_AV_RTCP_Object.

int TAO_AV_Protocol_Object::stop ( void )

virtual

Reimplemented in TAO_AV_RTP_Object, and TAO_AV_RTCP_Object.

TAO_AV_Transport * TAO_AV_Protocol_Object::transport ( void )

Member Data Documentation

TAO_AV_Callback* TAO_AV_Protocol_Object::callback_

protected

TAO_AV_PolicyList TAO_AV_Protocol_Object::policy_list_

protected

TAO_AV_Transport* TAO_AV_Protocol_Object::transport_

protected

The documentation for this class was generated from the following files:
