This class is used per flow e.g video flow and an audio flow to encapsulate the transport details. More...

#include <AVStreams_i.h>

Inheritance diagram for TAO_FlowEndPoint:

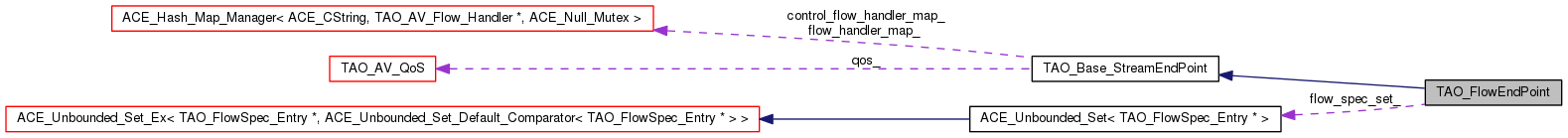

Collaboration diagram for TAO_FlowEndPoint:

Public Member Functions
	TAO_FlowEndPoint (void)
	default constructor.
	TAO_FlowEndPoint (const char flowname, AVStreams::protocolSpec &protocols, const char format)
int	open (const char flowname, AVStreams::protocolSpec &protocols, const char format)
int	set_flowname (const char *flowname)
virtual void	set_flow_handler (const char flowname, TAO_AV_Flow_Handler handler)
virtual int	set_protocol_object (const char flowname, TAO_AV_Protocol_Object object)
virtual CORBA::Boolean	lock (void)
	lock the flow endpoint for a particular flow.
virtual void	unlock (void)
	unlock the flow endpoint for subsequent use.
virtual void	destroy (void)
	destroy this flow.
virtual AVStreams::StreamEndPoint_ptr	related_sep (void)
virtual void	related_sep (AVStreams::StreamEndPoint_ptr related_sep)
virtual AVStreams::FlowConnection_ptr	related_flow_connection (void)
virtual void	related_flow_connection (AVStreams::FlowConnection_ptr related_flow_connection)
	set method for the related flow connection attribute.
virtual AVStreams::FlowEndPoint_ptr	get_connected_fep (void)
	returns the other flowendpoint to which this is connected.
virtual CORBA::Boolean	use_flow_protocol (const char *fp_name, const CORBA::Any &fp_settings)
virtual void	set_format (const char *format)
	sets the data format.
virtual void	set_dev_params (const CosPropertyService::Properties &new_settings)
	sets the device parameters.
virtual void	set_protocol_restriction (const AVStreams::protocolSpec &the_spec)
	sets the list of protocols to be used.
virtual CORBA::Boolean	is_fep_compatible (AVStreams::FlowEndPoint_ptr fep)
	checks whether the passed flowendpoint is compatible with this.
virtual CORBA::Boolean	set_peer (AVStreams::FlowConnection_ptr the_fc, AVStreams::FlowEndPoint_ptr the_peer_fep, AVStreams::QoS &the_qos)
	sets the peer flowendpoint.
virtual CORBA::Boolean	set_Mcast_peer (AVStreams::FlowConnection_ptr the_fc, AVStreams::MCastConfigIf_ptr a_mcastconfigif, AVStreams::QoS &the_qos)
	sets the multicast peer flowendpoint, not implemented.
virtual CORBA::Boolean	connect_to_peer (AVStreams::QoS &the_qos, const char address, const char use_flow_protocol)=0
virtual CORBA::Boolean	connect_to_peer_i (TAO_FlowSpec_Entry::Role role, AVStreams::QoS &the_qos, const char address, const char use_flow_protocol)
	connect to the peer endpoint.
virtual char *	go_to_listen (AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol)=0
virtual char *	go_to_listen_i (TAO_FlowSpec_Entry::Role role, AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol)
	listen request from the peer.
Protected Attributes
AVStreams::StreamEndPoint_var	related_sep_
	The related streamendpoint.
AVStreams::FlowConnection_var	related_flow_connection_
	The related flow connection reference.
AVStreams::FlowEndPoint_var	peer_fep_
	The peer flowendpoint reference.
AVStreams::protocolSpec	protocols_
	Available protocols for this flowendpoint.
AVStreams::protocolSpec	protocol_addresses_
	Address information for the protocols.
AVStreams::MCastConfigIf_var	mcast_peer_
	The multicast peer endpoint.
CORBA::Boolean	lock_
	Lock.
CORBA::String_var	format_
CORBA::String_var	flowname_
CosPropertyService::Properties	dev_params_
TAO_AV_FlowSpecSet	flow_spec_set_
CORBA::String_var	reverse_channel_

Detailed Description

This class is used per flow e.g video flow and an audio flow to encapsulate the transport details.

Constructor & Destructor Documentation

TAO_FlowEndPoint::TAO_FlowEndPoint ( void )

default constructor.

TAO_FlowEndPoint::TAO_FlowEndPoint	(	const char *	flowname,
		AVStreams::protocolSpec &	protocols,
		const char *	format
	)

Member Function Documentation

virtual CORBA::Boolean TAO_FlowEndPoint::connect_to_peer	(	AVStreams::QoS &	the_qos,
		const char *	address,
		const char *	use_flow_protocol
	)		`[pure virtual]`

This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object.

Implemented in TAO_FlowConsumer, and TAO_FlowProducer.

CORBA::Boolean TAO_FlowEndPoint::connect_to_peer_i	(	TAO_FlowSpec_Entry::Role	role,
		AVStreams::QoS &	the_qos,
		const char *	address,
		const char *	use_flow_protocol
	)		`[virtual]`

connect to the peer endpoint.

void TAO_FlowEndPoint::destroy ( void ) [virtual]

destroy this flow.

AVStreams::FlowEndPoint_ptr TAO_FlowEndPoint::get_connected_fep ( void ) [virtual]

returns the other flowendpoint to which this is connected.

virtual char* TAO_FlowEndPoint::go_to_listen	(	AVStreams::QoS &	the_qos,
		CORBA::Boolean	is_mcast,
		AVStreams::FlowEndPoint_ptr	peer,
		char *&	flowProtocol
	)		`[pure virtual]`

This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object.

Implemented in TAO_FlowConsumer, and TAO_FlowProducer.

char * TAO_FlowEndPoint::go_to_listen_i	(	TAO_FlowSpec_Entry::Role	role,
		AVStreams::QoS &	the_qos,
		CORBA::Boolean	is_mcast,
		AVStreams::FlowEndPoint_ptr	peer,
		char *&	flowProtocol
	)		`[virtual]`

listen request from the peer.

CORBA::Boolean TAO_FlowEndPoint::is_fep_compatible ( AVStreams::FlowEndPoint_ptr fep ) [virtual]

checks whether the passed flowendpoint is compatible with this.

CORBA::Boolean TAO_FlowEndPoint::lock ( void ) [virtual]

lock the flow endpoint for a particular flow.

int TAO_FlowEndPoint::open	(	const char *	flowname,
		AVStreams::protocolSpec &	protocols,
		const char *	format
	)

AVStreams::FlowConnection_ptr TAO_FlowEndPoint::related_flow_connection ( void ) [virtual]

void TAO_FlowEndPoint::related_flow_connection ( AVStreams::FlowConnection_ptr related_flow_connection ) [virtual]

set method for the related flow connection attribute.

AVStreams::StreamEndPoint_ptr TAO_FlowEndPoint::related_sep ( void ) [virtual]

get method for the related streamendpoint under which this flowendpoint is.

void TAO_FlowEndPoint::related_sep ( AVStreams::StreamEndPoint_ptr related_sep ) [virtual]

set method for the related streamendpoint under which this flowendpoint is.

void TAO_FlowEndPoint::set_dev_params ( const CosPropertyService::Properties & new_settings ) [virtual]

sets the device parameters.

void TAO_FlowEndPoint::set_flow_handler	(	const char *	flowname,
		TAO_AV_Flow_Handler *	handler
	)		`[virtual]`

Reimplemented from TAO_Base_StreamEndPoint.

int TAO_FlowEndPoint::set_flowname ( const char * flowname )

void TAO_FlowEndPoint::set_format ( const char * format ) [virtual]

sets the data format.

CORBA::Boolean TAO_FlowEndPoint::set_Mcast_peer	(	AVStreams::FlowConnection_ptr	the_fc,
		AVStreams::MCastConfigIf_ptr	a_mcastconfigif,
		AVStreams::QoS &	the_qos
	)		`[virtual]`

sets the multicast peer flowendpoint, not implemented.

CORBA::Boolean TAO_FlowEndPoint::set_peer	(	AVStreams::FlowConnection_ptr	the_fc,
		AVStreams::FlowEndPoint_ptr	the_peer_fep,
		AVStreams::QoS &	the_qos
	)		`[virtual]`
