AVStreams::FlowEndPoint Interface Reference

import "AVStreams.idl";

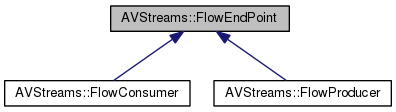

Inheritance diagram for AVStreams::FlowEndPoint:

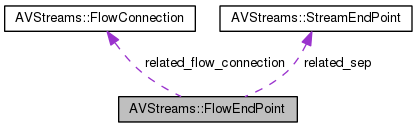

Collaboration diagram for AVStreams::FlowEndPoint:

List of all members.

Public Member Functions
boolean	lock ()
void	unlock ()
void	stop ()
void	start ()
void	destroy ()
FlowEndPoint	get_connected_fep () raises (notConnected,AVStreams::notSupported)
boolean	use_flow_protocol (in string fp_name, in any fp_settings) raises (AVStreams::FPError, AVStreams::notSupported)
	syntax of fp_name is <flowProtocol>
void	set_format (in string format) raises (AVStreams::notSupported)
void	set_dev_params (in CosPropertyService::Properties new_settings) raises (PropertyException, AVStreams::streamOpFailed)
void	set_protocol_restriction (in AVStreams::protocolSpec the_spec) raises (AVStreams::notSupported)
boolean	is_fep_compatible (in FlowEndPoint fep) raises (formatMismatch, deviceQosMismatch)
boolean	set_peer (in FlowConnection the_fc, in FlowEndPoint the_peer_fep, inout AVStreams::QoS the_qos) raises (AVStreams::QoSRequestFailed, AVStreams::streamOpFailed)
boolean	set_Mcast_peer (in FlowConnection the_fc, in AVStreams::MCastConfigIf a_mcastconfigif, inout AVStreams::QoS the_qos) raises (AVStreams::QoSRequestFailed)
boolean	connect_to_peer (inout AVStreams::QoS the_qos, in string address, in string use_flow_protocol) raises (failedToConnect,AVStreams::FPError, AVStreams::QoSRequestFailed)
string	go_to_listen (inout AVStreams::QoS the_qos, in boolean is_mcast, in FlowEndPoint peer, inout string flowProtocol) raises (failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed)
Public Attributes
attribute AVStreams::StreamEndPoint	related_sep
	Default is a nil object reference.
attribute FlowConnection	related_flow_connection

---

Member Function Documentation

boolean AVStreams::FlowEndPoint::connect_to_peer	(	inout AVStreams::QoS	the_qos,
		in string	address,
		in string	use_flow_protocol
	)		raises (failedToConnect,AVStreams::FPError, AVStreams::QoSRequestFailed)

void AVStreams::FlowEndPoint::destroy

(

)

FlowEndPoint AVStreams::FlowEndPoint::get_connected_fep

(

)

raises (notConnected,AVStreams::notSupported)

string AVStreams::FlowEndPoint::go_to_listen	(	inout AVStreams::QoS	the_qos,
		in boolean	is_mcast,
		in FlowEndPoint	peer,
		inout string	flowProtocol
	)		raises (failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed)

Needs to know its peer to choose its protocol correctly Also to ask for a reverse channel for credit-based flow control, if one is required

boolean AVStreams::FlowEndPoint::is_fep_compatible

(

in FlowEndPoint

fep

)

raises (formatMismatch, deviceQosMismatch)

boolean AVStreams::FlowEndPoint::lock

(

)

void AVStreams::FlowEndPoint::set_dev_params

(

in CosPropertyService::Properties

new_settings

)

raises (PropertyException, AVStreams::streamOpFailed)

void AVStreams::FlowEndPoint::set_format

(

in string

format

)

raises (AVStreams::notSupported)

set_format() initializes ��format�� as current media format e.g. MPEG.

boolean AVStreams::FlowEndPoint::set_Mcast_peer	(	in FlowConnection	the_fc,
		in AVStreams::MCastConfigIf	a_mcastconfigif,
		inout AVStreams::QoS	the_qos
	)		raises (AVStreams::QoSRequestFailed)

boolean AVStreams::FlowEndPoint::set_peer	(	in FlowConnection	the_fc,
		in FlowEndPoint	the_peer_fep,
		inout AVStreams::QoS	the_qos
	)		raises (AVStreams::QoSRequestFailed, AVStreams::streamOpFailed)

void AVStreams::FlowEndPoint::set_protocol_restriction

(

in AVStreams::protocolSpec

the_spec

)

raises (AVStreams::notSupported)

void AVStreams::FlowEndPoint::start

(

)

void AVStreams::FlowEndPoint::stop

(

)

void AVStreams::FlowEndPoint::unlock

(

)

boolean AVStreams::FlowEndPoint::use_flow_protocol	(	in string	fp_name,
		in any	fp_settings
	)		raises (AVStreams::FPError, AVStreams::notSupported)

syntax of fp_name is <flowProtocol>

---

Member Data Documentation

attribute FlowConnection AVStreams::FlowEndPoint::related_flow_connection

attribute AVStreams::StreamEndPoint AVStreams::FlowEndPoint::related_sep

Default is a nil object reference.

---

The documentation for this interface was generated from the following file:

• AVStreams.idl
