ACE_QoS_Session Class Reference

A QoS Session object. More...

#include <QoS_Session.h>

Inheritance diagram for ACE_QoS_Session:

Inheritance graph
[legend]

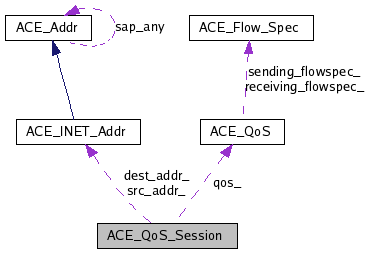

Collaboration diagram for ACE_QoS_Session:

Collaboration graph
[legend]

List of all members.

Public Types

enum  RSVP_Event_Type {
  RSVP_PATH_EVENT, RSVP_RESV_EVENT, RSVP_RESV_CONFIRM, RSVP_RESV_ERROR,
  RSVP_PATH_ERROR
}
enum  ACE_End_Point_Type { ACE_QOS_SENDER, ACE_QOS_RECEIVER, ACE_QOS_BOTH }

Public Member Functions

virtual ~ACE_QoS_Session (void)
 to shutup g++.
virtual int open (ACE_INET_Addr dest_addr, ACE_Protocol_ID protocol_id)=0
 Open a QoS session [dest IP, dest port, Protocol ID].
virtual int close (void)=0
 Close the QoS Session.
virtual ACE_QoS qos (void) const =0
 Returns the QoS in the current session.
virtual int qos (ACE_SOCK *socket, ACE_QoS_Manager *qos_manager, const ACE_QoS &ace_qos)=0
virtual void qos (const ACE_QoS &ace_qos)=0
virtual int update_qos (void)=0
virtual ACE_End_Point_Type flags (void) const =0
 Get/Set methods for the flags_.
virtual void flags (const ACE_End_Point_Type flags)=0
virtual int session_id (void) const =0
 Get the session id.
virtual void session_id (const int session_id)=0
 Set the session id.
virtual ACE_HANDLE rsvp_events_handle (void)=0
 Get the file descriptor on which RSVP events will occur.
virtual void rsvp_event_type (RSVP_Event_Type event_type)=0
virtual RSVP_Event_Type rsvp_event_type (void)=0
 Set the RAPI event that last occured.
virtual ACE_INET_Addr dest_addr (void) const =0
 Get the RAPI event that last occured.
virtual void dest_addr (const ACE_INET_Addr &dest_addr)=0
 Set the destination address for this session.
virtual u_short source_port (void) const =0
 Get the source port for this session.
virtual void source_port (const u_short &source_port)=0
 Set the source port for this session.
virtual ACE_INET_Addrsource_addr (void) const =0
virtual void source_addr (ACE_INET_Addr *source_addr)=0
 Set the source port for this session.
virtual int version (void)=0

Protected Attributes

u_short source_port_
 Source port if this is a Sender session. Used for rapi_sender ().
int session_id_
 session id for the session.
ACE_INET_Addr dest_addr_
 Destination address for this session.
ACE_INET_Addrsrc_addr_
 Source address for this session.
ACE_Protocol_ID protocol_id_
 Is this a TCP or a UDP session.
ACE_QoS qos_
 QoS for this session.
ACE_End_Point_Type flags_
 Specifies if this is a sending/receiving/both session.
RSVP_Event_Type rsvp_event_type_


Detailed Description

A QoS Session object.

This class defines the interface for a QoS Session. It abstracts the notion of QoS on different platforms and presents a simple, easy-to-use API. Current [RAPI,GQoS] and future implementations will conform to this interface.


Member Enumeration Documentation

Enumerator:
RSVP_PATH_EVENT
RSVP_RESV_EVENT
RSVP_RESV_CONFIRM
RSVP_RESV_ERROR
RSVP_PATH_ERROR

A flag to indicate if this endpoint is a sender or a receiver or both.

Enumerator:
ACE_QOS_SENDER
ACE_QOS_RECEIVER
ACE_QOS_BOTH


Constructor & Destructor Documentation

virtual ACE_QoS_Session::~ACE_QoS_Session ( void   )  [inline, virtual]

to shutup g++.


Member Function Documentation

virtual int ACE_QoS_Session::open ( ACE_INET_Addr  dest_addr,
ACE_Protocol_ID  protocol_id
) [pure virtual]

Open a QoS session [dest IP, dest port, Protocol ID].

Implemented in ACE_GQoS_Session.

virtual int ACE_QoS_Session::close ( void   )  [pure virtual]

Close the QoS Session.

Implemented in ACE_GQoS_Session.

virtual ACE_QoS ACE_QoS_Session::qos ( void   )  const [pure virtual]

Returns the QoS in the current session.

Implemented in ACE_GQoS_Session.

virtual int ACE_QoS_Session::qos ( ACE_SOCK socket,
ACE_QoS_Manager qos_manager,
const ACE_QoS ace_qos
) [pure virtual]

Set QoS for the current session. The qos manager is used to confirm if this QoS session was subscribed to by the socket.

Implemented in ACE_GQoS_Session.

virtual void ACE_QoS_Session::qos ( const ACE_QoS ace_qos  )  [pure virtual]

Sets the QoS for this session object to ace_qos. Does not interfere with the QoS in the underlying socket. This call is useful to update the QoS object when the underlying socket QoS is being set through a mechanism other than the previous qos () method e.g. inside the dgram_mcast.subscribe () where the QoS for the socket is set through ACE_OS::join_leaf ().

Implemented in ACE_GQoS_Session.

virtual int ACE_QoS_Session::update_qos ( void   )  [pure virtual]

This is called from handle_qos () method of the the QoS Event Handler. Invoking this method is an indication of a QoS event occurring, that may have resulted in a change of QoS for the underlying session. This method updates the QoS object associated with this session.

Implemented in ACE_GQoS_Session.

virtual ACE_End_Point_Type ACE_QoS_Session::flags ( void   )  const [pure virtual]

Get/Set methods for the flags_.

Implemented in ACE_GQoS_Session.

virtual void ACE_QoS_Session::flags ( const ACE_End_Point_Type  flags  )  [pure virtual]

Implemented in ACE_GQoS_Session.

virtual int ACE_QoS_Session::session_id ( void   )  const [pure virtual]

Get the session id.

Implemented in ACE_GQoS_Session.

virtual void ACE_QoS_Session::session_id ( const int  session_id  )  [pure virtual]

Set the session id.

Implemented in ACE_GQoS_Session.

virtual ACE_HANDLE ACE_QoS_Session::rsvp_events_handle ( void   )  [pure virtual]

Get the file descriptor on which RSVP events will occur.

Implemented in ACE_GQoS_Session.

virtual void ACE_QoS_Session::rsvp_event_type ( RSVP_Event_Type  event_type  )  [pure virtual]

Implemented in ACE_GQoS_Session.

virtual RSVP_Event_Type ACE_QoS_Session::rsvp_event_type ( void   )  [pure virtual]

Set the RAPI event that last occured.

Implemented in ACE_GQoS_Session.

virtual ACE_INET_Addr ACE_QoS_Session::dest_addr ( void   )  const [pure virtual]

Get the RAPI event that last occured.

Get the destination address for this session.

Implemented in ACE_GQoS_Session.

virtual void ACE_QoS_Session::dest_addr ( const ACE_INET_Addr dest_addr  )  [pure virtual]

Set the destination address for this session.

Implemented in ACE_GQoS_Session.

virtual u_short ACE_QoS_Session::source_port ( void   )  const [pure virtual]

Get the source port for this session.

Implemented in ACE_GQoS_Session.

virtual void ACE_QoS_Session::source_port ( const u_short &  source_port  )  [pure virtual]

Set the source port for this session.

Implemented in ACE_GQoS_Session.

virtual ACE_INET_Addr* ACE_QoS_Session::source_addr ( void   )  const [pure virtual]

Implemented in ACE_GQoS_Session.

virtual void ACE_QoS_Session::source_addr ( ACE_INET_Addr source_addr  )  [pure virtual]

Set the source port for this session.

Implemented in ACE_GQoS_Session.

virtual int ACE_QoS_Session::version ( void   )  [pure virtual]

Returns the version of the underlying RSVP implementation. Is meaningful only when the underlying implementation has versioning.

Implemented in ACE_GQoS_Session.


Member Data Documentation

u_short ACE_QoS_Session::source_port_ [protected]

Source port if this is a Sender session. Used for rapi_sender ().

session id for the session.

Destination address for this session.

Source address for this session.

Is this a TCP or a UDP session.

QoS for this session.

Specifies if this is a sending/receiving/both session.
