CIAO::DomainApplicationManager_AMH_Impl Class Reference

#include <DomainApplicationManager_AMH_Impl.h>

Inheritance diagram for CIAO::DomainApplicationManager_AMH_Impl:

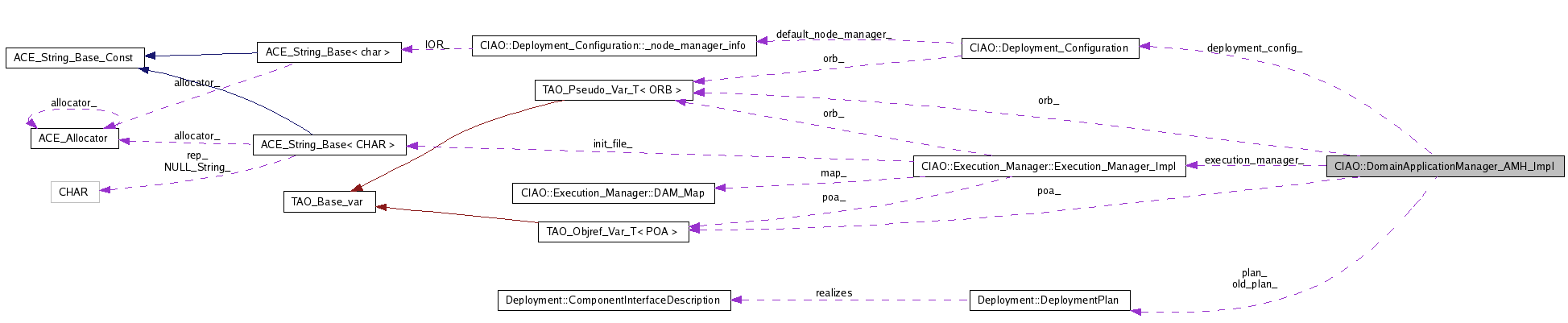

Collaboration diagram for CIAO::DomainApplicationManager_AMH_Impl:

List of all members.

Public Types

enum Connection_Search_Type { External_Connections, Internal_Connections }

typedef struct
CIAO::DomainApplicationManager_AMH_Impl::_chained_artifacts Chained_Artifacts

Public Member Functions

DomainApplicationManager_AMH_Impl (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, Deployment::TargetManager_ptr manager, Execution_Manager::Execution_Manager_Impl *em, const Deployment::DeploymentPlan &plan, const char *deployment_file)

Constructor.

void init ()

void set_uuid (const char *uuid)

const char * get_uuid () const

virtual void get_node_app (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh, const char *node_name)

virtual void startLaunch (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh, const ::Deployment::Properties &configProperty,::CORBA::Boolean start)

virtual void finishLaunch (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh, CORBA::Boolean start, CORBA::Boolean is_ReDAC)

virtual void post_finishLaunch (void)

virtual void passivate_shared_components (void)

virtual void activate_shared_components (void)

virtual void start (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh)

virtual void destroyApplication (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh)

virtual void getPlan (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh)

virtual void destroyManager (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh)

virtual void perform_redeployment (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh, const Deployment::DeploymentPlan &plan)

Protected Types

typedef
ACE_Hash_Map_Manager_Ex
< ACE_CString,
Chained_Artifacts, ACE_Hash
< ACE_CString >, ACE_Equal_To
< ACE_CString >
, ACE_Null_Mutex > Chained_Artifacts_Table

typedef
ACE_Hash_Map_Manager_Ex
< ACE_CString,
CIAO::CIAO_Event_Service_var,
ACE_Hash< ACE_CString >
, ACE_Equal_To< ACE_CString >
, ACE_Null_Mutex > Event_Service_Table

Protected Member Functions

virtual ~DomainApplicationManager_AMH_Impl (void)

Destructor.

bool get_plan_info (void)

int split_plan (void)

CIAO::Component_Binding_Info * populate_binding_info (const ACE_CString &name, const ACE_CString &child_uuid)

CIAO::Component_Binding_Info * populate_binding_info (const ACE_CString &name)

void synchronize_shared_components_with_node_managers (void)

void add_shared_components (const Deployment::ComponentPlans &shared)

bool is_shared_component (const char *name)

void add_connections (const Deployment::Connections &incoming_conn)

Deployment::Connections * get_outgoing_connections (const Deployment::DeploymentPlan &plan, bool is_getting_all_connections=true, bool is_search_new_plan=true, Connection_Search_Type t=Internal_Connections)

bool get_outgoing_connections_i (const char *instname, Deployment::Connections &retv, bool is_ReDAC, bool is_search_new_plan)

This is a helper function to find the connection for a component.

bool populate_connection_for_binding (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv)

bool handle_es_connection (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv)

bool handle_direct_connection (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv)

void dump_connections (const ::Deployment::Connections &connections)

Dump connections, a static method.

bool already_exists (const Deployment::PlanConnectionDescription &conn)

Check whether a connection already exists in the cached old plan.

Deployment::Connections * subtract_connections (const Deployment::Connections &left, const Deployment::Connections &right)

Remove those appeared in <right> from the <left>.

void purge_connections (Deployment::Connections_var &connections, const char *inst)

virtual void install_all_es (void)

virtual void add_es_to_map (const char *node_name, CIAO::CIAO_Event_Service *ciao_es)

virtual const
Deployment::Properties * get_connection_QoS_configuration (const Deployment::Requirement &requirement)

Protected Attributes

CORBA::String_var domainapp_path_

location of the Domainapplication

CORBA::ORB_var orb_

Keep a pointer to the managing ORB serving this servant.

PortableServer::POA_var poa_

Keep a pointer to the managing POA.

Execution_Manager::Execution_Manager_Impl * execution_manager_

Deployment::ComponentPlans_var shared_

Cache a list of shared components.

CORBA::String_var ior_

Cache the ior of the previous reference.

Deployment::TargetManager_var target_manager_

Cached TargetManager.

Deployment::DeploymentPlan plan_

Deployment::DeploymentPlan old_plan_

Cached old deployment plan, i.e., before redeployment.

size_t num_child_plans_

Cached child plans.

ACE_Vector< ACE_CString > node_manager_names_

Chained_Artifacts_Table artifact_map_

Event_Service_Table es_map_

const char * deployment_file_

The deployment information data file.

Deployment_Configuration deployment_config_

Deployment Configuration info, which contains the deployment topology.

CORBA::String_var uuid_

UUID from the Plan.

::Deployment::Connections_var all_connections_

bool is_redeployment_

CIAO::DAnCE::EventServiceDeploymentDescriptions_var esd_

Cache the CIAO_Event_Service deployment description.

Classes

struct _chained_artifacts

Member Typedef Documentation

typedef struct CIAO::DomainApplicationManager_AMH_Impl::_chained_artifacts CIAO::DomainApplicationManager_AMH_Impl::Chained_Artifacts

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, Chained_Artifacts, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::DomainApplicationManager_AMH_Impl::Chained_Artifacts_Table [protected]

Cached information for NodeManager, NodeApplicationManager, NodeApplication, Connections, etc. Key: NodeManager name with CString type. Value: Chained_Artifacts struct type.

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, CIAO::CIAO_Event_Service_var, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::DomainApplicationManager_AMH_Impl::Event_Service_Table [protected]

Cached information of all the CIAO_Event_Service objects within the deployment plan Key: the string identifier of the CIAO_Event_Service Value: the object reference of the CIAO_Event_Service

Member Enumeration Documentation

enum CIAO::DomainApplicationManager_AMH_Impl::Connection_Search_Type

External_Connections means we search all the connections including the connectiosn for external/shared components of this plan which hold port objrefs of components within this plan

Enumerator:

External_Connections
Internal_Connections

Constructor & Destructor Documentation

CIAO::DomainApplicationManager_AMH_Impl::DomainApplicationManager_AMH_Impl	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa,
		Deployment::TargetManager_ptr	manager,
		Execution_Manager::Execution_Manager_Impl *	em,
		const Deployment::DeploymentPlan &	plan,
		const char *	deployment_file
	)

Constructor.

CIAO::DomainApplicationManager_AMH_Impl::~DomainApplicationManager_AMH_Impl ( void ) [protected, virtual]

Destructor.

Member Function Documentation

void CIAO::DomainApplicationManager_AMH_Impl::init ( )

Initialize the DomainApplicationManager. em A pointer to the ExecutionManager servant C++ object.

(1) Set the total number of child plans. (2) Set the list of NodeManager names, which is an array of strings. The <node_manager_names> is a pointer to an array of ACE_CString objets, which is allocated by the caller and deallocated by the DomainApplicationManager destructor. (3) Check the validity of the deployment plan and the deployment information data file. (4) Call split_plan () member function. (5) Invoke all the preparePlan () operations on all the corresponding NodeManagers with child plans.

@ What else do we need to initialize here?

ACE_INLINE void CIAO::DomainApplicationManager_AMH_Impl::set_uuid ( const char * uuid )

set_uuid method on the DomainApplicationManager assigns the UUID of the associated plan to this Manager. This helps in reverse lookup operations such as given a manager, obtaining the UUID associated. The get_uuid method is used in this case.

ACE_INLINE const char * CIAO::DomainApplicationManager_AMH_Impl::get_uuid ( ) const

void CIAO::DomainApplicationManager_AMH_Impl::get_node_app	(	Deployment::AMH_DomainApplicationManagerResponseHandler_ptr	_tao_rh,
		const char *	node_name
	)			`[virtual]`

Fetch the NodeApplication object reference based on the NodeManager name.

void CIAO::DomainApplicationManager_AMH_Impl::startLaunch	(	Deployment::AMH_DomainApplicationManagerResponseHandler_ptr	_tao_rh,
		const ::Deployment::Properties &	configProperty,
		::CORBA::Boolean	start
	)			`[virtual]`

Executes the application, but does not start it yet. Users can optionally provide launch-time configuration properties to override properties that are part of the plan. Raises the InvalidProperty exception if a configuration property is invalid. Raises the StartError exception if an error occurs during launching. Raises the ResourceNotAvailable exception if the commitResources parameter to the prepare operation of the ExecutionManager was true, if late resource allocation is used, and one of the requested resources is not available.

Reimplemented in CIAO::DomainApplicationManager_AMI_Impl.

void CIAO::DomainApplicationManager_AMH_Impl::finishLaunch	(	Deployment::AMH_DomainApplicationManagerResponseHandler_ptr	_tao_rh,
		CORBA::Boolean	start,
		CORBA::Boolean	is_ReDAC
	)			`[virtual]`

The second step in launching an application in the domain-level. If the start parameter is true, the application is started as well. Raises the StartError exception if launching or starting the application fails.

void CIAO::DomainApplicationManager_AMH_Impl::post_finishLaunch ( void ) [virtual]

The last step in launching an application in the domain-level. We establish connection bindings for external/shared components of this deployment plan components. Internally, this operation will invoke some operations on ExecutionManager to finish up this task.

void CIAO::DomainApplicationManager_AMH_Impl::passivate_shared_components ( void ) [virtual]

void CIAO::DomainApplicationManager_AMH_Impl::activate_shared_components ( void ) [virtual]

void CIAO::DomainApplicationManager_AMH_Impl::start ( Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh ) [virtual]

Starts the application. Raises the StartError exception if starting the application fails.

void CIAO::DomainApplicationManager_AMH_Impl::destroyApplication ( Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh ) [virtual]

Terminates a running application. Raises the StopError exception if an error occurs during termination. Raises the InvalidReference exception if the appliction reference is unknown.

void CIAO::DomainApplicationManager_AMH_Impl::getPlan ( Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh ) [virtual]

Returns the DeploymentPlan associated with this ApplicationManager.

void CIAO::DomainApplicationManager_AMH_Impl::destroyManager ( Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh ) [virtual]

This is a helper function to destroy the NodeAppManager. Since we don't want to do so in the destructor so we will ask the ExecutionManager to do this on us when the same IDL op invoked on it. This is part of the result for merging DAM with DA.

void CIAO::DomainApplicationManager_AMH_Impl::perform_redeployment	(	Deployment::AMH_DomainApplicationManagerResponseHandler_ptr	_tao_rh,
		const Deployment::DeploymentPlan &	plan
	)			`[virtual]`

bool CIAO::DomainApplicationManager_AMH_Impl::get_plan_info ( void ) [protected]

(1) Parse the global deployment plan, get the total number of child plans included in the global plan, and get the list of names of NodeManagers for each child plan. (2) Check whether all the NodeManager names are present in the deployment information data file.

int CIAO::DomainApplicationManager_AMH_Impl::split_plan ( void ) [protected]

Split the global (domain-level) deployment plan to a set of local (node-level) deployment plans. The set of local plans are cached in the ACE hash map member variable. Also, fill in the <node_manager_> field of the Chained_Artifacts struct.

CIAO::Component_Binding_Info * CIAO::DomainApplicationManager_AMH_Impl::populate_binding_info	(	const ACE_CString &	name,
		const ACE_CString &	child_uuid
	)			`[protected]`

Construct <Component_Binding_Info> struct for the component instance.

Parameters:

	name	component instance name
	child_uuid	child plan uuid string

CIAO::Component_Binding_Info * CIAO::DomainApplicationManager_AMH_Impl::populate_binding_info ( const ACE_CString & name ) [protected]

Construct <Component_Binding_Info> struct for the component instance. Fetch the plan_uuid info from the internally cached shared component list.

Parameters:

name

component instance name

void CIAO::DomainApplicationManager_AMH_Impl::synchronize_shared_components_with_node_managers ( void ) [protected]

Contact each NodeManager to get shared compnents information and then update its internal cache.

void CIAO::DomainApplicationManager_AMH_Impl::add_shared_components ( const Deployment::ComponentPlans & shared ) [protected]

A helper function to add a list of shared components into the cached shared component list.

Parameters:

shared

A list of shared components to be added.

bool CIAO::DomainApplicationManager_AMH_Impl::is_shared_component ( const char * name ) [protected]

A private function to check whether a component is in the shared component list.

Parameters:

name

The name of a component instance.

void CIAO::DomainApplicationManager_AMH_Impl::add_connections ( const Deployment::Connections & incoming_conn ) [protected]

Cache the incoming connections, which is a sequence of Connections, into the <all_connections_> list.

Deployment::Connections * CIAO::DomainApplicationManager_AMH_Impl::get_outgoing_connections	(	const Deployment::DeploymentPlan &	plan,
		bool	is_getting_all_connections = `true`,
		bool	is_search_new_plan = `true`,
		Connection_Search_Type	t = `Internal_Connections`
	)			`[protected]`

Given a child deployment plan, find the <Connections> sequence of the "providedReference" for the component instances in the child deployment plan as Receiver side. By default, we search in the new plan.

If <is_getting_all_connections> is false, then we only search for "new connections" (valid for ReDaC case only). Otherwise, we will search for both new connections and those already existing connections.

bool CIAO::DomainApplicationManager_AMH_Impl::get_outgoing_connections_i	(	const char *	instname,
		Deployment::Connections &	retv,
		bool	is_ReDAC,
		bool	is_search_new_plan
	)			`[protected]`

This is a helper function to find the connection for a component.

bool CIAO::DomainApplicationManager_AMH_Impl::populate_connection_for_binding	(	const char *	instname,
		const Deployment::PlanConnectionDescription &	binding,
		const Deployment::DeploymentPlan &	plan,
		Deployment::Connections &	retv
	)			`[protected]`

bool CIAO::DomainApplicationManager_AMH_Impl::handle_es_connection	(	const char *	instname,
		const Deployment::PlanConnectionDescription &	binding,
		const Deployment::DeploymentPlan &	plan,
		Deployment::Connections &	retv
	)			`[protected]`

bool CIAO::DomainApplicationManager_AMH_Impl::handle_direct_connection	(	const char *	instname,
		const Deployment::PlanConnectionDescription &	binding,
		const Deployment::DeploymentPlan &	plan,
		Deployment::Connections &	retv
	)			`[protected]`

void CIAO::DomainApplicationManager_AMH_Impl::dump_connections ( const ::Deployment::Connections & connections ) [protected]

Dump connections, a static method.

bool CIAO::DomainApplicationManager_AMH_Impl::already_exists ( const Deployment::PlanConnectionDescription & conn ) [protected]

Check whether a connection already exists in the cached old plan.

Deployment::Connections * CIAO::DomainApplicationManager_AMH_Impl::subtract_connections	(	const Deployment::Connections &	left,
		const Deployment::Connections &	right
	)			`[protected]`

Remove those appeared in <right> from the <left>.

void CIAO::DomainApplicationManager_AMH_Impl::purge_connections	(	Deployment::Connections_var &	connections,
		const char *	inst
	)			`[protected]`

void CIAO::DomainApplicationManager_AMH_Impl::install_all_es ( void ) [protected, virtual]

The first step in finish_launching an application in the domain-level. We install all the CIAO_Event_Service objects as specified in the DeploymentPlan. Internally, this operation will invoke an operation on each cached NodeApplication object.

void CIAO::DomainApplicationManager_AMH_Impl::add_es_to_map	(	const char *	node_name,
		CIAO::CIAO_Event_Service *	ciao_es
	)			`[protected, virtual]`

Add all CIAO_Event_Service objects into the cached map.

const Deployment::Properties * CIAO::DomainApplicationManager_AMH_Impl::get_connection_QoS_configuration ( const Deployment::Requirement & requirement ) [protected, virtual]

Get the actual event connection QoS properties based on the deployment requirement. The deployment requirement only specifies an identifier/reference to the EventServiceDeploymentDescriptions.

Member Data Documentation

CORBA::String_var CIAO::DomainApplicationManager_AMH_Impl::domainapp_path_ [protected]

location of the Domainapplication

CORBA::ORB_var CIAO::DomainApplicationManager_AMH_Impl::orb_ [protected]

Keep a pointer to the managing ORB serving this servant.

PortableServer::POA_var CIAO::DomainApplicationManager_AMH_Impl::poa_ [protected]

Keep a pointer to the managing POA.

Execution_Manager::Execution_Manager_Impl* CIAO::DomainApplicationManager_AMH_Impl::execution_manager_ [protected]

Pointer to the ExecutionManager_Impl "singleton" servant object We could do this because ExecutionManager and DomainApplicationManager are always collocated in the same process, so we don't have to pass CORBA object reference back and forth.

Deployment::ComponentPlans_var CIAO::DomainApplicationManager_AMH_Impl::shared_ [protected]

Cache a list of shared components.

CORBA::String_var CIAO::DomainApplicationManager_AMH_Impl::ior_ [protected]

Cache the ior of the previous reference.

Deployment::TargetManager_var CIAO::DomainApplicationManager_AMH_Impl::target_manager_ [protected]

Cached TargetManager.

Deployment::DeploymentPlan CIAO::DomainApplicationManager_AMH_Impl::plan_ [protected]

Cached deployment plan for the particular domain. The plan will be initialized when init is called.

Deployment::DeploymentPlan CIAO::DomainApplicationManager_AMH_Impl::old_plan_ [protected]

Cached old deployment plan, i.e., before redeployment.

size_t CIAO::DomainApplicationManager_AMH_Impl::num_child_plans_ [protected]

Cached child plans.

Total number of child deployment plans.

ACE_Vector<ACE_CString> CIAO::DomainApplicationManager_AMH_Impl::node_manager_names_ [protected]

The list of node manager names, each of them corresponds to one child plan.

Chained_Artifacts_Table CIAO::DomainApplicationManager_AMH_Impl::artifact_map_ [protected]

Event_Service_Table CIAO::DomainApplicationManager_AMH_Impl::es_map_ [protected]

const char* CIAO::DomainApplicationManager_AMH_Impl::deployment_file_ [protected]

The deployment information data file.

Deployment_Configuration CIAO::DomainApplicationManager_AMH_Impl::deployment_config_ [protected]

Deployment Configuration info, which contains the deployment topology.

CORBA::String_var CIAO::DomainApplicationManager_AMH_Impl::uuid_ [protected]

UUID from the Plan.

::Deployment::Connections_var CIAO::DomainApplicationManager_AMH_Impl::all_connections_ [protected]

Maintain a list of <Connections>, each of which is obtained by calling the startLaunch() method on the NodeApplicationManager object.

bool CIAO::DomainApplicationManager_AMH_Impl::is_redeployment_ [protected]

This variable is used to control the execution path of some member function implementations. The reason is because we want to avoid unnecessary code duplicate. The default value is "false".

CIAO::DAnCE::EventServiceDeploymentDescriptions_var CIAO::DomainApplicationManager_AMH_Impl::esd_ [protected]

Cache the CIAO_Event_Service deployment description.

The documentation for this class was generated from the following files:


Public Types
enum	Connection_Search_Type { External_Connections, Internal_Connections }
typedef struct CIAO::DomainApplicationManager_AMH_Impl::_chained_artifacts	Chained_Artifacts
Public Member Functions
	DomainApplicationManager_AMH_Impl (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, Deployment::TargetManager_ptr manager, Execution_Manager::Execution_Manager_Impl em, const Deployment::DeploymentPlan &plan, const char deployment_file)
	Constructor.
void	init ()
void	set_uuid (const char *uuid)
const char *	get_uuid () const
virtual void	get_node_app (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh, const char *node_name)
virtual void	startLaunch (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh, const ::Deployment::Properties &configProperty,::CORBA::Boolean start)
virtual void	finishLaunch (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh, CORBA::Boolean start, CORBA::Boolean is_ReDAC)
virtual void	post_finishLaunch (void)
virtual void	passivate_shared_components (void)
virtual void	activate_shared_components (void)
virtual void	start (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh)
virtual void	destroyApplication (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh)
virtual void	getPlan (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh)
virtual void	destroyManager (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh)
virtual void	perform_redeployment (Deployment::AMH_DomainApplicationManagerResponseHandler_ptr _tao_rh, const Deployment::DeploymentPlan &plan)
Protected Types
typedef ACE_Hash_Map_Manager_Ex < ACE_CString, Chained_Artifacts, ACE_Hash < ACE_CString >, ACE_Equal_To < ACE_CString > , ACE_Null_Mutex >	Chained_Artifacts_Table
typedef ACE_Hash_Map_Manager_Ex < ACE_CString, CIAO::CIAO_Event_Service_var, ACE_Hash< ACE_CString > , ACE_Equal_To< ACE_CString > , ACE_Null_Mutex >	Event_Service_Table
Protected Member Functions
virtual	~DomainApplicationManager_AMH_Impl (void)
	Destructor.
bool	get_plan_info (void)
int	split_plan (void)
CIAO::Component_Binding_Info *	populate_binding_info (const ACE_CString &name, const ACE_CString &child_uuid)
CIAO::Component_Binding_Info *	populate_binding_info (const ACE_CString &name)
void	synchronize_shared_components_with_node_managers (void)
void	add_shared_components (const Deployment::ComponentPlans &shared)
bool	is_shared_component (const char *name)
void	add_connections (const Deployment::Connections &incoming_conn)
Deployment::Connections *	get_outgoing_connections (const Deployment::DeploymentPlan &plan, bool is_getting_all_connections=true, bool is_search_new_plan=true, Connection_Search_Type t=Internal_Connections)
bool	get_outgoing_connections_i (const char *instname, Deployment::Connections &retv, bool is_ReDAC, bool is_search_new_plan)
	This is a helper function to find the connection for a component.
bool	populate_connection_for_binding (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv)
bool	handle_es_connection (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv)
bool	handle_direct_connection (const char *instname, const Deployment::PlanConnectionDescription &binding, const Deployment::DeploymentPlan &plan, Deployment::Connections &retv)
void	dump_connections (const ::Deployment::Connections &connections)
	Dump connections, a static method.
bool	already_exists (const Deployment::PlanConnectionDescription &conn)
	Check whether a connection already exists in the cached old plan.
Deployment::Connections *	subtract_connections (const Deployment::Connections &left, const Deployment::Connections &right)
	Remove those appeared in <right> from the <left>.
void	purge_connections (Deployment::Connections_var &connections, const char *inst)
virtual void	install_all_es (void)
virtual void	add_es_to_map (const char node_name, CIAO::CIAO_Event_Service ciao_es)
virtual const Deployment::Properties *	get_connection_QoS_configuration (const Deployment::Requirement &requirement)
Protected Attributes
CORBA::String_var	domainapp_path_
	location of the Domainapplication
CORBA::ORB_var	orb_
	Keep a pointer to the managing ORB serving this servant.
PortableServer::POA_var	poa_
	Keep a pointer to the managing POA.
Execution_Manager::Execution_Manager_Impl *	execution_manager_
Deployment::ComponentPlans_var	shared_
	Cache a list of shared components.
CORBA::String_var	ior_
	Cache the ior of the previous reference.
Deployment::TargetManager_var	target_manager_
	Cached TargetManager.
Deployment::DeploymentPlan	plan_
Deployment::DeploymentPlan	old_plan_
	Cached old deployment plan, i.e., before redeployment.
size_t	num_child_plans_
	Cached child plans.
ACE_Vector< ACE_CString >	node_manager_names_
Chained_Artifacts_Table	artifact_map_
Event_Service_Table	es_map_
const char *	deployment_file_
	The deployment information data file.
Deployment_Configuration	deployment_config_
	Deployment Configuration info, which contains the deployment topology.
CORBA::String_var	uuid_
	UUID from the Plan.
::Deployment::Connections_var	all_connections_
bool	is_redeployment_
CIAO::DAnCE::EventServiceDeploymentDescriptions_var	esd_
	Cache the CIAO_Event_Service deployment description.
Classes
struct	_chained_artifacts
