TAO_Notify_EventChannelFactory Class Reference

Implementation of CosNotifyChannelAdmin::EventChannelFactory. More...

#include <EventChannelFactory.h>

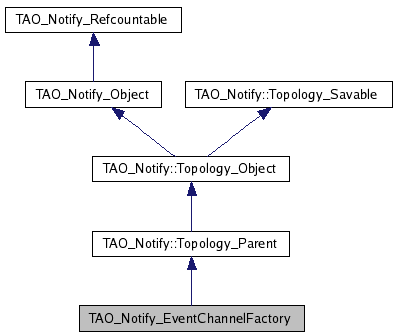

Inheritance diagram for TAO_Notify_EventChannelFactory:

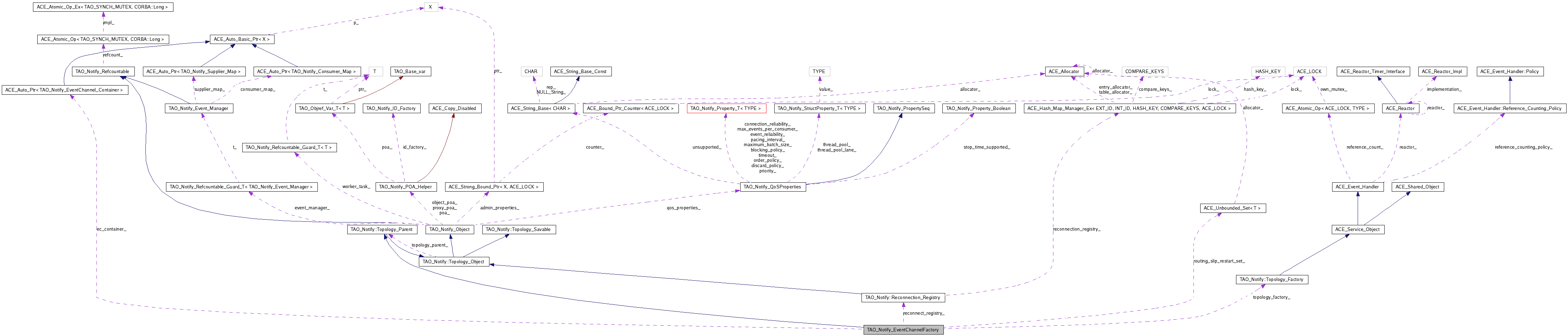

[legend]Collaboration diagram for TAO_Notify_EventChannelFactory:


Public Types
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_EventChannelFactory >	Ptr
Public Member Functions
	TAO_Notify_EventChannelFactory (void)
	Constuctor.
void	init (PortableServer::POA_ptr poa)
	Init the factory.
virtual	~TAO_Notify_EventChannelFactory ()
	Destructor.
virtual void	_add_ref (void)
	= ServantBase Methods
virtual void	_remove_ref (void)
void	remove (TAO_Notify_EventChannel *channel)
	Remove <channel> from the <ec_container_>.
virtual CosNotifyFilter::FilterFactory_ptr	get_default_filter_factory ()
	Accesor for the default filter factory shared by all EC's.
void	load_topology (void)
void	set_topology_factory (TAO_Notify::Topology_Factory *sf)
virtual bool	is_persistent () const
	Should this object be saved?
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual bool	change_to_parent (void)
	Send change to parent.
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.
CosNotifyChannelAdmin::EventChannelFactory_ptr	activate_self (void)
virtual void	reconnect (void)
bool	handle_change (void)
	handle change notifications
void	load_event_persistence (void)
virtual void	save_topology (void)
TAO_Notify_ProxyConsumer *	find_proxy_consumer (TAO_Notify::IdVec &id_path, size_t position)
TAO_Notify_ProxySupplier *	find_proxy_supplier (TAO_Notify::IdVec &id_path, size_t position)
TAO_Notify_Object *	follow_id_path (TAO_Notify::IdVec &id_path, size_t position)
virtual TAO_Notify_Object::ID	get_id () const
	Find the id associated with topology object.
Private Types
typedef ACE_Unbounded_Set< TAO_Notify::Routing_Slip_Ptr >	Routing_Slip_Set
typedef TAO_Notify_Container_T< TAO_Notify_EventChannel >	TAO_Notify_EventChannel_Container
Private Member Functions
virtual void	destroy (void)
	= NotifyExt methods
virtual int	shutdown (void)
	shutdown
virtual NotifyExt::ReconnectionRegistry::ReconnectionID	register_callback (NotifyExt::ReconnectionCallback_ptr reconnection)
virtual void	unregister_callback (NotifyExt::ReconnectionRegistry::ReconnectionID id)
virtual CORBA::Boolean	is_alive (void)
virtual ::CosNotifyChannelAdmin::EventChannel_ptr	create_channel (const CosNotification::QoSProperties &initial_qos, const CosNotification::AdminProperties &initial_admin, CosNotifyChannelAdmin::ChannelID_out id)
	= CosNotifyChannelAdmin Methods
virtual ::CosNotifyChannelAdmin::ChannelIDSeq *	get_all_channels ()
virtual ::CosNotifyChannelAdmin::EventChannel_ptr	get_event_channel (CosNotifyChannelAdmin::ChannelID id)
TAO_Notify_EventChannel_Container &	ec_container ()
virtual void	release (void)
	Release this object.
Private Attributes
CosNotifyFilter::FilterFactory_var	default_filter_factory_
	The default filter factory.
ACE_Auto_Ptr< TAO_Notify_EventChannel_Container >	ec_container_
	Container for Event Channels.
TAO_SYNCH_MUTEX	topology_save_lock_
CosNotifyChannelAdmin::EventChannelFactory_var	channel_factory_
short	topology_save_seq_
	change-in-progress detector to avoid duplicates
TAO_Notify::Topology_Factory *	topology_factory_
TAO_Notify::Reconnection_Registry	reconnect_registry_
bool	loading_topology_
Routing_Slip_Set	routing_slip_restart_set_
Friends
class	TAO_Notify_Builder

Detailed Description

Implementation of CosNotifyChannelAdmin::EventChannelFactory.

Member Typedef Documentation

typedef ACE_Unbounded_Set<TAO_Notify::Routing_Slip_Ptr> TAO_Notify_EventChannelFactory::Routing_Slip_Set [private]

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_EventChannelFactory > TAO_Notify_EventChannelFactory::Ptr

Reimplemented from TAO_Notify_Refcountable.

typedef TAO_Notify_Container_T<TAO_Notify_EventChannel> TAO_Notify_EventChannelFactory::TAO_Notify_EventChannel_Container [private]

Constructor & Destructor Documentation

TAO_Notify_EventChannelFactory::TAO_Notify_EventChannelFactory ( void )

Constuctor.

TAO_Notify_EventChannelFactory::~TAO_Notify_EventChannelFactory ( ) [virtual]

Destructor.

Member Function Documentation

void TAO_Notify_EventChannelFactory::init ( PortableServer::POA_ptr poa )

Init the factory.

void TAO_Notify_EventChannelFactory::_add_ref ( void ) [virtual]

= ServantBase Methods

void TAO_Notify_EventChannelFactory::_remove_ref ( void ) [virtual]

void TAO_Notify_EventChannelFactory::remove ( TAO_Notify_EventChannel * channel )

Remove <channel> from the <ec_container_>.

CosNotifyFilter::FilterFactory_ptr TAO_Notify_EventChannelFactory::get_default_filter_factory ( ) [virtual]

Accesor for the default filter factory shared by all EC's.

void TAO_Notify_EventChannelFactory::load_topology ( void )

Use the registered Topology_Factory to create a loader, and load the topology. If no Topology_Factory is registered then nothing will be loaded.

void TAO_Notify_EventChannelFactory::set_topology_factory ( TAO_Notify::Topology_Factory * sf )

Use the passed in saver factory to generate topology saver objects. Does not take ownership.

bool TAO_Notify_EventChannelFactory::is_persistent ( ) const [virtual]

Should this object be saved?

This is a way for send_change() and save_persistent() to find out if this object has a persistent QoS connection property.

Returns:: true (default) if object should be saved.

Reimplemented from TAO_Notify::Topology_Object.

void TAO_Notify_EventChannelFactory::save_persistent ( TAO_Notify::Topology_Saver & saver ) [virtual]

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

bool TAO_Notify_EventChannelFactory::change_to_parent ( void ) [virtual]

Send change to parent.

Override this if you don't expect to have a parent (top level of tree) private virtual because this should only be called from send_change()

Returns:: false if save will never happen

Reimplemented from TAO_Notify::Topology_Object.

TAO_Notify::Topology_Object * TAO_Notify_EventChannelFactory::load_child	(	const ACE_CString &	,
		CORBA::Long	,
		const TAO_Notify::NVPList &
	)			`[virtual]`

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

CosNotifyChannelAdmin::EventChannelFactory_ptr TAO_Notify_EventChannelFactory::activate_self ( void )

void TAO_Notify_EventChannelFactory::reconnect ( void ) [virtual]

Re-establish connections that we had before a shutdown.

After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same.

Reimplemented from TAO_Notify::Topology_Savable.

bool TAO_Notify_EventChannelFactory::handle_change ( void )

handle change notifications

void TAO_Notify_EventChannelFactory::load_event_persistence ( void )

void TAO_Notify_EventChannelFactory::save_topology ( void ) [virtual]

TAO_Notify_ProxyConsumer * TAO_Notify_EventChannelFactory::find_proxy_consumer	(	TAO_Notify::IdVec &	id_path,
		size_t	position
	)

TAO_Notify_ProxySupplier * TAO_Notify_EventChannelFactory::find_proxy_supplier	(	TAO_Notify::IdVec &	id_path,
		size_t	position
	)

TAO_Notify_Object* TAO_Notify_EventChannelFactory::follow_id_path	(	TAO_Notify::IdVec &	id_path,
		size_t	position
	)

TAO_Notify_Object::ID TAO_Notify_EventChannelFactory::get_id ( ) const [virtual]

Find the id associated with topology object.

A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id -- we just need someone to find it for us.

Reimplemented from TAO_Notify::Topology_Object.

void TAO_Notify_EventChannelFactory::destroy ( void ) [private, virtual]

= NotifyExt methods

int TAO_Notify_EventChannelFactory::shutdown ( void ) [private, virtual]

shutdown

Reimplemented from TAO_Notify_Object.

NotifyExt::ReconnectionRegistry::ReconnectionID TAO_Notify_EventChannelFactory::register_callback ( NotifyExt::ReconnectionCallback_ptr reconnection ) [private, virtual]

void TAO_Notify_EventChannelFactory::unregister_callback ( NotifyExt::ReconnectionRegistry::ReconnectionID id ) [private, virtual]

CORBA::Boolean TAO_Notify_EventChannelFactory::is_alive ( void ) [private, virtual]

CosNotifyChannelAdmin::EventChannel_ptr TAO_Notify_EventChannelFactory::create_channel	(	const CosNotification::QoSProperties &	initial_qos,
		const CosNotification::AdminProperties &	initial_admin,
		CosNotifyChannelAdmin::ChannelID_out	id
	)			`[private]`
