#include <EventChannel.h>

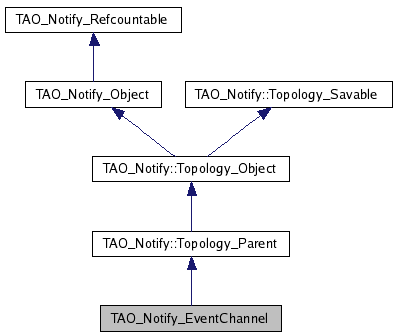

Inheritance diagram for TAO_Notify_EventChannel:
Public Types | |
| typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_EventChannel > | Ptr |
| typedef CosNotifyChannelAdmin::ChannelIDSeq | SEQ |
| typedef CosNotifyChannelAdmin::ChannelIDSeq_var | SEQ_VAR |
Public Member Functions | |
| TAO_Notify_EventChannel (void) | |
| Constuctor. | |
| virtual | ~TAO_Notify_EventChannel () |
| Destructor. | |
| void | init (TAO_Notify_EventChannelFactory *ecf, const CosNotification::QoSProperties &initial_qos, const CosNotification::AdminProperties &initial_admin) |
| Init. | |
| void | init (TAO_Notify::Topology_Parent *parent) |
| Init (for reload). | |
| void | remove (TAO_Notify_ConsumerAdmin *consumer_admin) |
| Remove ConsumerAdmin from its container. | |
| void | remove (TAO_Notify_SupplierAdmin *supplier_admin) |
| Remove SupplierAdmin from its container. | |
| virtual void | _add_ref (void) |
| ServantBase refcount methods. | |
| virtual void | _remove_ref (void) |
| virtual void | save_persistent (TAO_Notify::Topology_Saver &saver) |
| virtual TAO_Notify::Topology_Object * | load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs) |
| Create a child of the appropriate type and return it. | |
| virtual void | reconnect (void) |
| virtual TAO_Notify_Object::ID | get_id () const |
| Find the id associated with topology object. | |
| TAO_Notify_ProxyConsumer * | find_proxy_consumer (TAO_Notify::IdVec &id_path, size_t position) |
| TAO_Notify_ProxySupplier * | find_proxy_supplier (TAO_Notify::IdVec &id_path, size_t position) |
| virtual int | shutdown (void) |
| Shutdown. | |
| virtual void | load_attrs (const TAO_Notify::NVPList &attrs) |
Private Types | |
| typedef TAO_Notify_Container_T< TAO_Notify_ConsumerAdmin > | TAO_Notify_ConsumerAdmin_Container |
| typedef TAO_Notify_Container_T< TAO_Notify_SupplierAdmin > | TAO_Notify_SupplierAdmin_Container |
Private Member Functions | |
| virtual void | save_attrs (TAO_Notify::NVPList &attrs) |
| virtual void | destroy (void) |
| =CosNotifyChannelAdminEventChannel methods | |
| virtual ::CosNotifyChannelAdmin::EventChannelFactory_ptr | MyFactory () |
| virtual ::CosNotifyChannelAdmin::ConsumerAdmin_ptr | default_consumer_admin () |
| virtual ::CosNotifyChannelAdmin::SupplierAdmin_ptr | default_supplier_admin () |
| virtual ::CosNotifyFilter::FilterFactory_ptr | default_filter_factory (void) |
| virtual ::CosNotifyChannelAdmin::ConsumerAdmin_ptr | new_for_consumers (CosNotifyChannelAdmin::InterFilterGroupOperator op, CosNotifyChannelAdmin::AdminID_out id) |
| virtual ::CosNotifyChannelAdmin::SupplierAdmin_ptr | new_for_suppliers (CosNotifyChannelAdmin::InterFilterGroupOperator op, CosNotifyChannelAdmin::AdminID_out id) |
| virtual ::CosNotifyChannelAdmin::ConsumerAdmin_ptr | get_consumeradmin (CosNotifyChannelAdmin::AdminID id) |
| virtual ::CosNotifyChannelAdmin::SupplierAdmin_ptr | get_supplieradmin (CosNotifyChannelAdmin::AdminID id) |
| virtual ::CosNotifyChannelAdmin::AdminIDSeq * | get_all_consumeradmins (void) |
| virtual ::CosNotifyChannelAdmin::AdminIDSeq * | get_all_supplieradmins (void) |
| virtual ::CosNotification::QoSProperties * | get_qos (void) |
| Get the QoS Properties. | |
| virtual void | set_qos (const CosNotification::QoSProperties &qos) |
| Set the QoS Properties. | |
| virtual void | validate_qos (const CosNotification::QoSProperties &required_qos, CosNotification::NamedPropertyRangeSeq_out available_qos) |
| virtual ::CosNotification::AdminProperties * | get_admin (void) |
| virtual void | set_admin (const CosNotification::AdminProperties &admin) |
| virtual ::CosEventChannelAdmin::ConsumerAdmin_ptr | for_consumers (void) |
| virtual ::CosEventChannelAdmin::SupplierAdmin_ptr | for_suppliers (void) |
| TAO_Notify_ConsumerAdmin_Container & | ca_container () |
| TAO_Notify_SupplierAdmin_Container & | sa_container () |
| virtual void | release (void) |
| Release. | |
Private Attributes | |
| TAO_Notify_EventChannelFactory::Ptr | ecf_ |
| TAO_SYNCH_MUTEX | default_admin_mutex_ |
| CosNotifyChannelAdmin::ConsumerAdmin_var | default_consumer_admin_ |
| CosNotifyChannelAdmin::SupplierAdmin_var | default_supplier_admin_ |
| ACE_Auto_Ptr< TAO_Notify_ConsumerAdmin_Container > | ca_container_ |
| ConsumerAdmin Container. | |
| ACE_Auto_Ptr< TAO_Notify_SupplierAdmin_Container > | sa_container_ |
| SupplierAdmin Container. | |
Friends | |
| class | TAO_Notify_Builder |
Reimplemented from TAO_Notify_Refcountable.
| typedef CosNotifyChannelAdmin::ChannelIDSeq_var TAO_Notify_EventChannel::SEQ_VAR |
typedef TAO_Notify_Container_T<TAO_Notify_ConsumerAdmin> TAO_Notify_EventChannel::TAO_Notify_ConsumerAdmin_Container [private] |
typedef TAO_Notify_Container_T<TAO_Notify_SupplierAdmin> TAO_Notify_EventChannel::TAO_Notify_SupplierAdmin_Container [private] |
| TAO_Notify_EventChannel::TAO_Notify_EventChannel | ( | void | ) |
Constuctor.
| TAO_Notify_EventChannel::~TAO_Notify_EventChannel | ( | ) | [virtual] |
Destructor.
| void TAO_Notify_EventChannel::init | ( | TAO_Notify_EventChannelFactory * | ecf, | |
| const CosNotification::QoSProperties & | initial_qos, | |||
| const CosNotification::AdminProperties & | initial_admin | |||
| ) |
Init.
| void TAO_Notify_EventChannel::init | ( | TAO_Notify::Topology_Parent * | parent | ) |
Init (for reload).
| void TAO_Notify_EventChannel::remove | ( | TAO_Notify_ConsumerAdmin * | consumer_admin | ) |
Remove ConsumerAdmin from its container.
| void TAO_Notify_EventChannel::remove | ( | TAO_Notify_SupplierAdmin * | supplier_admin | ) |
Remove SupplierAdmin from its container.
| void TAO_Notify_EventChannel::_add_ref | ( | void | ) | [virtual] |
ServantBase refcount methods.
| void TAO_Notify_EventChannel::_remove_ref | ( | void | ) | [virtual] |
| void TAO_Notify_EventChannel::save_persistent | ( | TAO_Notify::Topology_Saver & | saver | ) | [virtual] |
Save our state to a Topology_Saver.
Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )
Implements TAO_Notify::Topology_Savable.
| TAO_Notify::Topology_Object * TAO_Notify_EventChannel::load_child | ( | const ACE_CString & | , | |
| CORBA::Long | , | |||
| const TAO_Notify::NVPList & | ||||
| ) | [virtual] |
Create a child of the appropriate type and return it.
Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.
Reimplemented from TAO_Notify::Topology_Object.
| void TAO_Notify_EventChannel::reconnect | ( | void | ) | [virtual] |
Re-establish connections that we had before a shutdown.
After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same.
Reimplemented from TAO_Notify::Topology_Savable.
| virtual TAO_Notify_Object::ID TAO_Notify_EventChannel::get_id | ( | ) | const [inline, virtual] |
Find the id associated with topology object.
A bit of a hack because id is unknown to Topology_Object the get_id returns the same thing as id -- we just need someone to find it for us.
Reimplemented from TAO_Notify::Topology_Object.
| TAO_Notify_ProxyConsumer * TAO_Notify_EventChannel::find_proxy_consumer | ( | TAO_Notify::IdVec & | id_path, | |
| size_t | position | |||
| ) |
| TAO_Notify_ProxySupplier * TAO_Notify_EventChannel::find_proxy_supplier | ( | TAO_Notify::IdVec & | id_path, | |
| size_t | position | |||
| ) |
| int TAO_Notify_EventChannel::shutdown | ( | void | ) | [virtual] |
| void TAO_Notify_EventChannel::load_attrs | ( | const TAO_Notify::NVPList & | attrs | ) | [virtual] |
Load our attributes. Each derived type should call the superclass load first before loading its own attributes.
Reimplemented from TAO_Notify_Object.
| void TAO_Notify_EventChannel::save_attrs | ( | TAO_Notify::NVPList & | attrs | ) | [private, virtual] |
Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.
Reimplemented from TAO_Notify_Object.
| void TAO_Notify_EventChannel::destroy | ( | void | ) | [private, virtual] |
=CosNotifyChannelAdminEventChannel methods
| CosNotifyChannelAdmin::EventChannelFactory_ptr TAO_Notify_EventChannel::MyFactory | ( | ) | [private] |
| CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::default_consumer_admin | ( | ) | [private] |
| CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::default_supplier_admin | ( | ) | [private] |
| CosNotifyFilter::FilterFactory_ptr TAO_Notify_EventChannel::default_filter_factory | ( | void | ) | [private] |
| CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::new_for_consumers | ( | CosNotifyChannelAdmin::InterFilterGroupOperator | op, | |
| CosNotifyChannelAdmin::AdminID_out | id | |||
| ) | [private] |
| CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::new_for_suppliers | ( | CosNotifyChannelAdmin::InterFilterGroupOperator | op, | |
| CosNotifyChannelAdmin::AdminID_out | id | |||
| ) | [private] |
| CosNotifyChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::get_consumeradmin | ( | CosNotifyChannelAdmin::AdminID | id | ) | [private] |
| CosNotifyChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::get_supplieradmin | ( | CosNotifyChannelAdmin::AdminID | id | ) | [private] |
| CosNotifyChannelAdmin::AdminIDSeq * TAO_Notify_EventChannel::get_all_consumeradmins | ( | void | ) | [private] |
| CosNotifyChannelAdmin::AdminIDSeq * TAO_Notify_EventChannel::get_all_supplieradmins | ( | void | ) | [private] |
| CosNotification::QoSProperties * TAO_Notify_EventChannel::get_qos | ( | void | ) | [private] |
| void TAO_Notify_EventChannel::set_qos | ( | const CosNotification::QoSProperties & | qos | ) | [private, virtual] |
| void TAO_Notify_EventChannel::validate_qos | ( | const CosNotification::QoSProperties & | required_qos, | |
| CosNotification::NamedPropertyRangeSeq_out | available_qos | |||
| ) | [private, virtual] |
| CosNotification::AdminProperties * TAO_Notify_EventChannel::get_admin | ( | void | ) | [private] |
| void TAO_Notify_EventChannel::set_admin | ( | const CosNotification::AdminProperties & | admin | ) | [private, virtual] |
| CosEventChannelAdmin::ConsumerAdmin_ptr TAO_Notify_EventChannel::for_consumers | ( | void | ) | [private] |
| CosEventChannelAdmin::SupplierAdmin_ptr TAO_Notify_EventChannel::for_suppliers | ( | void | ) | [private] |
| TAO_Notify_EventChannel::TAO_Notify_ConsumerAdmin_Container & TAO_Notify_EventChannel::ca_container | ( | ) | [private] |
| TAO_Notify_EventChannel::TAO_Notify_SupplierAdmin_Container & TAO_Notify_EventChannel::sa_container | ( | ) | [private] |
| void TAO_Notify_EventChannel::release | ( | void | ) | [private, virtual] |
friend class TAO_Notify_Builder [friend] |
Reimplemented from TAO_Notify_Object.
= Data Members The parent object.
TAO_SYNCH_MUTEX TAO_Notify_EventChannel::default_admin_mutex_ [private] |
CosNotifyChannelAdmin::ConsumerAdmin_var TAO_Notify_EventChannel::default_consumer_admin_ [private] |
CosNotifyChannelAdmin::SupplierAdmin_var TAO_Notify_EventChannel::default_supplier_admin_ [private] |
ConsumerAdmin Container.
SupplierAdmin Container.
