TAO_Notify_Admin Class Reference

Base class for the ConsumerAdmin and SupplierAdmin. More...

#include <Admin.h>

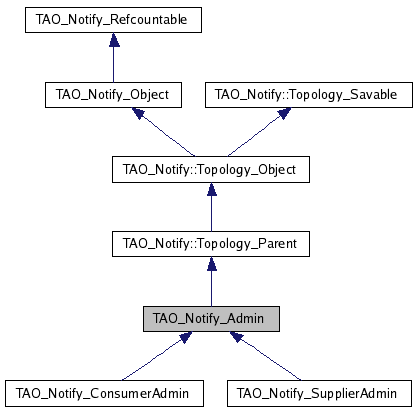

Inheritance diagram for TAO_Notify_Admin:

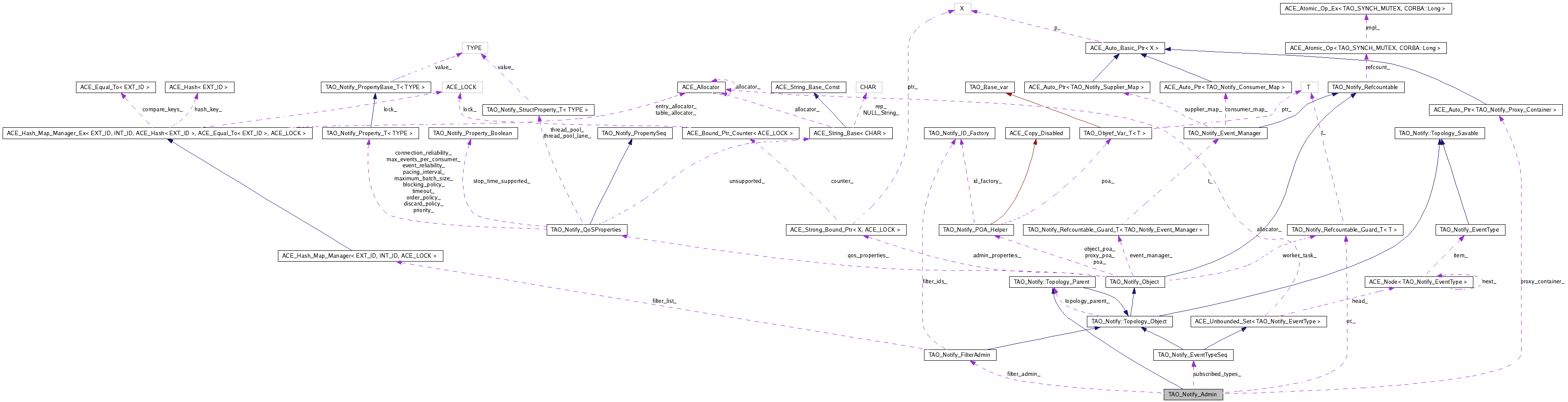

[legend]Collaboration diagram for TAO_Notify_Admin:


Public Types
typedef CosNotifyChannelAdmin::AdminIDSeq	SEQ
typedef CosNotifyChannelAdmin::AdminIDSeq_var	SEQ_VAR
Public Member Functions
	TAO_Notify_Admin ()
	Constuctor.
virtual	~TAO_Notify_Admin ()
	Destructor.
void	init (TAO_Notify::Topology_Parent *parent)
	Init.
void	insert (TAO_Notify_Proxy *proxy)
	Insert the proxy in the <proxy_container_>.
void	remove (TAO_Notify_Proxy *proxy)
	Remove type from container_.
TAO_Notify_FilterAdmin &	filter_admin (void)
	Access Admin FilterAdmin.
void	filter_operator (CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Set Filter operator.
CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator (void)
	Access Filter operator.
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Admin's subscribed types.
TAO_Notify_EventChannel *	event_channel () const
virtual int	shutdown (void)
	Shutdown.
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it.
virtual void	reconnect (void)
void	set_default (bool is_default)
bool	is_default () const
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
Protected Types
typedef TAO_Notify_Container_T< TAO_Notify_Proxy >	TAO_Notify_Proxy_Container
Protected Member Functions
void	save_attrs (TAO_Notify::NVPList &attrs)
virtual const char *	get_admin_type_name (void) const=0
TAO_Notify_Proxy_Container &	proxy_container ()
Protected Attributes
TAO_Notify_EventChannel::Ptr	ec_
	The EventChannel.
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we've subscribed our proxy objects with the event manager.
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.
CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator_
	Filter operator.
bool	is_default_
Private Attributes
ACE_Auto_Ptr< TAO_Notify_Proxy_Container >	proxy_container_
	The Proxy Container.
Friends
class	TAO_Notify_Builder

Detailed Description

Base class for the ConsumerAdmin and SupplierAdmin.

Member Typedef Documentation

typedef CosNotifyChannelAdmin::AdminIDSeq TAO_Notify_Admin::SEQ

typedef CosNotifyChannelAdmin::AdminIDSeq_var TAO_Notify_Admin::SEQ_VAR

typedef TAO_Notify_Container_T<TAO_Notify_Proxy> TAO_Notify_Admin::TAO_Notify_Proxy_Container [protected]

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Admin::TAO_Notify_Admin ( )

Constuctor.

TAO_Notify_Admin::~TAO_Notify_Admin ( ) [virtual]

Destructor.

Member Function Documentation

void TAO_Notify_Admin::init ( TAO_Notify::Topology_Parent * parent )

Init.

void TAO_Notify_Admin::insert ( TAO_Notify_Proxy * proxy )

Insert the proxy in the <proxy_container_>.

void TAO_Notify_Admin::remove ( TAO_Notify_Proxy * proxy )

Remove type from container_.

ACE_INLINE TAO_Notify_FilterAdmin & TAO_Notify_Admin::filter_admin ( void )

Access Admin FilterAdmin.

ACE_INLINE void TAO_Notify_Admin::filter_operator ( CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator )

Set Filter operator.

ACE_INLINE CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_Admin::filter_operator ( void )

Access Filter operator.

void TAO_Notify_Admin::subscribed_types ( TAO_Notify_EventTypeSeq & subscribed_types )

Obtain the Admin's subscribed types.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Notify_EventChannel * TAO_Notify_Admin::event_channel ( ) const

int TAO_Notify_Admin::shutdown ( void ) [virtual]

Shutdown.

Reimplemented from TAO_Notify_Object.

void TAO_Notify_Admin::save_persistent ( TAO_Notify::Topology_Saver & saver ) [virtual]

Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )

Implements TAO_Notify::Topology_Savable.

TAO_Notify::Topology_Object * TAO_Notify_Admin::load_child	(	const ACE_CString &	,
		CORBA::Long	,
		const TAO_Notify::NVPList &
	)			`[virtual]`

Create a child of the appropriate type and return it.

Use "type" as passed in to determine what kind of child (supporting the Topology_Object interface) to create and return. Inform it of its new ID.

Reimplemented from TAO_Notify::Topology_Object.

Reimplemented in TAO_Notify_ConsumerAdmin, and TAO_Notify_SupplierAdmin.

void TAO_Notify_Admin::reconnect ( void ) [virtual]

Re-establish connections that we had before a shutdown.

After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same.

Reimplemented from TAO_Notify::Topology_Savable.

ACE_INLINE void TAO_Notify_Admin::set_default ( bool is_default )
