TAO_Base_StreamEndPoint Class Reference

#include <AVStreams_i.h>

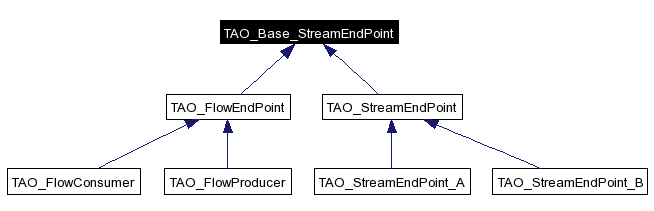

Inheritance diagram for TAO_Base_StreamEndPoint:

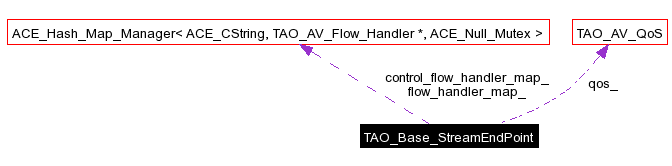

[legend]Collaboration diagram for TAO_Base_StreamEndPoint:

[legend]List of all members.

Public Member Functions
	TAO_Base_StreamEndPoint (void)
virtual	~TAO_Base_StreamEndPoint (void)
virtual int	handle_open (void)
	called when streamendpoint is instantiated
virtual int	handle_close (void)
	called when streamendpoint is being destructed
virtual int	handle_stop (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Application needs to define this.
virtual int	handle_start (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Application needs to define this.
virtual int	handle_destroy (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Application needs to define this.
virtual CORBA::Boolean	handle_preconnect (AVStreams::flowSpec &the_spec)
	Application needs to define this.
virtual CORBA::Boolean	handle_postconnect (AVStreams::flowSpec &the_spec)
	Application needs to define this.
virtual CORBA::Boolean	handle_connection_requested (AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Application needs to define this.
virtual int	get_callback (const char *flowname, TAO_AV_Callback *&callback)
virtual int	get_control_callback (const char *flowname, TAO_AV_Callback *&callback)
virtual int	set_protocol_object (const char *flowname, TAO_AV_Protocol_Object *object)
virtual void	set_flow_handler (const char *flowname, TAO_AV_Flow_Handler *handler)
virtual void	set_control_flow_handler (const char *flowname, TAO_AV_Flow_Handler *handler)
TAO_AV_QoS &	qos (void)
void	protocol_object_set (void)
int	is_protocol_object_set (void)
Protected Attributes
TAO_AV_QoS	qos_
Flow_Handler_Map	flow_handler_map_
Flow_Handler_Map	control_flow_handler_map_
int	protocol_object_set_

---

Detailed Description

Base class for the A/V StreamEndPoint class. this class is used to control the stream. It should be subclassed by applications that want to provide more control features.

---

Constructor & Destructor Documentation

TAO_Base_StreamEndPoint::TAO_Base_StreamEndPoint (  void   )

TAO_Base_StreamEndPoint::~TAO_Base_StreamEndPoint (  void   )  [virtual]

---

Member Function Documentation

int TAO_Base_StreamEndPoint::get_callback (  const char *  flowname, TAO_AV_Callback *&  callback )  [virtual]

int TAO_Base_StreamEndPoint::get_control_callback (  const char *  flowname, TAO_AV_Callback *&  callback )  [virtual]

int TAO_Base_StreamEndPoint::handle_close (  void   )  [virtual]

called when streamendpoint is being destructed

virtual CORBA::Boolean TAO_Base_StreamEndPoint::handle_connection_requested (  AVStreams::flowSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [virtual]

Application needs to define this.

virtual int TAO_Base_StreamEndPoint::handle_destroy (  const AVStreams::flowSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [virtual]

Application needs to define this.

int TAO_Base_StreamEndPoint::handle_open (  void   )  [virtual]

called when streamendpoint is instantiated

CORBA::Boolean TAO_Base_StreamEndPoint::handle_postconnect (  AVStreams::flowSpec &  the_spec  )  [virtual]

Application needs to define this.

CORBA::Boolean TAO_Base_StreamEndPoint::handle_preconnect (  AVStreams::flowSpec &  the_spec  )  [virtual]

Application needs to define this.

virtual int TAO_Base_StreamEndPoint::handle_start (  const AVStreams::flowSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [virtual]

Application needs to define this.

virtual int TAO_Base_StreamEndPoint::handle_stop (  const AVStreams::flowSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [virtual]

Application needs to define this.

int TAO_Base_StreamEndPoint::is_protocol_object_set (  void   )

void TAO_Base_StreamEndPoint::protocol_object_set (  void   )

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_AV_QoS & TAO_Base_StreamEndPoint::qos (  void   )

void TAO_Base_StreamEndPoint::set_control_flow_handler (  const char *  flowname, TAO_AV_Flow_Handler *  handler )  [virtual]

void TAO_Base_StreamEndPoint::set_flow_handler (  const char *  flowname, TAO_AV_Flow_Handler *  handler )  [virtual]

Reimplemented in TAO_FlowEndPoint.

int TAO_Base_StreamEndPoint::set_protocol_object (  const char *  flowname, TAO_AV_Protocol_Object *  object )  [virtual]

Reimplemented in TAO_FlowEndPoint.

---

Member Data Documentation

Flow_Handler_Map TAO_Base_StreamEndPoint::control_flow_handler_map_ [protected]

Flow_Handler_Map TAO_Base_StreamEndPoint::flow_handler_map_ [protected]

int TAO_Base_StreamEndPoint::protocol_object_set_ [protected]

TAO_AV_QoS TAO_Base_StreamEndPoint::qos_ [protected]

---

The documentation for this class was generated from the following files:

• AVStreams_i.h
• AVStreams_i.cpp
• AVStreams_i.i

---
