TAO_AV_Protocol_Object Class Reference

#include <Protocol_Factory.h>

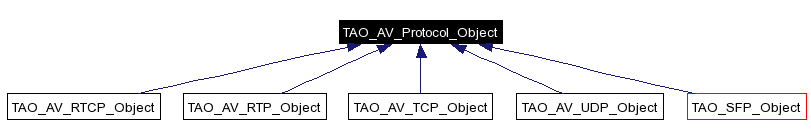

Inheritance diagram for TAO_AV_Protocol_Object:

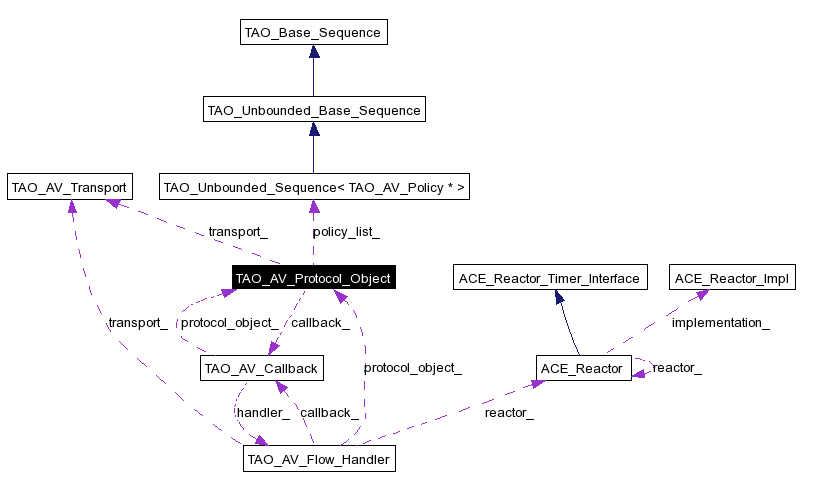

[legend]Collaboration diagram for TAO_AV_Protocol_Object:

[legend]List of all members.

Public Member Functions
	TAO_AV_Protocol_Object (void)
	TAO_AV_Protocol_Object (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
	constructor.
virtual	~TAO_AV_Protocol_Object (void)
	Destructor.
virtual int	open (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
virtual int	handle_input (void)=0
virtual int	handle_control_input (ACE_Message_Block *control_frame, const ACE_Addr &peer_address)
	Called on a control object.
virtual int	set_policies (const TAO_AV_PolicyList &policy_list)
	set/get policies.
virtual TAO_AV_PolicyList	get_policies (void)
virtual int	start (void)
	start/stop the flow.
virtual int	stop (void)
virtual int	send_frame (ACE_Message_Block *frame, TAO_AV_frame_info *frame_info=0)=0
	send a data frame.
virtual int	send_frame (const iovec *iov, int iovcnt, TAO_AV_frame_info *frame_info=0)=0
	send a frame in iovecs.
virtual int	send_frame (const char *buf, size_t len)=0
virtual void	control_object (TAO_AV_Protocol_Object *object)
	end the stream.
virtual int	destroy (void)=0
TAO_AV_Transport *	transport (void)
Protected Attributes
TAO_AV_Transport *	transport_
TAO_AV_PolicyList	policy_list_
TAO_AV_Callback *	callback_

---

Constructor & Destructor Documentation

TAO_AV_Protocol_Object::TAO_AV_Protocol_Object (  void   )

TAO_AV_Protocol_Object::TAO_AV_Protocol_Object (  TAO_AV_Callback *  callback, TAO_AV_Transport *  transport )

constructor.

TAO_AV_Protocol_Object::~TAO_AV_Protocol_Object (  void   )  [virtual]

Destructor.

---

Member Function Documentation

void TAO_AV_Protocol_Object::control_object (  TAO_AV_Protocol_Object *  object  )  [virtual]

end the stream. Reimplemented in TAO_AV_RTP_Object.

virtual int TAO_AV_Protocol_Object::destroy (  void   )  [pure virtual]

Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_SFP_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

TAO_AV_PolicyList TAO_AV_Protocol_Object::get_policies (  void   )  [virtual]

int TAO_AV_Protocol_Object::handle_control_input (  ACE_Message_Block *  control_frame, const ACE_Addr &  peer_address )  [virtual]

Called on a control object. Reimplemented in TAO_AV_RTCP_Object.

virtual int TAO_AV_Protocol_Object::handle_input (  void   )  [pure virtual]

Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_SFP_Object, TAO_SFP_Producer_Object, TAO_SFP_Consumer_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

int TAO_AV_Protocol_Object::open (  TAO_AV_Callback *  callback, TAO_AV_Transport *  transport )  [virtual]

virtual int TAO_AV_Protocol_Object::send_frame (  const char *  buf, size_t  len )  [pure virtual]

Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_SFP_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

virtual int TAO_AV_Protocol_Object::send_frame (  const iovec *  iov, int  iovcnt, TAO_AV_frame_info *  frame_info = 0 )  [pure virtual]

send a frame in iovecs. Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_SFP_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

virtual int TAO_AV_Protocol_Object::send_frame (  ACE_Message_Block *  frame, TAO_AV_frame_info *  frame_info = 0 )  [pure virtual]

send a data frame. Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_SFP_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

int TAO_AV_Protocol_Object::set_policies (  const TAO_AV_PolicyList &  policy_list  )  [virtual]

set/get policies. Reimplemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, and TAO_SFP_Object.

int TAO_AV_Protocol_Object::start (  void   )  [virtual]

start/stop the flow. Reimplemented in TAO_AV_RTCP_Object, and TAO_AV_RTP_Object.

int TAO_AV_Protocol_Object::stop (  void   )  [virtual]

Reimplemented in TAO_AV_RTCP_Object, and TAO_AV_RTP_Object.

TAO_AV_Transport * TAO_AV_Protocol_Object::transport (  void   )

---

Member Data Documentation

TAO_AV_Callback* TAO_AV_Protocol_Object::callback_ [protected]

TAO_AV_PolicyList TAO_AV_Protocol_Object::policy_list_ [protected]

TAO_AV_Transport* TAO_AV_Protocol_Object::transport_ [protected]

---

The documentation for this class was generated from the following files:

• Protocol_Factory.h
• Protocol_Factory.cpp

---
