CIAO::Static_NodeApplicationManager_Impl Class Reference

#include <NodeApplicationManager_Impl.h>

Inheritance diagram for CIAO::Static_NodeApplicationManager_Impl:

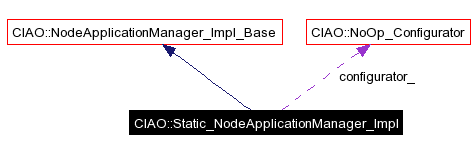

[legend]Collaboration diagram for CIAO::Static_NodeApplicationManager_Impl:

[legend]List of all members.

Public Member Functions
	Static_NodeApplicationManager_Impl (CORBA::ORB_ptr o, PortableServer::POA_ptr p, Static_Config_EntryPoints_Maps *static_config_entrypoints_maps)
	Constructor.
virtual PortableServer::ObjectId	init (const char *nodeapp_location, const char *nodeapp_options, const CORBA::ULong delay, const Deployment::DeploymentPlan &plan, const PortableServer::POA_ptr callback_poa ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Deployment::InvalidProperty)
Protected Member Functions
virtual	~Static_NodeApplicationManager_Impl (void)
	Destructor.
virtual Deployment::NodeApplication_ptr	create_node_application (const ACE_CString &options ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Deployment::ResourceNotAvailable, Deployment::StartError, Deployment::InvalidProperty)
Protected Attributes
Static_Config_EntryPoints_Maps *	static_config_entrypoints_maps_
CIAO::NoOp_Configurator	configurator_

---

Constructor & Destructor Documentation

CIAO::Static_NodeApplicationManager_Impl::Static_NodeApplicationManager_Impl (  CORBA::ORB_ptr  o, PortableServer::POA_ptr  p, Static_Config_EntryPoints_Maps *  static_config_entrypoints_maps )

Constructor.

CIAO::Static_NodeApplicationManager_Impl::~Static_NodeApplicationManager_Impl (  void   )  [protected, virtual]

Destructor.

---

Member Function Documentation

Deployment::NodeApplication_ptr CIAO::Static_NodeApplicationManager_Impl::create_node_application (  const ACE_CString &options  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, Deployment::ResourceNotAvailable, Deployment::StartError, Deployment::InvalidProperty) [protected, virtual]

Implements CIAO::NodeApplicationManager_Impl_Base.

PortableServer::ObjectId CIAO::Static_NodeApplicationManager_Impl::init (  const char *  nodeapp_location, const char *  nodeapp_options, const CORBA::ULong  delay, const Deployment::DeploymentPlan &  plan, const PortableServer::POA_ptr callback_poa  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, Deployment::InvalidProperty) [virtual]

A factory operation to create NodeApplicationManager interface, and return the object reference. Initialize the NodeApplicationManager. The current implementation of CIAO_NodeApplicationManager can only activate CIAO's own NodeApplication processes. You should specify the location (pathname) of the NodeApplication and the delay. CIAO_NodeApplicationManager should wait (in second) for NodeApplication to call back. Parameters: nodeapp_location  A null-termiated char * string pointing to the pathname of a NodeApplication executable. nodeapp_options  A null-terminated char * string containing command line options to be passed to the NodeApplication. delay  instructs how long (in second) a CIAO_NodeApplicationManager should wait for a newly spawned NodeApplication to pass back its IOR. plan  has all the information needed for the NodeAppManager to construct the application locally. Note, this includes the properties of the NodeApplication. For example, ORB config options etc. callback_poa  contains child poa created for the callback interface. Returns: NodeApplicationManager_ptr. Implements CIAO::NodeApplicationManager_Impl_Base.

---

Member Data Documentation

CIAO::NoOp_Configurator CIAO::Static_NodeApplicationManager_Impl::configurator_ [protected]

Static_Config_EntryPoints_Maps* CIAO::Static_NodeApplicationManager_Impl::static_config_entrypoints_maps_ [protected]

---

The documentation for this class was generated from the following files:

• NodeApplicationManager_Impl.h
• NodeApplicationManager_Impl.cpp

---
