CIAO::RTResource_Config_Manager Class Reference

RTResource_Config_Manager maintains a collection of RTCORBA related resources. More...

#include <RTConfig_Manager.h>

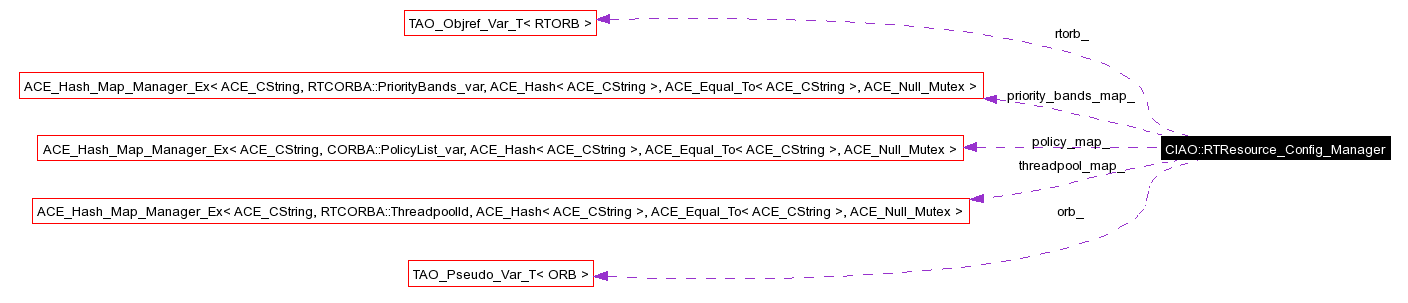

Collaboration diagram for CIAO::RTResource_Config_Manager:

[legend]List of all members.


Public Member Functions
	RTResource_Config_Manager (void)
	~RTResource_Config_Manager (void)
void	init (RTCORBA::RTORB_ptr rtorb)
void	init_resources (const CIAO::DAnCE::ServerResource &info ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	Initializing the RTResource_Config_Manager.
void	fini (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
CORBA::PolicyList *	find_policies_by_name (const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	Query a policy set by name.
Protected Member Functions
void	print_resources (const CIAO::DAnCE::ServerResource &info ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
RTCORBA::ThreadpoolId	find_threadpool_by_name (const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	Query a thread pool by name.
RTCORBA::PriorityBands *	find_priority_bands_by_name (const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	Query a priority bands info by name.
Private Types
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, RTCORBA::ThreadpoolId, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	TP_MAP
	Hash_Map stuff.
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, RTCORBA::PriorityBands_var, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	PB_MAP
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, CORBA::PolicyList_var, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	POLICY_MAP
	Hash_Map stuff.
Private Member Functions
CORBA::Policy_ptr	create_single_policy (const CIAO::DAnCE::PolicyDef &policy_def ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	create a single policy
Private Attributes
CORBA::ORB_var	orb_
	Cached an ORB reference.
RTCORBA::RTORB_var	rtorb_
TP_MAP	threadpool_map_
	Internal TP name to id map.
PB_MAP	priority_bands_map_
	Internal PB name to priority bands map.
POLICY_MAP	policy_map_
	Internal TP names to id map.

Detailed Description

RTResource_Config_Manager maintains a collection of RTCORBA related resources.

This class is responsible to create and manage a list of RTCORBA related resources that are global to an RT ComponentServer. The information required to create and configure these resources are passed in via the info argument in the init method. These resources are identified by names and can be used to associate these resources with related RTPolicies. These resources are destoryed along with this class.

Currently, the only resources supported (and managed) by this class are Threadpool and Threadpool_with_Lanes.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, RTCORBA::PriorityBands_var, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::RTResource_Config_Manager::PB_MAP [private]

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, CORBA::PolicyList_var, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::RTResource_Config_Manager::POLICY_MAP [private]

Hash_Map stuff.

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, RTCORBA::ThreadpoolId, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::RTResource_Config_Manager::TP_MAP [private]

Hash_Map stuff.

Constructor & Destructor Documentation

ACE_INLINE CIAO::RTResource_Config_Manager::RTResource_Config_Manager ( void )

ACE_INLINE CIAO::RTResource_Config_Manager::~RTResource_Config_Manager ( void )

Member Function Documentation

CORBA::Policy_ptr CIAO::RTResource_Config_Manager::create_single_policy ( const CIAO::DAnCE::PolicyDef &policy_def ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException) [private]

create a single policy

CORBA::PolicyList * CIAO::RTResource_Config_Manager::find_policies_by_name ( const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

Query a policy set by name.

RTCORBA::PriorityBands * CIAO::RTResource_Config_Manager::find_priority_bands_by_name ( const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException) [protected]

Query a priority bands info by name.

RTCORBA::ThreadpoolId CIAO::RTResource_Config_Manager::find_threadpool_by_name ( const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException) [protected]

Query a thread pool by name.

void CIAO::RTResource_Config_Manager::fini ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

Finalizing the RTResource_Config_Manager and the resources it manages.

void CIAO::RTResource_Config_Manager::init ( RTCORBA::RTORB_ptr rtorb )

void CIAO::RTResource_Config_Manager::init_resources ( const CIAO::DAnCE::ServerResource &info ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

Initializing the RTResource_Config_Manager.

void CIAO::RTResource_Config_Manager::print_resources ( const CIAO::DAnCE::ServerResource &info ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException) [protected]
