TAO_Notify_Admin Class Reference

Base class for the ConsumerAdmin and SupplierAdmin. More...

#include <Admin.h>

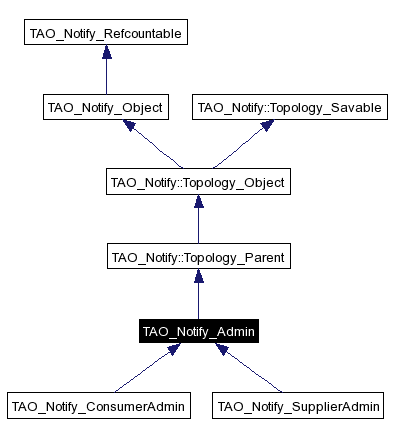

Inheritance diagram for TAO_Notify_Admin:

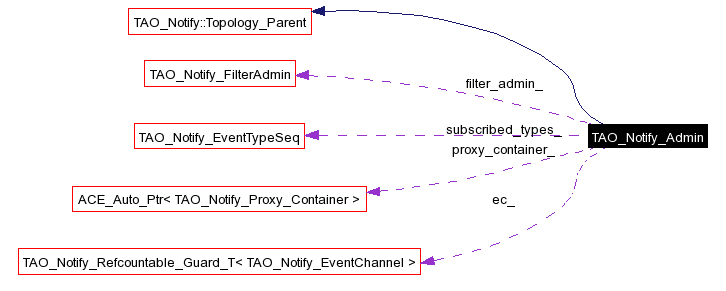

[legend]Collaboration diagram for TAO_Notify_Admin:

[legend]List of all members.

Public Types
typedef CosNotifyChannelAdmin::AdminIDSeq	SEQ
typedef CosNotifyChannelAdmin::AdminIDSeq_var	SEQ_VAR
Public Member Functions
	TAO_Notify_Admin ()
	Constuctor.
virtual	~TAO_Notify_Admin ()
	Destructor.
void	init (TAO_Notify::Topology_Parent *parent ACE_ENV_ARG_DECL)
	Init.
void	insert (TAO_Notify_Proxy *proxy ACE_ENV_ARG_DECL)
	Insert the proxy in the <proxy_container_>.
void	remove (TAO_Notify_Proxy *proxy ACE_ENV_ARG_DECL)
	Remove type from container_.
TAO_Notify_FilterAdmin &	filter_admin (void)
	Access Admin FilterAdmin.
void	filter_operator (CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Set Filter operator.
CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator (void)
	Access Filter operator.
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types ACE_ENV_ARG_DECL)
	Obtain the Admin's subscribed types.
TAO_Notify_EventChannel *	event_channel () const
virtual int	shutdown (ACE_ENV_SINGLE_ARG_DECL)
	Shutdown.
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver ACE_ENV_ARG_DECL)
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs ACE_ENV_ARG_DECL)
virtual void	reconnect (ACE_ENV_SINGLE_ARG_DECL)
void	set_default (bool is_default)
bool	is_default () const
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
Protected Types
typedef TAO_Notify_Container_T< TAO_Notify_Proxy >	TAO_Notify_Proxy_Container
Protected Member Functions
void	save_attrs (TAO_Notify::NVPList &attrs)
virtual const char *	get_admin_type_name (void) const =0
TAO_Notify_Proxy_Container &	proxy_container ()
Protected Attributes
TAO_Notify_EventChannel::Ptr	ec_
	= Data Members The EventChannel.
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we've subscribed our proxy objects with the event manager.
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.
CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator_
	Filter operator.
bool	is_default_
Private Attributes
ACE_Auto_Ptr< TAO_Notify_Proxy_Container >	proxy_container_
	The Proxy Container.
Friends
class	TAO_Notify_Builder

---

Detailed Description

Base class for the ConsumerAdmin and SupplierAdmin.

---

Member Typedef Documentation

typedef CosNotifyChannelAdmin::AdminIDSeq TAO_Notify_Admin::SEQ

typedef CosNotifyChannelAdmin::AdminIDSeq_var TAO_Notify_Admin::SEQ_VAR

typedef TAO_Notify_Container_T<TAO_Notify_Proxy> TAO_Notify_Admin::TAO_Notify_Proxy_Container [protected]

---

Constructor & Destructor Documentation

TAO_Notify_Admin::TAO_Notify_Admin (   )

Constuctor.

TAO_Notify_Admin::~TAO_Notify_Admin (   )  [virtual]

Destructor.

---

Member Function Documentation

TAO_Notify_EventChannel* TAO_Notify_Admin::event_channel (   )  const

TAO_Notify_FilterAdmin& TAO_Notify_Admin::filter_admin (  void   )

Access Admin FilterAdmin.

CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_Admin::filter_operator (  void   )

Access Filter operator.

void TAO_Notify_Admin::filter_operator (  CosNotifyChannelAdmin::InterFilterGroupOperator  filter_operator  )

Set Filter operator.

virtual const char* TAO_Notify_Admin::get_admin_type_name (  void   )  const [protected, pure virtual]

Implemented in TAO_Notify_ConsumerAdmin, and TAO_Notify_SupplierAdmin.

void TAO_Notify_Admin::init (  TAO_Notify::Topology_Parent *parent  ACE_ENV_ARG_DECL  )

Init.

void TAO_Notify_Admin::insert (  TAO_Notify_Proxy *proxy  ACE_ENV_ARG_DECL  )

Insert the proxy in the <proxy_container_>.

bool TAO_Notify_Admin::is_default (   )  const

void TAO_Notify_Admin::load_attrs (  const TAO_Notify::NVPList &  attrs  )  [virtual]

Load our attributes. Each derived type should call the superclass load first before loading its own attributes. Reimplemented from TAO_Notify_Object.

TAO_Notify::Topology_Object * TAO_Notify_Admin::load_child (  const ACE_CString &  type, CORBA::Long  id, const TAO_Notify::NVPList &attrs  ACE_ENV_ARG_DECL )  [virtual]

Reimplemented in TAO_Notify_ConsumerAdmin, and TAO_Notify_SupplierAdmin.

TAO_Notify_Proxy_Container& TAO_Notify_Admin::proxy_container (   )  [protected]

void TAO_Notify_Admin::reconnect (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

Re-establish connections that we had before a shutdown. After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same. Reimplemented from TAO_Notify::Topology_Savable.

void TAO_Notify_Admin::remove (  TAO_Notify_Proxy *proxy  ACE_ENV_ARG_DECL  )

Remove type from container_.

void TAO_Notify_Admin::save_attrs (  TAO_Notify::NVPList &  attrs  )  [protected, virtual]

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs. Reimplemented from TAO_Notify_Object.

void TAO_Notify_Admin::save_persistent (  TAO_Notify::Topology_Saver &saver  ACE_ENV_ARG_DECL  )  [virtual]

void TAO_Notify_Admin::set_default (  bool  is_default  )

int TAO_Notify_Admin::shutdown (  ACE_ENV_SINGLE_ARG_DECL   )  [virtual]

Shutdown. Reimplemented from TAO_Notify_Object.

void TAO_Notify_Admin::subscribed_types (  TAO_Notify_EventTypeSeq &subscribed_types  ACE_ENV_ARG_DECL  )

Obtain the Admin's subscribed types.

---

Friends And Related Function Documentation

friend class TAO_Notify_Builder [friend]

Reimplemented from TAO_Notify_Object.

---

Member Data Documentation

TAO_Notify_EventChannel::Ptr TAO_Notify_Admin::ec_ [protected]

= Data Members The EventChannel.

TAO_Notify_FilterAdmin TAO_Notify_Admin::filter_admin_ [protected]

Filter Administration.

CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_Admin::filter_operator_ [protected]

Filter operator.

bool TAO_Notify_Admin::is_default_ [protected]

ACE_Auto_Ptr< TAO_Notify_Proxy_Container > TAO_Notify_Admin::proxy_container_ [private]

The Proxy Container.

TAO_Notify_EventTypeSeq TAO_Notify_Admin::subscribed_types_ [protected]

The types that we've subscribed our proxy objects with the event manager.

---

The documentation for this class was generated from the following files:

• Admin.h
• Admin.cpp

---
