CIAO::Servant_Impl_Base Class Reference

Non-template base class for Servant_Impl. More...

#include <Servant_Impl_Base.h>

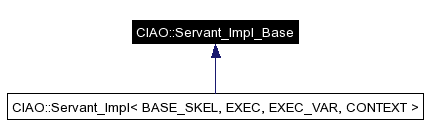

Inheritance diagram for CIAO::Servant_Impl_Base:

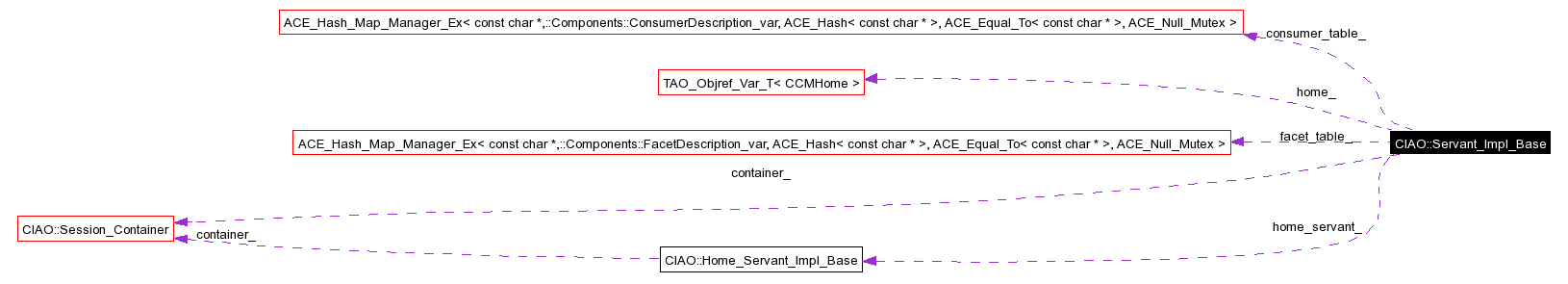

[legend]Collaboration diagram for CIAO::Servant_Impl_Base:

[legend]List of all members.


Public Member Functions
	Servant_Impl_Base (void)
	Servant_Impl_Base (Components::CCMHome_ptr home, Home_Servant_Impl_Base home_servant, Session_Container c)
virtual	~Servant_Impl_Base (void)
virtual ::Components::PrimaryKeyBase *	get_primary_key (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::NoKeyAvailable)
	Operations for CCMObject interface.
virtual CORBA::IRObject_ptr	get_component_def (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Components::SessionComponent_ptr	get_executor (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)=0 throw (CORBA::SystemException)
virtual void	configuration_complete (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidConfiguration)
virtual void	remove (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::RemoveFailure)
virtual ::Components::ConnectionDescriptions *	get_connections (const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidName)
virtual ::Components::ComponentPortDescription *	get_all_ports (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual CORBA::Object_ptr	provide_facet (const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidName)
virtual ::Components::FacetDescriptions *	get_named_facets (const ::Components::NameList &names ACE_ENV_ARG_DECL) throw (CORBA::SystemException, Components::InvalidName)
virtual ::Components::FacetDescriptions *	get_all_facets (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual ::Components::ConsumerDescriptions *	get_all_consumers (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual ::Components::EventConsumerBase_ptr	get_consumer (const char *sink_name ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidName)
virtual ::Components::EventConsumerBase_ptr	disconnect_consumer (const char *source_name ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidName, Components::NoConnection)
virtual ::Components::ConsumerDescriptions *	get_named_consumers (const ::Components::NameList &names ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidName)
virtual ::Components::EmitterDescriptions *	get_all_emitters (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual ::Components::EmitterDescriptions *	get_named_emitters (const ::Components::NameList &ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidName)
virtual ::Components::ReceptacleDescriptions *	get_all_receptacles (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual ::Components::ReceptacleDescriptions *	get_named_receptacles (const ::Components::NameList &ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidName)
virtual ::Components::PublisherDescriptions *	get_all_publishers (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual ::Components::PublisherDescriptions *	get_named_publishers (const ::Components::NameList &names ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, Components::InvalidName)
virtual void	set_attributes (const Components::ConfigValues &descr ACE_ENV_ARG_DECL)=0
	Operation to set attributes on the component.
virtual ::Components::StandardConfigurator_ptr	get_standard_configurator (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual PortableServer::POA_ptr	_default_POA (ACE_ENV_SINGLE_ARG_DECL)
Protected Types
typedef ACE_Hash_Map_Manager_Ex< const char ,::Components::FacetDescription_var, ACE_Hash< const char >, ACE_Equal_To< const char * >, ACE_Null_Mutex >	FacetTable
typedef ACE_Hash_Map_Manager_Ex< const char ,::Components::ConsumerDescription_var, ACE_Hash< const char >, ACE_Equal_To< const char * >, ACE_Null_Mutex >	ConsumerTable
Protected Member Functions
void	add_facet (const char *port_name, CORBA::Object_ptr port_ref)
	Protected operations.
CORBA::Object_ptr	lookup_facet (const char *port_name)
::Components::FacetDescription *	lookup_facet_description (const char *port_name)
void	add_consumer (const char *port_name,::Components::EventConsumerBase_ptr port_ref)
::Components::EventConsumerBase_ptr	lookup_consumer (const char *port_name)
::Components::ConsumerDescription *	lookup_consumer_description (const char *port_name)
Protected Attributes
FacetTable	facet_table_
ConsumerTable	consumer_table_
Components::CCMHome_var	home_
Home_Servant_Impl_Base *	home_servant_
Session_Container *	container_

Detailed Description

Non-template base class for Servant_Impl.

Holds the non-template parts of its child class Servant_Impl.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<const char *, ::Components::ConsumerDescription_var, ACE_Hash<const char *>, ACE_Equal_To<const char *>, ACE_Null_Mutex> CIAO::Servant_Impl_Base::ConsumerTable [protected]

typedef ACE_Hash_Map_Manager_Ex<const char *, ::Components::FacetDescription_var, ACE_Hash<const char *>, ACE_Equal_To<const char *>, ACE_Null_Mutex> CIAO::Servant_Impl_Base::FacetTable [protected]

Constructor & Destructor Documentation

CIAO::Servant_Impl_Base::Servant_Impl_Base ( void ) [explicit]

CIAO::Servant_Impl_Base::Servant_Impl_Base ( Components::CCMHome_ptr home,

Home_Servant_Impl_Base * home_servant,

Session_Container * c

)

CIAO::Servant_Impl_Base::~Servant_Impl_Base ( void ) [virtual]

Member Function Documentation

PortableServer::POA_ptr CIAO::Servant_Impl_Base::_default_POA ( ACE_ENV_SINGLE_ARG_DECL ) [virtual]

Override that returns the (passed-in) default POA of our member component's container, to ensure that we get registered to that POA when _this() is called.

void CIAO::Servant_Impl_Base::add_consumer ( const char * port_name,

::Components::EventConsumerBase_ptr port_ref

) [protected]

void CIAO::Servant_Impl_Base::add_facet ( const char * port_name,

CORBA::Object_ptr port_ref

) [protected]

Protected operations.

virtual void CIAO::Servant_Impl_Base::configuration_complete ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidConfiguration) [virtual]

virtual ::Components::EventConsumerBase_ptr CIAO::Servant_Impl_Base::disconnect_consumer ( const char *source_name ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidName, Components::NoConnection)

Components::ConsumerDescriptions * CIAO::Servant_Impl_Base::get_all_consumers ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

Components::EmitterDescriptions * CIAO::Servant_Impl_Base::get_all_emitters ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

virtual ::Components::FacetDescriptions* CIAO::Servant_Impl_Base::get_all_facets ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

Components::ComponentPortDescription * CIAO::Servant_Impl_Base::get_all_ports ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

Components::PublisherDescriptions * CIAO::Servant_Impl_Base::get_all_publishers ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

Components::ReceptacleDescriptions * CIAO::Servant_Impl_Base::get_all_receptacles ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

CORBA::IRObject_ptr CIAO::Servant_Impl_Base::get_component_def ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException) [virtual]

virtual ::Components::ConnectionDescriptions* CIAO::Servant_Impl_Base::get_connections ( const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidName)

Components::EventConsumerBase_ptr CIAO::Servant_Impl_Base::get_consumer ( const char *sink_name ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidName)

virtual Components::SessionComponent_ptr CIAO::Servant_Impl_Base::get_executor ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException) [pure virtual]

Implemented in CIAO::Servant_Impl< BASE_SKEL, EXEC, EXEC_VAR, CONTEXT >.

Components::ConsumerDescriptions * CIAO::Servant_Impl_Base::get_named_consumers ( const ::Components::NameList &names ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidName)

Components::EmitterDescriptions * CIAO::Servant_Impl_Base::get_named_emitters ( const ::Components::NameList & ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidName)

Components::FacetDescriptions * CIAO::Servant_Impl_Base::get_named_facets ( const ::Components::NameList &names ACE_ENV_ARG_DECL ) throw (CORBA::SystemException, Components::InvalidName)

virtual ::Components::PublisherDescriptions* CIAO::Servant_Impl_Base::get_named_publishers ( const ::Components::NameList &names ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidName)

Components::ReceptacleDescriptions * CIAO::Servant_Impl_Base::get_named_receptacles ( const ::Components::NameList & ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidName)

Components::PrimaryKeyBase * CIAO::Servant_Impl_Base::get_primary_key ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::NoKeyAvailable)

Operations for CCMObject interface.

Components::StandardConfigurator_ptr CIAO::Servant_Impl_Base::get_standard_configurator ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException)

Components::EventConsumerBase_ptr CIAO::Servant_Impl_Base::lookup_consumer ( const char * port_name ) [protected]

Components::ConsumerDescription * CIAO::Servant_Impl_Base::lookup_consumer_description ( const char * port_name ) [protected]

CORBA::Object_ptr CIAO::Servant_Impl_Base::lookup_facet ( const char * port_name ) [protected]

Components::FacetDescription * CIAO::Servant_Impl_Base::lookup_facet_description ( const char * port_name ) [protected]

CORBA::Object_ptr CIAO::Servant_Impl_Base::provide_facet ( const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::InvalidName) [virtual]

void CIAO::Servant_Impl_Base::remove ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) throw (CORBA::SystemException, Components::RemoveFailure) [virtual]

virtual void CIAO::Servant_Impl_Base::set_attributes ( const Components::ConfigValues &descr ACE_ENV_ARG_DECL ) [pure virtual]

Operation to set attributes on the component.
