CIAO::Deployment_Configuration Class Reference

A class that provides strategies on deployment topology. More...

#include <Deployment_Configuration.h>

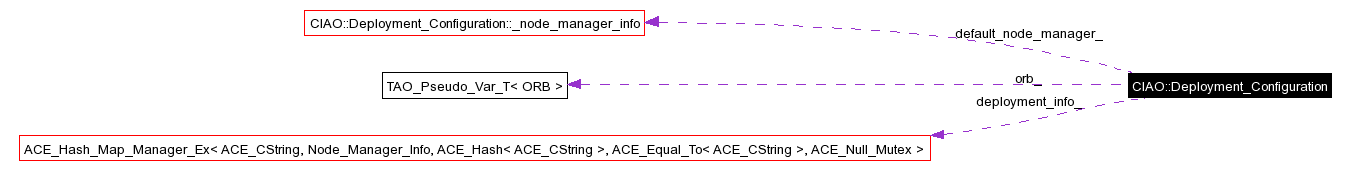

Collaboration diagram for CIAO::Deployment_Configuration:

[legend]List of all members.

Public Types
typedef CIAO::Deployment_Configuration::_node_manager_info	Node_Manager_Info
Public Member Functions
	Deployment_Configuration (CORBA::ORB_ptr o)
virtual	~Deployment_Configuration (void)
	Destructor.
int	init (const char *filename)
virtual const char *	get_node_manager_ior (const char *name)
virtual const char *	get_default_node_manager_ior ()
virtual ::Deployment::NodeManager_ptr	get_node_manager (const char *name ACE_ENV_ARG_DECL_WITH_DEFAULTS)
virtual ::Deployment::NodeManager_ptr	get_default_node_manager (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
Protected Attributes
CORBA::ORB_var	orb_
ACE_Hash_Map_Manager_Ex< ACE_CString, Node_Manager_Info, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	deployment_info_
Node_Manager_Info	default_node_manager_

---

Detailed Description

A class that provides strategies on deployment topology.

This class provides strategies on how the DomainApplicationManager should deploy an deployment plan at domain-level. This is achieved by providing mappings from deployment destination names to actually NodeManager daemon IORs, and the strategy for which default NodeManager daemons a deployment mechanism should use.

This is a trivial implementation of the deployment configuration strategy. We can enhance this class later on to provide different deployment location strategies, such as naming service.

---

Member Typedef Documentation

typedef struct CIAO::Deployment_Configuration::_node_manager_info CIAO::Deployment_Configuration::Node_Manager_Info

---

Constructor & Destructor Documentation

CIAO::Deployment_Configuration::Deployment_Configuration (  CORBA::ORB_ptr  o  )

CIAO::Deployment_Configuration::~Deployment_Configuration (  void   )  [virtual]

Destructor.

---

Member Function Documentation

Deployment::NodeManager_ptr CIAO::Deployment_Configuration::get_default_node_manager (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )

Return the reference to the default NodeManager the DomainApplicationManager should use to deploy a node-level deployment plan.. Return values: nil  if no valid daemon is configured.

const char * CIAO::Deployment_Configuration::get_default_node_manager_ior (   )  [virtual]

Return the default NodeManager the DomainApplicationManager should use to deploy a component. In this implementation, the first entry in the deployment configuration data file is always the entry for default activator. Return values: 0  if no valid daemon is configured.

Deployment::NodeManager_ptr CIAO::Deployment_Configuration::get_node_manager (  const char *name  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )

Return values: nil  if no valid name were found.

const char * CIAO::Deployment_Configuration::get_node_manager_ior (  const char *  name  )  [virtual]

Return values: 0  if no valid name were found. When name = 0, then this function behave exactly as get_default_activator_ior.

int CIAO::Deployment_Configuration::init (  const char *  filename  )

Init method takes the filename to a configuration file which has a simple line format of name, ior string delimited by a space in each line. name IOR-string Return values: 0  on success. -1  otherwise.

---

Member Data Documentation

Node_Manager_Info CIAO::Deployment_Configuration::default_node_manager_ [protected]

ACE_Hash_Map_Manager_Ex<ACE_CString, Node_Manager_Info, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::Deployment_Configuration::deployment_info_ [protected]

CORBA::ORB_var CIAO::Deployment_Configuration::orb_ [protected]

---

The documentation for this class was generated from the following files:

• Deployment_Configuration.h
• Deployment_Configuration.cpp

---
