CIAO::Container Class Reference

Common container interface definition. More...

#include <Container_Base.h>

Inheritance diagram for CIAO::Container:

Inheritance graph
[legend]

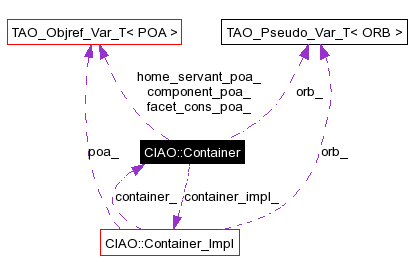

Collaboration diagram for CIAO::Container:

Collaboration graph
[legend]
List of all members.

Public Types

enum  OA_Type { Component, Facet_Consumer }

Public Member Functions

 Container (void)
 Container (CORBA::ORB_ptr o)
 Container (CORBA::ORB_ptr o, Container_Impl *container_impl)
virtual ~Container (void)=0
PortableServer::POA_ptr the_POA (void) const
 Get component's POA.
PortableServer::POA_ptr the_facet_cons_POA (void) const
CORBA::ORB_ptr the_ORB (void) const
 Get a reference to the underlying ORB.
virtual int init (const char *name=0, const CORBA::PolicyList *more_policies=0 ACE_ENV_ARG_DECL_WITH_DEFAULTS)=0 throw (CORBA::SystemException)
 Initialize the container with a name.
virtual Components::CCMHome_ptr ciao_install_home (const char *exe_dll_name, const char *exe_entrypt, const char *sv_dll_name, const char *sv_entrypt, const char *ins_name ACE_ENV_ARG_DECL_WITH_DEFAULTS)=0 throw (CORBA::SystemException, Deployment::UnknownImplId, Deployment::ImplEntryPointNotFound, Deployment::InstallationFailure)
 Install a new home.
virtual void ciao_uninstall_home (Components::CCMHome_ptr homeref ACE_ENV_ARG_DECL_WITH_DEFAULTS)=0 throw (CORBA::SystemException)
virtual void uninstall_component (::Components::CCMObject_ptr objref, PortableServer::ObjectId_out oid ACE_ENV_ARG_DECL_WITH_DEFAULTS)=0 throw (CORBA::SystemException)
virtual void add_servant_map (PortableServer::ObjectId &oid, Dynamic_Component_Servant_Base *servant ACE_ENV_ARG_DECL)=0
virtual void delete_servant_map (PortableServer::ObjectId &oid ACE_ENV_ARG_DECL)=0
virtual CORBA::Object_ptr get_home_objref (PortableServer::Servant p ACE_ENV_ARG_DECL_WITH_DEFAULTS)=0 throw (CORBA::SystemException)
PortableServer::POA the_POA ()

Protected Attributes

CORBA::ORB_var orb_
PortableServer::POA_var component_poa_
PortableServer::POA_var facet_cons_poa_
PortableServer::POA_var home_servant_poa_
Container_Impl * container_impl_

Detailed Description

Common container interface definition.

Perhaps we can use local interface to define these interfaces as we will also get reference counting automatically.

Member Enumeration Documentation

enum CIAO::Container::OA_Type


Enumeration values:
Component
Facet_Consumer

Constructor & Destructor Documentation

CIAO::Container::Container (  void   )  [explicit]


CIAO::Container::Container (  CORBA::ORB_ptr  o  )


CIAO::Container::Container (  CORBA::ORB_ptr  o,
Container_Impl *  container_impl
)


CIAO::Container::~Container (  void   )  [pure virtual]


Member Function Documentation

virtual void CIAO::Container::add_servant_map (  PortableServer::ObjectId &  oid,
Dynamic_Component_Servant_Base *servant  ACE_ENV_ARG_DECL
)  [pure virtual]


Implemented in CIAO::Session_Container.

virtual Components::CCMHome_ptr CIAO::Container::ciao_install_home (  const char *  exe_dll_name,
const char *  exe_entrypt,
const char *  sv_dll_name,
const char *  sv_entrypt,
const char *ins_name  ACE_ENV_ARG_DECL_WITH_DEFAULTS
)  throw (CORBA::SystemException, Deployment::UnknownImplId, Deployment::ImplEntryPointNotFound, Deployment::InstallationFailure) [pure virtual]


Install a new home.

Implemented in CIAO::Session_Container.

virtual void CIAO::Container::ciao_uninstall_home (  Components::CCMHome_ptr homeref  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [pure virtual]


Implemented in CIAO::Session_Container, and CIAO::Swapping_Container.

virtual void CIAO::Container::delete_servant_map (  PortableServer::ObjectId &oid  ACE_ENV_ARG_DECL  )  [pure virtual]


Implemented in CIAO::Session_Container.

virtual CORBA::Object_ptr CIAO::Container::get_home_objref (  PortableServer::Servant p  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [pure virtual]


Implemented in CIAO::Session_Container, and CIAO::Swapping_Container.

virtual int CIAO::Container::init (  const char *  name = 0,
const CORBA::PolicyList *  more_policies = 0 ACE_ENV_ARG_DECL_WITH_DEFAULTS
)  throw (CORBA::SystemException) [pure virtual]


Initialize the container with a name.

Implemented in CIAO::Session_Container, and CIAO::Swapping_Container.

PortableServer::POA_ptr CIAO::Container::the_facet_cons_POA (  void   )  const


CORBA::ORB_ptr CIAO::Container::the_ORB (  void   )  const


Get a reference to the underlying ORB.

PortableServer::POA CIAO::Container::the_POA (   )


PortableServer::POA_ptr CIAO::Container::the_POA (  void   )  const


Get component's POA.

This operation does *NOT* increase the reference count of the POA. Look at the const qualifier in the method.

virtual void CIAO::Container::uninstall_component (  ::Components::CCMObject_ptr  objref,
PortableServer::ObjectId_out oid  ACE_ENV_ARG_DECL_WITH_DEFAULTS
)  throw (CORBA::SystemException) [pure virtual]


Implemented in CIAO::Session_Container.

Member Data Documentation

PortableServer::POA_var CIAO::Container::component_poa_ [protected]


POA within which all the components in this container will be activated.

Container_Impl* CIAO::Container::container_impl_ [protected]


PortableServer::POA_var CIAO::Container::facet_cons_poa_ [protected]


Having two POA's allows us to associate different policies that are distinct from the component.

PortableServer::POA_var CIAO::Container::home_servant_poa_ [protected]


CORBA::ORB_var CIAO::Container::orb_ [protected]


The documentation for this class was generated from the following files:
