Database containing all ImR persistent information. More...

#include <Locator_Repository.h>

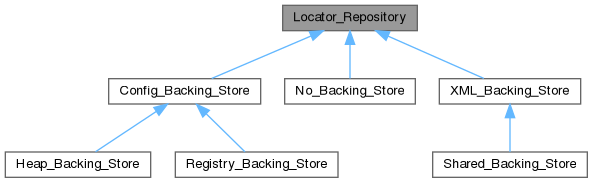

Inheritance diagram for Locator_Repository:

[legend]

Collaboration diagram for Locator_Repository:

[legend]

Public Types
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, Server_Info_Ptr, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	SIMap

typedef ACE_Hash_Map_Manager_Ex< ACE_CString, Activator_Info_Ptr, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	AIMap

Public Member Functions
	Locator_Repository (const Options &opts, CORBA::ORB_ptr orb)

virtual	~Locator_Repository ()

virtual void	shutdown ()

int	unregister_if_address_reused (const ACE_CString &fqname, const char partial_ior, ImR_Locator_i imr_locator)

int	add_server (const ACE_CString &fqname, const ImplementationRepository::StartupOptions &options)
	Add a new server to the Repository.

int	add_server (const ACE_CString &fqname, const ACE_CString &partial_ior, const ACE_CString &ior, ImplementationRepository::ServerObject_ptr svrobj)

int	add_server_i (Server_Info *si)

int	link_peers (Server_Info_Ptr base, const CORBA::StringSeq peers)

int	add_activator (const ACE_CString &name, const CORBA::Long token, const ACE_CString &ior=ACE_CString(""), ImplementationRepository::Activator_ptr act=ImplementationRepository::Activator::_nil())
	Add a new activator to the Repository.

int	update_server (const Server_Info_Ptr &info)
	Update the associated information.

int	update_activator (const Activator_Info_Ptr &info)
	Update the associated information.

virtual void	notify_remote_access (const char *id, ImplementationRepository::AAM_Status state)
	Update the peer's access state.

Server_Info_Ptr	get_active_server (const ACE_CString &name, int pid=0)
	Returns information related to startup.

Activator_Info_Ptr	get_activator (const ACE_CString &name)
	Returns information related to startup.

bool	has_activator (const ACE_CString &name)

int	remove_server (const ACE_CString &name, ImR_Locator_i *imr_locator)
	Removes the server from the Repository.

int	remove_activator (const ACE_CString &name)
	Removes the activator from the Repository.

SIMap &	servers ()
	Returns the internal hash map containing the server information.

const SIMap &	servers () const

AIMap &	activators ()
	Returns the internal hash map containing the activator information.

const AIMap &	activators () const

virtual const ACE_TCHAR *	repo_mode () const =0
	Indicate the persistence mode for the repository.

int	init (PortableServer::POA_ptr root_poa, PortableServer::POA_ptr imr_poa, const char *this_ior)
	Initialize the repo.

bool	multicast () const
	Indicate if multicast should be used.

virtual int	report_ior (PortableServer::POA_ptr imr_poa)
	report the ImR Locator's IOR

Static Public Member Functions
static ACE_CString	lcase (const ACE_CString &s)
	Convert to lower case.

Protected Member Functions
virtual int	init_repo (PortableServer::POA_ptr imr_poa)=0
	perform repo mode specific initialization

virtual int	sync_load ()

virtual int	persistent_update (const Server_Info_Ptr &info, bool add)=0
	perform server persistent update

virtual int	persistent_update (const Activator_Info_Ptr &info, bool add)=0
	perform activator persistent update

virtual int	persistent_remove (const ACE_CString &name, bool activator)=0
	perform persistent remove

virtual int	recover_ior ()
	recover the ImR Locator's IOR from the persisted file

int	setup_multicast (ACE_Reactor reactor, const char imr_ior)

void	teardown_multicast ()

bool	registered () const

Protected Attributes
const Options &	opts_

TAO_IOR_Multicast	ior_multicast_

const CORBA::ORB_var	orb_

CORBA::String_var	imr_ior_

Private Member Functions
Server_Info_Ptr	find_by_poa (const ACE_CString &name)

Private Attributes
bool	registered_

SIMap	server_infos_
	The in-memory list of the server information.

AIMap	activator_infos_
	The in-memory list of the activator information.

Detailed Description

Database containing all ImR persistent information.

Member Typedef Documentation

◆ AIMap

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, Activator_Info_Ptr, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> Locator_Repository::AIMap

◆ SIMap

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, Server_Info_Ptr, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> Locator_Repository::SIMap

Constructor & Destructor Documentation

◆ Locator_Repository()

Locator_Repository::Locator_Repository	(	const Options &	opts,
		CORBA::ORB_ptr	orb )

◆ ~Locator_Repository()

Locator_Repository::~Locator_Repository ( )

virtual

Member Function Documentation

◆ activators() [1/2]

Locator_Repository::AIMap & Locator_Repository::activators ( )

Returns the internal hash map containing the activator information.

◆ activators() [2/2]

const Locator_Repository::AIMap & Locator_Repository::activators ( ) const

◆ add_activator()

int Locator_Repository::add_activator	(	const ACE_CString &	name,
		const CORBA::Long	token,
		const ACE_CString &	ior = ACE_CString(""),
		ImplementationRepository::Activator_ptr	act = ImplementationRepository::Activator::_nil() )

Add a new activator to the Repository.

◆ add_server() [1/2]

int Locator_Repository::add_server	(	const ACE_CString &	fqname,
		const ACE_CString &	partial_ior,
		const ACE_CString &	ior,
		ImplementationRepository::ServerObject_ptr	svrobj )

◆ add_server() [2/2]

int Locator_Repository::add_server	(	const ACE_CString &	fqname,
		const ImplementationRepository::StartupOptions &	options )

Add a new server to the Repository.

◆ add_server_i()

int Locator_Repository::add_server_i ( Server_Info * si )

◆ find_by_poa()

Server_Info_Ptr Locator_Repository::find_by_poa ( const ACE_CString & name )

private

◆ get_activator()

Activator_Info_Ptr Locator_Repository::get_activator ( const ACE_CString & name )

Returns information related to startup.

◆ get_active_server()

Server_Info_Ptr Locator_Repository::get_active_server	(	const ACE_CString &	name,
		int	pid = 0 )

Returns information related to startup.

◆ has_activator()

bool Locator_Repository::has_activator ( const ACE_CString & name )

◆ init()

int Locator_Repository::init	(	PortableServer::POA_ptr	root_poa,
		PortableServer::POA_ptr	imr_poa,
		const char *	this_ior )

Initialize the repo.

◆ init_repo()

virtual int Locator_Repository::init_repo ( PortableServer::POA_ptr imr_poa )

protectedpure virtual

perform repo mode specific initialization

Implemented in Config_Backing_Store, No_Backing_Store, Shared_Backing_Store, and XML_Backing_Store.

◆ lcase()

ACE_CString Locator_Repository::lcase ( const ACE_CString & s )

static

Convert to lower case.

◆ link_peers()

int Locator_Repository::link_peers	(	Server_Info_Ptr	base,
		const CORBA::StringSeq	peers )

create new records for POAs that share a server instance. This is a two step process, first the base POA must be registered then a list of peers may be added.

◆ multicast()

bool Locator_Repository::multicast ( ) const

Indicate if multicast should be used.

◆ notify_remote_access()

void Locator_Repository::notify_remote_access	(	const char *	id,
		ImplementationRepository::AAM_Status	state )

virtual

Update the peer's access state.

Reimplemented in Shared_Backing_Store.

◆ persistent_remove()

virtual int Locator_Repository::persistent_remove	(	const ACE_CString &	name,
		bool	activator )

protectedpure virtual

perform persistent remove

Implemented in Config_Backing_Store, No_Backing_Store, Shared_Backing_Store, and XML_Backing_Store.

◆ persistent_update() [1/2]

virtual int Locator_Repository::persistent_update	(	const Activator_Info_Ptr &	info,
		bool	add )

protectedpure virtual

perform activator persistent update

Implemented in Config_Backing_Store, No_Backing_Store, Shared_Backing_Store, and XML_Backing_Store.

◆ persistent_update() [2/2]

virtual int Locator_Repository::persistent_update	(	const Server_Info_Ptr &	info,
		bool	add )

protectedpure virtual

perform server persistent update

Implemented in Config_Backing_Store, No_Backing_Store, Shared_Backing_Store, and XML_Backing_Store.

◆ recover_ior()

int Locator_Repository::recover_ior ( )

protectedvirtual

recover the ImR Locator's IOR from the persisted file

◆ registered()

bool Locator_Repository::registered ( ) const

protected

◆ remove_activator()

int Locator_Repository::remove_activator ( const ACE_CString & name )

Removes the activator from the Repository.

◆ remove_server()

int Locator_Repository::remove_server	(	const ACE_CString &	name,
		ImR_Locator_i *	imr_locator )

Removes the server from the Repository.

◆ repo_mode()

virtual const ACE_TCHAR * Locator_Repository::repo_mode ( ) const

pure virtual

Indicate the persistence mode for the repository.

Implemented in Heap_Backing_Store, Registry_Backing_Store, No_Backing_Store, Shared_Backing_Store, and XML_Backing_Store.

◆ report_ior()

int Locator_Repository::report_ior ( PortableServer::POA_ptr imr_poa )

virtual

report the ImR Locator's IOR

Reimplemented in Shared_Backing_Store.

◆ servers() [1/2]

Locator_Repository::SIMap & Locator_Repository::servers ( )

Returns the internal hash map containing the server information.

◆ servers() [2/2]

const Locator_Repository::SIMap & Locator_Repository::servers ( ) const

◆ setup_multicast()

int Locator_Repository::setup_multicast	(	ACE_Reactor *	reactor,
		const char *	imr_ior )

protected

◆ shutdown()

void Locator_Repository::shutdown ( )

virtual

Reimplemented in Shared_Backing_Store.

◆ sync_load()

int Locator_Repository::sync_load ( )

protectedvirtual

perform sync of repo with backing store defaults to no-op, only shared backing stores need to sync

Reimplemented in Shared_Backing_Store.

◆ teardown_multicast()

void Locator_Repository::teardown_multicast ( )

protected

◆ unregister_if_address_reused()

int Locator_Repository::unregister_if_address_reused	(	const ACE_CString &	fqname,
		const char *	partial_ior,
		ImR_Locator_i *	imr_locator )

◆ update_activator()

int Locator_Repository::update_activator ( const Activator_Info_Ptr & info )

Update the associated information.

◆ update_server()

int Locator_Repository::update_server ( const Server_Info_Ptr & info )

Update the associated information.

Member Data Documentation

◆ activator_infos_

AIMap Locator_Repository::activator_infos_

private

The in-memory list of the activator information.

◆ imr_ior_

CORBA::String_var Locator_Repository::imr_ior_

protected

◆ ior_multicast_

TAO_IOR_Multicast Locator_Repository::ior_multicast_

protected

◆ opts_

const Options& Locator_Repository::opts_

protected

◆ orb_

const CORBA::ORB_var Locator_Repository::orb_

protected

◆ registered_

bool Locator_Repository::registered_

private

◆ server_infos_

SIMap Locator_Repository::server_infos_

private

The in-memory list of the server information.

The documentation for this class was generated from the following files:
