Config_Backing_Store Class Reference

ACE_Configuration backing store interface containing all ImR persistent information. More...

#include <Config_Backing_Store.h>

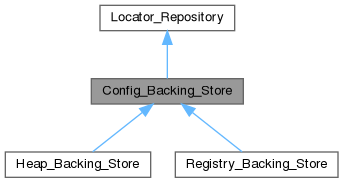

Inheritance diagram for Config_Backing_Store:

Collaboration diagram for Config_Backing_Store:

Public Member Functions
	Config_Backing_Store (const Options &opts, CORBA::ORB_ptr orb, ACE_Configuration &config)
virtual	~Config_Backing_Store ()
Public Member Functions inherited from Locator_Repository
	Locator_Repository (const Options &opts, CORBA::ORB_ptr orb)
virtual	~Locator_Repository ()
virtual void	shutdown ()
int	unregister_if_address_reused (const ACE_CString &fqname, const char *partial_ior, ImR_Locator_i *imr_locator)
int	add_server (const ACE_CString &fqname, const ImplementationRepository::StartupOptions &options)
	Add a new server to the Repository.
int	add_server (const ACE_CString &fqname, const ACE_CString &partial_ior, const ACE_CString &ior, ImplementationRepository::ServerObject_ptr svrobj)
int	add_server_i (Server_Info *si)
int	link_peers (Server_Info_Ptr base, const CORBA::StringSeq peers)
int	add_activator (const ACE_CString &name, const CORBA::Long token, const ACE_CString &ior=ACE_CString(""), ImplementationRepository::Activator_ptr act=ImplementationRepository::Activator::_nil())
	Add a new activator to the Repository.
int	update_server (const Server_Info_Ptr &info)
	Update the associated information.
int	update_activator (const Activator_Info_Ptr &info)
	Update the associated information.
virtual void	notify_remote_access (const char *id, ImplementationRepository::AAM_Status state)
	Update the peer's access state.
Server_Info_Ptr	get_active_server (const ACE_CString &name, int pid=0)
	Returns information related to startup.
Activator_Info_Ptr	get_activator (const ACE_CString &name)
	Returns information related to startup.
bool	has_activator (const ACE_CString &name)
int	remove_server (const ACE_CString &name, ImR_Locator_i *imr_locator)
	Removes the server from the Repository.
int	remove_activator (const ACE_CString &name)
	Removes the activator from the Repository.
SIMap &	servers ()
	Returns the internal hash map containing the server information.
const SIMap &	servers () const
AIMap &	activators ()
	Returns the internal hash map containing the activator information.
const AIMap &	activators () const
virtual const ACE_TCHAR *	repo_mode () const =0
	Indicate the persistence mode for the repository.
int	init (PortableServer::POA_ptr root_poa, PortableServer::POA_ptr imr_poa, const char *this_ior)
	Initialize the repo.
bool	multicast () const
	Indicate if multicast should be used.
virtual int	report_ior (PortableServer::POA_ptr imr_poa)
	report the ImR Locator's IOR

Protected Member Functions
virtual int	init_repo (PortableServer::POA_ptr imr_poa)
virtual int	persistent_update (const Server_Info_Ptr &info, bool add)
	perform server persistent update
virtual int	persistent_update (const Activator_Info_Ptr &info, bool add)
	perform activator persistent update
virtual int	persistent_remove (const ACE_CString &name, bool activator)
	perform persistent remove
int	remove (const ACE_CString &name, const ACE_TCHAR *key)
	remove the section with the given name from the key section
Protected Member Functions inherited from Locator_Repository
virtual int	sync_load ()
virtual int	recover_ior ()
	recover the ImR Locator's IOR from the persisted file
int	setup_multicast (ACE_Reactor *reactor, const char *imr_ior)
void	teardown_multicast ()
bool	registered () const

Protected Attributes
ACE_Configuration &	config_
	the ACE_Configuration backing store
int	status_
	the status of the config_
Protected Attributes inherited from Locator_Repository
const Options &	opts_
TAO_IOR_Multicast	ior_multicast_
const CORBA::ORB_var	orb_
CORBA::String_var	imr_ior_

Private Member Functions
void	loadServers ()
	load all servers
void	loadActivators ()
	load all activators

Additional Inherited Members
Public Types inherited from Locator_Repository
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, Server_Info_Ptr, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	SIMap
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, Activator_Info_Ptr, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	AIMap
Static Public Member Functions inherited from Locator_Repository
static ACE_CString	lcase (const ACE_CString &s)
	Convert to lower case.

Detailed Description

ACE_Configuration backing store interface containing all ImR persistent information.

Constructor & Destructor Documentation

Config_Backing_Store()

Config_Backing_Store::Config_Backing_Store	(	const Options &	opts,
		CORBA::ORB_ptr	orb,
		ACE_Configuration &	config )

~Config_Backing_Store()

Config_Backing_Store::~Config_Backing_Store ( )

virtual

Member Function Documentation

init_repo()

int Config_Backing_Store::init_repo ( PortableServer::POA_ptr imr_poa )

protectedvirtual

perform config backing store specific initialization (loads servers and activators from the backing store)

Implements Locator_Repository.

loadActivators()

void Config_Backing_Store::loadActivators ( )

private

load all activators

loadServers()

void Config_Backing_Store::loadServers ( )

private

load all servers

persistent_remove()

int Config_Backing_Store::persistent_remove ( const ACE_CString & name, bool activator )

protectedvirtual

perform persistent remove

Implements Locator_Repository.

persistent_update() [1/2]

int Config_Backing_Store::persistent_update ( const Activator_Info_Ptr & info, bool add )

protectedvirtual

perform activator persistent update

Implements Locator_Repository.

persistent_update() [2/2]

int Config_Backing_Store::persistent_update ( const Server_Info_Ptr & info, bool add )

protectedvirtual

perform server persistent update

Implements Locator_Repository.

remove()

int Config_Backing_Store::remove ( const ACE_CString & name, const ACE_TCHAR * key )

protected

remove the section with the given name from the key section

Member Data Documentation

config_

ACE_Configuration& Config_Backing_Store::config_

protected

the ACE_Configuration backing store

status_

int Config_Backing_Store::status_

protected

the status of the config_

---

The documentation for this class was generated from the following files:

• Config_Backing_Store.h
• Config_Backing_Store.cpp
