Generic factory for actively connecting clients and creating service handlers (SVC_HANDLERs). More...

#include <Connector.h>

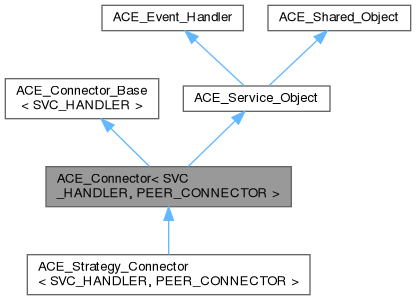

Inheritance diagram for ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >:

[legend]

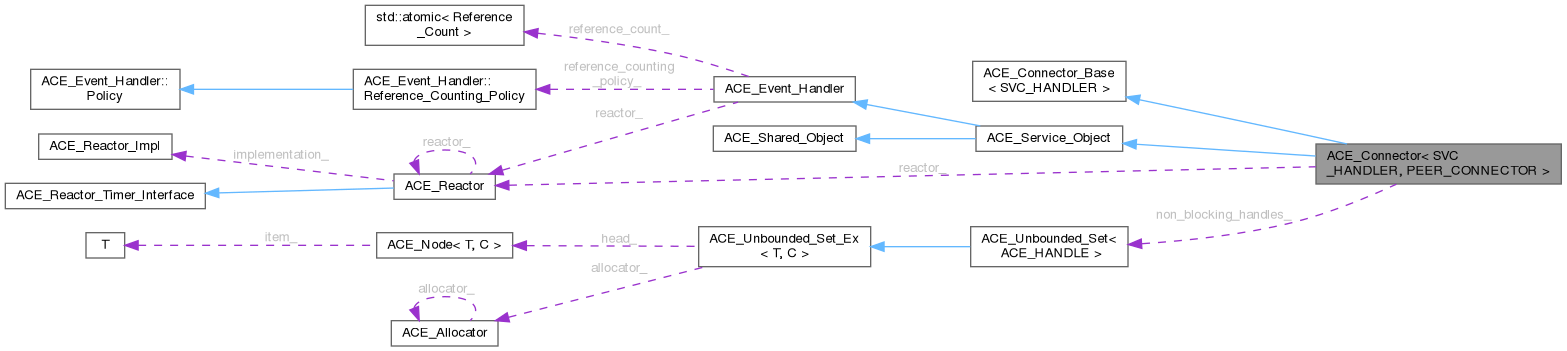

Collaboration diagram for ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >:

[legend]

Public Types
typedef SVC_HANDLER::addr_type	addr_type

typedef PEER_CONNECTOR	connector_type

typedef SVC_HANDLER	handler_type

typedef SVC_HANDLER::stream_type	stream_type

typedef PEER_CONNECTOR::PEER_ADDR	peer_addr_type

typedef PEER_CONNECTOR::PEER_ADDR	PEER_ADDR_TYPEDEF

Public Types inherited from ACE_Event_Handler
enum	{ LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) , WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) , TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) , ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) }

enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }

typedef long	Reference_Count
	Reference count type.

Public Member Functions
	ACE_Connector (ACE_Reactor *r=ACE_Reactor::instance(), int flags=0)

virtual int	open (ACE_Reactor *r=ACE_Reactor::instance(), int flags=0)

virtual	~ACE_Connector ()
	Shutdown a connector and release resources.

virtual int	connect (SVC_HANDLER *&svc_handler, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, const typename PEER_CONNECTOR::PEER_ADDR &local_addr=reinterpret_cast< const peer_addr_type & >(peer_addr_type::sap_any), int reuse_addr=0, int flags=O_RDWR, int perms=0)

virtual int	connect (SVC_HANDLER &svc_handler_hint, SVC_HANDLER &svc_handler, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, const typename PEER_CONNECTOR::PEER_ADDR &local_addr=reinterpret_cast< const peer_addr_type & >(peer_addr_type::sap_any), int reuse_addr=0, int flags=O_RDWR, int perms=0)

virtual int	connect_n (size_t n, SVC_HANDLER svc_handlers[], typename PEER_CONNECTOR::PEER_ADDR remote_addrs[], ACE_TCHAR failed_svc_handlers=0, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults)

virtual int	cancel (SVC_HANDLER *svc_handler)

virtual int	close ()

virtual PEER_CONNECTOR &	connector () const
	Return the underlying PEER_CONNECTOR object.

virtual void	initialize_svc_handler (ACE_HANDLE handle, SVC_HANDLER *svc_handler)
	Initialize Svc_Handler.

virtual void	reactor (ACE_Reactor *reactor)
	Set Reactor.

virtual ACE_Reactor *	reactor () const
	Get Reactor.

void	dump () const
	Dump the state of an object.

Public Member Functions inherited from ACE_Connector_Base< SVC_HANDLER >
virtual	~ACE_Connector_Base ()=default

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
	Constructor.

virtual	~ACE_Service_Object ()
	Destructor.

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
	Destructor is virtual to enable proper cleanup.

virtual ACE_HANDLE	get_handle () const
	Get the I/O handle.

virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.

virtual int	priority () const

virtual void	priority (int priority)
	Set the priority of the Event_Handler.

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)
	Called when a process exits.

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler ()

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
	Get only the reactor's timer related interface.

virtual Reference_Count	add_reference ()
	Increment reference count on the handler.

virtual Reference_Count	remove_reference ()
	Decrement reference count on the handler.

Reference_Counting_Policy &	reference_counting_policy ()
	Current Reference_Counting_Policy.

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object ()
	Constructor.

virtual	~ACE_Shared_Object ()
	Destructor.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Protected Types
typedef ACE_NonBlocking_Connect_Handler< SVC_HANDLER >	NBCH

Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.

Protected Member Functions
virtual int	make_svc_handler (SVC_HANDLER *&sh)

virtual int	connect_svc_handler (SVC_HANDLER &svc_handler, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, ACE_Time_Value timeout, const typename PEER_CONNECTOR::PEER_ADDR &local_addr, int reuse_addr, int flags, int perms)

virtual int	connect_svc_handler (SVC_HANDLER &svc_handler, SVC_HANDLER &sh_copy, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, ACE_Time_Value *timeout, const typename PEER_CONNECTOR::PEER_ADDR &local_addr, int reuse_addr, int flags, int perms)

virtual int	activate_svc_handler (SVC_HANDLER *svc_handler)

int	nonblocking_connect (SVC_HANDLER *, const ACE_Synch_Options &)
	Creates and registers ACE_NonBlocking_Connect_Handler.

virtual int	connect_i (SVC_HANDLER &svc_handler, SVC_HANDLER *sh_copy, const typename PEER_CONNECTOR::PEER_ADDR &remote_addr, const ACE_Synch_Options &synch_options, const typename PEER_CONNECTOR::PEER_ADDR &local_addr, int reuse_addr, int flags, int perms)
	Implementation of the connect methods.

ACE_Unbounded_Set< ACE_HANDLE > &	non_blocking_handles ()

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual int	fini ()
	Calls handle_close() to shutdown the Connector gracefully.

virtual int	info (ACE_TCHAR **strp, size_t length) const
	Default version returns address info in buf.

virtual int	suspend ()

virtual int	resume ()

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.

Private Attributes
PEER_CONNECTOR	connector_
	This is the peer connector factory.

int	flags_

ACE_Reactor *	reactor_
	Pointer to the Reactor.

ACE_Unbounded_Set< ACE_HANDLE >	non_blocking_handles_
	Handle set representing the non-blocking connects in progress.

Additional Inherited Members
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
	Performs the inverse of the register_stdin_handler() method.

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count.

Detailed Description

template<typename SVC_HANDLER, typename PEER_CONNECTOR>
class ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >

Generic factory for actively connecting clients and creating service handlers (SVC_HANDLERs).

Implements the strategy for actively establishing connections with clients. Both blocking and non-blocking connects are supported. Moreover, non-blocking connects support timeouts.

An ACE_Connector is parameterized by concrete types that conform to the interfaces of SVC_HANDLER and PEER_CONNECTOR described below.

Template Parameters

SVC_HANDLER The name of the concrete type that performs the application-specific service. The SVC_HANDLER typically inherits from ACE_Svc_Handler.

See also: Svc_Handler.h.

Template Parameters

PEER_CONNECTOR The name of the class that implements the PEER_CONNECTOR endpoint (e.g., ACE_SOCK_Connector) to passively establish connections. A PEER_CONNECTOR implementation must provide a PEER_STREAM and PEER_ADDR trait to identify the type of stream (e.g., ACE_SOCK_Stream) and type of address (e.g., ACE_INET_Addr) used by the endpoint.

Member Typedef Documentation

◆ addr_type

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

typedef SVC_HANDLER::addr_type ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::addr_type

◆ connector_type

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

typedef PEER_CONNECTOR ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connector_type

◆ handler_type

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

typedef SVC_HANDLER ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::handler_type

◆ NBCH

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

typedef ACE_NonBlocking_Connect_Handler<SVC_HANDLER> ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::NBCH

protected

◆ peer_addr_type

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

typedef PEER_CONNECTOR::PEER_ADDR ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::peer_addr_type

◆ PEER_ADDR_TYPEDEF

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

typedef PEER_CONNECTOR::PEER_ADDR ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::PEER_ADDR_TYPEDEF

◆ stream_type

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

typedef SVC_HANDLER::stream_type ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::stream_type

Constructor & Destructor Documentation

◆ ACE_Connector()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::ACE_Connector	(	ACE_Reactor *	r = ACE_Reactor::instance (),
		int	flags = 0 )

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

◆ ~ACE_Connector()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::~ACE_Connector ( )

virtual

Shutdown a connector and release resources.

Member Function Documentation

◆ activate_svc_handler()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::activate_svc_handler ( SVC_HANDLER * svc_handler )

protectedvirtual

Bridge method for activating a svc_handler with the appropriate concurrency strategy. The default behavior of this method is to activate the SVC_HANDLER by calling its <open> method (which allows the SVC_HANDLER to define its own concurrency strategy). However, subclasses can override this strategy to do more sophisticated concurrency activations (such as creating the SVC_HANDLER as an "active object" via multi-threading or multi-processing).

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ cancel()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::cancel ( SVC_HANDLER * svc_handler )

virtual

Cancel the svc_handler that was started asynchronously. Note that this is the only case when the Connector does not actively close the svc_handler. It is left up to the caller of <cancel> to decide the fate of the svc_handler.

◆ close()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::close ( )

virtual

Close down the Connector. All pending non-blocking connects are canceled and the corresponding svc_handler is closed.

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ connect() [1/2]

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect	(	SVC_HANDLER *&	svc_handler,
		const typename PEER_CONNECTOR::PEER_ADDR &	remote_addr,
		const ACE_Synch_Options &	synch_options = ACE_Synch_Options::defaults,
		const typename PEER_CONNECTOR::PEER_ADDR &	local_addr = reinterpret_cast<const peer_addr_type &>(peer_addr_type::sap_any),
		int	reuse_addr = 0,
		int	flags = O_RDWR,
		int	perms = 0 )

virtual

Initiate connection of svc_handler to peer at remote_addr using synch_options. If the caller wants to designate the selected local_addr they can (and can also insist that the local_addr be reused by passing a value reuse_addr == 1). flags and perms can be used to pass any flags that are needed to perform specific operations such as opening a file within connect with certain permissions. If the connection fails the <close> hook on the svc_handler will be called automatically to prevent resource leaks.

◆ connect() [2/2]

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect	(	SVC_HANDLER *&	svc_handler_hint,
		SVC_HANDLER *&	svc_handler,
		const typename PEER_CONNECTOR::PEER_ADDR &	remote_addr,
		const ACE_Synch_Options &	synch_options = ACE_Synch_Options::defaults,
		const typename PEER_CONNECTOR::PEER_ADDR &	local_addr = reinterpret_cast<const peer_addr_type &>(peer_addr_type::sap_any),
		int	reuse_addr = 0,
		int	flags = O_RDWR,
		int	perms = 0 )

virtual

This is a variation on the previous <connect> method. On cached connectors the svc_handler_hint variable can be used as a hint for future lookups. Since this variable is modified in the context of the internal cache its use is thread-safe. But the actual svc_handler for the current connection is returned in the second parameter svc_handler. If the connection fails the <close> hook on the svc_handler will be called automatically to prevent resource leaks.

◆ connect_i()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect_i	(	SVC_HANDLER *&	svc_handler,
		SVC_HANDLER **	sh_copy,
		const typename PEER_CONNECTOR::PEER_ADDR &	remote_addr,
		const ACE_Synch_Options &	synch_options,
		const typename PEER_CONNECTOR::PEER_ADDR &	local_addr,
		int	reuse_addr,
		int	flags,
		int	perms )

protectedvirtual

Implementation of the connect methods.

◆ connect_n()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect_n	(	size_t	n,
		SVC_HANDLER *	svc_handlers[],
		typename PEER_CONNECTOR::PEER_ADDR	remote_addrs[],
		ACE_TCHAR *	failed_svc_handlers = 0,
		const ACE_Synch_Options &	synch_options = ACE_Synch_Options::defaults )

virtual

Initiate connection of n svc_handlers to peers at remote_addrs using synch_options. Returns -1 if failure occurs and 0 otherwise. If failed_svc_handlers is non-NULL, a 1 is placed in the corresponding index of failed_svc_handlers for each <svc_handlers[i]> that failed to connect, else a 0 is placed in that index.

◆ connect_svc_handler() [1/2]

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect_svc_handler	(	SVC_HANDLER *&	svc_handler,
		const typename PEER_CONNECTOR::PEER_ADDR &	remote_addr,
		ACE_Time_Value *	timeout,
		const typename PEER_CONNECTOR::PEER_ADDR &	local_addr,
		int	reuse_addr,
		int	flags,
		int	perms )

protectedvirtual

Bridge method for connecting the svc_handler to the remote_addr. The default behavior delegates to the <PEER_CONNECTOR::connect>.

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ connect_svc_handler() [2/2]

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connect_svc_handler	(	SVC_HANDLER *&	svc_handler,
		SVC_HANDLER *&	sh_copy,
		const typename PEER_CONNECTOR::PEER_ADDR &	remote_addr,
		ACE_Time_Value *	timeout,
		const typename PEER_CONNECTOR::PEER_ADDR &	local_addr,
		int	reuse_addr,
		int	flags,
		int	perms )

protectedvirtual

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ connector()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

PEER_CONNECTOR & ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connector ( ) const

virtual

Return the underlying PEER_CONNECTOR object.

◆ dump()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

void ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::dump ( ) const

Dump the state of an object.

◆ fini()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::fini ( )

protectedvirtual

Calls handle_close() to shutdown the Connector gracefully.

Reimplemented from ACE_Shared_Object.

◆ info()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::info	(	ACE_TCHAR **	strp,
		size_t	length ) const

protectedvirtual

Default version returns address info in buf.

Reimplemented from ACE_Shared_Object.

◆ init()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::init	(	int	argc,
		ACE_TCHAR *	argv[] )

protectedvirtual

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Shared_Object.

◆ initialize_svc_handler()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

void ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::initialize_svc_handler	(	ACE_HANDLE	handle,
		SVC_HANDLER *	svc_handler )

virtual

Initialize Svc_Handler.

Implements ACE_Connector_Base< SVC_HANDLER >.

◆ make_svc_handler()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::make_svc_handler ( SVC_HANDLER *& sh )

protectedvirtual

Bridge method for creating a SVC_HANDLER. The default is to create a new SVC_HANDLER only if sh == 0, else sh is unchanged. However, subclasses can override this policy to perform SVC_HANDLER creation in any way that they like (such as creating subclass instances of SVC_HANDLER, using a singleton, dynamically linking the handler, etc.). Returns -1 if failure, else 0.

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ non_blocking_handles()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

ACE_Unbounded_Set< ACE_HANDLE > & ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::non_blocking_handles ( )

protectedvirtual

Return the handle set representing the non-blocking connects in progress.

Implements ACE_Connector_Base< SVC_HANDLER >.

◆ nonblocking_connect()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::nonblocking_connect	(	SVC_HANDLER *	sh,
		const ACE_Synch_Options &	synch_options )

protected

Creates and registers ACE_NonBlocking_Connect_Handler.

◆ open()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::open	(	ACE_Reactor *	r = ACE_Reactor::instance (),
		int	flags = 0 )

virtual

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

Reimplemented in ACE_Strategy_Connector< SVC_HANDLER, PEER_CONNECTOR >.

◆ reactor() [1/2]

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

ACE_Reactor * ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::reactor ( ) const

virtual

Get Reactor.

Reimplemented from ACE_Event_Handler.

◆ reactor() [2/2]

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

void ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::reactor ( ACE_Reactor * reactor )

virtual

Set Reactor.

Reimplemented from ACE_Event_Handler.

◆ resume()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::resume ( )

protectedvirtual

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Service_Object.

◆ suspend()

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::suspend ( )

protectedvirtual

Default version does no work and returns -1. Must be overloaded by application developer to do anything meaningful.

Reimplemented from ACE_Service_Object.

Member Data Documentation

◆ ACE_ALLOC_HOOK_DECLARE

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

◆ connector_

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

PEER_CONNECTOR ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::connector_

private

This is the peer connector factory.

◆ flags_

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

int ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::flags_

private

Flags that indicate how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

◆ non_blocking_handles_

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

ACE_Unbounded_Set<ACE_HANDLE> ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::non_blocking_handles_

private

Handle set representing the non-blocking connects in progress.

◆ reactor_

template<typename SVC_HANDLER , typename PEER_CONNECTOR >

ACE_Reactor* ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >::reactor_

private

Pointer to the Reactor.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ addr_type

◆ connector_type

◆ handler_type

◆ NBCH

◆ peer_addr_type

◆ PEER_ADDR_TYPEDEF

◆ stream_type

Constructor & Destructor Documentation

◆ ACE_Connector()

◆ ~ACE_Connector()

Member Function Documentation

◆ activate_svc_handler()

◆ cancel()

◆ close()

◆ connect() [1/2]

◆ connect() [2/2]

◆ connect_i()

◆ connect_n()

◆ connect_svc_handler() [1/2]

◆ connect_svc_handler() [2/2]

◆ connector()

◆ dump()

◆ fini()

◆ info()

◆ init()

◆ initialize_svc_handler()

◆ make_svc_handler()

◆ non_blocking_handles()

◆ nonblocking_connect()

◆ open()

◆ reactor() [1/2]

◆ reactor() [2/2]

◆ resume()

◆ suspend()

Member Data Documentation

◆ ACE_ALLOC_HOOK_DECLARE

◆ connector_

◆ flags_

◆ non_blocking_handles_

◆ reactor_
