Defines the interface for specifying a creation strategy for a SVC_HANDLER based on dynamic linking of the SVC_HANDLER. More...
#include <Strategies_T.h>
Inheritance diagram for ACE_DLL_Strategy< SVC_HANDLER >:

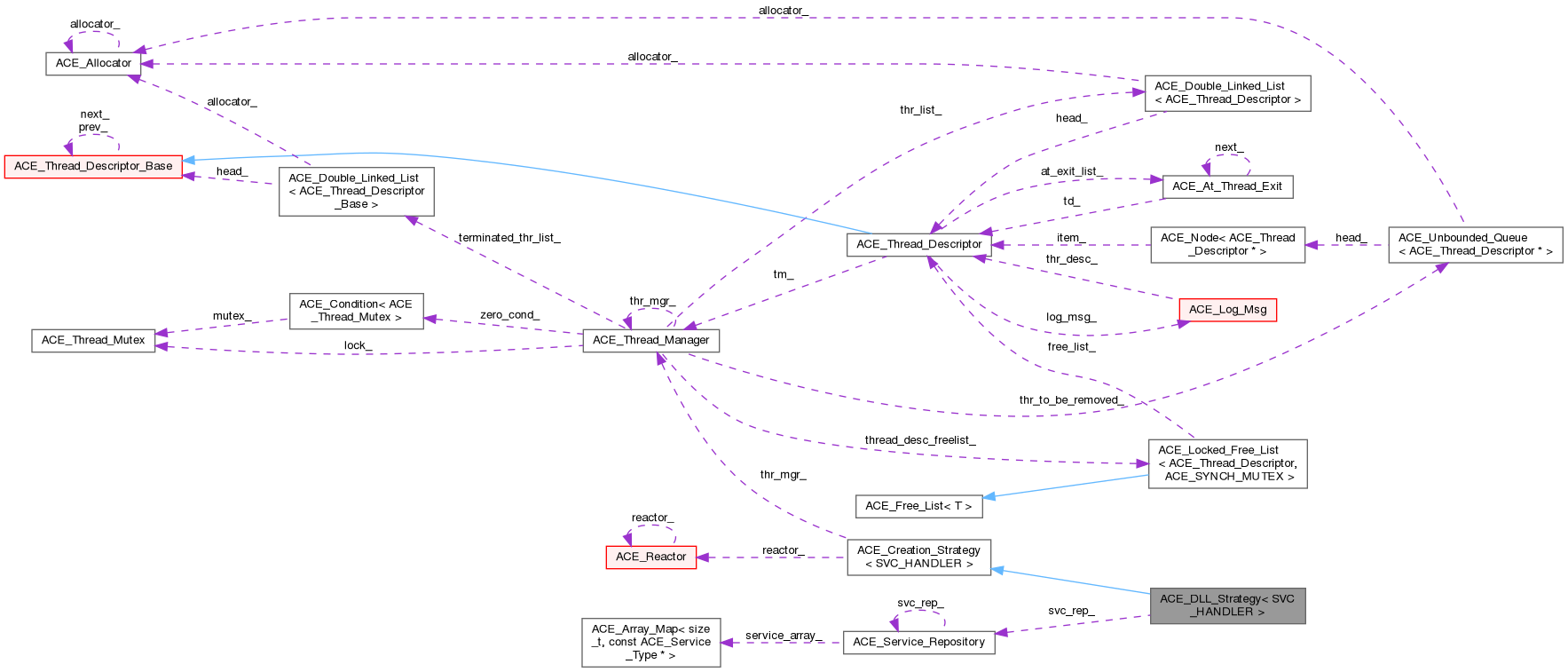

Collaboration diagram for ACE_DLL_Strategy< SVC_HANDLER >:
Public Types | |
| typedef ACE_Creation_Strategy< SVC_HANDLER > | base_type |
 Public Types inherited from ACE_Creation_Strategy< SVC_HANDLER > | |
| typedef SVC_HANDLER::addr_type | addr_type |
| typedef SVC_HANDLER | handler_type |
| typedef SVC_HANDLER::stream_type | stream_type |
Public Member Functions | |
| ACE_DLL_Strategy () | |
| "Do-nothing" constructor. | |
| ACE_DLL_Strategy (const ACE_TCHAR dll_name[], const ACE_TCHAR factory_function[], const ACE_TCHAR svc_name[], ACE_Service_Repository *, ACE_Thread_Manager *=0) | |
| int | open (const ACE_TCHAR dll_name[], const ACE_TCHAR factory_function[], const ACE_TCHAR svc_name[], ACE_Service_Repository *, ACE_Thread_Manager *=0) |
| virtual int | make_svc_handler (SVC_HANDLER *&) |
| void | dump () const |
| Dump the state of an object. | |
| Public Member Functions inherited from ACE_Creation_Strategy< SVC_HANDLER > | |
| ACE_Creation_Strategy (ACE_Thread_Manager *=0, ACE_Reactor *=ACE_Reactor::instance()) | |
| Default constructor. | |
| int | open (ACE_Thread_Manager *=0, ACE_Reactor *=ACE_Reactor::instance()) |
| virtual | ~ACE_Creation_Strategy () |
| virtual int | make_svc_handler (SVC_HANDLER *&sh) |
| void | dump () const |
| Dump the state of an object. | |
Public Attributes | |
| ACE_ALLOC_HOOK_DECLARE | |
| Declare the dynamic allocation hooks. | |
| Public Attributes inherited from ACE_Creation_Strategy< SVC_HANDLER > | |
| ACE_ALLOC_HOOK_DECLARE | |
| Declare the dynamic allocation hooks. | |
Protected Types | |
| typedef ACE_Creation_Strategy< SVC_HANDLER > | inherited |
Protected Attributes | |
| ACE_TCHAR | dll_name_ [MAXPATHLEN+1] |
| Name of the DLL to dynamically link. | |
| ACE_TCHAR | factory_function_ [MAXPATHLEN+1] |
| ACE_TCHAR | svc_name_ [MAXNAMELEN+1] |
| Name of the service. | |
| ACE_Service_Repository * | svc_rep_ |
| Pointer to the <Service_Repository>. | |
| Protected Attributes inherited from ACE_Creation_Strategy< SVC_HANDLER > | |
| ACE_Thread_Manager * | thr_mgr_ |
| Pointer to a thread manager. | |
| ACE_Reactor * | reactor_ |
| Pointer to an ACE_Reactor. | |
Detailed Description
template<class SVC_HANDLER>
class ACE_DLL_Strategy< SVC_HANDLER >
class ACE_DLL_Strategy< SVC_HANDLER >
Defines the interface for specifying a creation strategy for a SVC_HANDLER based on dynamic linking of the SVC_HANDLER.
Member Typedef Documentation
◆ base_type
template<class SVC_HANDLER >
| typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_DLL_Strategy< SVC_HANDLER >::base_type |
◆ inherited
template<class SVC_HANDLER >
|
protected |
Constructor & Destructor Documentation
◆ ACE_DLL_Strategy() [1/2]
template<class SVC_HANDLER >
|
inline |
"Do-nothing" constructor.
◆ ACE_DLL_Strategy() [2/2]
template<class SVC_HANDLER >
|
inline |
Initialize the DLL strategy based upon the service's DLL information contained in the <svc_dll_info> string.
Member Function Documentation
◆ dump()
template<class SVC_HANDLER >
| void ACE_DLL_Strategy< SVC_HANDLER >::dump |
Dump the state of an object.
◆ make_svc_handler()
template<class SVC_HANDLER >
|
virtual |
Create a SVC_HANDLER by dynamically linking it from a DLL. Returns -1 on failure, else 0.
Reimplemented from ACE_Creation_Strategy< SVC_HANDLER >.
◆ open()
template<class SVC_HANDLER >
| int ACE_DLL_Strategy< SVC_HANDLER >::open | ( | const ACE_TCHAR | dll_name[], |
| const ACE_TCHAR | factory_function[], | ||
| const ACE_TCHAR | svc_name[], | ||
| ACE_Service_Repository * | svc_rep, | ||
| ACE_Thread_Manager * | thr_mgr = 0 |
||
| ) |
Initialize the DLL strategy based upon the service's DLL information contained in the <svc_dll_info> string.
Member Data Documentation
◆ ACE_ALLOC_HOOK_DECLARE
template<class SVC_HANDLER >
| ACE_DLL_Strategy< SVC_HANDLER >::ACE_ALLOC_HOOK_DECLARE |
Declare the dynamic allocation hooks.
◆ dll_name_
template<class SVC_HANDLER >
|
protected |
Name of the DLL to dynamically link.
◆ factory_function_
template<class SVC_HANDLER >
|
protected |
Name of the factory function in the shared library to use to obtain a pointer to the new SVC_HANDLER.
◆ svc_name_
template<class SVC_HANDLER >
|
protected |
Name of the service.
◆ svc_rep_
template<class SVC_HANDLER >
|
protected |
Pointer to the <Service_Repository>.
The documentation for this class was generated from the following files:
