The concrete implementation of a allocator based configuration database. More...

#include <Configuration.h>

Inheritance diagram for ACE_Configuration_Heap:

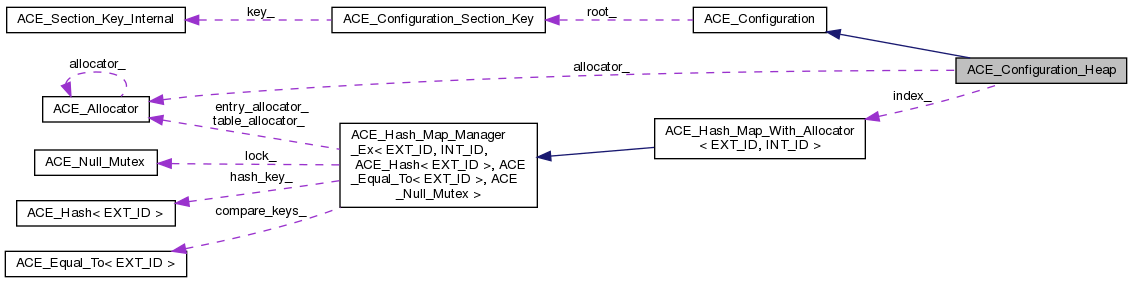

Collaboration diagram for ACE_Configuration_Heap:

[legend]

Public Member Functions
	ACE_Configuration_Heap ()
	Default ctor. More...

virtual	~ACE_Configuration_Heap ()
	Destructor. More...

int	open (const ACE_TCHAR file_name, void base_address=ACE_DEFAULT_BASE_ADDR, size_t default_map_size=ACE_DEFAULT_CONFIG_SECTION_SIZE)

int	open (size_t default_map_size=ACE_DEFAULT_CONFIG_SECTION_SIZE)

virtual int	open_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, bool create, ACE_Configuration_Section_Key &result)

virtual int	remove_section (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *sub_section, bool recursive)
	Removes a named section. More...

virtual int	enumerate_values (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name, VALUETYPE &type)

virtual int	enumerate_sections (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name)

virtual int	set_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const ACE_TString &value)
	Sets a string-typed value. More...

virtual int	set_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int value)
	Sets a integer-typed value. More...

virtual int	set_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR name, const void data, size_t length)
	Sets a binary-typed value. More...

virtual int	get_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, ACE_TString &value)
	Gets a string-typed value. More...

virtual int	get_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int &value)
	Gets an integer-typed value. More...

virtual int	get_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR name, void &data, size_t &length)
	Gets a binary-typed value. More...

virtual int	find_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, VALUETYPE &type)

virtual int	remove_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name)
	Removes the the value name from key. returns non zero on error. More...

Public Member Functions inherited from ACE_Configuration
virtual	~ACE_Configuration ()=default
	Destructor. More...

virtual const ACE_Configuration_Section_Key &	root_section () const
	Obtain a reference to the root section of this configuration. More...

virtual int	open_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, bool create, ACE_Configuration_Section_Key &result)=0

virtual int	remove_section (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *sub_section, bool recursive)=0
	Removes a named section. More...

virtual int	enumerate_values (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name, VALUETYPE &type)=0

virtual int	enumerate_sections (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name)=0

virtual int	set_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const ACE_TString &value)=0
	Sets a string-typed value. More...

virtual int	set_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int value)=0
	Sets a integer-typed value. More...

virtual int	set_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR name, const void data, size_t length)=0
	Sets a binary-typed value. More...

virtual int	get_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, ACE_TString &value)=0
	Gets a string-typed value. More...

virtual int	get_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int &value)=0
	Gets an integer-typed value. More...

virtual int	get_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR name, void &data, size_t &length)=0
	Gets a binary-typed value. More...

virtual int	find_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, VALUETYPE &type)=0

virtual int	remove_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name)=0
	Removes a named value. More...

int	expand_path (const ACE_Configuration_Section_Key &key, const ACE_TString &path_in, ACE_Configuration_Section_Key &key_out, bool create=true)

bool	operator== (const ACE_Configuration &rhs) const

bool	operator!= (const ACE_Configuration &rhs) const

Private Member Functions
int	open_simple_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, bool create, ACE_Configuration_Section_Key &result)
	sub_section may not contain path separators More...

int	add_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, ACE_Configuration_Section_Key &result)
	Adds a new section. More...

int	create_index ()
	Helper for the <open> method. More...

int	create_index_helper (void *buffer)

int	value_open_helper (size_t hash_table_size, void *buffer)

int	section_open_helper (size_t hash_table_size, void *buffer)

int	load_key (const ACE_Configuration_Section_Key &key, ACE_TString &name)

int	new_section (const ACE_TString &section, ACE_Configuration_Section_Key &result)

	ACE_Configuration_Heap (const ACE_Configuration_Heap &rhs)

ACE_Configuration_Heap &	operator= (const ACE_Configuration_Heap &rhs)

Private Attributes
ACE_Allocator *	allocator_

SECTION_MAP *	index_

size_t	default_map_size_

Additional Inherited Members
Public Types inherited from ACE_Configuration
enum	VALUETYPE { STRING , INTEGER , BINARY , INVALID }
	Enumeration for the various types of values we can store. More...

Static Public Attributes inherited from ACE_Configuration
static ACE_TCHAR	NULL_String_ = '\0'

Protected Member Functions inherited from ACE_Configuration
	ACE_Configuration ()
	Default ctor. More...

ACE_Section_Key_Internal *	get_internal_key (const ACE_Configuration_Section_Key &key)
	Resolves the internal key from a section key. More...

int	validate_name (const ACE_TCHAR *name, int allow_path=0)

int	validate_value_name (const ACE_TCHAR *name)

	ACE_Configuration (const ACE_Configuration &rhs)

ACE_Configuration &	operator= (const ACE_Configuration &rhs)

Protected Attributes inherited from ACE_Configuration
ACE_Configuration_Section_Key	root_

Detailed Description

The concrete implementation of a allocator based configuration database.

This class uses ACE's Allocators to manage a memory representation of a configuration database. A persistent heap may be used to store configurations persistently

Note: Before using this class you must call one of the open methods.

Todo:

Need to investigate what happens if memory mapped file gets mapped to a location different than it was created with.

Constructor & Destructor Documentation

◆ ACE_Configuration_Heap() [1/2]

ACE_Configuration_Heap::ACE_Configuration_Heap ( )

Default ctor.

◆ ~ACE_Configuration_Heap()

ACE_Configuration_Heap::~ACE_Configuration_Heap ( )

virtual

Destructor.

◆ ACE_Configuration_Heap() [2/2]

ACE_Configuration_Heap::ACE_Configuration_Heap ( const ACE_Configuration_Heap & rhs )

private

Member Function Documentation

◆ add_section()

int ACE_Configuration_Heap::add_section	(	const ACE_Configuration_Section_Key &	base,
		const ACE_TCHAR *	sub_section,
		ACE_Configuration_Section_Key &	result
	)

private

Adds a new section.

◆ create_index()

int ACE_Configuration_Heap::create_index ( )

private

Helper for the <open> method.

◆ create_index_helper()

int ACE_Configuration_Heap::create_index_helper ( void * buffer )

private

Helper for create_index() method: places hash table into an allocated space.

◆ enumerate_sections()

int ACE_Configuration_Heap::enumerate_sections	(	const ACE_Configuration_Section_Key &	key,
		int	index,
		ACE_TString &	name
	)

virtual

Enumerates through the subsections in a section.

Parameters

key	Section key to iterate through.
index	Iteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
name	Receives the subsection's name.

Note: You may not modify the key section while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.

Return values

0	for success, name has a valid name.
1	there are no more subsections in the section.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ enumerate_values()

int ACE_Configuration_Heap::enumerate_values	(	const ACE_Configuration_Section_Key &	key,
		int	index,
		ACE_TString &	name,
		VALUETYPE &	type
	)

virtual

Enumerates through the values in a section.

Parameters

key	Section key to iterate through.
index	Iteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
name	Receives the value's name.
type	Receives the value's data type.

Note: You may not delete or add values while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.

Return values

0	for success, name and type are valid.
1	there are no more values in the section.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ find_value()

int ACE_Configuration_Heap::find_value	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	name,
		VALUETYPE &	type
	)

virtual

Retrieves the type of a named configuration value.

Parameters

key	Configuration section to look up the name in.
name	Name of the configuration value to get the type of.
type	Receives the data type of the named value, if it exists.

Return values

0	for success.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ get_binary_value()

int ACE_Configuration_Heap::get_binary_value	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	name,
		void *&	data,
		size_t &	length
	)

virtual

Gets a binary-typed value.

Parameters

key	Configuration section to get the value from.
name	Name of the configuration value to get.
data	Receives a pointer to memory holding the binary data for the value. This method allocates the memory pointed to using operator new[]. The caller is responsible for freeing the memory using operator delete[].
length	Receives the number of bytes in the value.

Return values

0	for success; caller is responsible for freeing the returned memory.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ get_integer_value()

int ACE_Configuration_Heap::get_integer_value	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	name,
		u_int &	value
	)

virtual

Gets an integer-typed value.

Parameters

key	Configuration section to get the value from.
name	Name of the configuration value to get.
value	Receives the configuration value if it exists and has type INTEGER.

Return values

0	for success.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ get_string_value()

int ACE_Configuration_Heap::get_string_value	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	name,
		ACE_TString &	value
	)

virtual

Gets a string-typed value.

Parameters

key	Configuration section to get the value from.
name	Name of the configuration value to get.
value	Receives the configuration value if it exists and has type STRING.

Return values

0	for success.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ load_key()

int ACE_Configuration_Heap::load_key	(	const ACE_Configuration_Section_Key &	key,
		ACE_TString &	name
	)

private

◆ new_section()

int ACE_Configuration_Heap::new_section	(	const ACE_TString &	section,
		ACE_Configuration_Section_Key &	result
	)

private

◆ open() [1/2]

int ACE_Configuration_Heap::open	(	const ACE_TCHAR *	file_name,
		void *	base_address = `ACE_DEFAULT_BASE_ADDR`,
		size_t	default_map_size = `ACE_DEFAULT_CONFIG_SECTION_SIZE`
	)

Opens a configuration that allocates its memory from a memory-mapped file. This makes it possible to persist a configuration to permanent storage. This is not the same as exporting the configuration to a file; the memory-mapped file is not likely to be very readable by humans.

Parameters

file_name	Name of the file to map into memory.
base_address	Address to map the base of file_name to.
default_map_size	Starting size for the internal hash tables that contain configuration information.

Return values

0	for success.
-1	for error, with errno set to indicate the cause. If open() is called multiple times, errno will be `EBUSY`.

◆ open() [2/2]

int ACE_Configuration_Heap::open ( size_t default_map_size = ACE_DEFAULT_CONFIG_SECTION_SIZE )

Opens a configuration that allocates memory from the heap.

Parameters

default_map_size Starting size for the internal hash tables that contain configuration information.

Return values

0	for success.
-1	for error, with errno set to indicate the cause. If open() is called multiple times, errno will be `EBUSY`.

◆ open_section()

int ACE_Configuration_Heap::open_section	(	const ACE_Configuration_Section_Key &	base,
		const ACE_TCHAR *	sub_section,
		bool	create,
		ACE_Configuration_Section_Key &	result
	)

virtual

Opens a named section in an existing section.

Parameters

base	Existing section in which to open the named section.
sub_section	Name of the section to open.
create	If false, the named section must exist, otherwise the named section will be created if it does not exist.
result	Reference; receives the section key for the new section.

Return values

0	for success.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ open_simple_section()

int ACE_Configuration_Heap::open_simple_section	(	const ACE_Configuration_Section_Key &	base,
		const ACE_TCHAR *	sub_section,
		bool	create,
		ACE_Configuration_Section_Key &	result
	)

private

sub_section may not contain path separators

◆ operator=()

ACE_Configuration_Heap & ACE_Configuration_Heap::operator= ( const ACE_Configuration_Heap & rhs )

private

◆ remove_section()

int ACE_Configuration_Heap::remove_section	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	sub_section,
		bool	recursive
	)

virtual

Removes a named section.

Parameters

key	Section key to remove the named section from.
sub_section	Name of the section to remove.
recursive	If true, any subkeys below sub_section are removed as well.

Return values

0	for success.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ remove_value()

int ACE_Configuration_Heap::remove_value	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	name
	)

virtual

Removes the the value name from key. returns non zero on error.

Implements ACE_Configuration.

◆ section_open_helper()

int ACE_Configuration_Heap::section_open_helper	(	size_t	hash_table_size,
		void *	buffer
	)

private

◆ set_binary_value()

int ACE_Configuration_Heap::set_binary_value	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	name,
		const void *	data,
		size_t	length
	)

virtual

Sets a binary-typed value.

Parameters

key	Configuration section to set the value in.
name	Name of the configuration value to set. If a value with the specified name exists, it is replaced.
data	Pointer to the binary data for the value.
length	Number of bytes for the new value.

Return values

0	for success.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ set_integer_value()

int ACE_Configuration_Heap::set_integer_value	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	name,
		u_int	value
	)

virtual

Sets a integer-typed value.

Parameters

key	Configuration section to set the value in.
name	Name of the configuration value to set. If a value with the specified name exists, it is replaced.
value	The integer to set the configuration value to.

Return values

0	for success.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ set_string_value()

int ACE_Configuration_Heap::set_string_value	(	const ACE_Configuration_Section_Key &	key,
		const ACE_TCHAR *	name,
		const ACE_TString &	value
	)

virtual

Sets a string-typed value.

Parameters

key	Configuration section to set the value in.
name	Name of the configuration value to set. If a value with the specified name exists, it is replaced.
value	The string to set the configuration value to.

Return values

0	for success.
-1	for error; ACE_OS::last_error() retrieves error code.

Implements ACE_Configuration.

◆ value_open_helper()

int ACE_Configuration_Heap::value_open_helper	(	size_t	hash_table_size,
		void *	buffer
	)

private

Member Data Documentation

◆ allocator_

ACE_Allocator* ACE_Configuration_Heap::allocator_

private

◆ default_map_size_

size_t ACE_Configuration_Heap::default_map_size_

private

◆ index_

SECTION_MAP* ACE_Configuration_Heap::index_

private

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ACE_Configuration_Heap() [1/2]

◆ ~ACE_Configuration_Heap()

◆ ACE_Configuration_Heap() [2/2]

Member Function Documentation

◆ add_section()

◆ create_index()

◆ create_index_helper()

◆ enumerate_sections()

◆ enumerate_values()

◆ find_value()

◆ get_binary_value()

◆ get_integer_value()

◆ get_string_value()

◆ load_key()

◆ new_section()

◆ open() [1/2]

◆ open() [2/2]

◆ open_section()

◆ open_simple_section()

◆ operator=()

◆ remove_section()

◆ remove_value()

◆ section_open_helper()

◆ set_binary_value()

◆ set_integer_value()

◆ set_string_value()

◆ value_open_helper()

Member Data Documentation

◆ allocator_

◆ default_map_size_

◆ index_
