Provide an adapter that transforms various types of signal handlers into the scheme used by the ACE_Reactor. More...
#include <Sig_Adapter.h>
Inheritance diagram for ACE_Sig_Adapter:

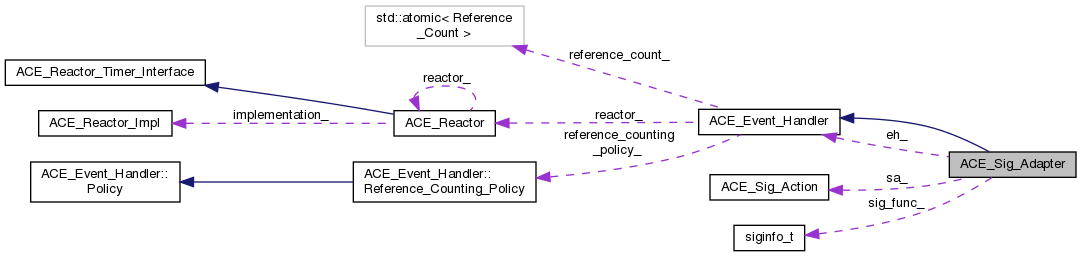

Collaboration diagram for ACE_Sig_Adapter:
Public Member Functions | |
| ACE_Sig_Adapter (ACE_Sig_Action &, int sigkey) | |
| ACE_Sig_Adapter (ACE_Event_Handler *, int sigkey) | |
| ACE_Sig_Adapter (ACE_Sig_Handler_Ex, int sigkey=0) | |
| ~ACE_Sig_Adapter () override=default | |
| int | sigkey () const |
| int | handle_signal (int, siginfo_t *, ucontext_t *) override |
| Called by the ACE_Reactor to dispatch the signal handler. More... | |
 Public Member Functions inherited from ACE_Event_Handler | |
| virtual | ~ACE_Event_Handler ()=default |
| Destructor is virtual to enable proper cleanup. More... | |
| virtual ACE_HANDLE | get_handle () const |
| Get the I/O handle. More... | |
| virtual void | set_handle (ACE_HANDLE) |
| Set the I/O handle. More... | |
| virtual int | priority () const |
| virtual void | priority (int priority) |
| Set the priority of the Event_Handler. More... | |
| virtual int | handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE) |
| Called when input events occur (e.g., connection or data). More... | |
| virtual int | handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE) |
| virtual int | handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE) |
| Called when an exceptional events occur (e.g., SIGURG). More... | |
| virtual int | handle_timeout (const ACE_Time_Value ¤t_time, const void *act=0) |
| virtual int | handle_exit (ACE_Process *) |
| Called when a process exits. More... | |
| virtual int | handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask) |
| virtual int | resume_handler () |
| virtual int | handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE) |
| virtual int | handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE) |
| virtual void | reactor (ACE_Reactor *reactor) |
| Set the event demultiplexors. More... | |
| virtual ACE_Reactor * | reactor () const |
| Get the event demultiplexors. More... | |
| virtual ACE_Reactor_Timer_Interface * | reactor_timer_interface () const |
| Get only the reactor's timer related interface. More... | |
| virtual Reference_Count | add_reference () |
| Increment reference count on the handler. More... | |
| virtual Reference_Count | remove_reference () |
| Decrement reference count on the handler. More... | |
| Reference_Counting_Policy & | reference_counting_policy () |
| Current Reference_Counting_Policy. More... | |
Public Attributes | |
| ACE_ALLOC_HOOK_DECLARE | |
Private Types | |
| enum | { ACE_HANDLER , SIG_ACTION , C_FUNCTION } |
| Is this an external handler or an ACE handler? More... | |
Private Attributes | |
| int const | sigkey_ |
| Key for this signal handler (used to remove it). More... | |
| enum ACE_Sig_Adapter:: { ... } | type_ |
| Is this an external handler or an ACE handler? More... | |
| ACE_Sig_Action | sa_ |
| ACE_Event_Handler * | eh_ {} |
| This is an ACE event handler. More... | |
| ACE_Sig_Handler_Ex | sig_func_ |
| This is a normal C function. More... | |
Additional Inherited Members | |
| Public Types inherited from ACE_Event_Handler | |
| enum | { LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) , WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) , TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) , ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) } |
| enum | { ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER } |
| typedef long | Reference_Count |
| Reference count type. More... | |
| Static Public Member Functions inherited from ACE_Event_Handler | |
| static ACE_THR_FUNC_RETURN | read_adapter (void *event_handler) |
| static int | register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED) |
| static int | remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr) |
| Performs the inverse of the register_stdin_handler() method. More... | |
| Protected Types inherited from ACE_Event_Handler | |
| typedef std::atomic< Reference_Count > | Atomic_Reference_Count |
| Typedef for implementation of reference counting. More... | |
| Protected Member Functions inherited from ACE_Event_Handler | |
| ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY) | |
| Force ACE_Event_Handler to be an abstract base class. More... | |
| Protected Attributes inherited from ACE_Event_Handler | |
| Atomic_Reference_Count | reference_count_ |
| Reference count. More... | |
Detailed Description
Provide an adapter that transforms various types of signal handlers into the scheme used by the ACE_Reactor.
Member Enumeration Documentation
◆ anonymous enum
|
private |
Is this an external handler or an ACE handler?
| Enumerator | |
|---|---|
| ACE_HANDLER | We're just wrapping an ACE_Event_Handler. |
| SIG_ACTION | An ACE_Sig_Action. |
| C_FUNCTION | A normal C function. |
Constructor & Destructor Documentation
◆ ACE_Sig_Adapter() [1/3]
| ACE_Sig_Adapter::ACE_Sig_Adapter | ( | ACE_Sig_Action & | sa, |
| int | sigkey | ||
| ) |
◆ ACE_Sig_Adapter() [2/3]
| ACE_Sig_Adapter::ACE_Sig_Adapter | ( | ACE_Event_Handler * | eh, |
| int | sigkey | ||
| ) |
◆ ACE_Sig_Adapter() [3/3]
| ACE_Sig_Adapter::ACE_Sig_Adapter | ( | ACE_Sig_Handler_Ex | sig_func, |
| int | sigkey = 0 |
||
| ) |
◆ ~ACE_Sig_Adapter()
|
overridedefault |
Member Function Documentation
◆ handle_signal()
|
overridevirtual |
Called by the ACE_Reactor to dispatch the signal handler.
Reimplemented from ACE_Event_Handler.
◆ sigkey()
| int ACE_Sig_Adapter::sigkey | ( | ) | const |
Returns this signal key that's used to remove this from the ACE_Reactor's internal table.
Member Data Documentation
◆ ACE_ALLOC_HOOK_DECLARE
| ACE_Sig_Adapter::ACE_ALLOC_HOOK_DECLARE |
◆ eh_
|
private |
This is an ACE event handler.
◆ sa_
|
private |
This should be a union, but C++ won't allow that because the ACE_Sig_Action has a constructor. This is an external handler (ugh).
◆ sig_func_
|
private |
This is a normal C function.
◆ sigkey_
|
private |
Key for this signal handler (used to remove it).
◆
| enum { ... } ACE_Sig_Adapter::type_ |
Is this an external handler or an ACE handler?
The documentation for this class was generated from the following files:
