This class is posted to the completion port when a timer expires. When the complete() method of this object is called, the handler's handle_timeout() method will be called.
More...
#include <POSIX_Proactor.h>
Inheritance diagram for ACE_POSIX_Asynch_Timer:

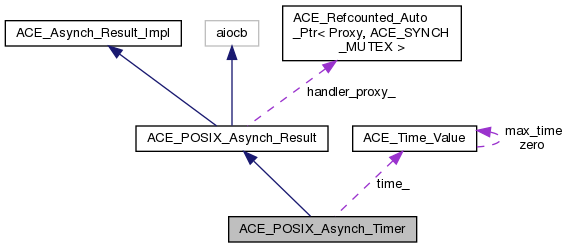

Collaboration diagram for ACE_POSIX_Asynch_Timer:
Protected Member Functions | |
| ACE_POSIX_Asynch_Timer (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN) | |
| Constructor. More... | |
| ~ACE_POSIX_Asynch_Timer (void) override=default | |
| Destructor. More... | |
| void | complete (size_t bytes_transferred, int success, const void *completion_key, u_long error=0) override |
| This method calls the handler's handle_timeout method. More... | |
 Protected Member Functions inherited from ACE_POSIX_Asynch_Result | |
| ACE_POSIX_Asynch_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, ACE_HANDLE event, u_long offset, u_long offset_high, int priority, int signal_number) | |
| Constructor. <Event> is not used on POSIX. More... | |
| Protected Member Functions inherited from ACE_Asynch_Result_Impl | |
| ACE_Asynch_Result_Impl (void) | |
| Do-nothing constructor. More... | |
Protected Attributes | |
| ACE_Time_Value | time_ |
| Time value requested by caller. More... | |
| Protected Attributes inherited from ACE_POSIX_Asynch_Result | |
| ACE_Handler::Proxy_Ptr | handler_proxy_ |
| Handler that will be called back. More... | |
| const void * | act_ |
| size_t | bytes_transferred_ |
| Bytes transferred by this operation. More... | |
| int | success_ |
| Success indicator. More... | |
| const void * | completion_key_ |
| ACT associated with handle. More... | |
| u_long | error_ |
| Error if operation failed. More... | |
Friends | |
| class | ACE_POSIX_Proactor |
Additional Inherited Members | |
| Public Member Functions inherited from ACE_POSIX_Asynch_Result | |
| size_t | bytes_transferred () const |
| Number of bytes transferred by the operation. More... | |
| const void * | act () const |
| ACT associated with the operation. More... | |
| int | success () const |
| Did the operation succeed? More... | |
| const void * | completion_key () const |
| u_long | error () const |
| Error value if the operation fails. More... | |
| ACE_HANDLE | event () const |
| This returns ACE_INVALID_HANDLE on POSIX4 platforms. More... | |
| u_long | offset () const |
| u_long | offset_high () const |
| int | priority () const |
| Priority of the operation. More... | |
| int | signal_number () const |
| int | post_completion (ACE_Proactor_Impl *proactor) |
Post this to the Proactor. More... | |
| virtual | ~ACE_POSIX_Asynch_Result (void) |
| Destructor. More... | |
| void | set_error (u_long errcode) |
| Simulate error value to use in the post_completion () More... | |
| void | set_bytes_transferred (size_t nbytes) |
| Simulate value to use in the post_completion () More... | |
| Public Member Functions inherited from ACE_Asynch_Result_Impl | |
| virtual | ~ACE_Asynch_Result_Impl (void) |
Detailed Description
This class is posted to the completion port when a timer expires. When the complete() method of this object is called, the handler's handle_timeout() method will be called.
Constructor & Destructor Documentation
◆ ACE_POSIX_Asynch_Timer()
|
protected |
Constructor.
◆ ~ACE_POSIX_Asynch_Timer()
|
overrideprotecteddefault |
Destructor.
Member Function Documentation
◆ complete()
|
overrideprotectedvirtual |
This method calls the handler's handle_timeout method.
Implements ACE_Asynch_Result_Impl.
Friends And Related Function Documentation
◆ ACE_POSIX_Proactor
|
friend |
The factory method for this class is with the POSIX_Proactor class.
Member Data Documentation
◆ time_
|
protected |
Time value requested by caller.
The documentation for this class was generated from the following files:
