Specialize TAO_Queued_Message for asynch requests, i.e. oneways sent with SYNC_NONE policy. More...

#include <Asynch_Queued_Message.h>

Inheritance diagram for TAO_Asynch_Queued_Message:

[legend]

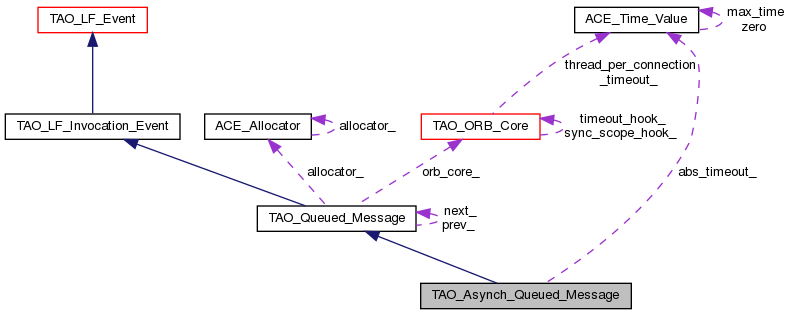

Collaboration diagram for TAO_Asynch_Queued_Message:

[legend]

Public Member Functions
	TAO_Asynch_Queued_Message (const ACE_Message_Block contents, TAO_ORB_Core oc, ACE_Time_Value timeout, ACE_Allocator alloc, bool is_heap_allocated)
	Constructor. More...

virtual	~TAO_Asynch_Queued_Message (void)
	Destructor. More...

Public Member Functions inherited from TAO_Queued_Message
	TAO_Queued_Message (TAO_ORB_Core oc, ACE_Allocator alloc=0, bool is_heap_allocated=false)
	Constructor. More...

virtual	~TAO_Queued_Message (void)
	Destructor. More...

TAO_Queued_Message *	next (void) const
	Set/get the next element in the list. More...

TAO_Queued_Message *	prev (void) const
	Set/get the previous element in the list. More...

void	remove_from_list (TAO_Queued_Message &head, TAO_Queued_Message &tail)
	Remove this element from the list. More...

void	push_back (TAO_Queued_Message &head, TAO_Queued_Message &tail)
	Insert the current element at the tail of the queue. More...

void	push_front (TAO_Queued_Message &head, TAO_Queued_Message &tail)
	Insert the current element at the head of the queue. More...

Public Member Functions inherited from TAO_LF_Invocation_Event
	TAO_LF_Invocation_Event (void)
	Constructor. More...

virtual	~TAO_LF_Invocation_Event (void)
	Destructor. More...

Public Member Functions inherited from TAO_LF_Event
	TAO_LF_Event (void)
	Constructor. More...

virtual	~TAO_LF_Event (void)
	Destructor. More...

virtual int	bind (TAO_LF_Follower *follower)
	Bind a follower. More...

virtual int	unbind (TAO_LF_Follower *follower)
	Unbind the follower. More...

void	state_changed (LFS_STATE new_state, TAO_Leader_Follower &lf)

bool	successful (TAO_Leader_Follower &lf) const

bool	error_detected (TAO_Leader_Follower &lf) const

bool	keep_waiting (TAO_Leader_Follower &lf) const
	Check if we should keep waiting. More...

void	reset_state (LFS_STATE new_state)
	Reset the state, irrespective of the previous states. More...

Implement the Template Methods from TAO_Queued_Message
size_t const	size_
	The number of bytes in the buffer. More...

size_t	offset_
	The offset in the buffer. More...

char *	buffer_
	The buffer containing the complete message. More...

ACE_Time_Value	abs_timeout_
	The number of bytes in the buffer. More...

virtual size_t	message_length (void) const
	The number of bytes in the buffer. More...

virtual int	all_data_sent (void) const
	The number of bytes in the buffer. More...

virtual void	fill_iov (int iovcnt_max, int &iovcnt, iovec iov[]) const
	The number of bytes in the buffer. More...

virtual void	bytes_transferred (size_t &byte_count)
	The number of bytes in the buffer. More...

virtual TAO_Queued_Message *	clone (ACE_Allocator *alloc)

virtual void	destroy (void)
	The number of bytes in the buffer. More...

virtual bool	is_expired (const ACE_Time_Value &now) const
	The number of bytes in the buffer. More...

virtual void	copy_if_necessary (const ACE_Message_Block *chain)
	The number of bytes in the buffer. More...

	TAO_Asynch_Queued_Message (char buf, TAO_ORB_Core oc, size_t size, const ACE_Time_Value &abs_timeout, ACE_Allocator *alloc, bool is_heap_allocated)
	Constructor. More...

void	operator= (const TAO_Asynch_Queued_Message &)
	The number of bytes in the buffer. More...

	TAO_Asynch_Queued_Message (const TAO_Asynch_Queued_Message &)
	The number of bytes in the buffer. More...

Additional Inherited Members
Public Types inherited from TAO_LF_Event
enum	LFS_STATE { LFS_IDLE = 0, LFS_ACTIVE, LFS_CONNECTION_WAIT, LFS_SUCCESS, LFS_FAILURE, LFS_TIMEOUT, LFS_CONNECTION_CLOSED }
	The current state. More...

Static Public Member Functions inherited from TAO_LF_Event
static const char *	state_name (LFS_STATE st)
	The current state. More...

Protected Member Functions inherited from TAO_LF_Invocation_Event
virtual void	state_changed_i (LFS_STATE new_state)
	Validate and perform the state change. More...

virtual bool	successful_i (void) const

virtual bool	error_detected_i (void) const

Protected Member Functions inherited from TAO_LF_Event
bool	keep_waiting_i (void) const
	Check if we should keep waiting. More...

Protected Attributes inherited from TAO_Queued_Message
ACE_Allocator *	allocator_
	Cached copy of ORB_Core pointer. More...

bool const	is_heap_created_
	Cached copy of ORB_Core pointer. More...

TAO_ORB_Core *	orb_core_
	Cached copy of ORB_Core pointer. More...

Protected Attributes inherited from TAO_LF_Event
LFS_STATE	state_
	The current state. More...

TAO_LF_Follower *	follower_
	The bounded follower. More...

Detailed Description

Specialize TAO_Queued_Message for asynch requests, i.e. oneways sent with SYNC_NONE policy.

Constructor & Destructor Documentation

◆ TAO_Asynch_Queued_Message() [1/3]

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message	(	const ACE_Message_Block *	contents,
		TAO_ORB_Core *	oc,
		ACE_Time_Value *	timeout,
		ACE_Allocator *	alloc,
		bool	is_heap_allocated
	)

Constructor.

Parameters

contents	The message block chain that must be sent.
alloc	Allocator used for creating `this` object.
timeout	The relative timeout after which this message should be expired.

Todo:: I'm almost sure this class will require a callback interface for AMIs sent with SYNC_NONE policy. Those guys need to hear when the connection timeouts or closes, but cannot block waiting for the message to be delivered.

◆ ~TAO_Asynch_Queued_Message()

TAO_Asynch_Queued_Message::~TAO_Asynch_Queued_Message ( void )

virtual

Destructor.

◆ TAO_Asynch_Queued_Message() [2/3]

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message	(	char *	buf,
		TAO_ORB_Core *	oc,
		size_t	size,
		const ACE_Time_Value &	abs_timeout,
		ACE_Allocator *	alloc,
		bool	is_heap_allocated
	)

protected

Constructor.

Parameters

buf	The buffer that needs to be sent on the wire. The buffer will be owned by this class. The buffer will be deleted when the destructor is called and hence the buffer should always come off the heap!
oc	The ORB Core
size	The size of the buffer <buf> that is being handed over.
abs_timeout	The time after which this message should be expired.
alloc	Allocator used for creating <this> object.

◆ TAO_Asynch_Queued_Message() [3/3]

TAO_Asynch_Queued_Message::TAO_Asynch_Queued_Message ( const TAO_Asynch_Queued_Message & )

private

The number of bytes in the buffer.

Member Function Documentation

◆ all_data_sent()

int TAO_Asynch_Queued_Message::all_data_sent ( void ) const

virtual

The number of bytes in the buffer.

Implements TAO_Queued_Message.

◆ bytes_transferred()

void TAO_Asynch_Queued_Message::bytes_transferred ( size_t & byte_count )

virtual

The number of bytes in the buffer.

Implements TAO_Queued_Message.

◆ clone()

TAO_Queued_Message * TAO_Asynch_Queued_Message::clone ( ACE_Allocator * alloc )

virtual

Note: No reason to believe why this would be called. But have it here for the sake of uniformity.

Implements TAO_Queued_Message.

◆ copy_if_necessary()

void TAO_Asynch_Queued_Message::copy_if_necessary ( const ACE_Message_Block * chain )

virtual

The number of bytes in the buffer.

Implements TAO_Queued_Message.

◆ destroy()

void TAO_Asynch_Queued_Message::destroy ( void )

virtual

The number of bytes in the buffer.

Implements TAO_Queued_Message.

◆ fill_iov()

void TAO_Asynch_Queued_Message::fill_iov	(	int	iovcnt_max,
		int &	iovcnt,
		iovec	iov[]
	)		const

virtual

The number of bytes in the buffer.

Implements TAO_Queued_Message.

◆ is_expired()

bool TAO_Asynch_Queued_Message::is_expired ( const ACE_Time_Value & now ) const

virtual

The number of bytes in the buffer.

Reimplemented from TAO_Queued_Message.

◆ message_length()

size_t TAO_Asynch_Queued_Message::message_length ( void ) const

virtual

The number of bytes in the buffer.

Implements TAO_Queued_Message.

◆ operator=()

void TAO_Asynch_Queued_Message::operator= ( const TAO_Asynch_Queued_Message & )

private

The number of bytes in the buffer.

Member Data Documentation

◆ abs_timeout_

ACE_Time_Value TAO_Asynch_Queued_Message::abs_timeout_

private

The number of bytes in the buffer.

◆ buffer_

char* TAO_Asynch_Queued_Message::buffer_

private

The buffer containing the complete message.

◆ offset_

size_t TAO_Asynch_Queued_Message::offset_

private

The offset in the buffer.

Data up to offset has been sent already, only the [offset_,size_) range remains to be sent.

◆ size_

size_t const TAO_Asynch_Queued_Message::size_

private

The number of bytes in the buffer.

The documentation for this class was generated from the following files:
