Secure invocation server request interceptor. More...

#include <SSLIOP_Invocation_Interceptor.h>

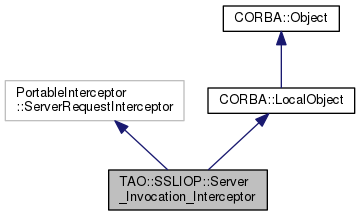

Inheritance diagram for TAO::SSLIOP::Server_Invocation_Interceptor:

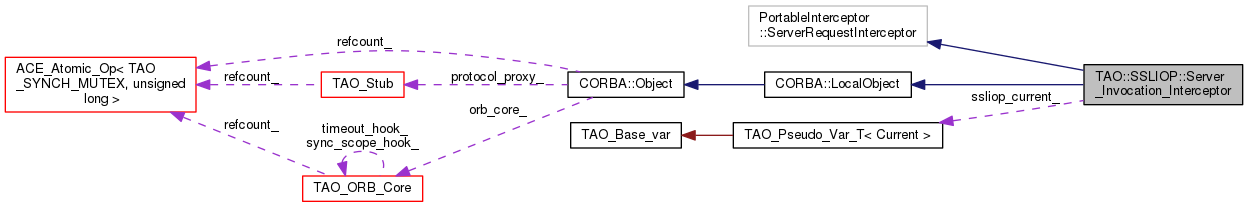

Collaboration diagram for TAO::SSLIOP::Server_Invocation_Interceptor:

[legend]

Public Member Functions
	Server_Invocation_Interceptor (PortableInterceptor::ORBInitInfo_ptr info,::Security::QOP default_qop, size_t tss_slot, bool collocated)
	Constructor. More...

PortableInterceptor::ServerRequestInterceptor Methods
Methods required by the PortableInterceptor::ServerRequestInterceptor interface.
virtual char *	name (void)

virtual void	destroy (void)

virtual void	receive_request_service_contexts (PortableInterceptor::ServerRequestInfo_ptr ri)

virtual void	receive_request (PortableInterceptor::ServerRequestInfo_ptr ri)

virtual void	send_reply (PortableInterceptor::ServerRequestInfo_ptr ri)

virtual void	send_exception (PortableInterceptor::ServerRequestInfo_ptr ri)

virtual void	send_other (PortableInterceptor::ServerRequestInfo_ptr ri)

Public Member Functions inherited from CORBA::LocalObject
virtual	~LocalObject (void)

virtual CORBA::Boolean	_non_existent (void)

virtual char *	_repository_id (void)

virtual CORBA::InterfaceDef_ptr	_get_interface (void)

virtual CORBA::Object_ptr	_get_component (void)

virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags)

virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags)

virtual CORBA::Request_ptr	_request (const char *operation)

CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)

CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)

CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)

CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)

CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)

virtual CORBA::ULong	_hash (CORBA::ULong maximum)

virtual CORBA::Boolean	_is_equivalent (CORBA::Object_ptr other_obj)

virtual CORBA::ORB_ptr	_get_orb (void)

virtual TAO::ObjectKey *	_key (void)

Public Member Functions inherited from CORBA::Object
virtual	~Object (void)

virtual TAO_Abstract_ServantBase *	_servant (void) const

virtual CORBA::Boolean	_is_collocated (void) const

virtual CORBA::Boolean	_is_local (void) const

	Object (TAO_Stub p, CORBA::Boolean collocated=false, TAO_Abstract_ServantBase servant=0, TAO_ORB_Core *orb_core=0)

	Object (IOP::IOR ior, TAO_ORB_Core orb_core)

virtual TAO_Stub *	_stubobj (void) const

virtual TAO_Stub *	_stubobj (void)

virtual void	_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)

virtual CORBA::Boolean	marshal (TAO_OutputCDR &cdr)

CORBA::Boolean	is_evaluated (void) const

TAO_ORB_Core *	orb_core (void) const

IOP::IOR *	steal_ior (void)

const IOP::IOR &	ior (void) const

virtual bool	can_convert_to_ior (void) const

virtual char *	convert_to_ior (bool use_omg_ior_format, const char *ior_prefix) const

void	_decr_refcount (void)

virtual void	_add_ref (void)

virtual void	_remove_ref (void)

virtual CORBA::ULong	_refcount_value (void) const

virtual CORBA::Boolean	_is_a (const char *logical_type_id)

virtual const char *	_interface_repository_id (void) const

CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)

CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)

CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)

CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)

CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)

virtual void	_add_ref (void)

virtual void	_remove_ref (void)

virtual CORBA::ULong	_refcount_value (void) const

Protected Member Functions
	~Server_Invocation_Interceptor (void)
	Destructor. More...

Protected Member Functions inherited from CORBA::LocalObject
	LocalObject (void)

Protected Member Functions inherited from CORBA::Object
	Object (int dummy=0)

TAO::Object_Proxy_Broker *	proxy_broker () const

Private Member Functions
Copying and Assignment
Protected to prevent copying through the copy constructor and the assignment operator.
	Server_Invocation_Interceptor (const Server_Invocation_Interceptor &)

void	operator= (const Server_Invocation_Interceptor &)

Private Attributes
::SSLIOP::Current_var	ssliop_current_
	Reference to the current SSLIOP execution context. More...

PortableServer::Current_var	poa_current_
	Reference to the POA current. More...

::Security::QOP	qop_
	The default quality-of-protection settings in use. More...

bool	collocated_
	Are we handling collocated calls. More...

SecurityLevel2::SecurityManager_var	sec2manager_
	SecurityLevel2 security manager reference. More...

SecurityLevel2::Current_var	sec2_current_

Additional Inherited Members
Public Types inherited from CORBA::LocalObject
typedef LocalObject_ptr	_ptr_type

typedef LocalObject_var	_var_type

typedef LocalObject_out	_out_type

Public Types inherited from CORBA::Object
typedef Object_ptr	_ptr_type

typedef Object_var	_var_type

typedef Object_out	_out_type

Static Public Member Functions inherited from CORBA::LocalObject
static LocalObject_ptr	_duplicate (LocalObject_ptr obj)

static LocalObject_ptr	_nil (void)

static LocalObject_ptr	_narrow (CORBA::Object_ptr obj)

Static Public Member Functions inherited from CORBA::Object
static CORBA::Boolean	marshal (const Object_ptr x, TAO_OutputCDR &cdr)

static void	_tao_any_destructor (void *)

static CORBA::Boolean	is_nil_i (CORBA::Object_ptr obj)

static void	tao_object_initialize (Object *)

static CORBA::Object_ptr	_duplicate (CORBA::Object_ptr obj)

static CORBA::Object_ptr	_nil (void)

static CORBA::Object_ptr	_narrow (CORBA::Object_ptr obj)

Protected Attributes inherited from CORBA::Object
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_

Detailed Description

Secure invocation server request interceptor.

This server request interceptor rejects insecure request invocations if the effective target object policy requires secure invocations. Two instances are going to be used, one for collocated and one for remote invocations because within the interception point we don't know whether we are collocated or not

Constructor & Destructor Documentation

TAO::SSLIOP::Server_Invocation_Interceptor::Server_Invocation_Interceptor	(	PortableInterceptor::ORBInitInfo_ptr	info,
		::Security::QOP	default_qop,
		size_t	tss_slot,
		bool	collocated
	)

Constructor.

Parameters

info	reference to the ORBInitInfo object so that the interceptor can get access to initial references, etc.
default_qop	the default Quality of Protection
tss_slot	the TSS slot used by the various security features.
collocated	Are we handling collocated calls in this instance or not

TAO::SSLIOP::Server_Invocation_Interceptor::~Server_Invocation_Interceptor ( void )

protected

Destructor.

Protected destructor to force deallocation by the reference counting mechanism.

TAO::SSLIOP::Server_Invocation_Interceptor::Server_Invocation_Interceptor ( const Server_Invocation_Interceptor & )

private

Member Function Documentation

void TAO::SSLIOP::Server_Invocation_Interceptor::destroy ( void )

virtual

char * TAO::SSLIOP::Server_Invocation_Interceptor::name ( void )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::operator= ( const Server_Invocation_Interceptor & )

private

void TAO::SSLIOP::Server_Invocation_Interceptor::receive_request ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::receive_request_service_contexts ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::send_exception ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::send_other ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

void TAO::SSLIOP::Server_Invocation_Interceptor::send_reply ( PortableInterceptor::ServerRequestInfo_ptr ri )

virtual

Member Data Documentation

bool TAO::SSLIOP::Server_Invocation_Interceptor::collocated_

private

Are we handling collocated calls.

PortableServer::Current_var TAO::SSLIOP::Server_Invocation_Interceptor::poa_current_

private

Reference to the POA current.

::Security::QOP TAO::SSLIOP::Server_Invocation_Interceptor::qop_

private

The default quality-of-protection settings in use.

SecurityLevel2::Current_var TAO::SSLIOP::Server_Invocation_Interceptor::sec2_current_

private

SecurityLevel2::SecurityManager_var TAO::SSLIOP::Server_Invocation_Interceptor::sec2manager_

private

SecurityLevel2 security manager reference.

::SSLIOP::Current_var TAO::SSLIOP::Server_Invocation_Interceptor::ssliop_current_

private

Reference to the current SSLIOP execution context.

The documentation for this class was generated from the following files:
