SSLIOP-specific protocol factory implementation. More...

#include <SSLIOP_Factory.h>

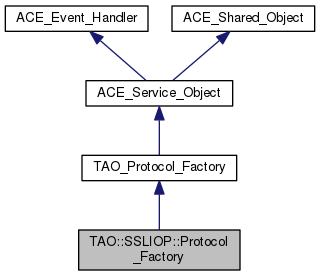

Inheritance diagram for TAO::SSLIOP::Protocol_Factory:

[legend]

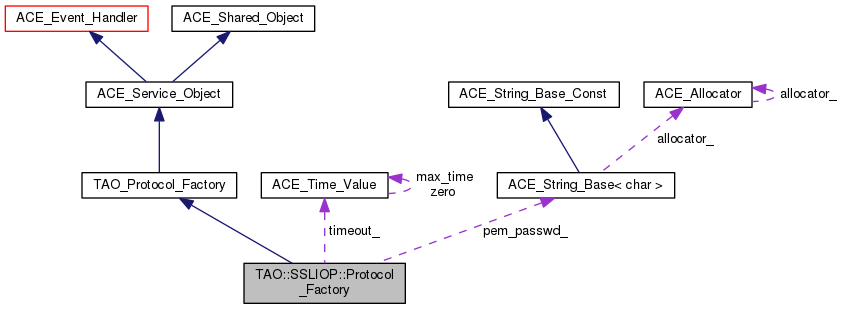

Collaboration diagram for TAO::SSLIOP::Protocol_Factory:

[legend]

Public Member Functions
	Protocol_Factory (void)
	Constructor. More...

virtual	~Protocol_Factory (void)
	Destructor. More...

virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook. More...

virtual int	match_prefix (const ACE_CString &prefix)
	Verify prefix is a match. More...

virtual const char *	prefix (void) const
	Returns the prefix used by the protocol. More...

virtual char	options_delimiter (void) const

virtual TAO_Acceptor *	make_acceptor (void)

virtual TAO_Connector *	make_connector (void)

virtual int	requires_explicit_endpoint (void) const

Public Member Functions inherited from TAO_Protocol_Factory
	TAO_Protocol_Factory (CORBA::ULong tag)

virtual	~TAO_Protocol_Factory (void)

CORBA::ULong	tag (void) const

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object (void)

virtual int	suspend (void)

virtual int	resume (void)

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)

virtual	~ACE_Shared_Object (void)

virtual int	fini (void)

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Private Member Functions
int	register_orb_initializer (void)
	Create and register the SSLIOP ORB initializer. More...

Static Private Member Functions
static int	parse_x509_file (char arg, char &path)

static int	pem_passwd_cb (char buf, int size, int, void )

Private Attributes
::Security::QOP	qop_

ACE_Time_Value	timeout_
	The accept() timeout. More...

bool	check_host_

Static Private Attributes
static ACE_CString	pem_passwd_
	The stored password. More...

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

SSLIOP-specific protocol factory implementation.

This class implements the SSLIOP-specific protocol factory implementation for use in TAO's pluggable protocols framework.

Constructor & Destructor Documentation

TAO::SSLIOP::Protocol_Factory::Protocol_Factory ( void )

Constructor.

TAO::SSLIOP::Protocol_Factory::~Protocol_Factory ( void )

virtual

Destructor.

Member Function Documentation

int TAO::SSLIOP::Protocol_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)

virtual

Dynamic linking hook.

Implements TAO_Protocol_Factory.

TAO_Acceptor * TAO::SSLIOP::Protocol_Factory::make_acceptor ( void )

virtual

Implements TAO_Protocol_Factory.

TAO_Connector * TAO::SSLIOP::Protocol_Factory::make_connector ( void )

virtual

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::match_prefix ( const ACE_CString & prefix )

virtual

Verify prefix is a match.

Implements TAO_Protocol_Factory.

char TAO::SSLIOP::Protocol_Factory::options_delimiter ( void ) const

virtual

Return the character used to mark where an endpoint ends and where its options begin.

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::parse_x509_file	(	char *	arg,
		char *&	path
	)

staticprivate

Parse an X509 file path, which is expected to looks like: <X509Path> ::= <Prefix> ':' <Path> <Prefix> ::= 'PEM' | 'ASN1' <Path> ::= any-string Returns either SSL_FILETYPE_ASN1, SSL_FILETYPE_PEM or -1 if the prefix can not be recognized. The *path will point to the part of the original buffer, after the initial ':', or will contain 0, if no path was specified.

Beware: This function modifies the buffer pointed to by arg!

int TAO::SSLIOP::Protocol_Factory::pem_passwd_cb	(	char *	buf,
		int	size,
		int	,
		void *	the_passwd
	)

staticprivate

Callback for supplying a password to be used accessing a private key. Key initialized by env var or supplied in arg list. This callback is only used when a password is configured.

const char * TAO::SSLIOP::Protocol_Factory::prefix ( void ) const

virtual

Returns the prefix used by the protocol.

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::register_orb_initializer ( void )

private

Create and register the SSLIOP ORB initializer.

int TAO::SSLIOP::Protocol_Factory::requires_explicit_endpoint ( void ) const

virtual

Implements TAO_Protocol_Factory.

Member Data Documentation

bool TAO::SSLIOP::Protocol_Factory::check_host_

private

ACE_CString TAO::SSLIOP::Protocol_Factory::pem_passwd_

staticprivate

The stored password.

::Security::QOP TAO::SSLIOP::Protocol_Factory::qop_

private

Default quality-of-protection settings for the SSLIOP pluggable protocol.

ACE_Time_Value TAO::SSLIOP::Protocol_Factory::timeout_

private

The accept() timeout.

This timeout includes the overall time to complete the SSL handshake. This includes both the TCP handshake and the SSL handshake.

The documentation for this class was generated from the following files:
