#include <AVStreams_i.h>

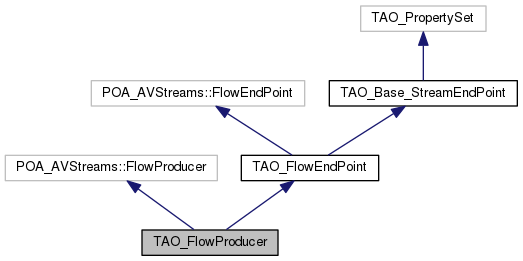

Inheritance diagram for TAO_FlowProducer:

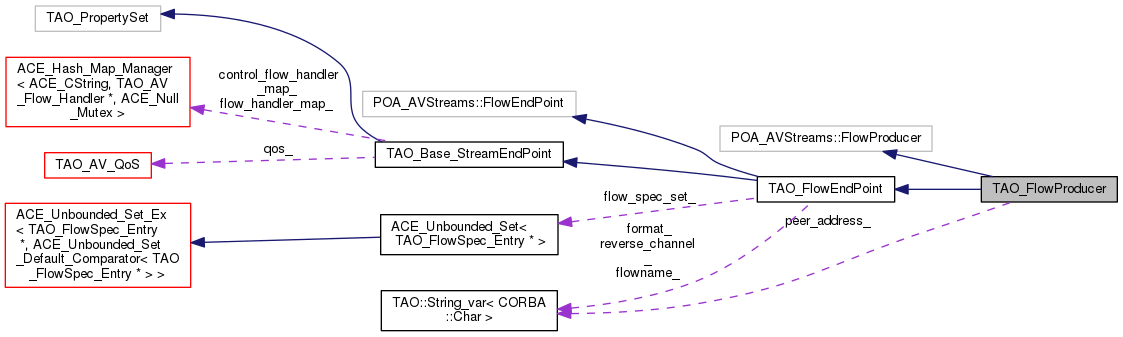

Collaboration diagram for TAO_FlowProducer:

[legend]

Public Member Functions
	TAO_FlowProducer (void)
	default constructor More...

	TAO_FlowProducer (const char flowname, AVStreams::protocolSpec protocols, const char format)

virtual char *	get_rev_channel (const char *pcol_name)

virtual void	stop (void)
	stop this flow, to be overridden by the application. More...

virtual void	start (void)
	start this flow, to be overridden by the application. More...

virtual char *	go_to_listen (AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol)

virtual CORBA::Boolean	connect_to_peer (AVStreams::QoS &the_qos, const char address, const char use_flow_protocol)

virtual char *	connect_mcast (AVStreams::QoS &the_qos, CORBA::Boolean_out is_met, const char address, const char use_flow_protocol)
	connect to the multicast address, not implemented. More...

virtual void	set_key (const AVStreams::key &the_key)
	sets the public key to be used for encryption of the data. More...

virtual void	set_source_id (CORBA::Long source_id)

Public Member Functions inherited from TAO_FlowEndPoint
	TAO_FlowEndPoint (void)
	default constructor. More...

	TAO_FlowEndPoint (const char flowname, AVStreams::protocolSpec &protocols, const char format)

int	open (const char flowname, AVStreams::protocolSpec &protocols, const char format)

int	set_flowname (const char *flowname)

virtual void	set_flow_handler (const char flowname, TAO_AV_Flow_Handler handler)

virtual int	set_protocol_object (const char flowname, TAO_AV_Protocol_Object object)

virtual CORBA::Boolean	lock (void)
	lock the flow endpoint for a particular flow. More...

virtual void	unlock (void)
	unlock the flow endpoint for subsequent use. More...

virtual void	destroy (void)
	destroy this flow. More...

virtual AVStreams::StreamEndPoint_ptr	related_sep (void)

virtual void	related_sep (AVStreams::StreamEndPoint_ptr related_sep)

virtual AVStreams::FlowConnection_ptr	related_flow_connection (void)

virtual void	related_flow_connection (AVStreams::FlowConnection_ptr related_flow_connection)
	set method for the related flow connection attribute. More...

virtual AVStreams::FlowEndPoint_ptr	get_connected_fep (void)
	returns the other flowendpoint to which this is connected. More...

virtual CORBA::Boolean	use_flow_protocol (const char *fp_name, const CORBA::Any &fp_settings)

virtual void	set_format (const char *format)
	sets the data format. More...

virtual void	set_dev_params (const CosPropertyService::Properties &new_settings)
	sets the device parameters. More...

virtual void	set_protocol_restriction (const AVStreams::protocolSpec &the_spec)
	sets the list of protocols to be used. More...

virtual CORBA::Boolean	is_fep_compatible (AVStreams::FlowEndPoint_ptr fep)
	checks whether the passed flowendpoint is compatible with this. More...

virtual CORBA::Boolean	set_peer (AVStreams::FlowConnection_ptr the_fc, AVStreams::FlowEndPoint_ptr the_peer_fep, AVStreams::QoS &the_qos)
	sets the peer flowendpoint. More...

virtual CORBA::Boolean	set_Mcast_peer (AVStreams::FlowConnection_ptr the_fc, AVStreams::MCastConfigIf_ptr a_mcastconfigif, AVStreams::QoS &the_qos)
	sets the multicast peer flowendpoint, not implemented. More...

virtual CORBA::Boolean	connect_to_peer_i (TAO_FlowSpec_Entry::Role role, AVStreams::QoS &the_qos, const char address, const char use_flow_protocol)
	connect to the peer endpoint. More...

virtual char *	go_to_listen_i (TAO_FlowSpec_Entry::Role role, AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol)
	listen request from the peer. More...

Public Member Functions inherited from TAO_Base_StreamEndPoint
	TAO_Base_StreamEndPoint (void)

virtual	~TAO_Base_StreamEndPoint (void)

virtual int	handle_open (void)
	called when streamendpoint is instantiated More...

virtual int	handle_close (void)
	called when streamendpoint is being destructed More...

virtual int	handle_stop (const AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual int	handle_start (const AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual int	handle_destroy (const AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual CORBA::Boolean	handle_preconnect (AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual CORBA::Boolean	handle_postconnect (AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual CORBA::Boolean	handle_connection_requested (AVStreams::flowSpec &the_spec)
	Application needs to define this. More...

virtual int	get_callback (const char flowname, TAO_AV_Callback &callback)

virtual int	get_control_callback (const char flowname, TAO_AV_Callback &callback)

virtual void	set_control_flow_handler (const char flowname, TAO_AV_Flow_Handler handler)

TAO_AV_QoS &	qos (void)

void	protocol_object_set (void)

int	is_protocol_object_set (void)

Protected Attributes
CORBA::Long	source_id_
	source id of this producer. More...

CORBA::String_var	peer_address_

Protected Attributes inherited from TAO_FlowEndPoint
AVStreams::StreamEndPoint_var	related_sep_
	The related streamendpoint. More...

AVStreams::FlowConnection_var	related_flow_connection_
	The related flow connection reference. More...

AVStreams::FlowEndPoint_var	peer_fep_
	The peer flowendpoint reference. More...

AVStreams::protocolSpec	protocols_
	Available protocols for this flowendpoint. More...

AVStreams::protocolSpec	protocol_addresses_
	Address information for the protocols. More...

AVStreams::MCastConfigIf_var	mcast_peer_
	The multicast peer endpoint. More...

CORBA::Boolean	lock_
	Lock. More...

CORBA::String_var	format_

CORBA::String_var	flowname_

CosPropertyService::Properties	dev_params_

TAO_AV_FlowSpecSet	flow_spec_set_

CORBA::String_var	reverse_channel_

Protected Attributes inherited from TAO_Base_StreamEndPoint
TAO_AV_QoS	qos_

Flow_Handler_Map	flow_handler_map_

Flow_Handler_Map	control_flow_handler_map_

int	protocol_object_set_

Constructor & Destructor Documentation

TAO_FlowProducer::TAO_FlowProducer ( void )

default constructor

TAO_FlowProducer::TAO_FlowProducer	(	const char *	flowname,
		AVStreams::protocolSpec	protocols,
		const char *	format
	)

Member Function Documentation

char * TAO_FlowProducer::connect_mcast	(	AVStreams::QoS &	the_qos,
		CORBA::Boolean_out	is_met,
		const char *	address,
		const char *	use_flow_protocol
	)

virtual

connect to the multicast address, not implemented.

CORBA::Boolean TAO_FlowProducer::connect_to_peer	(	AVStreams::QoS &	the_qos,
		const char *	address,
		const char *	use_flow_protocol
	)

virtual

This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object.

Implements TAO_FlowEndPoint.

char * TAO_FlowProducer::get_rev_channel ( const char * pcol_name )

virtual

get the reverse channel, to be used for feedback for protocols like UDP. @Naga: In the spec this is defined in the TAO_FlowProducer but it seems more reasonable for this to be in a FlowEndPoint since any of the flowendpoints can be made to listen. So in the case of UDP if the producer is listening and the consumer connects (logically) then the producer needs to know the reverse channel on its peer fep to send data to.

char * TAO_FlowProducer::go_to_listen	(	AVStreams::QoS &	the_qos,
		CORBA::Boolean	is_mcast,
		AVStreams::FlowEndPoint_ptr	peer,
		char *&	flowProtocol
	)

virtual

This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object.

Implements TAO_FlowEndPoint.

void TAO_FlowProducer::set_key ( const AVStreams::key & the_key )

virtual

sets the public key to be used for encryption of the data.

void TAO_FlowProducer::set_source_id ( CORBA::Long source_id )

virtual

sets the source id of this flow producer so that it can be used to distinguish this producer from others in the multicast case.

void TAO_FlowProducer::start ( void )

virtual

start this flow, to be overridden by the application.

void TAO_FlowProducer::stop ( void )

virtual

stop this flow, to be overridden by the application.

Member Data Documentation

CORBA::String_var TAO_FlowProducer::peer_address_

protected

CORBA::Long TAO_FlowProducer::source_id_

protected

source id of this producer.
