TAO_Thread_Per_Connection_Handler Class Reference

Definition for the thread-per-connection strategy. More...

#include <Thread_Per_Connection_Handler.h>

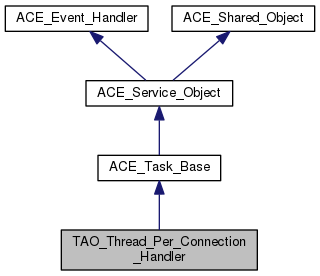

Inheritance diagram for TAO_Thread_Per_Connection_Handler:
Inheritance graph

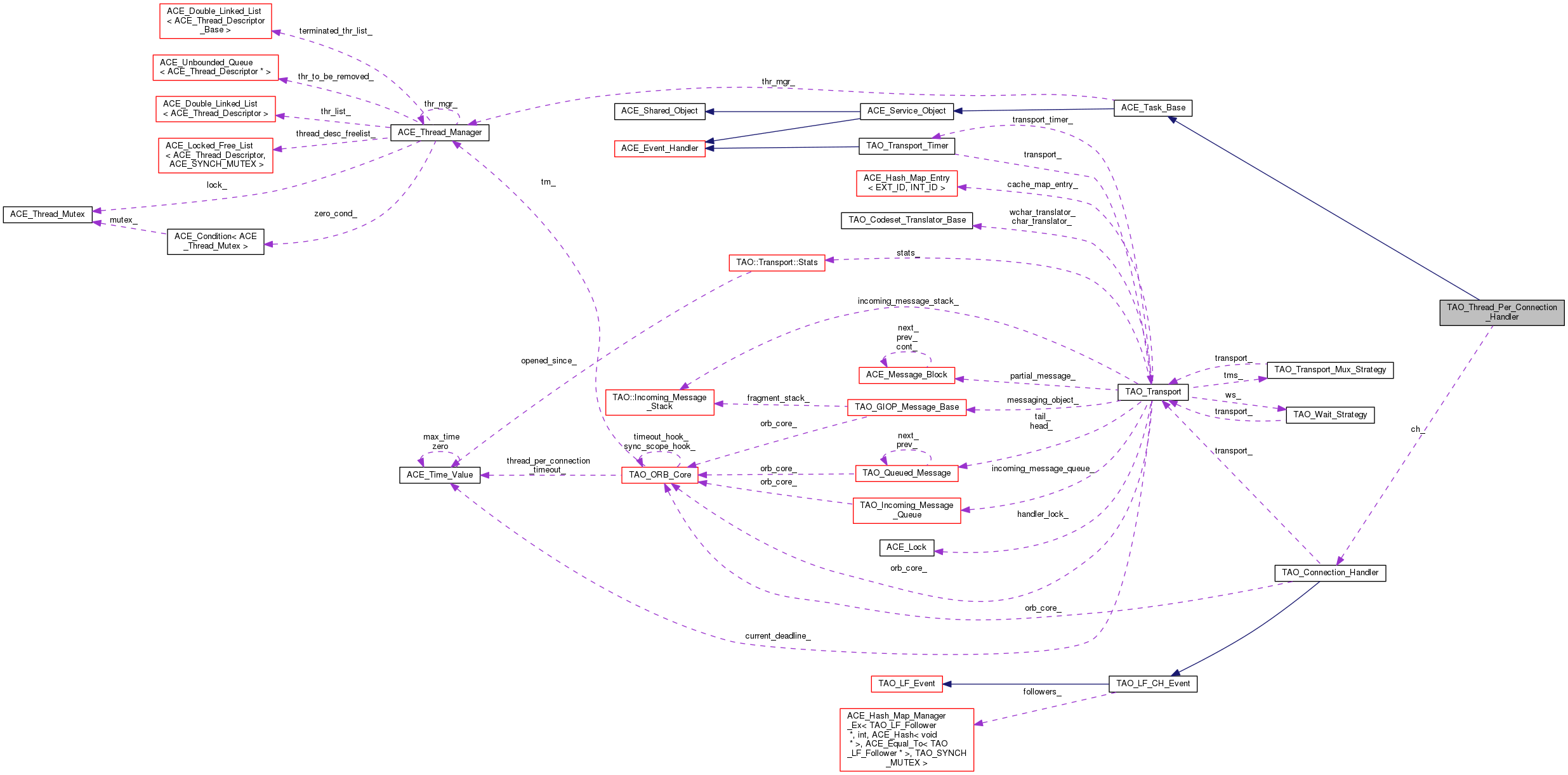

Collaboration diagram for TAO_Thread_Per_Connection_Handler:
Collaboration graph

Public Member Functions

 TAO_Thread_Per_Connection_Handler (TAO_Connection_Handler *ch, TAO_ORB_Core *oc)
 ~TAO_Thread_Per_Connection_Handler (void)
virtual int svc (void)
 Template hook method that the thread uses... More...
virtual int open (void *)
virtual int close (u_long)
- Public Member Functions inherited from ACE_Task_Base
 ACE_Task_Base (ACE_Thread_Manager *=0)
virtual ~ACE_Task_Base (void)
virtual int module_closed (void)
virtual int put (ACE_Message_Block *, ACE_Time_Value *=0)
virtual int activate (long flags=THR_NEW_LWP|THR_JOINABLE|THR_INHERIT_SCHED, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base *task=0, ACE_hthread_t thread_handles[]=0, void *stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)
virtual int wait (void)
virtual int suspend (void)
virtual int resume (void)
int grp_id (void) const
void grp_id (int)
ACE_Thread_Managerthr_mgr (void) const
void thr_mgr (ACE_Thread_Manager *)
int is_reader (void) const
int is_writer (void) const
size_t thr_count (void) const
ACE_thread_t last_thread (void) const
- Public Member Functions inherited from ACE_Service_Object
 ACE_Service_Object (ACE_Reactor *=0)
virtual ~ACE_Service_Object (void)
- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)
virtual ACE_HANDLE get_handle (void) const
virtual void set_handle (ACE_HANDLE)
virtual int priority (void) const
virtual void priority (int priority)
virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int handle_exit (ACE_Process *)
virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int resume_handler (void)
virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void reactor (ACE_Reactor *reactor)
virtual ACE_Reactorreactor (void) const
virtual ACE_Reactor_Timer_Interfacereactor_timer_interface (void) const
virtual Reference_Count add_reference (void)
virtual Reference_Count remove_reference (void)
Reference_Counting_Policyreference_counting_policy (void)
- Public Member Functions inherited from ACE_Shared_Object
 ACE_Shared_Object (void)
virtual ~ACE_Shared_Object (void)
virtual int init (int argc, ACE_TCHAR *argv[])
virtual int fini (void)
virtual int info (ACE_TCHAR **info_string, size_t length=0) const

Private Attributes


Additional Inherited Members

- Public Types inherited from ACE_Event_Handler
typedef long Reference_Count
- Static Public Member Functions inherited from ACE_Task_Base
static ACE_THR_FUNC_RETURN svc_run (void *)
static void cleanup (void *object, void *params)
- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)
static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
- Public Attributes inherited from ACE_Service_Object
- Public Attributes inherited from ACE_Event_Handler
- Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_CountAtomic_Reference_Count
- Protected Member Functions inherited from ACE_Event_Handler
 ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
- Protected Attributes inherited from ACE_Task_Base
size_t thr_count_
u_long flags_
int grp_id_
ACE_thread_t last_thread_id_
- Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count reference_count_

Detailed Description

Definition for the thread-per-connection strategy.

This object acts as an active object, encapsulating the protocol specific handler which the active thread uses to process incoming messages.

Constructor & Destructor Documentation

TAO_Thread_Per_Connection_Handler::TAO_Thread_Per_Connection_Handler ( TAO_Connection_Handler ch,
TAO_ORB_Core oc
TAO_Thread_Per_Connection_Handler::~TAO_Thread_Per_Connection_Handler ( void  )

Member Function Documentation

int TAO_Thread_Per_Connection_Handler::close ( u_long  )

Reimplemented from ACE_Task_Base.

int TAO_Thread_Per_Connection_Handler::open ( void *  v)

Reimplemented from ACE_Task_Base.

int TAO_Thread_Per_Connection_Handler::svc ( void  )

Template hook method that the thread uses...

Please see the documentation in ace/Task.h for details.

Reimplemented from ACE_Task_Base.

Member Data Documentation

TAO_Connection_Handler* TAO_Thread_Per_Connection_Handler::ch_

Pointer to protocol specific code that does the bunch of the job.

The documentation for this class was generated from the following files:
