TAO_Muxed_TMS Class Reference

#include <Muxed_TMS.h>

Inheritance diagram for TAO_Muxed_TMS:

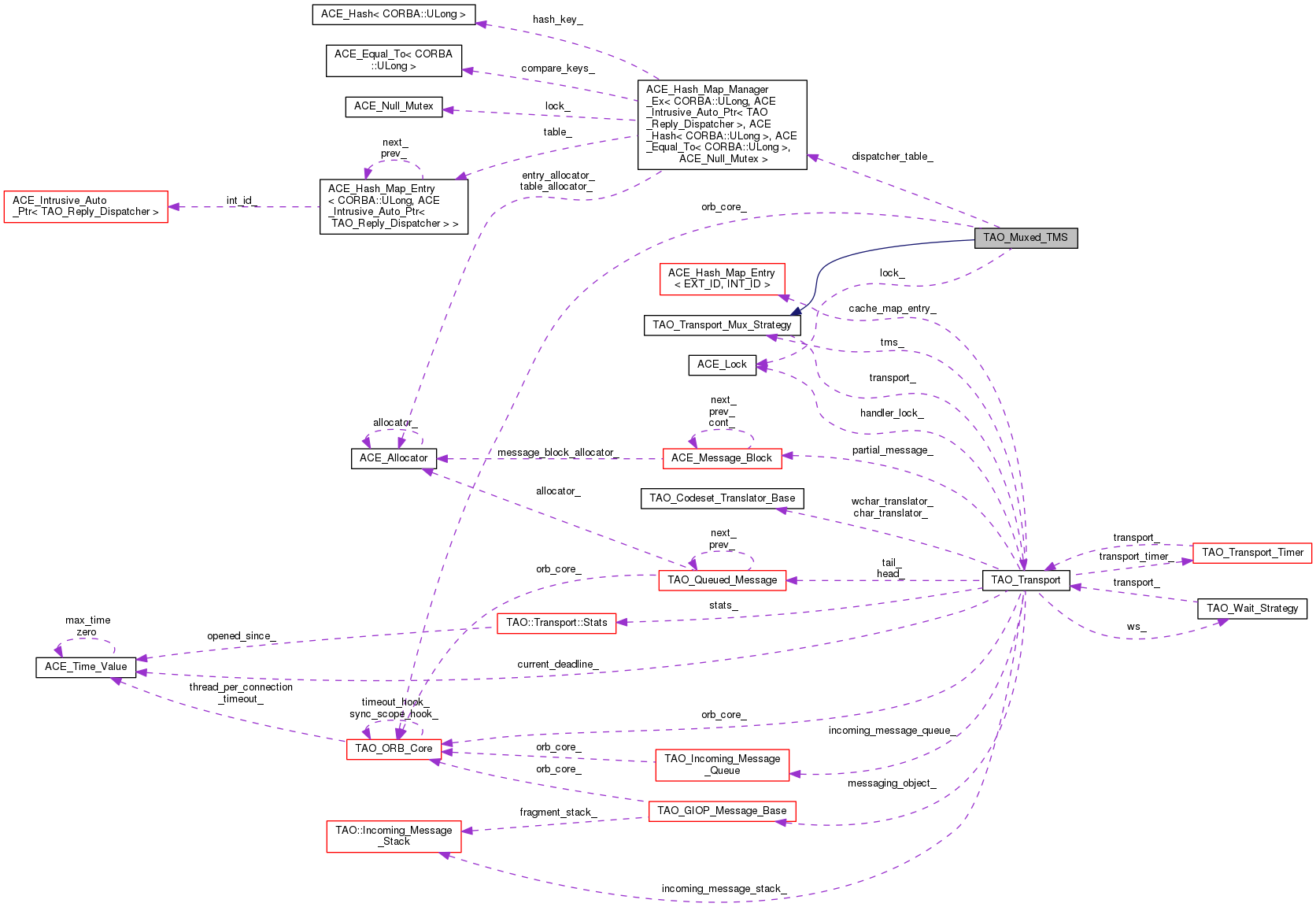

Collaboration diagram for TAO_Muxed_TMS:

Public Member Functions
	TAO_Muxed_TMS (TAO_Transport *transport)
	Constructor. More...
virtual	~TAO_Muxed_TMS (void)
	Destructor. More...
virtual CORBA::ULong	request_id (void)
virtual int	bind_dispatcher (CORBA::ULong request_id, ACE_Intrusive_Auto_Ptr< TAO_Reply_Dispatcher > rd)
	Bind the dispatcher with the request id. More...
virtual int	unbind_dispatcher (CORBA::ULong request_id)
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &params)
virtual int	reply_timed_out (CORBA::ULong request_id)
virtual bool	idle_after_send (void)
virtual bool	idle_after_reply (void)
virtual void	connection_closed (void)
virtual bool	has_request (void)
	Do we have a request pending. More...
Public Member Functions inherited from TAO_Transport_Mux_Strategy
	TAO_Transport_Mux_Strategy (TAO_Transport *transport)
	Base class constructor. More...
virtual	~TAO_Transport_Mux_Strategy (void)
	Base class destructor. More...

Private Types
typedef ACE_Hash_Map_Manager_Ex< CORBA::ULong, ACE_Intrusive_Auto_Ptr< TAO_Reply_Dispatcher >, ACE_Hash< CORBA::ULong >, ACE_Equal_To< CORBA::ULong >, ACE_Null_Mutex >	REQUEST_DISPATCHER_TABLE

Private Member Functions
void	operator= (const TAO_Muxed_TMS &)
	TAO_Muxed_TMS (const TAO_Muxed_TMS &)
int	clear_cache_i (void)

Private Attributes
ACE_Lock *	lock_
	Lock to protect the state of the object. More...
CORBA::ULong	request_id_generator_
TAO_ORB_Core *const	orb_core_
REQUEST_DISPATCHER_TABLE	dispatcher_table_
	Table of <Request ID, Reply Dispatcher> pairs. More...

Additional Inherited Members
Protected Attributes inherited from TAO_Transport_Mux_Strategy
TAO_Transport *	transport_
	Cache the transport reference. More...

Detailed Description

Using this strategy a single connection can have multiple outstanding requests. @ Can the performance of the demuxer be made more predictable, for example, using the request id as an active demux key?

Note

Check the OMG resolutions about bidirectional connections, it is possible that the request ids can only assume even or odd values.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<CORBA::ULong, ACE_Intrusive_Auto_Ptr<TAO_Reply_Dispatcher>, ACE_Hash <CORBA::ULong>, ACE_Equal_To <CORBA::ULong>, ACE_Null_Mutex> TAO_Muxed_TMS::REQUEST_DISPATCHER_TABLE

private

Constructor & Destructor Documentation

TAO_Muxed_TMS::TAO_Muxed_TMS

(

TAO_Transport *

transport

)

Constructor.

TAO_Muxed_TMS::~TAO_Muxed_TMS ( void  )

virtual

Destructor.

TAO_Muxed_TMS::TAO_Muxed_TMS ( const TAO_Muxed_TMS &  )

private

Member Function Documentation

int TAO_Muxed_TMS::bind_dispatcher ( CORBA::ULong  request_id, ACE_Intrusive_Auto_Ptr< TAO_Reply_Dispatcher >  rd  )

virtual

Bind the dispatcher with the request id.

Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::clear_cache_i ( void  )

private

void TAO_Muxed_TMS::connection_closed ( void  )

virtual

The transport object has closed the connection, inform all Reply dispatchers and waiting strategies.

Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::dispatch_reply ( TAO_Pluggable_Reply_Params &  params )

virtual

Dispatch the reply for request_id, cleanup any resources allocated for that request.

Implements TAO_Transport_Mux_Strategy.

bool TAO_Muxed_TMS::has_request ( void  )

virtual

Do we have a request pending.

Implements TAO_Transport_Mux_Strategy.

bool TAO_Muxed_TMS::idle_after_reply ( void  )

virtual

Request is sent and the reply is received. Idle the transport now. The return value indicates whether idling was successful or not.

Implements TAO_Transport_Mux_Strategy.

bool TAO_Muxed_TMS::idle_after_send ( void  )

virtual

Request has been just sent, but the reply is not received. Idle the transport now. The return value indicates whether idling was successful or not.

Implements TAO_Transport_Mux_Strategy.

void TAO_Muxed_TMS::operator= ( const TAO_Muxed_TMS &  )

private

int TAO_Muxed_TMS::reply_timed_out ( CORBA::ULong  request_id )

virtual

Dispatch a reply timeout for request request_id

Implements TAO_Transport_Mux_Strategy.

CORBA::ULong TAO_Muxed_TMS::request_id ( void  )

virtual

Generate and return an unique request id for the current invocation.

Implements TAO_Transport_Mux_Strategy.

int TAO_Muxed_TMS::unbind_dispatcher ( CORBA::ULong  request_id )

virtual

Unbind the dispatcher, the client is no longer waiting for the request, for example, because the request timed out. The strategy can (must) cleanup any resources associated with the request. A later reply for that request should be ignored.

Implements TAO_Transport_Mux_Strategy.

Member Data Documentation

REQUEST_DISPATCHER_TABLE TAO_Muxed_TMS::dispatcher_table_

private

Table of <Request ID, Reply Dispatcher> pairs.

ACE_Lock* TAO_Muxed_TMS::lock_

private

Lock to protect the state of the object.

TAO_ORB_Core* const TAO_Muxed_TMS::orb_core_

private

Keep track of the orb core pointer. We need to this to create the Reply Dispatchers.

CORBA::ULong TAO_Muxed_TMS::request_id_generator_

private

Used to generate a different request_id on each call to request_id().

---

The documentation for this class was generated from the following files:

• Muxed_TMS.h
• Muxed_TMS.cpp
