ACE_Select_Reactor_Handler_Repository Class Reference

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler *. More...

#include <Select_Reactor_Base.h>

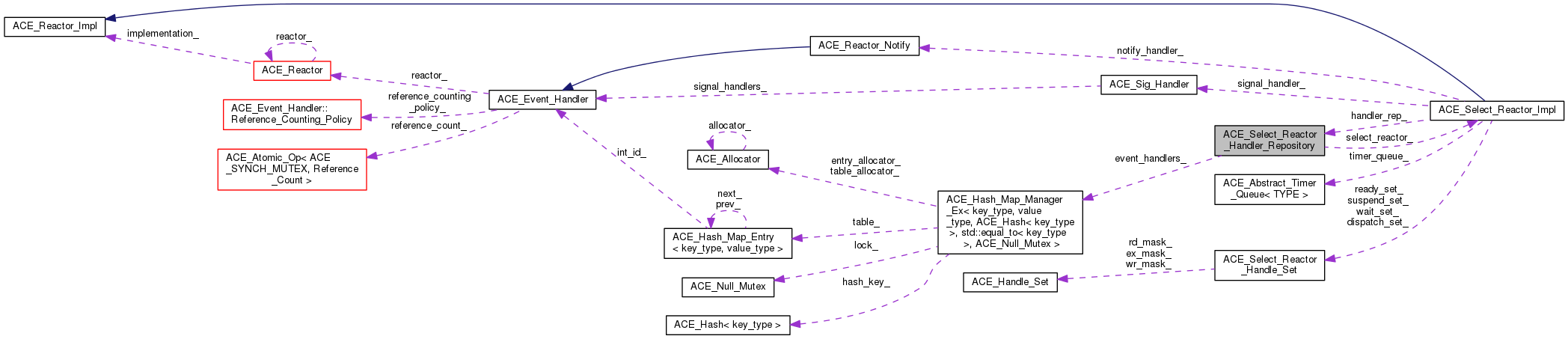

Collaboration diagram for ACE_Select_Reactor_Handler_Repository:

Public Types
typedef ACE_HANDLE	key_type
typedef ACE_Event_Handler *	value_type
typedef ACE_Hash_Map_Manager_Ex< key_type, value_type, ACE_Hash< key_type >, std::equal_to< key_type >, ACE_Null_Mutex >	map_type
typedef map_type::size_type	max_handlep1_type
typedef map_type::size_type	size_type

Public Member Functions
	ACE_Select_Reactor_Handler_Repository (ACE_Select_Reactor_Impl &)
	Default "do-nothing" constructor. More...
int	open (size_type size)
	Initialize a repository of the appropriate size. More...
int	close (void)
	Close down the repository. More...
ACE_Event_Handler *	find (ACE_HANDLE handle)
int	bind (ACE_HANDLE, ACE_Event_Handler *, ACE_Reactor_Mask)
int	unbind (ACE_HANDLE, ACE_Reactor_Mask mask)
	Remove the binding of ACE_HANDLE in accordance with the mask. More...
int	unbind_all (void)
	Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples. More...
bool	invalid_handle (ACE_HANDLE handle)
bool	handle_in_range (ACE_HANDLE handle)
size_type	size (void) const
	Returns the current table size. More...
max_handlep1_type	max_handlep1 (void) const
	Maximum ACE_HANDLE value, plus 1. More...
void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Private Member Functions
int	unbind (ACE_HANDLE handle, map_type::iterator pos, ACE_Reactor_Mask mask)
map_type::iterator	find_eh (ACE_HANDLE handle)

Private Attributes
ACE_Select_Reactor_Impl &	select_reactor_
	Reference to our Select_Reactor. More...
map_type	event_handlers_
	Underlying table of event handlers. More...

Friends
class	ACE_Select_Reactor_Handler_Repository_Iterator

Detailed Description

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler *.

This class is necessary to shield differences between UNIX and Win32. In UNIX, ACE_HANDLE is an int, whereas in Win32 it's a void *. This class hides all these details from the bulk of the ACE_Select_Reactor code. All of these methods are called with the main <Select_Reactor> token lock held.

Member Typedef Documentation

typedef ACE_HANDLE ACE_Select_Reactor_Handler_Repository::key_type

typedef ACE_Hash_Map_Manager_Ex<key_type, value_type, ACE_Hash<key_type>, std::equal_to<key_type>, ACE_Null_Mutex> ACE_Select_Reactor_Handler_Repository::map_type

The NT version implements this via a hash map ACE_Event_Handler*. Since NT implements ACE_HANDLE as a void * we can't directly index into this array. Therefore, we must explicitly map ACE_HANDLE to ACE_Event_Handler.

typedef map_type::size_type ACE_Select_Reactor_Handler_Repository::max_handlep1_type

typedef map_type::size_type ACE_Select_Reactor_Handler_Repository::size_type

typedef ACE_Event_Handler* ACE_Select_Reactor_Handler_Repository::value_type

Constructor & Destructor Documentation

ACE_Select_Reactor_Handler_Repository::ACE_Select_Reactor_Handler_Repository

(

ACE_Select_Reactor_Impl &

select_reactor

)

Default "do-nothing" constructor.

Member Function Documentation

int ACE_Select_Reactor_Handler_Repository::bind	(	ACE_HANDLE	handle,
		ACE_Event_Handler *	event_handler,
		ACE_Reactor_Mask	mask
	)

Bind the ACE_Event_Handler * to the ACE_HANDLE with the appropriate ACE_Reactor_Mask settings.

int ACE_Select_Reactor_Handler_Repository::close

(

void

)

Close down the repository.

void ACE_Select_Reactor_Handler_Repository::dump

(

void

)

const

Dump the state of an object.

ACE_Event_Handler * ACE_Select_Reactor_Handler_Repository::find ( ACE_HANDLE  handle )

inline

Return the ACE_Event_Handler* associated with ACE_HANDLE.

ACE_Select_Reactor_Handler_Repository::map_type::iterator ACE_Select_Reactor_Handler_Repository::find_eh ( ACE_HANDLE  handle )

private

Returns

iterator corresponding ACE_Event_Handler* associated with ACE_HANDLE.

bool ACE_Select_Reactor_Handler_Repository::handle_in_range

(

ACE_HANDLE

handle

)

bool ACE_Select_Reactor_Handler_Repository::invalid_handle

(

ACE_HANDLE

handle

)

ACE_Select_Reactor_Handler_Repository::max_handlep1_type ACE_Select_Reactor_Handler_Repository::max_handlep1 ( void  ) const

inline

Maximum ACE_HANDLE value, plus 1.

int ACE_Select_Reactor_Handler_Repository::open

(

size_type

size

)

Initialize a repository of the appropriate size.

On Unix platforms, the size parameter should be as large as the maximum number of file descriptors allowed for a given process. This is necessary since a file descriptor is used to directly index the array of event handlers maintained by the Reactor's handler repository. Direct indexing is used for efficiency reasons.

ACE_Select_Reactor_Handler_Repository::size_type ACE_Select_Reactor_Handler_Repository::size ( void  ) const

inline

Returns the current table size.

int ACE_Select_Reactor_Handler_Repository::unbind ( ACE_HANDLE  handle, ACE_Reactor_Mask  mask  )

inline

Remove the binding of ACE_HANDLE in accordance with the mask.

int ACE_Select_Reactor_Handler_Repository::unbind ( ACE_HANDLE  handle, map_type::iterator  pos, ACE_Reactor_Mask  mask  )

private

Remove the binding of handle corresponding to position pos in accordance with the mask.

int ACE_Select_Reactor_Handler_Repository::unbind_all

(

void

)

Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples.

Friends And Related Function Documentation

friend class ACE_Select_Reactor_Handler_Repository_Iterator

friend

Member Data Documentation

ACE_Select_Reactor_Handler_Repository::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

map_type ACE_Select_Reactor_Handler_Repository::event_handlers_

private

Underlying table of event handlers.

ACE_Select_Reactor_Impl& ACE_Select_Reactor_Handler_Repository::select_reactor_

private

Reference to our Select_Reactor.

---

The documentation for this class was generated from the following files:

• Select_Reactor_Base.h
• Select_Reactor_Base.cpp
• Select_Reactor_Base.inl
