An OO event demultiplexor and event handler dispatcher for Win32 <MsgWaitForMultipleObjects>. More...

#include <Msg_WFMO_Reactor.h>

Inheritance diagram for ACE_Msg_WFMO_Reactor:

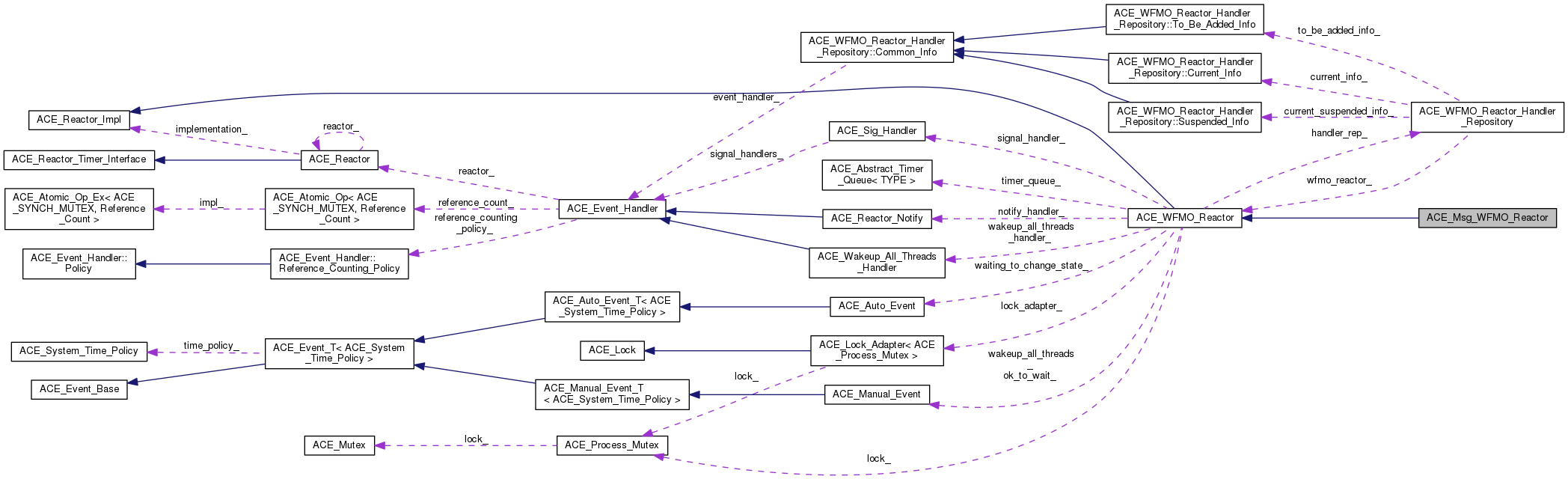

Collaboration diagram for ACE_Msg_WFMO_Reactor:

[legend]

Public Member Functions
	ACE_Msg_WFMO_Reactor (ACE_Sig_Handler =0, ACE_Timer_Queue =0)
	Initialize <ACE_Msg_WFMO_Reactor> with the default size. More...

	ACE_Msg_WFMO_Reactor (size_t size, int unused=0, ACE_Sig_Handler =0, ACE_Timer_Queue =0)

virtual	~ACE_Msg_WFMO_Reactor (void)
	Close down the ACE_Msg_WFMO_Reactor and release all of its resources. More...

virtual int	handle_events (ACE_Time_Value *max_wait_time=0)

virtual int	alertable_handle_events (ACE_Time_Value *max_wait_time=0)

virtual int	handle_events (ACE_Time_Value &max_wait_time)

virtual int	alertable_handle_events (ACE_Time_Value &max_wait_time)

Public Member Functions inherited from ACE_WFMO_Reactor
	ACE_WFMO_Reactor (ACE_Sig_Handler =0, ACE_Timer_Queue =0, ACE_Reactor_Notify *=0)
	Initialize ACE_WFMO_Reactor with the default size. More...

	ACE_WFMO_Reactor (size_t size, int unused=0, ACE_Sig_Handler =0, ACE_Timer_Queue =0, ACE_Reactor_Notify *=0)

virtual int	open (size_t size=ACE_WFMO_Reactor::DEFAULT_SIZE, bool restart=false, ACE_Sig_Handler =0, ACE_Timer_Queue =0, int disable_notify_pipe=0, ACE_Reactor_Notify *=0)

virtual int	current_info (ACE_HANDLE, size_t &)
	Returns -1 (not used in this implementation);. More...

virtual int	set_sig_handler (ACE_Sig_Handler *signal_handler)
	Use a user specified signal handler instead. More...

virtual int	timer_queue (ACE_Timer_Queue *tq)
	Set a user-specified timer queue. More...

virtual ACE_Timer_Queue *	timer_queue (void) const
	Return the current ACE_Timer_Queue. More...

virtual int	close (void)
	Close down the ACE_WFMO_Reactor and release all of its resources. More...

virtual	~ACE_WFMO_Reactor (void)
	Close down the ACE_WFMO_Reactor and release all of its resources. More...

virtual int	work_pending (const ACE_Time_Value &max_wait_time=ACE_Time_Value::zero)

virtual int	deactivated (void)

virtual void	deactivate (int do_stop)

virtual int	register_handler (ACE_Event_Handler *event_handler, ACE_HANDLE event_handle=ACE_INVALID_HANDLE)

virtual int	register_handler (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)

virtual int	register_handler (ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)

virtual int	register_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)

virtual int	register_handler (const ACE_Handle_Set &handles, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)

virtual int	register_handler (int signum, ACE_Event_Handler new_sh, ACE_Sig_Action new_disp=0, ACE_Event_Handler *old_sh=0, ACE_Sig_Action old_disp=0)

virtual int	register_handler (const ACE_Sig_Set &sigset, ACE_Event_Handler new_sh, ACE_Sig_Action new_disp=0)

virtual int	remove_handler (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)

virtual int	remove_handler (ACE_HANDLE handle, ACE_Reactor_Mask mask)

virtual int	remove_handler (const ACE_Handle_Set &handle_set, ACE_Reactor_Mask)

virtual int	remove_handler (int signum, ACE_Sig_Action new_disp, ACE_Sig_Action old_disp=0, int sigkey=-1)

virtual int	remove_handler (const ACE_Sig_Set &sigset)
	Calls remove_handler() for every signal in sigset. More...

virtual int	suspend_handler (ACE_Event_Handler *event_handler)

virtual int	suspend_handler (ACE_HANDLE handle)
	Suspend handle temporarily. More...

virtual int	suspend_handler (const ACE_Handle_Set &handles)
	Suspend all handles in handle set temporarily. More...

virtual int	suspend_handlers (void)
	Suspend all handles temporarily. More...

virtual int	resume_handler (ACE_Event_Handler *event_handler)

virtual int	resume_handler (ACE_HANDLE handle)
	Resume handle. More...

virtual int	resume_handler (const ACE_Handle_Set &handles)
	Resume all handles in handle set. More...

virtual int	resume_handlers (void)
	Resume all <handles>. More...

virtual int	resumable_handler (void)

virtual bool	uses_event_associations (void)

virtual long	schedule_timer (ACE_Event_Handler event_handler, const void arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval=ACE_Time_Value::zero)

virtual int	reset_timer_interval (long timer_id, const ACE_Time_Value &interval)

virtual int	cancel_timer (ACE_Event_Handler *event_handler, int dont_call_handle_close=1)

virtual int	cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1)

virtual int	schedule_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_added)

virtual int	schedule_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_added)

virtual int	cancel_wakeup (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks_to_be_deleted)

virtual int	cancel_wakeup (ACE_HANDLE handle, ACE_Reactor_Mask masks_to_be_deleted)

virtual int	notify (ACE_Event_Handler =0, ACE_Reactor_Mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value =0)

virtual void	max_notify_iterations (int)

virtual int	max_notify_iterations (void)

virtual int	purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)

ACE_Event_Handler *	find_handler (ACE_HANDLE handle)

virtual int	handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **event_handler=0)

virtual int	handler (int signum, ACE_Event_Handler **=0)

virtual bool	initialized (void)

virtual size_t	size (void) const

virtual ACE_Lock &	lock (void)
	Returns a reference to the WFMO_Reactor's internal lock. More...

virtual void	wakeup_all_threads (void)

virtual int	owner (ACE_thread_t new_owner, ACE_thread_t *old_owner=0)

virtual int	owner (ACE_thread_t *owner)
	Return the ID of the "owner" thread. More...

virtual bool	restart (void)
	Get the existing restart value. More...

virtual bool	restart (bool r)
	Set a new value for restart and return the original value. More...

virtual void	requeue_position (int)
	Not implemented. More...

virtual int	requeue_position (void)
	Not implemented. More...

virtual int	mask_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask masks, int operation)

virtual int	mask_ops (ACE_HANDLE handle, ACE_Reactor_Mask masks, int ops)

virtual int	ready_ops (ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask, int ops)
	Not implemented. More...

virtual int	ready_ops (ACE_HANDLE handle, ACE_Reactor_Mask, int ops)
	Not implemented. More...

virtual void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_Reactor_Impl
virtual	~ACE_Reactor_Impl (void)
	Close down and release all resources. More...

Protected Member Functions
virtual DWORD	wait_for_multiple_events (int timeout, int alertable)
	Wait for timer and I/O events to occur. More...

virtual DWORD	poll_remaining_handles (DWORD index)
	Check for activity on remaining handles. More...

virtual int	dispatch_window_messages (void)
	Dispatches window messages. More...

Protected Member Functions inherited from ACE_WFMO_Reactor
virtual int	register_handler_i (ACE_HANDLE event_handle, ACE_HANDLE io_handle, ACE_Event_Handler *event_handler, ACE_Reactor_Mask mask)
	Registration workhorse. More...

virtual int	event_handling (ACE_Time_Value *max_wait_time=0, int alertable=0)
	Event handling workhorse. More...

virtual int	mask_ops_i (ACE_HANDLE io_handle, ACE_Reactor_Mask masks, int operation)
	Bit masking workhorse. More...

virtual ACE_thread_t	owner_i (void)
	Return the ID of the "owner" thread. Does not do any locking. More...

virtual int	ok_to_wait (ACE_Time_Value *max_wait_time, int alertable)

virtual int	expire_timers (void)

virtual int	dispatch (DWORD wait_status)
	Dispatches the timers and I/O handlers. More...

virtual int	safe_dispatch (DWORD wait_status)

virtual int	dispatch_handles (DWORD slot)

virtual int	dispatch_handler (DWORD slot, DWORD max_handlep1)

virtual int	simple_dispatch_handler (DWORD slot, ACE_HANDLE event_handle)

virtual int	complex_dispatch_handler (DWORD slot, ACE_HANDLE event_handle)

virtual ACE_Reactor_Mask	upcall (ACE_Event_Handler *event_handler, ACE_HANDLE io_handle, WSANETWORKEVENTS &events)

virtual int	calculate_timeout (ACE_Time_Value *time)
	Used to caluculate the next timeout. More...

virtual int	update_state (void)
	Update the state of the handler repository. More...

virtual int	new_owner (void)
	Check to see if we have a new owner. More...

virtual int	change_owner (void)
	Set owner to new owner. More...

Additional Inherited Members
Public Types inherited from ACE_WFMO_Reactor
enum	{ DEFAULT_SIZE = MAXIMUM_WAIT_OBJECTS - 2 }

Public Attributes inherited from ACE_WFMO_Reactor
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_Reactor_Impl
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Attributes inherited from ACE_WFMO_Reactor
ACE_Sig_Handler *	signal_handler_
	Handle signals without requiring global/static variables. More...

bool	delete_signal_handler_

ACE_Timer_Queue *	timer_queue_
	Defined as a pointer to allow overriding by derived classes... More...

bool	delete_timer_queue_

bool	delete_handler_rep_
	Keeps track of whether we should delete the handler repository. More...

ACE_Reactor_Notify *	notify_handler_
	Used when <notify> is called. More...

bool	delete_notify_handler_
	Keeps track of whether we should delete the notify handler. More...

ACE_Process_Mutex	lock_

ACE_Lock_Adapter< ACE_Process_Mutex >	lock_adapter_
	Adapter used to return internal lock to outside world. More...

ACE_WFMO_Reactor_Handler_Repository	handler_rep_
	Table that maps <ACE_HANDLEs> to <ACE_Event_Handler *>'s. More...

ACE_Manual_Event	ok_to_wait_

ACE_Manual_Event	wakeup_all_threads_

ACE_Wakeup_All_Threads_Handler	wakeup_all_threads_handler_
	Used when <wakeup_all_threads_> is signaled. More...

ACE_Auto_Event	waiting_to_change_state_

size_t	active_threads_
	Count of currently active threads. More...

ACE_thread_t	owner_

ACE_thread_t	new_owner_
	The owner to be of the WFMO_Reactor. More...

ACE_thread_t	change_state_thread_

ACE_HANDLE	atomic_wait_array_ [2]

bool	open_for_business_
	This flag is used to keep track of whether we are already closed. More...

sig_atomic_t	deactivated_

Detailed Description

An OO event demultiplexor and event handler dispatcher for Win32 <MsgWaitForMultipleObjects>.

The ACE_Msg_WFMO_Reactor is an OO event demultiplexor and event handler Reactor. It differs from <ACE_WFMO_Reactor> by its ability to react on Windows messages. It is needed when the task should serve also as a COM/DCOM server.

Constructor & Destructor Documentation

ACE_Msg_WFMO_Reactor::ACE_Msg_WFMO_Reactor	(	ACE_Sig_Handler *	sh = `0`,
		ACE_Timer_Queue *	tq = `0`
	)

Initialize <ACE_Msg_WFMO_Reactor> with the default size.

ACE_Msg_WFMO_Reactor::ACE_Msg_WFMO_Reactor	(	size_t	size,
		int	unused = `0`,
		ACE_Sig_Handler *	sh = `0`,
		ACE_Timer_Queue *	tq = `0`
	)

Initialize <ACE_Msg_WFMO_Reactor> with size size. Two slots will be added to the size parameter which will store handles used for internal management purposes.

ACE_Msg_WFMO_Reactor::~ACE_Msg_WFMO_Reactor ( void )

virtual

Close down the ACE_Msg_WFMO_Reactor and release all of its resources.

Member Function Documentation

int ACE_Msg_WFMO_Reactor::alertable_handle_events ( ACE_Time_Value * max_wait_time = 0 )

inlinevirtual

Reimplemented from ACE_WFMO_Reactor.

int ACE_Msg_WFMO_Reactor::alertable_handle_events ( ACE_Time_Value & max_wait_time )

inlinevirtual

Reimplemented from ACE_WFMO_Reactor.

int ACE_Msg_WFMO_Reactor::dispatch_window_messages ( void )

protectedvirtual

Dispatches window messages.

Reimplemented from ACE_WFMO_Reactor.

int ACE_Msg_WFMO_Reactor::handle_events ( ACE_Time_Value * max_wait_time = 0 )

inlinevirtual

This event loop driver blocks for up to max_wait_time before returning. It will return earlier if timer events, I/O events, window events, or signal events occur. Note that max_wait_time can be 0, in which case this method blocks indefinitely until events occur.

max_wait_time is decremented to reflect how much time this call took. For instance, if a time value of 3 seconds is passed to handle_events and an event occurs after 2 seconds, max_wait_time will equal 1 second. This can be used if an application wishes to handle events for some fixed amount of time.

<MsgWaitForMultipleObjects> is used as the demultiplexing call

Returns the total number of ACE_Event_Handlers that were dispatched, 0 if the max_wait_time elapsed without dispatching any handlers, or -1 if an error occurs.

The only difference between <alertable_handle_events> and <handle_events> is that in the alertable case, MWMO_ALERTABLE is passed to <MsgWaitForMultipleObjects> for the <bAlertable> option.

Reimplemented from ACE_WFMO_Reactor.

int ACE_Msg_WFMO_Reactor::handle_events ( ACE_Time_Value & max_wait_time )

inlinevirtual

This method is just like the one above, except the max_wait_time value is a reference and can therefore never be NULL.

Reimplemented from ACE_WFMO_Reactor.

DWORD ACE_Msg_WFMO_Reactor::poll_remaining_handles ( DWORD index )

protectedvirtual

Check for activity on remaining handles.

Reimplemented from ACE_WFMO_Reactor.

DWORD ACE_Msg_WFMO_Reactor::wait_for_multiple_events	(	int	timeout,
		int	alertable
	)

protectedvirtual

Wait for timer and I/O events to occur.

Reimplemented from ACE_WFMO_Reactor.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
