This class implements a mechanism that allows the values of a collection of ACE_Future objects to be accessed by reader threads as they become available. The caller(s) provide the ACE_Future_Set (i.e. the observer...) with the collection of ACE_Future objects (i.e. the subjects...) that are to be observed using the the ACE_Future_Set::insert() method. The caller(s) may then iterate over the collection in the order in which they become readable using the ACE_Future_Set::next_readable() method. More...

#include <Future_Set.h>

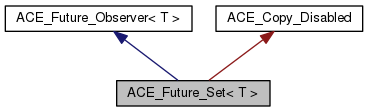

Inheritance diagram for ACE_Future_Set< T >:

[legend]

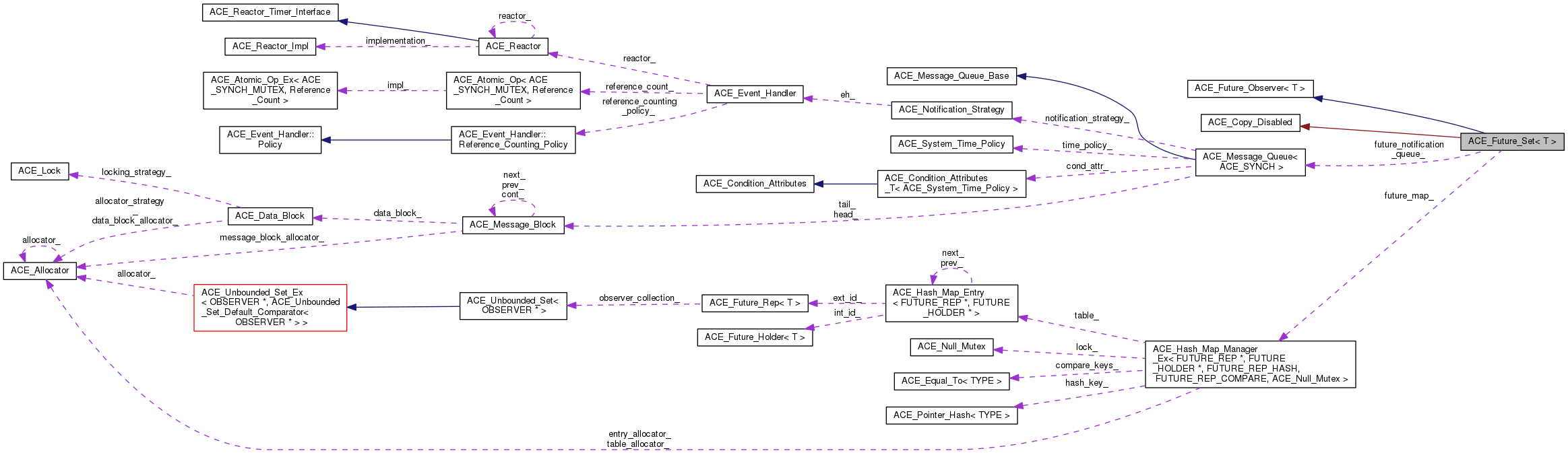

Collaboration diagram for ACE_Future_Set< T >:

[legend]

Public Member Functions
	ACE_Future_Set (ACE_Message_Queue< ACE_SYNCH > *future_notification_queue_=0)
	Constructor. More...

	~ACE_Future_Set (void)
	Destructor. More...

int	is_empty (void) const

int	insert (ACE_Future< T > &future)

int	next_readable (ACE_Future< T > &result, ACE_Time_Value *tv=0)

virtual void	update (const ACE_Future< T > &future)

Public Member Functions inherited from ACE_Future_Observer< T >
virtual	~ACE_Future_Observer (void)
	Destructor. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_Future_Observer< T >
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Private Types
typedef ACE_Future< T >	FUTURE

typedef ACE_Future_Rep< T >	FUTURE_REP

typedef ACE_Future_Holder< T >	FUTURE_HOLDER

typedef ACE_Pointer_Hash< FUTURE_REP * >	FUTURE_REP_HASH

typedef ACE_Equal_To< FUTURE_REP * >	FUTURE_REP_COMPARE

typedef ACE_Hash_Map_Manager_Ex< FUTURE_REP , FUTURE_HOLDER , FUTURE_REP_HASH, FUTURE_REP_COMPARE, ACE_Null_Mutex >	FUTURE_HASH_MAP

Private Attributes
FUTURE_HASH_MAP	future_map_

ACE_Message_Queue< ACE_SYNCH > *	future_notification_queue_

bool	delete_queue_
	Keeps track of whether we need to delete the message queue. More...

Additional Inherited Members
Protected Member Functions inherited from ACE_Future_Observer< T >
	ACE_Future_Observer (void)
	Constructor. More...

Private Member Functions inherited from ACE_Copy_Disabled
	ACE_Copy_Disabled (void)
	Default constructor. More...

Detailed Description

template<class T>
class ACE_Future_Set< T >

This class implements a mechanism that allows the values of a collection of ACE_Future objects to be accessed by reader threads as they become available. The caller(s) provide the ACE_Future_Set (i.e. the observer...) with the collection of ACE_Future objects (i.e. the subjects...) that are to be observed using the the ACE_Future_Set::insert() method. The caller(s) may then iterate over the collection in the order in which they become readable using the ACE_Future_Set::next_readable() method.

Member Typedef Documentation

template<class T >

typedef ACE_Future<T> ACE_Future_Set< T >::FUTURE

private

template<class T >

typedef ACE_Hash_Map_Manager_Ex<FUTURE_REP *, FUTURE_HOLDER *, FUTURE_REP_HASH, FUTURE_REP_COMPARE, ACE_Null_Mutex> ACE_Future_Set< T >::FUTURE_HASH_MAP

private

template<class T >

typedef ACE_Future_Holder<T> ACE_Future_Set< T >::FUTURE_HOLDER

private

template<class T >

typedef ACE_Future_Rep<T> ACE_Future_Set< T >::FUTURE_REP

private

template<class T >

typedef ACE_Equal_To<FUTURE_REP *> ACE_Future_Set< T >::FUTURE_REP_COMPARE

private

template<class T >

typedef ACE_Pointer_Hash<FUTURE_REP *> ACE_Future_Set< T >::FUTURE_REP_HASH

private

Constructor & Destructor Documentation

template<class T >

ACE_Future_Set< T >::ACE_Future_Set ( ACE_Message_Queue< ACE_SYNCH > * future_notification_queue_ = 0 )

Constructor.

template<class T >

ACE_Future_Set< T >::~ACE_Future_Set ( void )

Destructor.

Member Function Documentation

template<class T >

int ACE_Future_Set< T >::insert ( ACE_Future< T > & future )

Enqueus the given ACE_Future into this objects queue when it is readable.

Returns 0 if the future is successfully inserted, 1 if the future is already inserted, and -1 if failures occur.

template<class T >

int ACE_Future_Set< T >::is_empty ( void ) const

Return 1 if their are no ACE_Future objects left on its queue and 0 otherwise.

When an ACE_Future_Set has no ACE_Future>subjects to observe it is empty. The ACE_Future_Set is in the empty state when either the caller(s) have retrieved every readable ACE_Future subject assigned the ACE_Future_Set via the ACE_Future_Set::next_readable() method, or when the ACE_Future_Set has not been assigned any subjects.

template<class T >

int ACE_Future_Set< T >::next_readable	(	ACE_Future< T > &	result,
		ACE_Time_Value *	tv = `0`
	)

Wait up to tv time to get the value. Note that tv must be specified in absolute time rather than relative time.); get the next ACE_Future that is readable. If tv = 0, the will block forever.

If a readable future becomes available, then the input ACE_Future object param will be assigned with it and 1 will be returned. If the ACE_Future_Set is empty (i.e. see definition of ACE_Future_Set::is_empty()), then 0 is returned.

When a readable ACE_Future object is retrieved via the ACE_Future_Set::next_readable() method, the ACE_Future_Set will remove that ACE_Future object from its list of subjects.

template<class T >

void ACE_Future_Set< T >::update ( const ACE_Future< T > & future )

virtual

Called by the ACE_Future subject in which we are subscribed to when its value is written to.

Implements ACE_Future_Observer< T >.

Member Data Documentation

template<class T >

ACE_Future_Set< T >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class T >

bool ACE_Future_Set< T >::delete_queue_

private

Keeps track of whether we need to delete the message queue.

template<class T >

FUTURE_HASH_MAP ACE_Future_Set< T >::future_map_

private

Map of <ACE_Futures>, subjects, which have not been written to by client's writer thread.

template<class T >

ACE_Message_Queue<ACE_SYNCH>* ACE_Future_Set< T >::future_notification_queue_

private

Message queue for notifying the reader thread of <ACE_Futures> which have been written to by client's writer thread.

The documentation for this class was generated from the following files:
