ACE  6.4.2
Public Types | Public Member Functions | Static Public Member Functions | Public Attributes | Protected Member Functions | Private Member Functions | Private Attributes | Static Private Attributes | Friends | List of all members
ACE_Framework_Repository Class Reference

Contains all framework components used by an application. More...

#include <Framework_Component.h>

Inheritance diagram for ACE_Framework_Repository:
Inheritance graph
[legend]

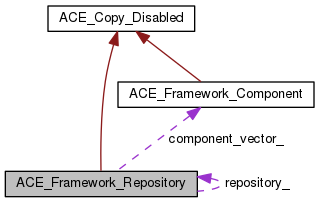

Collaboration diagram for ACE_Framework_Repository:
Collaboration graph
[legend]

Public Types

enum  { DEFAULT_SIZE = ACE_DEFAULT_FRAMEWORK_REPOSITORY_SIZE }


Public Member Functions

 ~ACE_Framework_Repository (void)

int open (int size=DEFAULT_SIZE)
 Initialize the repository. More...

int close (void)

int register_component (ACE_Framework_Component *fc)

int remove_component (const ACE_TCHAR *name)

int remove_dll_components (const ACE_TCHAR *dll_name)
 Remove all components associated with a particular dll. More...

int current_size (void) const
 Return the current size of the repository. More...

int total_size (void) const
 Return the total size of the repository. More...

void dump (void) const
 Dump the state of an object. More...


Static Public Member Functions

static ACE_Framework_Repositoryinstance (int size=ACE_Framework_Repository::DEFAULT_SIZE)
 Get pointer to a process-wide ACE_Framework_Repository. More...

static void close_singleton (void)
 Delete the dynamically allocated Singleton. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Protected Member Functions

 ACE_Framework_Repository (int size=ACE_Framework_Repository::DEFAULT_SIZE)
 Initialize the repository. More...


Private Member Functions

int remove_dll_components_i (const ACE_TCHAR *dll_name)
 Actually removes the dll components, must be called with locks held. More...

void compact (void)

- Private Member Functions inherited from ACE_Copy_Disabled
 ACE_Copy_Disabled (void)
 Default constructor. More...


Private Attributes

ACE_Framework_Component ** component_vector_
 Contains all the framework components. More...

int current_size_
 Current number of components. More...

int total_size_
 Maximum number of components. More...

ACE_SYNCH_MUTEX lock_
 Synchronization variable for the repository. More...


Static Private Attributes

static ACE_Framework_Repositoryrepository_ = 0
 Pointer to a process-wide ACE_Framework_Repository. More...

static sig_atomic_t shutting_down_ = 0


Friends

class ACE_Framework_Component


Detailed Description

Contains all framework components used by an application.

This class contains a vector of ACE_Framework_Component *'s. On destruction, framework components are destroyed in the reverse order that they were added originally.

Member Enumeration Documentation

anonymous enum
Enumerator
DEFAULT_SIZE

Constructor & Destructor Documentation

ACE_Framework_Repository::~ACE_Framework_Repository ( void  )

Close down the repository and free up dynamically allocated resources.

ACE_Framework_Repository::ACE_Framework_Repository ( int  size = ACE_Framework_Repository::DEFAULT_SIZE)
protected

Initialize the repository.

Member Function Documentation

int ACE_Framework_Repository::close ( void  )

Close down the repository and free up dynamically allocated resources, also called by dtor.

void ACE_Framework_Repository::close_singleton ( void  )
static

Delete the dynamically allocated Singleton.

void ACE_Framework_Repository::compact ( void  )
private

Compact component_vector_ after components have been removed__maintains order.

int ACE_Framework_Repository::current_size ( void  ) const
inline

Return the current size of the repository.

void ACE_Framework_Repository::dump ( void  ) const

Dump the state of an object.

ACE_Framework_Repository * ACE_Framework_Repository::instance ( int  size = ACE_Framework_Repository::DEFAULT_SIZE)
static

Get pointer to a process-wide ACE_Framework_Repository.

int ACE_Framework_Repository::open ( int  size = DEFAULT_SIZE)

Initialize the repository.

int ACE_Framework_Repository::register_component ( ACE_Framework_Component fc)

Insert a new component. Returns -1 when the repository is full and 0 on success.

int ACE_Framework_Repository::remove_component ( const ACE_TCHAR name)

Remove a component. Returns -1 on error or if component not found and 0 on success.

int ACE_Framework_Repository::remove_dll_components ( const ACE_TCHAR dll_name)

Remove all components associated with a particular dll.

int ACE_Framework_Repository::remove_dll_components_i ( const ACE_TCHAR dll_name)
private

Actually removes the dll components, must be called with locks held.

int ACE_Framework_Repository::total_size ( void  ) const
inline

Return the total size of the repository.

Friends And Related Function Documentation

friend class ACE_Framework_Component
friend

Member Data Documentation

ACE_Framework_Repository::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_Framework_Component** ACE_Framework_Repository::component_vector_
private

Contains all the framework components.

int ACE_Framework_Repository::current_size_
private

Current number of components.

ACE_SYNCH_MUTEX ACE_Framework_Repository::lock_
private

Synchronization variable for the repository.

ACE_Framework_Repository * ACE_Framework_Repository::repository_ = 0
staticprivate

Pointer to a process-wide ACE_Framework_Repository.

sig_atomic_t ACE_Framework_Repository::shutting_down_ = 0
staticprivate

Flag set when repository is the process of shutting down. This is necessary to keep from self-deadlocking since some of the components might make calls back to the repository to unload their components, e.g., ACE_DLL_Manager.

int ACE_Framework_Repository::total_size_
private

Maximum number of components.


The documentation for this class was generated from the following files:
