Defines the interface for specifying a creation strategy for a SVC_HANDLER based on dynamic linking of the SVC_HANDLER. More...

#include <Strategies_T.h>

Inheritance diagram for ACE_DLL_Strategy< SVC_HANDLER >:

[legend]

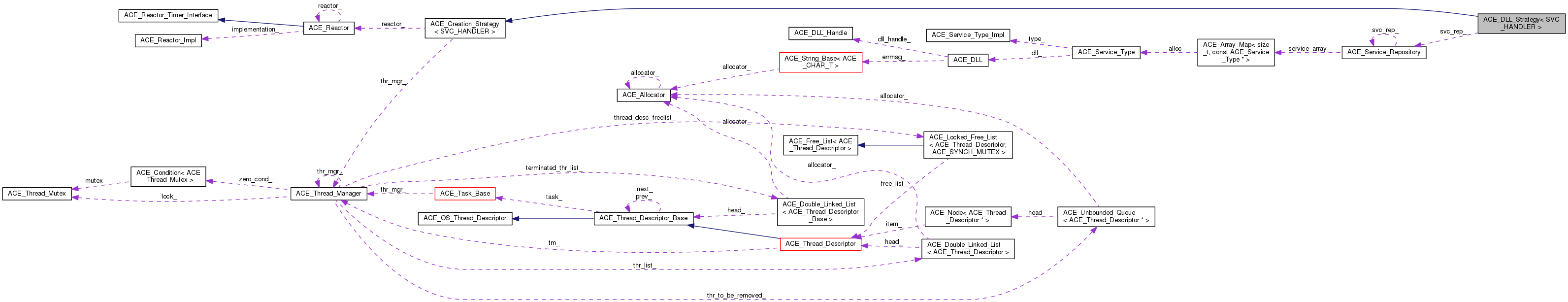

Collaboration diagram for ACE_DLL_Strategy< SVC_HANDLER >:

[legend]

Public Types
typedef ACE_Creation_Strategy< SVC_HANDLER >	base_type

Public Types inherited from ACE_Creation_Strategy< SVC_HANDLER >
typedef SVC_HANDLER::addr_type	addr_type

typedef SVC_HANDLER	handler_type

typedef SVC_HANDLER::stream_type	stream_type

Public Member Functions
	ACE_DLL_Strategy (void)
	"Do-nothing" constructor. More...

	ACE_DLL_Strategy (const ACE_TCHAR dll_name[], const ACE_TCHAR factory_function[], const ACE_TCHAR svc_name[], ACE_Service_Repository , ACE_Thread_Manager =0)

int	open (const ACE_TCHAR dll_name[], const ACE_TCHAR factory_function[], const ACE_TCHAR svc_name[], ACE_Service_Repository , ACE_Thread_Manager =0)

virtual int	make_svc_handler (SVC_HANDLER *&)

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_Creation_Strategy< SVC_HANDLER >
	ACE_Creation_Strategy (ACE_Thread_Manager =0, ACE_Reactor =ACE_Reactor::instance())
	Default constructor. More...

int	open (ACE_Thread_Manager =0, ACE_Reactor =ACE_Reactor::instance())

virtual	~ACE_Creation_Strategy (void)

void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_Creation_Strategy< SVC_HANDLER >
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Types
typedef ACE_Creation_Strategy< SVC_HANDLER >	inherited

Protected Attributes
ACE_TCHAR	dll_name_ [MAXPATHLEN+1]
	Name of the DLL to dynamically link. More...

ACE_TCHAR	factory_function_ [MAXPATHLEN+1]

ACE_TCHAR	svc_name_ [MAXNAMELEN+1]
	Name of the service. More...

ACE_Service_Repository *	svc_rep_
	Pointer to the <Service_Repository>. More...

Protected Attributes inherited from ACE_Creation_Strategy< SVC_HANDLER >
ACE_Thread_Manager *	thr_mgr_
	Pointer to a thread manager. More...

ACE_Reactor *	reactor_
	Pointer to an ACE_Reactor. More...

Detailed Description

template<class SVC_HANDLER>
class ACE_DLL_Strategy< SVC_HANDLER >

Defines the interface for specifying a creation strategy for a SVC_HANDLER based on dynamic linking of the SVC_HANDLER.

Member Typedef Documentation

template<class SVC_HANDLER >

typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_DLL_Strategy< SVC_HANDLER >::base_type

template<class SVC_HANDLER >

typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_DLL_Strategy< SVC_HANDLER >::inherited

protected

Constructor & Destructor Documentation

template<class SVC_HANDLER >

ACE_DLL_Strategy< SVC_HANDLER >::ACE_DLL_Strategy ( void )

inline

"Do-nothing" constructor.

template<class SVC_HANDLER >

ACE_DLL_Strategy< SVC_HANDLER >::ACE_DLL_Strategy	(	const ACE_TCHAR	dll_name[],
		const ACE_TCHAR	factory_function[],
		const ACE_TCHAR	svc_name[],
		ACE_Service_Repository *	svc_rep,
		ACE_Thread_Manager *	thr_mgr = `0`
	)

inline

Initialize the DLL strategy based upon the service's DLL information contained in the <svc_dll_info> string.

Member Function Documentation

template<class SVC_HANDLER >

void ACE_DLL_Strategy< SVC_HANDLER >::dump ( void ) const

Dump the state of an object.

template<class SVC_HANDLER >

int ACE_DLL_Strategy< SVC_HANDLER >::make_svc_handler ( SVC_HANDLER *& sh )

virtual

Create a SVC_HANDLER by dynamically linking it from a DLL. Returns -1 on failure, else 0.

Reimplemented from ACE_Creation_Strategy< SVC_HANDLER >.

template<class SVC_HANDLER >

int ACE_DLL_Strategy< SVC_HANDLER >::open	(	const ACE_TCHAR	dll_name[],
		const ACE_TCHAR	factory_function[],
		const ACE_TCHAR	svc_name[],
		ACE_Service_Repository *	svc_rep,
		ACE_Thread_Manager *	thr_mgr = `0`
	)

Initialize the DLL strategy based upon the service's DLL information contained in the <svc_dll_info> string.

Member Data Documentation

template<class SVC_HANDLER >

ACE_DLL_Strategy< SVC_HANDLER >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class SVC_HANDLER >

ACE_TCHAR ACE_DLL_Strategy< SVC_HANDLER >::dll_name_[MAXPATHLEN+1]

protected

Name of the DLL to dynamically link.

template<class SVC_HANDLER >

ACE_TCHAR ACE_DLL_Strategy< SVC_HANDLER >::factory_function_[MAXPATHLEN+1]

protected

Name of the factory function in the shared library to use to obtain a pointer to the new SVC_HANDLER.

template<class SVC_HANDLER >

ACE_TCHAR ACE_DLL_Strategy< SVC_HANDLER >::svc_name_[MAXNAMELEN+1]

protected

Name of the service.

template<class SVC_HANDLER >

ACE_Service_Repository* ACE_DLL_Strategy< SVC_HANDLER >::svc_rep_

protected

Pointer to the <Service_Repository>.

The documentation for this class was generated from the following files:
