ACE_Asynch_Connect Class Reference

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Connect:
Inheritance graph
[legend]

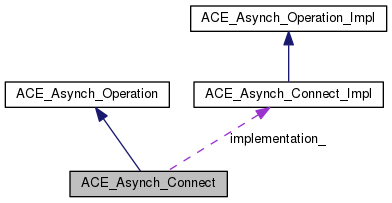

Collaboration diagram for ACE_Asynch_Connect:
Collaboration graph
[legend]

Classes

class  Result
 This is that class which will be passed back to the handler when the asynchronous connect completes. More...


Public Member Functions

 ACE_Asynch_Connect (void)
 A do nothing constructor. More...

virtual ~ACE_Asynch_Connect (void)
 Destructor. More...

int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)

int connect (ACE_HANDLE connect_handle, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)

virtual ACE_Asynch_Operation_Implimplementation (void) const
 Return the underlying implementation class. More...

- Public Member Functions inherited from ACE_Asynch_Operation
int open (ACE_Handler &handler, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)

int cancel (void)

ACE_Proactorproactor (void) const
 Return the underlying proactor. More...

virtual ~ACE_Asynch_Operation (void)
 Destructor. More...


Protected Attributes

ACE_Asynch_Connect_Implimplementation_


Private Member Functions

void operator= (const ACE_Asynch_Connect &)

 ACE_Asynch_Connect (const ACE_Asynch_Connect &)


Additional Inherited Members

- Protected Member Functions inherited from ACE_Asynch_Operation
 ACE_Asynch_Operation (void)
 Constructor. More...

ACE_Proactorget_proactor (ACE_Proactor *user_proactor, ACE_Handler &handler) const
 Get a proactor for/from the user. More...


Detailed Description

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class.

Once open is called, multiple asynchronous connect operationss can started using this class. A ACE_Asynch_Connect::Result will be passed back to the associated ACE_Handler when the asynchronous connect completes through the ACE_Handler::handle_connect() callback.

Constructor & Destructor Documentation

ACE_Asynch_Connect::ACE_Asynch_Connect ( void  )

A do nothing constructor.

ACE_Asynch_Connect::~ACE_Asynch_Connect ( void  )
virtual

Destructor.

ACE_Asynch_Connect::ACE_Asynch_Connect ( const ACE_Asynch_Connect )
private

Member Function Documentation

int ACE_Asynch_Connect::connect ( ACE_HANDLE  connect_handle,
const ACE_Addr remote_sap,
const ACE_Addr local_sap,
int  reuse_addr,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)

This starts off an asynchronous Connect.

ACE_Asynch_Operation_Impl * ACE_Asynch_Connect::implementation ( void  ) const
virtual

Return the underlying implementation class.

Implements ACE_Asynch_Operation.

int ACE_Asynch_Connect::open ( ACE_Handler handler,
ACE_HANDLE  handle = ACE_INVALID_HANDLE,
const void *  completion_key = 0,
ACE_Proactor proactor = 0
)

Initializes the factory with information which will be used with each asynchronous call.

Note
  • handle is ignored and should be ACE_INVALID_HANDLE.
void ACE_Asynch_Connect::operator= ( const ACE_Asynch_Connect )
private

Member Data Documentation

ACE_Asynch_Connect_Impl* ACE_Asynch_Connect::implementation_
protected

Delegation/implementation class that all methods will be forwarded to.


The documentation for this class was generated from the following files:
