Provide the abstract base class common to all service implementations. More...

#include <Service_Object.h>

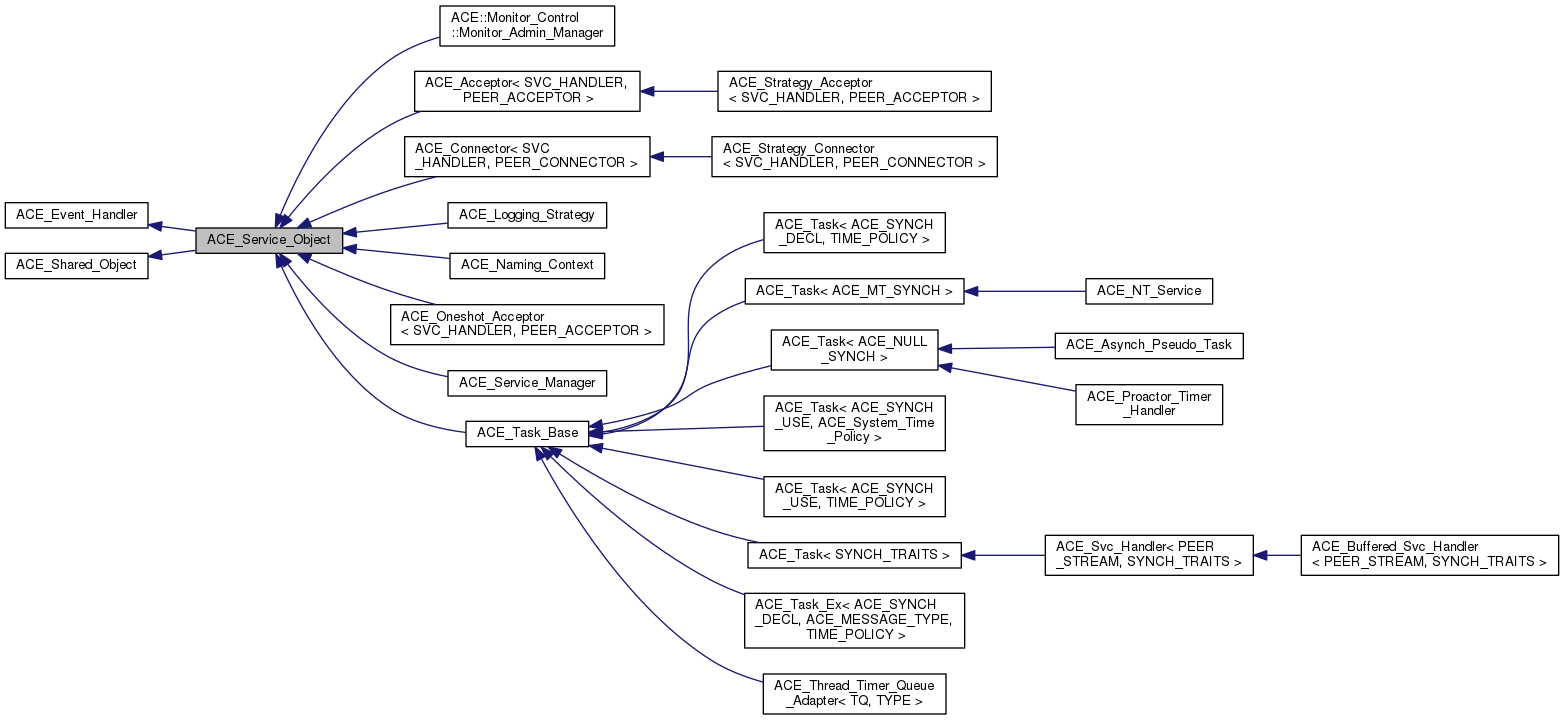

Inheritance diagram for ACE_Service_Object:

[legend]

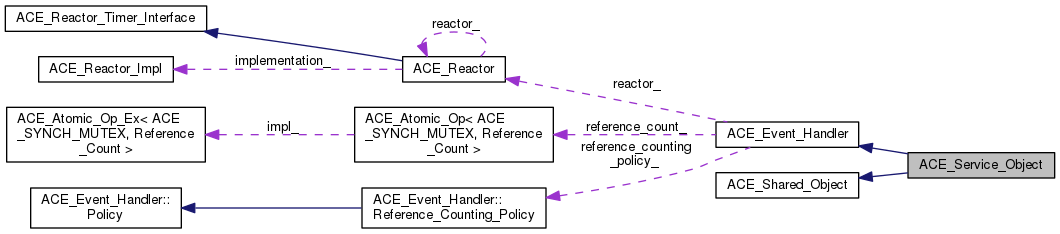

Collaboration diagram for ACE_Service_Object:

[legend]

Public Member Functions
	ACE_Service_Object (ACE_Reactor *=0)
	Constructor. More...

virtual	~ACE_Service_Object (void)
	Destructor. More...

virtual int	suspend (void)
	Temporarily disable a service without removing it completely. More...

virtual int	resume (void)
	Re-enable a previously suspended service. More...

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
	Destructor is virtual to enable proper cleanup. More...

virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle. More...

virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle. More...

virtual int	priority (void) const

virtual void	priority (int priority)
	Set the priority of the Event_Handler. More...

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data). More...

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG). More...

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)
	Called when a process exits. More...

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors. More...

virtual ACE_Reactor *	reactor (void) const
	Get the event demultiplexors. More...

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
	Get only the reactor's timer related interface. More...

virtual Reference_Count	add_reference (void)
	Increment reference count on the handler. More...

virtual Reference_Count	remove_reference (void)
	Decrement reference count on the handler. More...

Reference_Counting_Policy &	reference_counting_policy (void)
	Current Reference_Counting_Policy. More...

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)
	Constructor. More...

virtual	~ACE_Shared_Object (void)
	Destructor. More...

virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs. More...

virtual int	fini (void)
	Terminates object when dynamic unlinking occurs. More...

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const
	Returns information on a service object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{ LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0), WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4), TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8), ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9) }

enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }

typedef long	Reference_Count
	Reference count type. More...

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
	Performs the inverse of the register_stdin_handler() method. More...

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting. More...

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class. More...

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count. More...

Detailed Description

Provide the abstract base class common to all service implementations.

Classes that inherit from ACE_Service_Objects are capable of being registered with the ACE_Reactor (due to the ACE_Event_Handler, as well as being dynamically linked by the ACE_Service_Config (due to the ACE_Shared_Object).

Constructor & Destructor Documentation

ACE_Service_Object::ACE_Service_Object ( ACE_Reactor * r = 0 )

Constructor.

ACE_Service_Object::~ACE_Service_Object ( void )

virtual

Destructor.

Member Function Documentation

int ACE_Service_Object::resume ( void )

virtual

Re-enable a previously suspended service.

Reimplemented in ACE_Oneshot_Acceptor< SVC_HANDLER, PEER_ACCEPTOR >, ACE_Strategy_Acceptor< SVC_HANDLER, PEER_ACCEPTOR >, ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >, ACE_Acceptor< SVC_HANDLER, PEER_ACCEPTOR >, ACE_Task_Base, and ACE_Service_Manager.

int ACE_Service_Object::suspend ( void )

virtual

Temporarily disable a service without removing it completely.

Reimplemented in ACE_Oneshot_Acceptor< SVC_HANDLER, PEER_ACCEPTOR >, ACE_Strategy_Acceptor< SVC_HANDLER, PEER_ACCEPTOR >, ACE_Connector< SVC_HANDLER, PEER_CONNECTOR >, ACE_Acceptor< SVC_HANDLER, PEER_ACCEPTOR >, ACE_Task_Base, and ACE_Service_Manager.

Member Data Documentation

ACE_Service_Object::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

The documentation for this class was generated from the following files:
