TAO_RT_Stub Class Reference

#include <RT_Stub.h>

Inheritance diagram for TAO_RT_Stub:

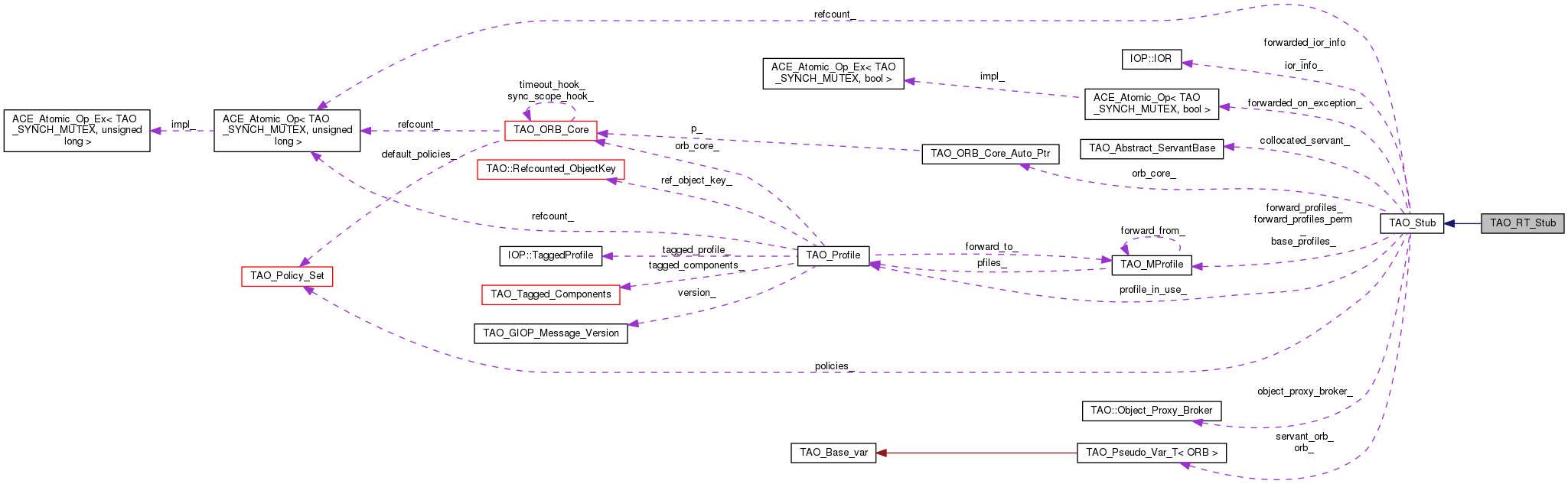

Collaboration diagram for TAO_RT_Stub:

Public Member Functions
	TAO_RT_Stub (const char *repository_id, const TAO_MProfile &profiles, TAO_ORB_Core *orb_core)
virtual	~TAO_RT_Stub (void)
CORBA::Policy_ptr	get_policy (CORBA::PolicyType type)
CORBA::Policy_ptr	get_cached_policy (TAO_Cached_Policy_Type type)
TAO_Stub *	set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)
Public Member Functions inherited from TAO_Stub
virtual CORBA::PolicyList *	get_policy_overrides (const CORBA::PolicyTypeSeq &types)
TAO::Transport_Queueing_Strategy *	transport_queueing_strategy (void)
CORBA::ULong	hash (CORBA::ULong maximum)
CORBA::Boolean	is_equivalent (CORBA::Object_ptr other_obj)
	TAO_Stub (const char *repository_id, const TAO_MProfile &profiles, TAO_ORB_Core *orb_core)
void	_incr_refcnt (void)
void	_decr_refcnt (void)
const TAO_SYNCH_MUTEX &	profile_lock (void) const
TAO_Profile *	profile_in_use (void)
const TAO::ObjectKey &	object_key (void) const
TAO_MProfile *	make_profiles (void)
const TAO_MProfile &	base_profiles (void) const
TAO_MProfile &	base_profiles (void)
const TAO_MProfile *	forward_profiles (void) const
TAO_MProfile *	forward_profiles (void)
TAO_Profile *	next_profile (void)
void	reset_profiles (void)
CORBA::Boolean	at_starting_profile (void) const
CORBA::Boolean	valid_forward_profile (void)
void	set_valid_profile (void)
CORBA::Boolean	valid_profile (void) const
TAO_Profile *	base_profiles (const TAO_MProfile &mprofiles)
void	add_forward_profiles (const TAO_MProfile &mprofiles, const CORBA::Boolean permanent_forward=false)
CORBA::Boolean	next_profile_retry (void)
TAO_ORB_Core *	orb_core (void) const
CORBA::Boolean	is_collocated (void) const
void	is_collocated (CORBA::Boolean)
CORBA::ORB_ptr	servant_orb_ptr (void)
CORBA::ORB_var &	servant_orb_var (void)
void	servant_orb (CORBA::ORB_ptr orb)
void	collocated_servant (TAO_Abstract_ServantBase *servant)
TAO_Abstract_ServantBase *	collocated_servant (void) const
void	object_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)
TAO::Object_Proxy_Broker *	object_proxy_broker (void) const
int	create_ior_info (IOP::IOR *&ior_info, CORBA::ULong &index)
void	destroy (void)
CORBA::Boolean	optimize_collocation_objects (void) const
CORBA::Boolean	marshal (TAO_OutputCDR &)
void	forwarded_on_exception (bool forwarded)
bool	forwarded_on_exception () const

Private Member Functions
void	parse_policies (void)
	Helper method used to parse the policies. More...
void	exposed_priority_model (CORBA::Policy_ptr policy)
void	exposed_priority_banded_connection (CORBA::Policy_ptr policy)
void	exposed_client_protocol (CORBA::Policy_ptr policy)
CORBA::Policy_ptr	exposed_priority_model (void)
CORBA::Policy_ptr	exposed_priority_banded_connection (void)
CORBA::Policy_ptr	exposed_client_protocol (void)
CORBA::Policy_ptr	effective_priority_banded_connection (void)
CORBA::Policy_ptr	effective_client_protocol (void)
	TAO_RT_Stub (const TAO_RT_Stub &)
TAO_RT_Stub &	operator= (const TAO_RT_Stub &)

Private Attributes
CORBA::Policy_var	priority_model_policy_
CORBA::Policy_var	priority_banded_connection_policy_
CORBA::Policy_var	client_protocol_policy_
bool	are_policies_parsed_

Additional Inherited Members
Public Attributes inherited from TAO_Stub
CORBA::String_var	type_id
Protected Member Functions inherited from TAO_Stub
virtual	~TAO_Stub (void)
void	reset_profiles_i (void)
TAO_Profile *	next_profile_i (void)
Protected Attributes inherited from TAO_Stub
TAO_ORB_Core_Auto_Ptr	orb_core_
CORBA::ORB_var	orb_
CORBA::Boolean	is_collocated_
CORBA::ORB_var	servant_orb_
TAO_Abstract_ServantBase *	collocated_servant_
TAO::Object_Proxy_Broker *	object_proxy_broker_
TAO_MProfile	base_profiles_
TAO_MProfile *	forward_profiles_
TAO_MProfile *	forward_profiles_perm_
TAO_Profile *	profile_in_use_
TAO_SYNCH_MUTEX	profile_lock_
CORBA::Boolean	profile_success_
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_
TAO_Policy_Set *	policies_
IOP::IOR *	ior_info_
IOP::IOR *	forwarded_ior_info_
CORBA::Boolean const	collocation_opt_
ACE_Atomic_Op< TAO_SYNCH_MUTEX, bool >	forwarded_on_exception_

Detailed Description

This class represent a stub with extended functionality, which are needed for RTCORBA.

Constructor & Destructor Documentation

TAO_RT_Stub::TAO_RT_Stub	(	const char *	repository_id,
		const TAO_MProfile &	profiles,
		TAO_ORB_Core *	orb_core
	)

TAO_RT_Stub::~TAO_RT_Stub ( void  )

virtual

TAO_RT_Stub::TAO_RT_Stub ( const TAO_RT_Stub &  )

private

Member Function Documentation

CORBA::Policy_ptr TAO_RT_Stub::effective_client_protocol ( void  )

private

CORBA::Policy_ptr TAO_RT_Stub::effective_priority_banded_connection ( void  )

private

void TAO_RT_Stub::exposed_client_protocol ( CORBA::Policy_ptr  policy )

private

CORBA::Policy * TAO_RT_Stub::exposed_client_protocol ( void  )

private

Returns the CORBA::Policy (which will be narrowed and used as RTCORBA::ClientProtocolPolicy) exported in object's IOR.

void TAO_RT_Stub::exposed_priority_banded_connection ( CORBA::Policy_ptr  policy )

private

CORBA::Policy * TAO_RT_Stub::exposed_priority_banded_connection ( void  )

private

Returns the CORBA::Policy (which will be narrowed and used as RTCORBA::PriorityBandedConnectionPolicy) exported in object's IOR.

void TAO_RT_Stub::exposed_priority_model ( CORBA::Policy_ptr  policy )

private

CORBA::Policy * TAO_RT_Stub::exposed_priority_model ( void  )

private

Returns the CORBA::Policy (which will be narrowed to be used as RTCORBA::PriorityModelPolicy) exported in object's IOR.

CORBA::Policy_ptr TAO_RT_Stub::get_cached_policy ( TAO_Cached_Policy_Type  type )

virtual

Reimplemented from TAO_Stub.

CORBA::Policy_ptr TAO_RT_Stub::get_policy ( CORBA::PolicyType  type )

virtual

Returns the effective policy if type is a known client-exposed policy type. Returns the effective override for all other policy types.

Reimplemented from TAO_Stub.

TAO_RT_Stub& TAO_RT_Stub::operator= ( const TAO_RT_Stub &  )

private

void TAO_RT_Stub::parse_policies ( void  )

private

Helper method used to parse the policies.

TAO_Stub * TAO_RT_Stub::set_policy_overrides ( const CORBA::PolicyList &  policies, CORBA::SetOverrideType  set_add  )

virtual

Reimplemented from TAO_Stub.

Member Data Documentation

bool TAO_RT_Stub::are_policies_parsed_

private

CORBA::Policy_var TAO_RT_Stub::client_protocol_policy_

private

CORBA::Policy_var TAO_RT_Stub::priority_banded_connection_policy_

private

CORBA::Policy_var TAO_RT_Stub::priority_model_policy_

private

---

The documentation for this class was generated from the following files:

• RT_Stub.h
• RT_Stub.cpp
