TAO_RT_ORB Class Reference

RTCORBA::RTORB implementation. More...

#include <RT_ORB.h>

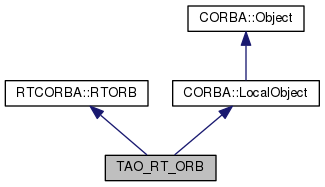

Inheritance diagram for TAO_RT_ORB:

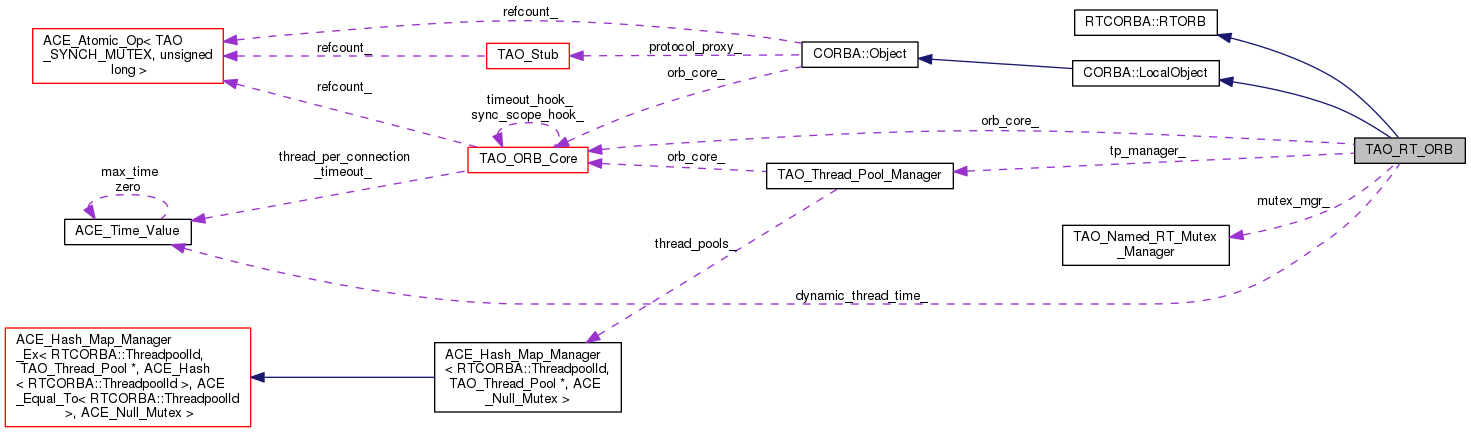

Collaboration diagram for TAO_RT_ORB:

Public Member Functions
	TAO_RT_ORB (TAO_ORB_Core *orb_core, TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan lifespan, ACE_Time_Value const &dynamic_thread_time)
	Constructor. More...
virtual RTCORBA::Mutex_ptr	create_mutex (void)
virtual void	destroy_mutex (RTCORBA::Mutex_ptr the_mutex)
virtual RTCORBA::Mutex_ptr	create_named_mutex (const char *name, CORBA::Boolean_out created_flag)
virtual RTCORBA::Mutex_ptr	open_named_mutex (const char *name)
	Retrieve a previously created mutex. More...
RTCORBA::TCPProtocolProperties_ptr	create_tcp_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Boolean enable_network_priority)
RTCORBA::UnixDomainProtocolProperties_ptr	create_unix_domain_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size)
RTCORBA::SharedMemoryProtocolProperties_ptr	create_shared_memory_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Long preallocate_buffer_size, const char *mmap_filename, const char *mmap_lockname)
RTCORBA::UserDatagramProtocolProperties_ptr	create_user_datagram_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean enable_network_priority)
RTCORBA::StreamControlProtocolProperties_ptr	create_stream_control_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Boolean enable_network_priority)
virtual RTCORBA::ThreadpoolId	create_threadpool (CORBA::ULong stacksize, CORBA::ULong static_threads, CORBA::ULong dynamic_threads, RTCORBA::Priority default_priority, CORBA::Boolean allow_request_buffering, CORBA::ULong max_buffered_requests, CORBA::ULong max_request_buffer_size)
	Create a RTCORBA threadpool to manage a set of threads without lanes. More...
virtual RTCORBA::ThreadpoolId	create_threadpool_with_lanes (CORBA::ULong stacksize, const RTCORBA::ThreadpoolLanes &lanes, CORBA::Boolean allow_borrowing, CORBA::Boolean allow_request_buffering, CORBA::ULong max_buffered_requests, CORBA::ULong max_request_buffer_size)
virtual void	destroy_threadpool (RTCORBA::ThreadpoolId threadpool)
	Free the resources associated with the specified threadpool. More...
virtual RTCORBA::PriorityModelPolicy_ptr	create_priority_model_policy (RTCORBA::PriorityModel priority_model, RTCORBA::Priority server_priority)
	Create a priority model policy for use when configuring a POA. More...
virtual RTCORBA::ThreadpoolPolicy_ptr	create_threadpool_policy (RTCORBA::ThreadpoolId threadpool)
	Create a ThreadpoolPolicy instance for POA creation. More...
virtual RTCORBA::PriorityBandedConnectionPolicy_ptr	create_priority_banded_connection_policy (const RTCORBA::PriorityBands &priority_bands)
virtual RTCORBA::PrivateConnectionPolicy_ptr	create_private_connection_policy (void)
virtual RTCORBA::ServerProtocolPolicy_ptr	create_server_protocol_policy (const RTCORBA::ProtocolList &protocols)
virtual RTCORBA::ClientProtocolPolicy_ptr	create_client_protocol_policy (const RTCORBA::ProtocolList &protocols)
TAO_ORB_Core *	orb_core (void) const
	Reference to our creating ORB Core. More...
TAO_Thread_Pool_Manager &	tp_manager (void) const
	Get the Thread Pool Manager. More...
Public Member Functions inherited from RTCORBA::RTORB
void	destroy_mutex (in Mutex the_mutex)
Mutex	create_named_mutex (in string name, out boolean created_flag)
Mutex	open_named_mutex (in string name) raises (MutexNotFound)
TCPProtocolProperties	create_tcp_protocol_properties (in long send_buffer_size, in long recv_buffer_size, in boolean keep_alive, in boolean dont_route, in boolean no_delay, in boolean enable_network_priority)
UnixDomainProtocolProperties	create_unix_domain_protocol_properties (in long send_buffer_size, in long recv_buffer_size)
SharedMemoryProtocolProperties	create_shared_memory_protocol_properties (in long send_buffer_size, in long recv_buffer_size, in boolean keep_alive, in boolean dont_route, in boolean no_delay, in long preallocate_buffer_size, in string mmap_filename, in string mmap_lockname)
UserDatagramProtocolProperties	create_user_datagram_protocol_properties (in long send_buffer_size, in long recv_buffer_size, in boolean enable_network_priority)
StreamControlProtocolProperties	create_stream_control_protocol_properties (in long send_buffer_size, in long recv_buffer_size, in boolean keep_alive, in boolean dont_route, in boolean no_delay, in boolean enable_network_priority)
ThreadpoolId	create_threadpool (in unsigned long stacksize, in unsigned long static_threads, in unsigned long dynamic_threads, in Priority default_priority, in boolean allow_request_buffering, in unsigned long max_buffered_requests, in unsigned long max_request_buffer_size)
ThreadpoolId	create_threadpool_with_lanes (in unsigned long stacksize, in ThreadpoolLanes lanes, in boolean allow_borrowing, in boolean allow_request_buffering, in unsigned long max_buffered_requests, in unsigned long max_request_buffer_size)
void	destroy_threadpool (in ThreadpoolId threadpool) raises (InvalidThreadpool)
PriorityModelPolicy	create_priority_model_policy (in PriorityModel priority_model, in Priority server_priority)
ThreadpoolPolicy	create_threadpool_policy (in ThreadpoolId threadpool)
PriorityBandedConnectionPolicy	create_priority_banded_connection_policy (in PriorityBands priority_bands)
ServerProtocolPolicy	create_server_protocol_policy (in ProtocolList protocols)
ClientProtocolPolicy	create_client_protocol_policy (in ProtocolList protocols)
Public Member Functions inherited from CORBA::LocalObject
virtual	~LocalObject (void)
virtual CORBA::Boolean	_non_existent (void)
virtual char *	_repository_id (void)
virtual CORBA::InterfaceDef_ptr	_get_interface (void)
virtual CORBA::Object_ptr	_get_component (void)
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags)
virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags)
virtual CORBA::Request_ptr	_request (const char *operation)
CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)
CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)
CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)
CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)
CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)
virtual CORBA::ULong	_hash (CORBA::ULong maximum)
virtual CORBA::Boolean	_is_equivalent (CORBA::Object_ptr other_obj)
virtual CORBA::ORB_ptr	_get_orb (void)
virtual TAO::ObjectKey *	_key (void)
Public Member Functions inherited from CORBA::Object
virtual	~Object (void)
virtual TAO_Abstract_ServantBase *	_servant (void) const
virtual CORBA::Boolean	_is_collocated (void) const
virtual CORBA::Boolean	_is_local (void) const
	Object (TAO_Stub *p, CORBA::Boolean collocated=false, TAO_Abstract_ServantBase *servant=0, TAO_ORB_Core *orb_core=0)
	Object (IOP::IOR *ior, TAO_ORB_Core *orb_core)
virtual TAO_Stub *	_stubobj (void) const
virtual TAO_Stub *	_stubobj (void)
virtual void	_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)
virtual CORBA::Boolean	marshal (TAO_OutputCDR &cdr)
CORBA::Boolean	is_evaluated (void) const
TAO_ORB_Core *	orb_core (void) const
IOP::IOR *	steal_ior (void)
const IOP::IOR &	ior (void) const
virtual bool	can_convert_to_ior (void) const
virtual char *	convert_to_ior (bool use_omg_ior_format, const char *ior_prefix) const
void	_decr_refcount (void)
virtual void	_add_ref (void)
virtual void	_remove_ref (void)
virtual CORBA::ULong	_refcount_value (void) const
virtual CORBA::Boolean	_is_a (const char *logical_type_id)
virtual const char *	_interface_repository_id (void) const
CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)
CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)
CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)
CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)
CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)
virtual void	_add_ref (void)
virtual void	_remove_ref (void)
virtual CORBA::ULong	_refcount_value (void) const

Static Public Member Functions
static int	modify_thread_scheduling_policy (CORBA::ORB_ptr orb)
Static Public Member Functions inherited from CORBA::LocalObject
static LocalObject_ptr	_duplicate (LocalObject_ptr obj)
static LocalObject_ptr	_nil (void)
static LocalObject_ptr	_narrow (CORBA::Object_ptr obj)
Static Public Member Functions inherited from CORBA::Object
static CORBA::Boolean	marshal (const Object_ptr x, TAO_OutputCDR &cdr)
static void	_tao_any_destructor (void *)
static CORBA::Boolean	is_nil_i (CORBA::Object_ptr obj)
static void	tao_object_initialize (Object *)
static CORBA::Object_ptr	_duplicate (CORBA::Object_ptr obj)
static CORBA::Object_ptr	_nil (void)
static CORBA::Object_ptr	_narrow (CORBA::Object_ptr obj)

Protected Member Functions
virtual	~TAO_RT_ORB (void)
Protected Member Functions inherited from CORBA::LocalObject
	LocalObject (void)
Protected Member Functions inherited from CORBA::Object
	Object (int dummy=0)
TAO::Object_Proxy_Broker *	proxy_broker () const

Protected Attributes
TAO_ORB_Core *const	orb_core_
	Reference to our creating ORB Core. More...
TAO_Named_RT_Mutex_Manager	mutex_mgr_
	mutex_mgr_ manages the names associated with named mutexes. More...
TAO_Thread_Pool_Manager *	tp_manager_
	Thread Pool Manager. More...
TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan	lifespan_
	Dynamic thread lifespan policy. More...
ACE_Time_Value const	dynamic_thread_time_
	Dynamic thread run time. More...
Protected Attributes inherited from CORBA::Object
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_

Additional Inherited Members
Public Types inherited from CORBA::LocalObject
typedef LocalObject_ptr	_ptr_type
typedef LocalObject_var	_var_type
typedef LocalObject_out	_out_type
Public Types inherited from CORBA::Object
typedef Object_ptr	_ptr_type
typedef Object_var	_var_type
typedef Object_out	_out_type

Detailed Description

RTCORBA::RTORB implementation.

Creates and destroys RT CORBA objects, i.e., policies, threadpools, mutexes.

Constructor & Destructor Documentation

TAO_RT_ORB::TAO_RT_ORB	(	TAO_ORB_Core *	orb_core,
		TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan	lifespan,
		ACE_Time_Value const &	dynamic_thread_time
	)

Constructor.

TAO_RT_ORB::~TAO_RT_ORB ( void  )

protectedvirtual

Protected destructor to enforce proper memory management of this reference counted object.

Member Function Documentation

RTCORBA::ClientProtocolPolicy_ptr TAO_RT_ORB::create_client_protocol_policy ( const RTCORBA::ProtocolList &  protocols )

virtual

Create a ClientProtocolPolicy instance to select and configure communication protocols on the client side.

RTCORBA::Mutex_ptr TAO_RT_ORB::create_mutex ( void  )

virtual

Create a new mutex. Mutexes returned by this method are the same as those used internally by the ORB, so that consistant priority inheritance/piority ceiling semantics can be guaranteed.

Implements RTCORBA::RTORB.

RTCORBA::Mutex_ptr TAO_RT_ORB::create_named_mutex ( const char *  name, CORBA::Boolean_out  created_flag  )

virtual

Create a mutex and assign a name to it. If the mutex already exists, it is returned and the created_flag is set to 0.

RTCORBA::PriorityBandedConnectionPolicy_ptr TAO_RT_ORB::create_priority_banded_connection_policy ( const RTCORBA::PriorityBands &  priority_bands )

virtual

Create a PriorityBandedConnectionPolicy instance for use on either the client or server side

RTCORBA::PriorityModelPolicy_ptr TAO_RT_ORB::create_priority_model_policy ( RTCORBA::PriorityModel  priority_model, RTCORBA::Priority  server_priority  )

virtual

Create a priority model policy for use when configuring a POA.

RTCORBA::PrivateConnectionPolicy_ptr TAO_RT_ORB::create_private_connection_policy ( void  )

virtual

Create a PrivateConnectionPolicy instance to use on client to request a private (non-multiplexed) transport connection to the server.

Implements RTCORBA::RTORB.

RTCORBA::ServerProtocolPolicy_ptr TAO_RT_ORB::create_server_protocol_policy ( const RTCORBA::ProtocolList &  protocols )

virtual

Create a ServerProtocolPolicy instance to select and configure communication protocols on the server side.

RTCORBA::SharedMemoryProtocolProperties_ptr TAO_RT_ORB::create_shared_memory_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size,
		CORBA::Boolean	keep_alive,
		CORBA::Boolean	dont_route,
		CORBA::Boolean	no_delay,
		CORBA::Long	preallocate_buffer_size,
		const char *	mmap_filename,
		const char *	mmap_lockname
	)

RTCORBA::StreamControlProtocolProperties_ptr TAO_RT_ORB::create_stream_control_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size,
		CORBA::Boolean	keep_alive,
		CORBA::Boolean	dont_route,
		CORBA::Boolean	no_delay,
		CORBA::Boolean	enable_network_priority
	)

RTCORBA::TCPProtocolProperties_ptr TAO_RT_ORB::create_tcp_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size,
		CORBA::Boolean	keep_alive,
		CORBA::Boolean	dont_route,
		CORBA::Boolean	no_delay,
		CORBA::Boolean	enable_network_priority
	)

Create and return a TCPProtocolProperties instance with the specified parameters.

RTCORBA::ThreadpoolId TAO_RT_ORB::create_threadpool ( CORBA::ULong  stacksize, CORBA::ULong  static_threads, CORBA::ULong  dynamic_threads, RTCORBA::Priority  default_priority, CORBA::Boolean  allow_request_buffering, CORBA::ULong  max_buffered_requests, CORBA::ULong  max_request_buffer_size  )

virtual

Create a RTCORBA threadpool to manage a set of threads without lanes.

RTCORBA::ThreadpoolPolicy_ptr TAO_RT_ORB::create_threadpool_policy ( RTCORBA::ThreadpoolId  threadpool )

virtual

Create a ThreadpoolPolicy instance for POA creation.

RTCORBA::ThreadpoolId TAO_RT_ORB::create_threadpool_with_lanes ( CORBA::ULong  stacksize, const RTCORBA::ThreadpoolLanes &  lanes, CORBA::Boolean  allow_borrowing, CORBA::Boolean  allow_request_buffering, CORBA::ULong  max_buffered_requests, CORBA::ULong  max_request_buffer_size  )

virtual

Create a threadpool and separate it into subsets based on priorities.

RTCORBA::UnixDomainProtocolProperties_ptr TAO_RT_ORB::create_unix_domain_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size
	)

RTCORBA::UserDatagramProtocolProperties_ptr TAO_RT_ORB::create_user_datagram_protocol_properties	(	CORBA::Long	send_buffer_size,
		CORBA::Long	recv_buffer_size,
		CORBA::Boolean	enable_network_priority
	)

void TAO_RT_ORB::destroy_mutex ( RTCORBA::Mutex_ptr  the_mutex )

virtual

Destroy a mutex. Currently this is a no-op since RTCORBA::Mutex instances are destroyed as soon as their reference counts go to 0.

void TAO_RT_ORB::destroy_threadpool ( RTCORBA::ThreadpoolId  threadpool )

virtual

Free the resources associated with the specified threadpool.

int TAO_RT_ORB::modify_thread_scheduling_policy ( CORBA::ORB_ptr  orb )

static

This method changes the scheduling policy of the calling thread to match the scheduling policy specified in the svc.conf file. The priority of the calling thread will be set to the minimum priority supported by that scheduling policy.

This method make sense on those platform (e.g., Linux) where PTHREAD_SCOPE_SYSTEM is the only scheduling scope supported. On other platforms, this method is a no-op since the only way to get the real-time threading behavior is to setup the PTHREAD_SCOPE_SYSTEM scheduling scope when a thread is being created. On such platforms, one can set the correct scheduling scope and policy when creating the thread, thus not needing to use this method.

RTCORBA::Mutex_ptr TAO_RT_ORB::open_named_mutex ( const char *  name )

virtual

Retrieve a previously created mutex.

TAO_ORB_Core * TAO_RT_ORB::orb_core

(

void

)

const

Reference to our creating ORB Core.

TAO_Thread_Pool_Manager & TAO_RT_ORB::tp_manager

(

void

)

const

Get the Thread Pool Manager.

Member Data Documentation

ACE_Time_Value const TAO_RT_ORB::dynamic_thread_time_

protected

Dynamic thread run time.

TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan TAO_RT_ORB::lifespan_

protected

Dynamic thread lifespan policy.

TAO_Named_RT_Mutex_Manager TAO_RT_ORB::mutex_mgr_

protected

mutex_mgr_ manages the names associated with named mutexes.

TAO_ORB_Core* const TAO_RT_ORB::orb_core_

protected

Reference to our creating ORB Core.

TAO_Thread_Pool_Manager* TAO_RT_ORB::tp_manager_

protected

Thread Pool Manager.

---

The documentation for this class was generated from the following files:

• RT_ORB.h
• RT_ORB.cpp
