TAO::DII_Deferred_Invocation_Adapter Class Reference

This class is for deferred DII invocation. More...

#include <DII_Invocation_Adapter.h>

Inheritance diagram for TAO::DII_Deferred_Invocation_Adapter:

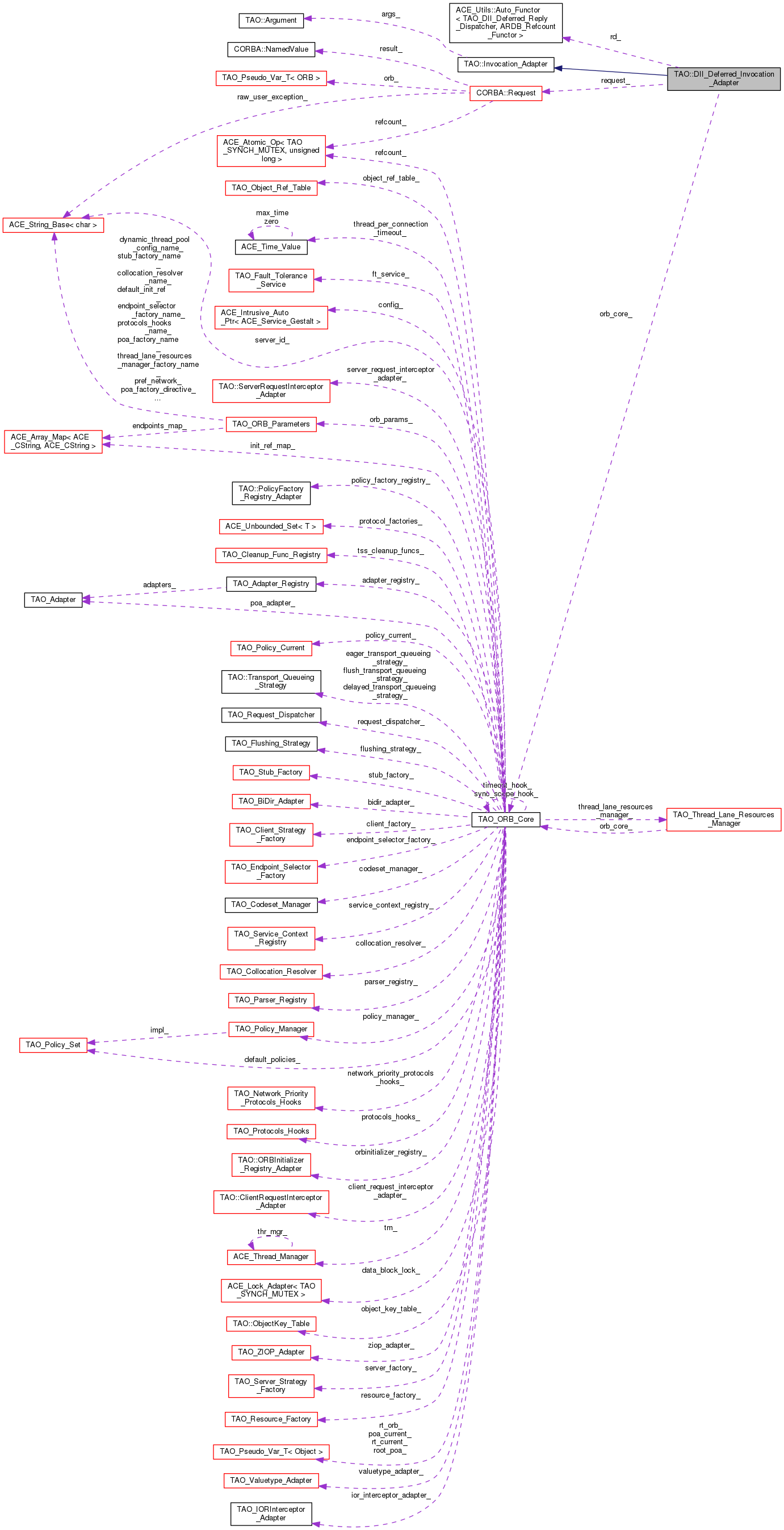

Collaboration diagram for TAO::DII_Deferred_Invocation_Adapter:

Public Member Functions
	DII_Deferred_Invocation_Adapter (CORBA::Object *target, Argument **args, int arg_number, const char *operation, size_t op_len, int collocation_opportunity, TAO_ORB_Core *oc, CORBA::Request *req, TAO::Invocation_Mode mode=TAO_DII_DEFERRED_INVOCATION)
virtual void	invoke (TAO::Exception_Data *ex, unsigned long ex_count)
	Invoke the target. More...
Public Member Functions inherited from TAO::Invocation_Adapter
	Invocation_Adapter (CORBA::Object_ptr target, Argument **args, int arg_number, const char *operation, size_t op_len, int collocation_opportunity, TAO::Invocation_Type type=TAO_TWOWAY_INVOCATION, TAO::Invocation_Mode mode=TAO_SYNCHRONOUS_INVOCATION, bool has_in_args=true)
virtual	~Invocation_Adapter (void)
void	_tao_byte_order (int byte_order)
int	_tao_byte_order ()

Protected Member Functions
virtual Invocation_Status	invoke_twoway (TAO_Operation_Details &op, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time, Invocation_Retry_State *retry_state=0)
virtual Invocation_Status	invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)
Protected Member Functions inherited from TAO::Invocation_Adapter
virtual void	invoke_i (TAO_Stub *stub, TAO_Operation_Details &details)
bool	get_timeout (TAO_Stub *stub, ACE_Time_Value &val)
TAO_Stub *	get_stub (void) const
void	object_forwarded (CORBA::Object_var &effective_target, TAO_Stub *stub, CORBA::Boolean permanent_forward)
void	set_response_flags (TAO_Stub *stub, TAO_Operation_Details &details)
virtual Invocation_Status	invoke_remote_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, ACE_Time_Value *&max_wait_time, Invocation_Retry_State *retry_state=0)
virtual Invocation_Status	invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)
virtual Invocation_Status	invoke_twoway (TAO_Operation_Details &details, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time, Invocation_Retry_State *retry_state=0)
virtual Invocation_Status	invoke_oneway (TAO_Operation_Details &details, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)
virtual Invocation_Status	invoke_remote_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, ACE_Time_Value *&max_wait_time, Invocation_Retry_State *retry_state=0)
virtual Invocation_Status	invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)
virtual Invocation_Status	invoke_twoway (TAO_Operation_Details &details, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time, Invocation_Retry_State *retry_state=0)
virtual Invocation_Status	invoke_oneway (TAO_Operation_Details &details, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)

Private Attributes
CORBA::Request *	request_
ACE_Utils::Auto_Functor< TAO_DII_Deferred_Reply_Dispatcher, ARDB_Refcount_Functor >	rd_
TAO_ORB_Core *const	orb_core_
	Cache the orb_core. More...

Additional Inherited Members
Protected Attributes inherited from TAO::Invocation_Adapter
CORBA::Object_ptr	target_
Argument **const	args_
int const	number_args_
bool	has_in_args_
char const *	operation_
size_t const	op_len_
int const	collocation_opportunity_
Invocation_Type const	type_
Invocation_Mode const	mode_
int	byte_order_

Detailed Description

This class is for deferred DII invocation.

Constructor & Destructor Documentation

TAO::DII_Deferred_Invocation_Adapter::DII_Deferred_Invocation_Adapter	(	CORBA::Object *	target,
		Argument **	args,
		int	arg_number,
		const char *	operation,
		size_t	op_len,
		int	collocation_opportunity,
		TAO_ORB_Core *	oc,
		CORBA::Request *	req,
		TAO::Invocation_Mode	mode = TAO_DII_DEFERRED_INVOCATION
	)

Member Function Documentation

void TAO::DII_Deferred_Invocation_Adapter::invoke ( TAO::Exception_Data *  ex, unsigned long  ex_count  )

virtual

Invoke the target.

Reimplemented from TAO::Invocation_Adapter.

Invocation_Status TAO::DII_Deferred_Invocation_Adapter::invoke_collocated_i ( TAO_Stub *  stub, TAO_Operation_Details &  details, CORBA::Object_var &  effective_target, Collocation_Strategy  strat  )

protectedvirtual

Invocation_Status TAO::DII_Deferred_Invocation_Adapter::invoke_twoway ( TAO_Operation_Details &  op, CORBA::Object_var &  effective_target, Profile_Transport_Resolver &  r, ACE_Time_Value *&  max_wait_time, Invocation_Retry_State *  retry_state = 0  )

protectedvirtual

Member Data Documentation

TAO_ORB_Core* const TAO::DII_Deferred_Invocation_Adapter::orb_core_

private

Cache the orb_core.

ACE_Utils::Auto_Functor<TAO_DII_Deferred_Reply_Dispatcher, ARDB_Refcount_Functor> TAO::DII_Deferred_Invocation_Adapter::rd_

private

Reply dispatcher for the current Invocation. Use special autopointer like holder to prevent leaking memory from the reply dispatcher that we create.

CORBA::Request* TAO::DII_Deferred_Invocation_Adapter::request_

private

---

The documentation for this class was generated from the following files:

• DII_Invocation_Adapter.h
• DII_Invocation_Adapter.cpp
