TAO_Synch_Reply_Dispatcher Class Reference

Reply dispatcher for Synchronous Method Invocation (SMI)s. More...

#include <Synch_Reply_Dispatcher.h>

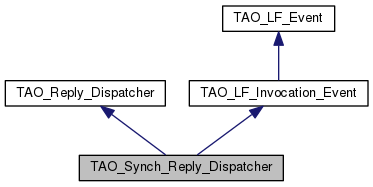

Inheritance diagram for TAO_Synch_Reply_Dispatcher:

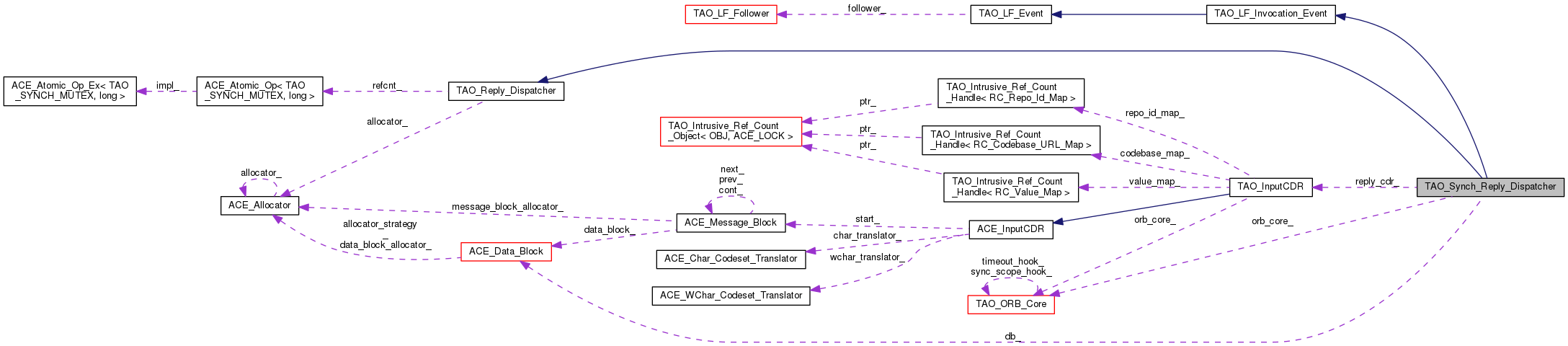

Collaboration diagram for TAO_Synch_Reply_Dispatcher:

Public Member Functions
	TAO_Synch_Reply_Dispatcher (TAO_ORB_Core *orb_core, IOP::ServiceContextList &sc)
	Constructor. More...
virtual	~TAO_Synch_Reply_Dispatcher (void)
	Destructor. More...
TAO_InputCDR &	reply_cdr (void)
	Return the reply CDR. More...
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &params)
virtual void	connection_closed (void)
virtual void	reply_timed_out (void)
	Inform that the reply timed out. More...
Public Member Functions inherited from TAO_Reply_Dispatcher
	TAO_Reply_Dispatcher (ACE_Allocator *allocator=0)
	Constructor. More...
virtual	~TAO_Reply_Dispatcher (void)
	Destructor. More...
GIOP::LocateStatusType	locate_reply_status (void) const
	Get the locate reply status. More...
GIOP::ReplyStatusType	reply_status (void) const
Public Member Functions inherited from TAO_LF_Invocation_Event
	TAO_LF_Invocation_Event (void)
	Constructor. More...
virtual	~TAO_LF_Invocation_Event (void)
	Destructor. More...
int	successful (void) const
int	error_detected (void) const
Public Member Functions inherited from TAO_LF_Event
	TAO_LF_Event (void)
	Constructor. More...
virtual	~TAO_LF_Event (void)
	Destructor. More...
virtual int	bind (TAO_LF_Follower *follower)
	Bind a follower. More...
virtual int	unbind (TAO_LF_Follower *follower)
	Unbind the follower. More...
void	reset_state (int new_state)
	Reset the state, irrespective of the previous states. More...
void	state_changed (int new_state, TAO_Leader_Follower &lf)
int	keep_waiting (void)
	Check if we should keep waiting. More...

Protected Attributes
IOP::ServiceContextList &	reply_service_info_
	The service context list. More...
Protected Attributes inherited from TAO_Reply_Dispatcher
GIOP::LocateStatusType	locate_reply_status_
	LocateReply status. More...
GIOP::ReplyStatusType	reply_status_
Protected Attributes inherited from TAO_LF_Event
int	state_
	The current state. More...
TAO_LF_Follower *	follower_
	The bounded follower. More...

Private Attributes
TAO_ORB_Core *	orb_core_
	Cache the ORB Core pointer. More...
char	buf_ [ACE_CDR::DEFAULT_BUFSIZE]
	The buffer that is used to initialise the data block. More...
ACE_Data_Block	db_
TAO_InputCDR	reply_cdr_

Additional Inherited Members
Public Types inherited from TAO_LF_Event
enum	{   LFS_IDLE = 0, LFS_ACTIVE, LFS_CONNECTION_WAIT, LFS_SUCCESS,   LFS_FAILURE, LFS_TIMEOUT, LFS_CONNECTION_CLOSED }
Static Public Member Functions inherited from TAO_Reply_Dispatcher
static void	intrusive_add_ref (TAO_Reply_Dispatcher *)
static void	intrusive_remove_ref (TAO_Reply_Dispatcher *)
Static Public Member Functions inherited from TAO_LF_Event
static const char *	state_name (int st)
Protected Member Functions inherited from TAO_LF_Invocation_Event
virtual void	state_changed_i (int new_state)
	Validate and perform the state change. More...

Detailed Description

Reply dispatcher for Synchronous Method Invocation (SMI)s.

Constructor & Destructor Documentation

TAO_Synch_Reply_Dispatcher::TAO_Synch_Reply_Dispatcher	(	TAO_ORB_Core *	orb_core,
		IOP::ServiceContextList &	sc
	)

Constructor.

TAO_Synch_Reply_Dispatcher::~TAO_Synch_Reply_Dispatcher ( void  )

virtual

Destructor.

Member Function Documentation

void TAO_Synch_Reply_Dispatcher::connection_closed ( void  )

virtual

The used for the pending reply has been closed. No reply is expected.

Todo:

If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function.

Implements TAO_Reply_Dispatcher.

int TAO_Synch_Reply_Dispatcher::dispatch_reply ( TAO_Pluggable_Reply_Params &  params )

virtual

Dispatch the reply. Return 1 on sucess, -1 on error.

Todo:

Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class.

Implements TAO_Reply_Dispatcher.

TAO_InputCDR & TAO_Synch_Reply_Dispatcher::reply_cdr

(

void

)

Return the reply CDR.

void TAO_Synch_Reply_Dispatcher::reply_timed_out ( void  )

virtual

Inform that the reply timed out.

Implements TAO_Reply_Dispatcher.

Member Data Documentation

char TAO_Synch_Reply_Dispatcher::buf_[ACE_CDR::DEFAULT_BUFSIZE]

private

The buffer that is used to initialise the data block.

ACE_Data_Block TAO_Synch_Reply_Dispatcher::db_

private

Datablock that is created on the stack to initialise the CDR stream underneath.

TAO_ORB_Core* TAO_Synch_Reply_Dispatcher::orb_core_

private

Cache the ORB Core pointer.

TAO_InputCDR TAO_Synch_Reply_Dispatcher::reply_cdr_

private

CDR stream which has the reply information that needs to be demarshalled by the stubs

IOP::ServiceContextList& TAO_Synch_Reply_Dispatcher::reply_service_info_

protected

The service context list.

---

The documentation for this class was generated from the following files:

• Synch_Reply_Dispatcher.h
• Synch_Reply_Dispatcher.cpp
