Defines the methods in the ACE_SPIPE_Stream abstraction. More...

#include <SPIPE_Stream.h>

Inheritance diagram for ACE_SPIPE_Stream:

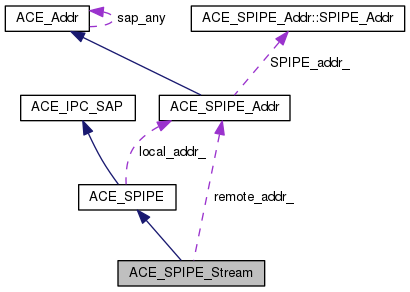

Collaboration diagram for ACE_SPIPE_Stream:

Public Types
typedef ACE_SPIPE_Addr	PEER_ADDR

Public Member Functions
	ACE_SPIPE_Stream (void)
	Default constructor. More...

int	get_remote_addr (ACE_SPIPE_Addr &remote_sap) const
	Obtain the address of whom we are connected with. More...

int	send_handle (ACE_HANDLE handle) const
	Send an open FD to another process. More...

int	recv_handle (ACE_HANDLE &handle) const
	Recv an open FD from another process. More...

int	recv_handle (strrecvfd &recvfd) const
	Recv an open FD from another process. More...

ssize_t	send_n (const void *buf, size_t len) const
	Send len bytes, keep trying until len are sent. More...

ssize_t	recv_n (void *buf, size_t len) const
	Recv len bytes, keep trying until len are received. More...

ssize_t	send (const void *buf, size_t len) const
	Send bytes via STREAM pipes using "band" mode. More...

ssize_t	recv (void *buf, size_t len) const
	Recv bytes via STREAM pipes using "band" mode. More...

ssize_t	send (const ACE_Str_Buf cntl, const ACE_Str_Buf data, int flags=0) const
	Send cntl and data via STREAM pipes. More...

ssize_t	recv (ACE_Str_Buf cntl, ACE_Str_Buf data, int *flags) const
	Recv cntl and data via STREAM pipes. More...

ssize_t	send (const ACE_Str_Buf cntl, const ACE_Str_Buf data, int band, int flags) const
	Send bytes via STREAM pipes using "band" mode. More...

ssize_t	recv (ACE_Str_Buf cntl, ACE_Str_Buf data, int band, int flags) const
	Recv bytes via STREAM pipes using "band" mode. More...

ssize_t	send (const iovec iov[], int len) const
	Send iovecs via the OS "gather-write" operation. More...

ssize_t	recv (iovec iov[], int len) const
	Recv iovecs via the OS "scatter-read" operation. More...

ssize_t	send (size_t len,...) const

ssize_t	recv (size_t len,...) const

ssize_t	send (const void buf, size_t len, ACE_OVERLAPPED overlapped) const
	Send len bytes via Win32 <WriteFile> using overlapped I/O. More...

ssize_t	recv (void buf, size_t len, ACE_OVERLAPPED overlapped) const
	Recv len bytes via Win32 <ReadFile> using overlapped I/O. More...

ssize_t	sendv (const iovec iov[], int len) const
	Send an <iovec> of size len to the stream. More...

ssize_t	sendv_n (const iovec iov[], int len) const

ssize_t	recvv_n (iovec iov[], int len) const
	Receive an <iovec> of size len from the stream. More...

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_SPIPE
int	close (void)
	Close down the SPIPE without removing the rendezvous point. More...

int	remove (void)

int	get_local_addr (ACE_SPIPE_Addr &) const
	Return the local address of this endpoint. More...

int	disable (int signum) const

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>. More...

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle (void) const
	Get the underlying handle. More...

void	set_handle (ACE_HANDLE handle)
	Set the underlying handle. More...

void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_SPIPE
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Private Attributes
ACE_SPIPE_Addr	remote_addr_

Friends
class	ACE_SPIPE_Acceptor

class	ACE_SPIPE_Connector

Additional Inherited Members
Protected Member Functions inherited from ACE_SPIPE
	ACE_SPIPE (void)
	Ensure that this class is an abstract base class. More...

Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP (void)
	Default constructor. More...

	~ACE_IPC_SAP (void)
	Protected destructor. More...

Protected Attributes inherited from ACE_SPIPE
ACE_SPIPE_Addr	local_addr_
	Our local address. More...

Detailed Description

Defines the methods in the ACE_SPIPE_Stream abstraction.

buf is the buffer to write from or receive into. len is the number of bytes to transfer.

The "_n()" I/O methods keep looping until all the data has been transferred. These methods also work for sockets in non-blocking mode i.e., they keep looping on EWOULDBLOCK.

The return values for the "*_n()" methods match the return values from the non "_n()" methods and are specified as follows:

The number of bytes transferred is returned.
On error, -1 is returned, errno is set to appropriate error.
On EOF, 0 is returned, errno is irrelevant.

Methods with <iovec> parameter are I/O vector variants of the I/O operations.

The <send> and <revc> operations use "message" semantics rather than "bytestream" semantics.

Member Typedef Documentation

typedef ACE_SPIPE_Addr ACE_SPIPE_Stream::PEER_ADDR

Constructor & Destructor Documentation

ACE_SPIPE_Stream::ACE_SPIPE_Stream ( void )

Default constructor.

Member Function Documentation

void ACE_SPIPE_Stream::dump ( void ) const

Dump the state of an object.

int ACE_SPIPE_Stream::get_remote_addr ( ACE_SPIPE_Addr & remote_sap ) const

inline

Obtain the address of whom we are connected with.

ssize_t ACE_SPIPE_Stream::recv	(	void *	buf,
		size_t	len
	)		const

inline

Recv bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::recv	(	ACE_Str_Buf *	cntl,
		ACE_Str_Buf *	data,
		int *	flags
	)		const

inline

Recv cntl and data via STREAM pipes.

ssize_t ACE_SPIPE_Stream::recv	(	ACE_Str_Buf *	cntl,
		ACE_Str_Buf *	data,
		int *	band,
		int *	flags
	)		const

inline

Recv bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::recv	(	iovec	iov[],
		int	len
	)		const

inline

Recv iovecs via the OS "scatter-read" operation.

ssize_t ACE_SPIPE_Stream::recv	(	size_t	len,
			...
	)		const

This is an interface to ::readv, that doesn't use the struct iovec explicitly. The ... can be passed as an arbitrary number of (char ptr, int len) tuples. However, the count N is the *total number of trailing arguments, not a couple of the number of tuple pairs!

ssize_t ACE_SPIPE_Stream::recv	(	void *	buf,
		size_t	len,
		ACE_OVERLAPPED *	overlapped
	)		const

inline

Recv len bytes via Win32 <ReadFile> using overlapped I/O.

int ACE_SPIPE_Stream::recv_handle ( ACE_HANDLE & handle ) const

inline

Recv an open FD from another process.

int ACE_SPIPE_Stream::recv_handle ( strrecvfd & recvfd ) const

inline

Recv an open FD from another process.

ssize_t ACE_SPIPE_Stream::recv_n	(	void *	buf,
		size_t	len
	)		const

inline

Recv len bytes, keep trying until len are received.

ssize_t ACE_SPIPE_Stream::recvv_n	(	iovec	iov[],
		int	len
	)		const

inline

Receive an <iovec> of size len from the stream.

ssize_t ACE_SPIPE_Stream::send	(	const void *	buf,
		size_t	len
	)		const

inline

Send bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::send	(	const ACE_Str_Buf *	cntl,
		const ACE_Str_Buf *	data,
		int	flags = `0`
	)		const

inline

Send cntl and data via STREAM pipes.

ssize_t ACE_SPIPE_Stream::send	(	const ACE_Str_Buf *	cntl,
		const ACE_Str_Buf *	data,
		int	band,
		int	flags
	)		const

inline

Send bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::send	(	const iovec	iov[],
		int	len
	)		const

inline

Send iovecs via the OS "gather-write" operation.

ssize_t ACE_SPIPE_Stream::send	(	size_t	len,
			...
	)		const

Send N char ptrs and int lengths. Note that the char *'s precede the ints (basically, an varargs version of writev). The count N is the *total number of trailing arguments, not a couple of the number of tuple pairs!

ssize_t ACE_SPIPE_Stream::send	(	const void *	buf,
		size_t	len,
		ACE_OVERLAPPED *	overlapped
	)		const

inline

Send len bytes via Win32 <WriteFile> using overlapped I/O.

int ACE_SPIPE_Stream::send_handle ( ACE_HANDLE handle ) const

inline

Send an open FD to another process.

ssize_t ACE_SPIPE_Stream::send_n	(	const void *	buf,
		size_t	len
	)		const

inline

Send len bytes, keep trying until len are sent.

ssize_t ACE_SPIPE_Stream::sendv	(	const iovec	iov[],
		int	len
	)		const

inline

Send an <iovec> of size len to the stream.

ssize_t ACE_SPIPE_Stream::sendv_n	(	const iovec	iov[],
		int	len
	)		const

inline

Send an <iovec> of size len to the stream. Will block until all bytes are sent or an error occurs.

Friends And Related Function Documentation

friend class ACE_SPIPE_Acceptor

friend

friend class ACE_SPIPE_Connector

friend

Member Data Documentation

ACE_SPIPE_Stream::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_SPIPE_Addr ACE_SPIPE_Stream::remote_addr_

private
